A-13 A 6 架台 ASSY-3 Base frame assy - 3
A-12
A5
架台 ASSY-2
Base frame assy - 2
ｲﾗｽﾄ番号
Ref.No.
品番
Part Number
Description
品名
個数
Q'ty
備考
Remarks
1 EZ4-138-825-02 PLUG (M10X1.5), SCREW ｽｸﾘﾕ- ﾌﾟﾗｸﾞ (M10X1.5) 4
2 EZ4-294-534-01 CONTROLLER (AS2002F-06) SPEED
ｽﾋﾟ-ﾄﾞ ｺﾝﾄﾛ-ﾗ (AS2002F-06)
4
3 EZ4-447-063-21 UNION (KQ2L06-01AS), ELBOW ｴﾙﾎﾞ ﾕﾆｵﾝ (KQ2L06-01AS) 4
4 EZ4-454-729-01 CYLINDER(CXSM32-100), DUAL ROD
ﾃﾞﾕｱﾙ ﾛﾂﾄﾞ ｼﾘﾝﾀﾞ (CXSM32-100)
4
5 EZ4-454-743-01 CONTROLLER (AS2201F-01-06SA) ｽﾋﾟ-ﾄﾞ ｺﾝﾄﾛ-ﾗ (AS2201F-01-06SA 4
6 EZ4-454-745-02 LM GUIDE (SHS15V1UU)
LM ｶﾞｲﾄﾞ (SHS15V1UU)
8
7 EZ4-454-941-01 RAIL GUIDE 1 (L) ﾚ-ﾙ ｶﾞｲﾄﾞ 1 (L) 2
8 EZ4-454-941-11 RAIL GUIDE 1 (R)
ﾚ-ﾙ ｶﾞｲﾄﾞ 1 (R)
2
9 EZ4-454-942-02 RAIL GUIDE 2 ﾚ-ﾙ ｶﾞｲﾄﾞ 2 4
10 EZ4-454-942-12 RAIL GUIDE 2
ﾚ-ﾙ ｶﾞｲﾄﾞ 2
4
11 EZ4-454-943-01 BLOCK, TABLE POSITIONING ﾃ-ﾌﾞﾙ ｲﾁｷﾞﾒ ﾌﾞﾛﾂｸ 4
12 EZ4-454-944-02 SIDE PLATE (R)
ｻｲﾄﾞ ﾌﾟﾚ-ﾄ (R)
1
13 EZ4-454-944-12 SIDE PLATE (L) ｻｲﾄﾞ ﾌﾟﾚ-ﾄ (L) 1
14 EZ4-454-945-01 CYLINDER PLATE
ｼﾘﾝﾀﾞ- ﾌﾟﾚ-ﾄ
4
15 EZ4-458-991-01 COLLAR (8-6-3), Y AXIS ｶﾗ- (8-6-3), Y ｼﾞｸ 4
16 EZ4-705-547-11 PIN, PARALLEL (A4X10)
ﾍｲｺｳ ﾋﾟﾝ (A4X10)
12
17 EZ4-719-971-01 NIPPLE, JOINT (KQ2N06-99) ﾂｷﾞﾃ ﾆﾂﾌﾟﾙ (KQ2N06-99) 4
18 EZ7-683-408-04 BOLT,HEXAGON SOCKET 3X16
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X16
8
19 EZ7-683-419-04 BOLT HEXAGON SOCKET 4X8 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 4X8 32
20 EZ7-683-420-04 BOLT,HEXAGON SOCKET 4X10
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 4X10
24
21 EZ7-683-423-04 BOLT,HEXAGON SOCKET 4X16 6 ｶｸｱﾅﾂｷ ﾎﾞﾙﾄ 4X16 48
22 EZ7-683-452-04 BOLT,HEXAGON SOCKET 6X10
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 6X10
4
23 EZ7-683-457-04 SOCKET 6X20 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 6X20 12
24 EZ7-683-465-04 BOLT,HEXAGON SOCKET 6X40
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 6X40
8
25 EZ7-683-472-04 BOLT,HEXAGON SOCKET 8X16 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 8X16 4
26 EZA-192-115-8A SENSOR (B) ASSY, FLATCAR RISE
ﾀﾞｲｼﾔ ｼﾞﾖｳｼﾖｳ ｾﾝｻ (B) ASSY
1
27 EZ4-463-738-01 BRACKET R, BOTTOM ｺﾈｸﾀ- ﾌﾞﾗｹﾂﾄ R ﾎﾞﾄﾑ 2
28 EZ4-463-739-01 CONNECTOR BRACKET R, SPACER
ｺﾈｸﾀ- ﾌﾞﾗｹﾂﾄ R ｽﾍﾟ-ｻ
2
29 EZA-1944-226-B TROLLEY CONTACT(M)A MOUNT ﾄﾛﾘｰ CONTACT(M)A MOUNT 2
30 EZA-1944-227-B TROLLEY CONTACT(M)B MOUNT
ﾄﾛﾘｰ CONTACT(M)B MOUNT
2
31 EZ4-472-320-01 CONNECTOR COVER ｺﾈｸﾀ- ｶﾊﾞ- 2
32 EZ2-580-594-01 SCREW, +PSW M3X12
ﾈｼﾞ +PSW M3X12
8
33 EZ2-580-600-01 SCREW, +PSW M4X8 SCREW, +PSW M4X8 8
34 EZ3-719-601-61 SCREW (B2X5), TAPPING
0 ﾊﾞﾝ P3 ｼﾕ ﾀﾂﾋﾟﾝ B2X5
16
35 EZ7-683-403-04 BOLT,HEXAGON SOCKET 3X6 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X6 8
36 EZ4-447-109-11 UNION (KQ2L06-M5A), ELBOW
ｴﾙﾎﾞ ﾕﾆｵﾝ (KQ2L06-M5A)
2
37 EZ7-688-004-11 W 4, MIDDLE W 4, MIDDLE 12
38 EZ4-455-626-02 POSITIONING BUSH (MASTR)
ｲﾁｷﾞﾒ ﾌﾞﾂｼﾕ (ｷｼﾞﾕﾝ)
4
39 EZ4-455-627-01 POSITIONING BUSH (SLAVE) ｲﾁｷﾞﾒ ﾌﾞﾂｼﾕ (ｼﾞﾕｳｿﾞｸ) 4
40 EZ4-447-250-11 STRAIGHT (KQ2H06-08A)
ｲｹｲ ｽﾄﾚ-ﾄ (KQ2H06-08A)
2
41 EZ4-455-638-01 CONNECTOR BRACKET UPPER ｺﾈｸﾀ- ﾌﾞﾗｹﾂﾄ ｱﾂﾊﾟ- 2
42 EZ4-455-639-01 CONNECTOR BRACKET BOTTOM
ｺﾈｸﾀ- ﾌﾞﾗｹﾂﾄ ﾎﾞﾄﾑ
2
43 EZ4-455-640-01 CONNECTOR BRACKET SPACER ｺﾈｸﾀ- ﾌﾞﾗｹﾂﾄ ｽﾍﾟ-ｻ 2
44 EZ4-463-737-01 CONNECTOR BRACKET R, UPPER
ｺﾈｸﾀ- ﾌﾞﾗｹﾂﾄ R ｱﾂﾊﾟ-
2

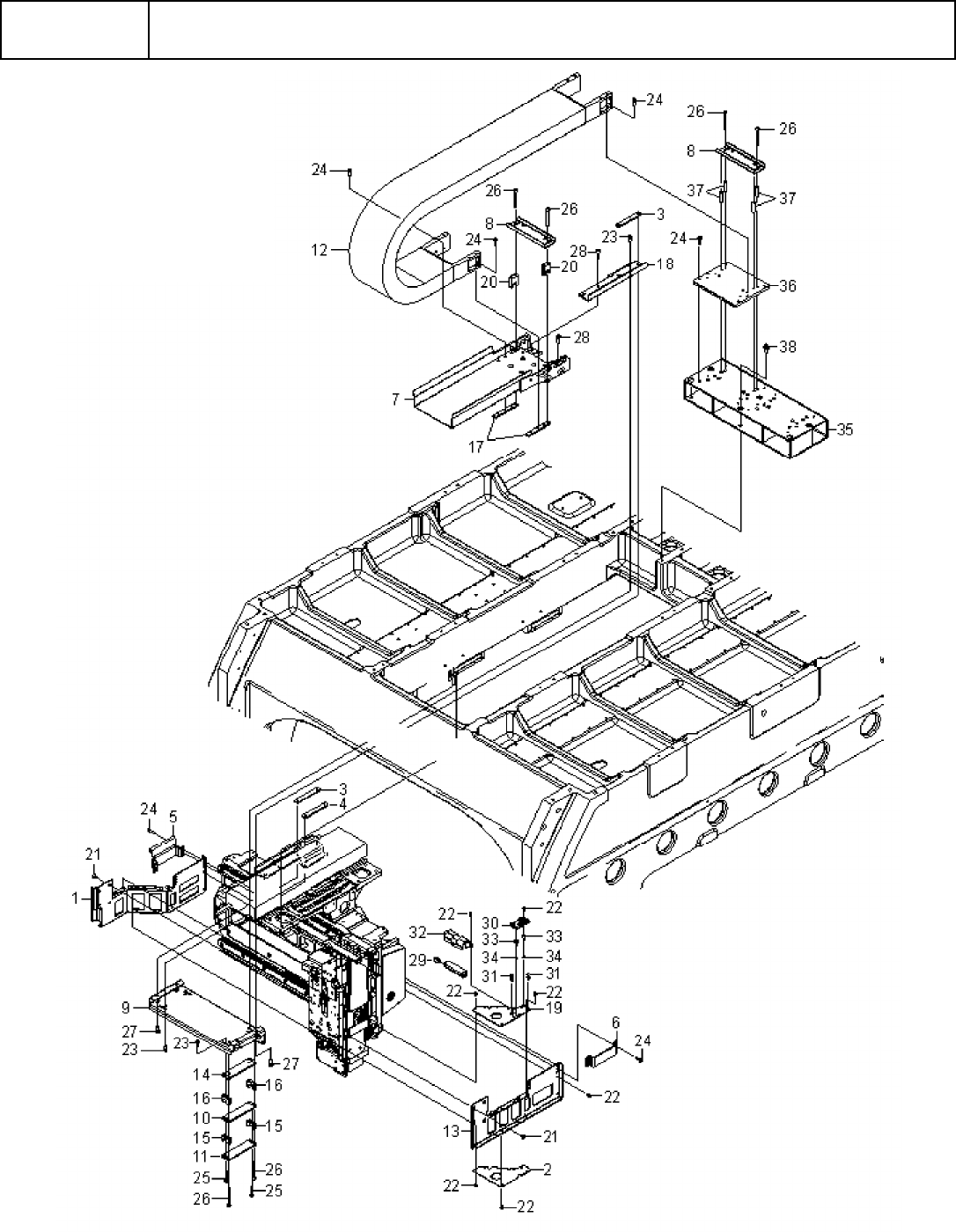

A-13
A6
架台 ASSY-3
Base frame assy - 3
A-14
A6
架台 ASSY-3
Base frame assy - 3
ｲﾗｽﾄ番号
Ref.No.
品番
Part Number
Description
品名
個数
Q'ty
備考
Remarks
1 EZ4-455-243-02 BRACKET (XA), CABLE (L) ｹ-ﾌﾞﾙ ﾌﾞﾗｹﾂﾄ (XA) (L) 1
2 EZ4-455-244-01 SUPPORT PLATE (X)
ｻﾎﾟ-ﾄﾌﾟﾚ-ﾄ (X)
1
3 EZ4-455-245-01 NUT PLATE (M5) ｲﾀ ﾅﾂﾄ (M5) 2
4 EZ4-455-245-11 NUT PLATE (M4)
ｲﾀ ﾅﾂﾄ (M4)
1
5 EZ4-455-246-01 CLAMP (LH), CABLE ｹ-ﾌﾞﾙ ｸﾗﾝﾌﾟ LH 1
6 EZ4-455-247-01 CLAMP (RH), CABLE
ｹ-ﾌﾞﾙ ｸﾗﾝﾌﾟ RH
1
7 EZ4-455-462-01 BRACKET, CABLE BARE ｹ-ﾌﾞﾙ ﾍﾞｱ ﾌﾞﾗｹﾂﾄ 1
8 EZ4-455-463-01 CABLE RETAINER
ｹ-ﾌﾞﾙ ｵｻｴ
2
9 EZ4-455-464-03 CABLE GUIDE ｹ-ﾌﾞﾙ ｶﾞｲﾄﾞ 1
10 EZ4-455-465-01 CLAMP PLATE (S)
ｸﾗﾝﾌﾟ ﾌﾟﾚ-ﾄ (S)
1
11 EZ4-455-465-11 CLAMP PLATE (H) ｸﾗﾝﾌﾟ ﾌﾟﾚ-ﾄ (H) 1
12 EZ4-455-691-01 BARE (TKR20H28W80R95), CABLE
ｹ-ﾌﾞﾙ ﾍﾞｱ (TKR20H28W80R95)
1
13 EZ4-455-721-02 BRACKET (XB), CABLE (L) ｹ-ﾌﾞﾙ ﾌﾞﾗｹﾂﾄ (XB) (L) 1
14 EZ4-458-968-01 PLATE, CLAMP BASE
ｸﾗﾝﾌﾟ ﾍﾞ-ｽ ﾌﾟﾚ-ﾄ
1
15 EZ4-459-118-01 SPACER (S), CLAMP ｸﾗﾝﾌﾟ ｽﾍﾟ-ｻ (S) 2
16 EZ4-459-118-11 SPACER (L), CLAMP
ｸﾗﾝﾌﾟ ｽﾍﾟ-ｻ (L)
2
17 EZ4-464-111-02 PLATE, CABLE RETAINER NUT ｹ-ﾌﾞﾙ ｵｻｴ ﾅﾂﾄ ﾌﾟﾚ-ﾄ 2
18 EZ4-466-199-11 ARM , CABLE GUIDE (R)
ｹ-ﾌﾞﾙ ｶﾞｲﾄﾞ ｱ-ﾑ (R)
1
19 EZ4-471-563-01 SUPPORT PLATE (X, L) ｻﾎﾟ-ﾄ ﾌﾟﾚ-ﾄ (X, L) 1
20 EZ4-472-239-01 SPACER BLK, CABLE RETAINER
ｹ-ﾌﾞﾙ ｵｻｴ ｽﾍﾟ-ｻ BLK
2
21 EZ7-682-260-04 SCREW +K 4X6 +K 4X6 8
22 EZ7-683-401-04 BOLT,HEXAGON SOCKET 3X4
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X4
20
23 EZ7-683-419-04 BOLT HEXAGON SOCKET 4X8 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 4X8 6
24 EZ7-683-421-04 BOLT HEXAGON SOCKET 4X12
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ(C4X12)
20
25 EZ7-683-425-04 BOLT,HEXAGON SOCKET 4X20 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 4X20 2
26 EZ7-683-428-04 BOLT, HEXAGON SOCKET 4X40
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 4X40
12
27 EZ7-683-435-04 BOLT,HEXAGON SOCKET 5X10 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 5X10 4
28 EZ7-683-437-04 BOLT,HEXAGON SOCKET 5X14
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 5X14
5
29 EZ1-492-202-12 BATTERY ASSY ﾊﾞﾂﾃﾘ- ASSY 1
30 EZ1-895-367-21 BOARD, BACKUP MONITORING
ﾊﾞﾂｸｱﾂﾌﾟ ﾓﾆﾀ- ﾎﾞ-ﾄﾞ (Z)
1
31 EZ4-056-942-11 SPACER, MINIATURE CARD ﾐﾆ ｶ-ﾄﾞ ｽﾍﾟ-ｻ- 2
32 EZ4-468-642-01 BATTERY BOX (Z, L)
ﾊﾞﾂﾃﾘ- BOX (Z, L)
1
33 EZ4-705-584-01 SPACER (SQ-7) ｽﾍﾟ-ｻ (SQ-7) 2
34 EZ7-623-208-22 SW 3,TYPE 2
SW 3,TYPE 2
2
35 EZ4-455-628-01 BRACKET, CABLE CARRIER ｹ-ﾌﾞﾙ ｷﾔﾘｱ ﾌﾞﾗｹﾂﾄ 1
36 EZ4-459-119-01 BASE, CABLE CLAMP
ｹ-ﾌﾞﾙ ｸﾗﾝﾌﾟ ﾍﾞ-ｽ
1
37 EZ4-472-252-01 COLLAR, CABLE RETAINER SPACER ｹ-ﾌﾞﾙ ｵｻｴ ｽﾍﾟ-ｻ ｶﾗ- 4
38 EZ7-683-452-04 BOLT,HEXAGON SOCKET 6X10
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 6X10
3
