A-24 A 1 1 ヘッド AS SY-2 Head assy - 2
A-23
A10
ヘッド ASSY-1
Head assy - 1
ｲﾗｽﾄ番号
Ref.No.
品番
Part Number
Description
品名
個数
Q'ty
備考
Remarks
1 EZ4-453-960-01 PLATE (3), SUPPORT ｻﾎﾟ-ﾄ ﾌﾟﾚ-ﾄ (3) 1
2 EZ4-454-035-03 COVER (1), HEAD
ﾍﾂﾄ ｶﾊﾞ- (1)
1
3 EZ4-454-036-03 COVER (2), HEAD ﾍﾂﾄ ｶﾊﾞ- (2) 1
4 EZ4-454-037-03 COVER (3), HEAD
ﾍﾂﾄﾞ ｶﾊﾞ- (3)
1
5 EZ4-454-078-01 BOLT (SET-M3X6-NI) ﾃｲﾄｳﾎﾞﾙﾄ (SET-M3X6-NI) 22
6 EZ4-454-079-01 BOLT (SETS-M2.6X5)
ﾃｲﾄｳﾎﾞﾙﾄ (SETS-M2.6X5)
3
7 EZ4-454-830-01 LOW HEAD SCREW (M3X4) ﾃｲﾄｳ ﾛﾂｶｸ ｱﾅﾂｷ ﾎﾞﾙﾄ (M3X4) 9
8 EZ4-458-496-01 COVER (1-A), HEAD
ﾍﾂﾄﾞ ｶﾊﾞ- (1-A)
1
A-24
A11
ヘッド ASSY-2
Head assy - 2

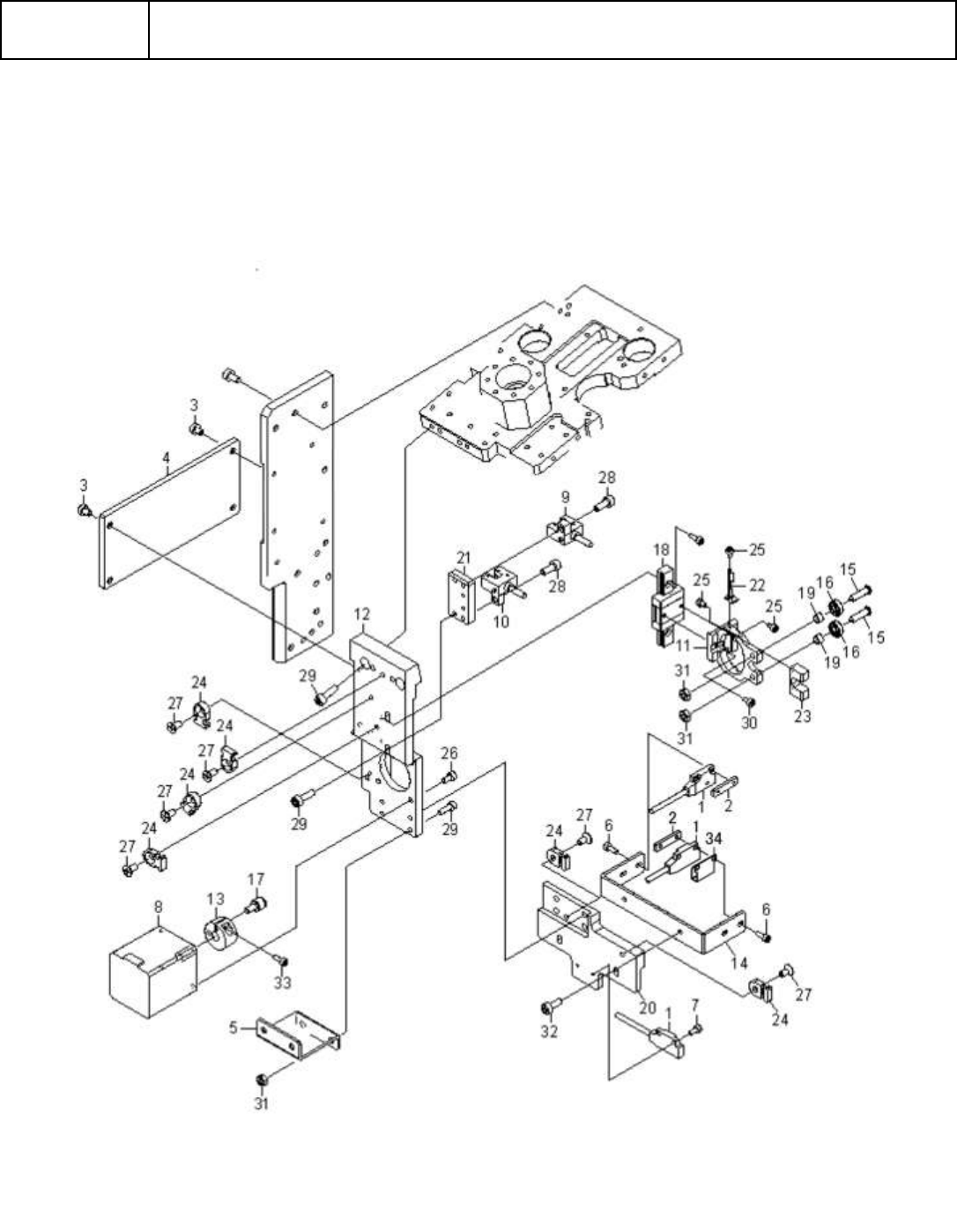

A-25
A11
ヘッド ASSY-2
Head assy - 2
ｲﾗｽﾄ番号
Ref.No.
品番
Part Number
Description
品名
個数
Q'ty
備考
Remarks
1 EZ1-492-165-13 SENSOR ASSY (NOZZLE SHAFT) ｾﾝｻ- ASSY (ﾉｽﾞﾙ / ｼｬﾌﾄｹﾝｼｭﾂ) 2
2 EZ4-454-015-01 NUT, PLATE
ｲﾀ ﾅﾂﾄ
2
3 EZ4-454-830-01 LOW HEAD SCREW (M3X4) ﾃｲﾄｳ ﾛﾂｶｸ ｱﾅﾂｷ ﾎﾞﾙﾄ (M3X4) 9
4 EZ4-457-753-01 CONNECT PLATE (2)
ﾚﾝｹﾂ ﾌﾟﾚ-ﾄ (2)
1
5 EZ4-465-279-01 HEAD COVE RBRACKET ﾍﾂﾄﾞ ｶﾊﾞ- ﾌﾞﾗｹﾂﾄ 1
6 EZ7-683-000-23 BOLT, HEXAGON SOCKET 2X8
6 ｶｸｱﾅﾂｷ ﾎﾞﾙﾄ 2X8
4
7 EZ7-683-480-24 BOLT, HEXAGON SOCKET 2X5 6 ｶｸ ｱﾅﾂｷ ﾎﾞﾙﾄ 2X5 4
8 EZ1-492-167-11 MOTOR ASSY (VALVE)
ﾓ-ﾀ- ASSY (ﾊﾞﾙﾌﾞ)
1
9 EZ1-492-168-11 SENSOR ASSY (VALVE) ｾﾝｻ- ASSY (ﾊﾞﾙﾌﾞ) 1
10 EZ1-492-168-11 SENSOR ASSY (VALVE)
ｾﾝｻ- ASSY (ﾊﾞﾙﾌﾞ)
1
11 EZ4-454-007-01 VALEV LEVER HOLDER ﾊﾞﾙﾌﾞ ﾚﾊﾞ- ﾎﾙﾀﾞ- 1
12 EZ4-454-008-01 VALVE MOTOR BASE BARCKET
ﾊﾞﾙﾌﾞ ﾓ-ﾀ ﾍﾞ-ｽ ﾌﾞﾗｹﾂﾄ
1
13 EZ4-454-010-01 CAM FOLLOWER SHAFT ｶﾑ ﾌｵﾛｱ ｼﾔﾌﾄ 1
14 EZ4-454-014-01 NOZZLE SENSOR BRACKET
ﾉｽﾞﾙ ｾﾝｻ- ﾌﾞﾗｹﾂﾄ
1
15 EZ4-454-040-01 LEVER SHAFT ﾚﾊﾞ- ｼﾔﾌﾄ 2
16 EZ4-454-046-01 BEARING (MR83)
ﾍﾞｱﾘﾝｸﾞ (MR83)
2
17 EZ4-454-067-01 CAMFLLOWER (CFS3) ﾐﾆﾁﾕｱ ｶﾑﾌｵﾛｱ (CFS3) 1
18 EZ4-454-073-01 LM GUIDE MLC7R45
LM ｶﾞｲﾄﾞ (MLC7R45)
1
19 EZ4-454-715-01 LEVER SHAFT BEARING COLLAR ﾚﾊﾞ- ｼﾔﾌﾄ ﾍﾞｱﾘﾝｸﾞ ｶﾗ- 2
20 EZ4-457-186-01 PLATE, SENSOR BRACKET
ｾﾝｻ- ﾌﾞﾗｹﾂﾄ ﾄﾘﾂｹ ﾌﾟﾚ-ﾄ
1
21 EZ4-457-187-01 PLATE, LEVER SENSOR FITTING ﾚﾊﾞ- ｾﾝｻ ﾄﾘﾂｹ ﾌﾟﾚ-ﾄ 1
22 EZ4-457-188-01 LEVER SENSOR DOG
ﾚﾊﾞ- ｾﾝｻ ﾄﾞｸﾞ
1
23 EZ4-457-202-01 LEVER BLOCK ﾚﾊﾞ- ﾌﾞﾛﾂｸ 1
24 EZ4-701-529-01 TIE MOUNT (MB1)
ﾀｲﾏｳﾝﾄ (MB1)
6
25 EZ4-718-721-01 BOLT HEXAGON SOCKET(M2X3 SUS) ﾛﾂｶｸ ｱﾅﾂｷ ﾎﾞﾙﾄ (M2X3 SUS) 4
26 EZ7-621-996-05 BOLT HEXAGON SOCKET 2.6X5
6 ｶｸ ｱﾅﾂｷ ﾎﾞﾙﾄ 2.6X5
4
27 EZ7-682-247-04 SCREW +K 3X6 +K 3X6 6
28 EZ7-683-404-04 BOLT,HEXAGON SOCKET 3X8
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X8
7
29 EZ7-683-405-04 BOLT,HEXAGON SOCKET 3X10 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X10 5
30 EZ7-683-480-14 BOLT, HEXAGON SOCKET 2X4
6 ｶｸ ｱﾅﾂｷ ﾎﾞﾙﾄ 2X4
1
31 EZ7-684-023-04 N 3 TYPE 2 N 3 TYPE 2 2
32 EZ7-683-403-04 BOLT,HEXAGON SOCKET 3X6
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X6
14
33 EZ3-681-308-02 BOLT (M2X6), HOLE, HEXAGON ﾛﾂｶｸ ｱﾅﾂｷ ﾎﾞﾙﾄ M2X6 32
34 401-55272 SLIT (OS-EX10-12)
ｽﾘｯﾄ (OS-EX10-12)
1
