A -31 A1 4 ヘッド ASSY-5 Head assy - 5 ｲﾗｽﾄ番号 Ref.No. 品番 Part Number Description 品名 個数 Q'ty 備考 Remarks 1 EZ1 - 492 - 547 - 14 MOTOR ASSY (H ) MOTOR ASSY (H) 1 2 401 - 78054 BEARING COLLAR ﾍﾞｱﾘﾝｸﾞｶﾗｰ 1 3 EZ2 - 148 - 082…

100%1 / 226

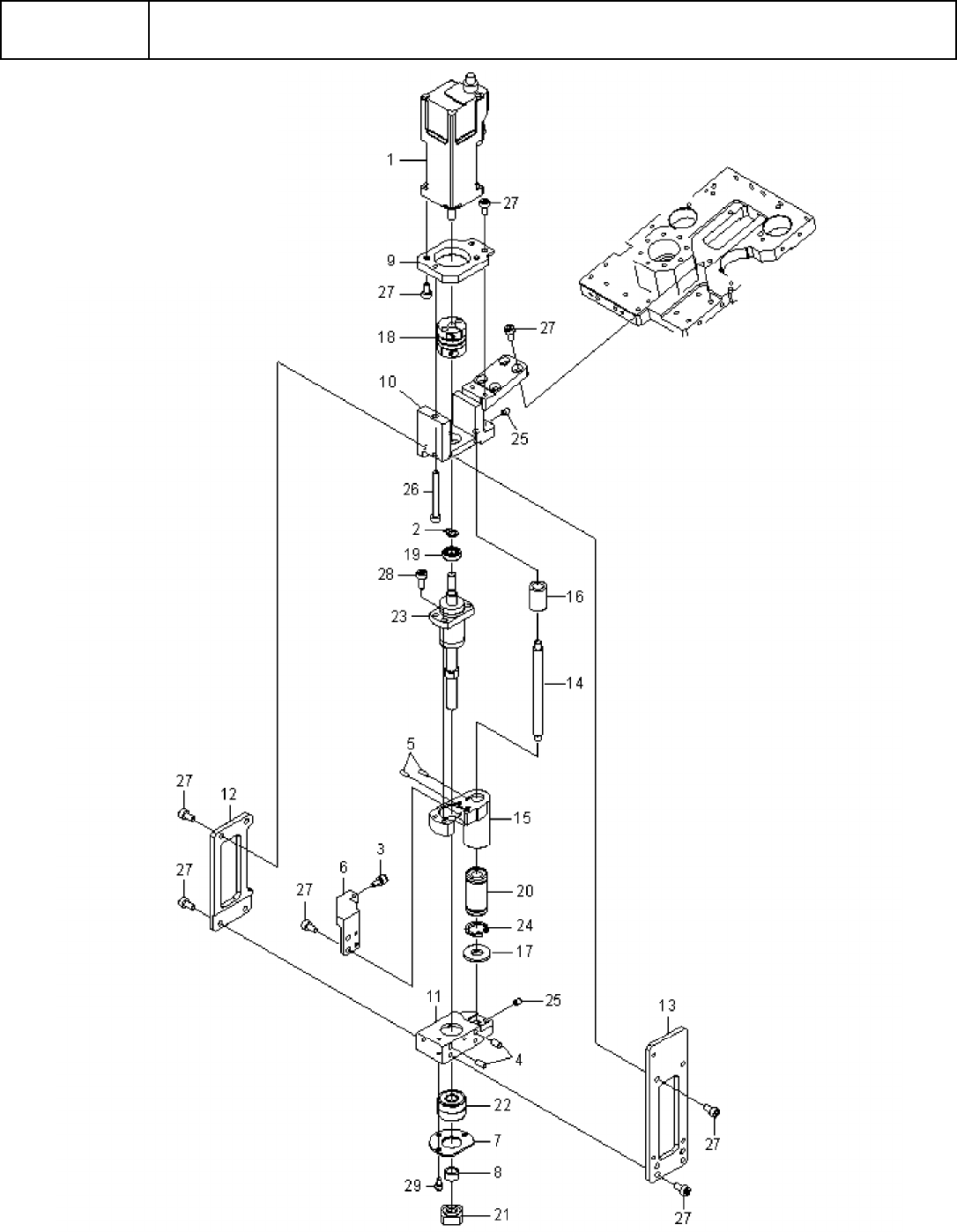

A-30
A14
ヘッド ASSY-5
Head assy - 5
A-31
A14
ヘッド ASSY-5
Head assy - 5
ｲﾗｽﾄ番号
Ref.No.
品番
Part Number
Description
品名
個数
Q'ty
備考
Remarks
1 EZ1-492-547-14 MOTOR ASSY (H) MOTOR ASSY (H) 1
2 401-78054 BEARING COLLAR
ﾍﾞｱﾘﾝｸﾞｶﾗｰ
1
3 EZ2-148-082-01 FOLLOWER, MINIATURE CAM (CFS2.5) ﾐﾆﾁﾕｱ ｶﾑ ﾌｵﾛｱ (CFS2.5) 1
4 EZ3-657-877-01 PIN, PARALLEL
ﾍｲｺｳ ﾋﾟﾝ (ﾅﾝｼﾂ)
2
5 EZ3-703-358-52 PIN PARALLEL (DIA. 2X6) ﾍｲｺｳﾋﾟﾝ (ﾌｱｲ 2X6) 2
6 EZ4-453-913-01 LEVER, HOLDER
ﾚﾊﾞ- ﾎﾙﾀﾞ
1
7 EZ4-453-947-01 RETAINER (2), BEARING ﾍﾞｱﾘﾝｸﾞ ｵｻｴ (2) 1
8 EZ4-453-948-01 COLLAR, H AXIS
H ｼﾞｸ ｶﾗ-
1
9 EZ4-453-955-01 BRACKET, MOTOR ﾓ-ﾀ ﾌﾞﾗｹﾂﾄ 1
10 EZ4-453-956-01 HOLDER (1), BEARING
ﾍﾞｱﾘﾝｸﾞ ﾎﾙﾀﾞ (H 1)
1
11 EZ4-453-957-01 HOLDER (H 2), BEARING ﾍﾞｱﾘﾝｸﾞ ﾎﾙﾀﾞ (H 2) 1
12 EZ4-453-958-01 PLATE (1), SUPPORT
ｻﾎﾟ-ﾄ ﾌﾟﾚ-ﾄ (1)
1
13 EZ4-453-959-01 PLATE (2), SUPPORT ｻﾎﾟ-ﾄ ﾌﾟﾚ-ﾄ (2) 1
14 EZ4-453-961-01 SHAFT, LINEAR
ﾘﾆｱ ｼﾔﾌﾄ
1
15 EZ4-453-962-01 H AXIS NUT HOLDER H ｼﾞｸ ﾅﾂﾄ ﾎﾙﾀﾞ 1
16 EZ4-454-012-01 STOPPER (H), UPPER
H ｼﾞｸ ｱﾂﾊﾟ- ｽﾄﾂﾊﾟ-
1
17 EZ4-454-013-01 STOPPER (H), UNDER H ｼﾞｸ ｱﾝﾀﾞ- ｽﾄﾂﾊﾟ- 1
18 EZ4-454-044-01 COUPLING (SFC-005SA2-5B-5B)
ｶﾂﾌﾟﾘﾝｸﾞ (SFC-005SA2-5B-5B)
1
19 EZ4-454-047-01 BEARING (MR105) ﾍﾞｱﾘﾝｸﾞ (MR105) 2
20 EZ4-454-048-01 LINEAR BUSH
ﾘﾆｱ ﾌﾞﾂｼﾕ (SM6G-LUU)
1
21 EZ4-454-050-01 LOCK NUT (LNM6X0.75) ﾛﾂｸ ﾅﾂﾄ (LNM6X0.75) 1
22 EZ4-454-051-01 BEARING (AC6-16DF)
ｱﾝｷﾞﾕﾗ ﾍﾞｱﾘﾝｸﾞ (AC6-16DF)
1
23 EZ4-454-055-01 BALL SCREW (WHF0612S-3.4GT+) ﾎﾞ-ﾙ ﾈｼﾞ (WHF0612S-3.4GT+) 1
24 EZ4-454-725-01 RING (12)
ｱﾅﾖｳ C ｶﾞﾀ ﾄﾒ ﾜ (12)
1
25 EZ4-718-766-01 SET-SCREW (M3X4 SUS), HEAD ﾛﾂｶｸ ｱﾅﾂｷ ﾄﾒﾈｼﾞ (M3X4 SUS) 2
26 EZ7-683-000-10 BOLT, HEXAGON SOCKET 3X30
6 ｶｸｱﾅﾂｷ ﾎﾞﾙﾄ 3X30
1
27 EZ7-683-403-04 BOLT,HEXAGON SOCKET 3X6 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X6 33
28 EZ7-683-404-04 BOLT,HEXAGON SOCKET 3X8
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X8
4
29 EZ7-683-481-04 BOLT, HEXAGON SOCKET 2.5X4 6 ｶｸ ｱﾅﾂｷ ﾎﾞﾙﾄ 2.5X4 3

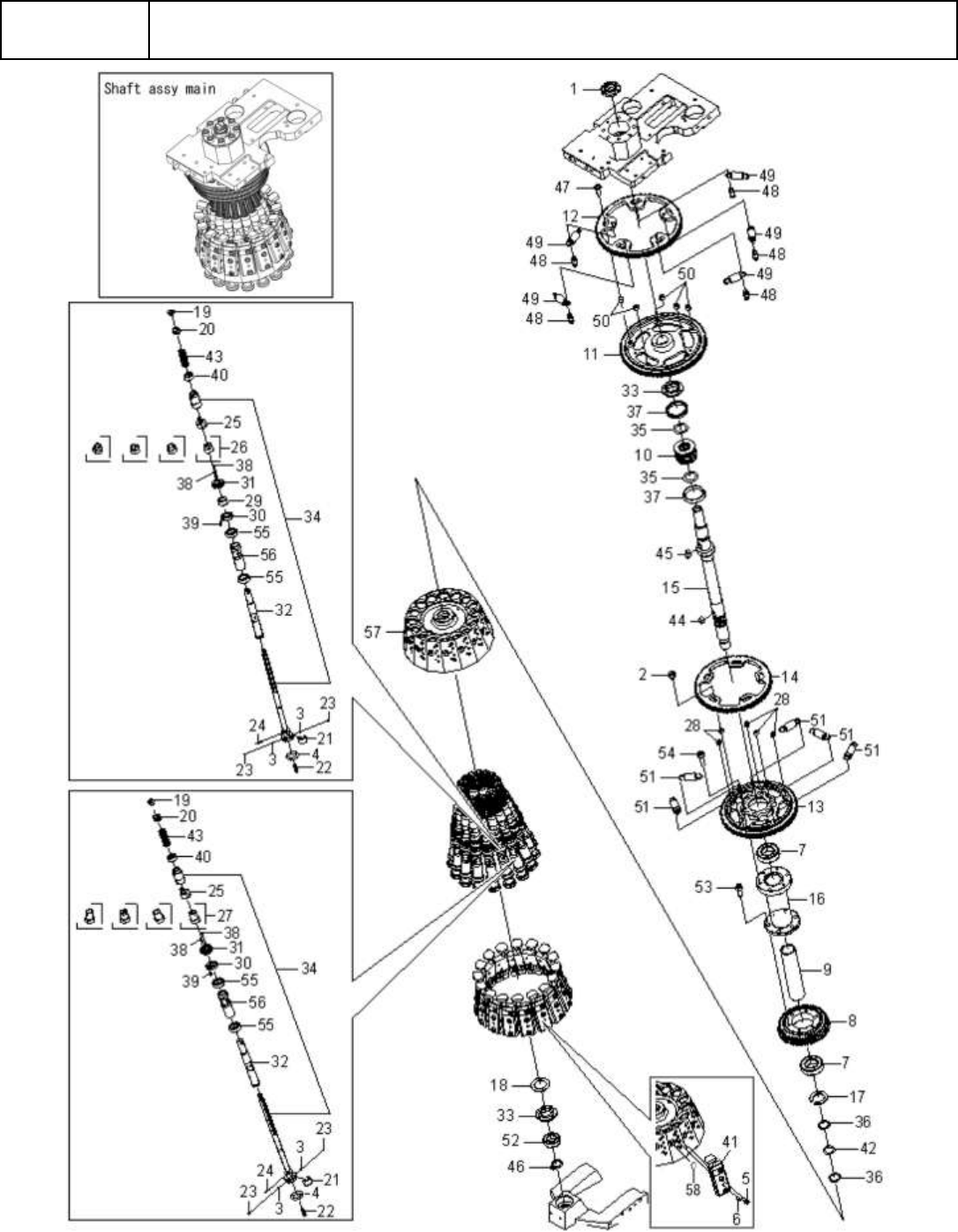

A-32
A15
ヘッド ASSY-6
Head assy - 6
