A-38 A 1 7 P8 ヘッド AS SY-2 P8 Head as s y -2 2 7 4 5 2 0 4 8 3 5 3 4 1 7 1 8 1 6 1 4 1 5 1 3 1 9 1 9 7 7 7 6 7 4 7 5 7 8 7 2 7 0 7 1 3 2 3 1 4 2 2 6 5 1 7 1 1 6 5 6 7 6 9 6 8 2 5 3 2 5 2 5 3 5 4 5 5 5 6 5 7 8 2 7 9 8 1 2 …
A-38
A17

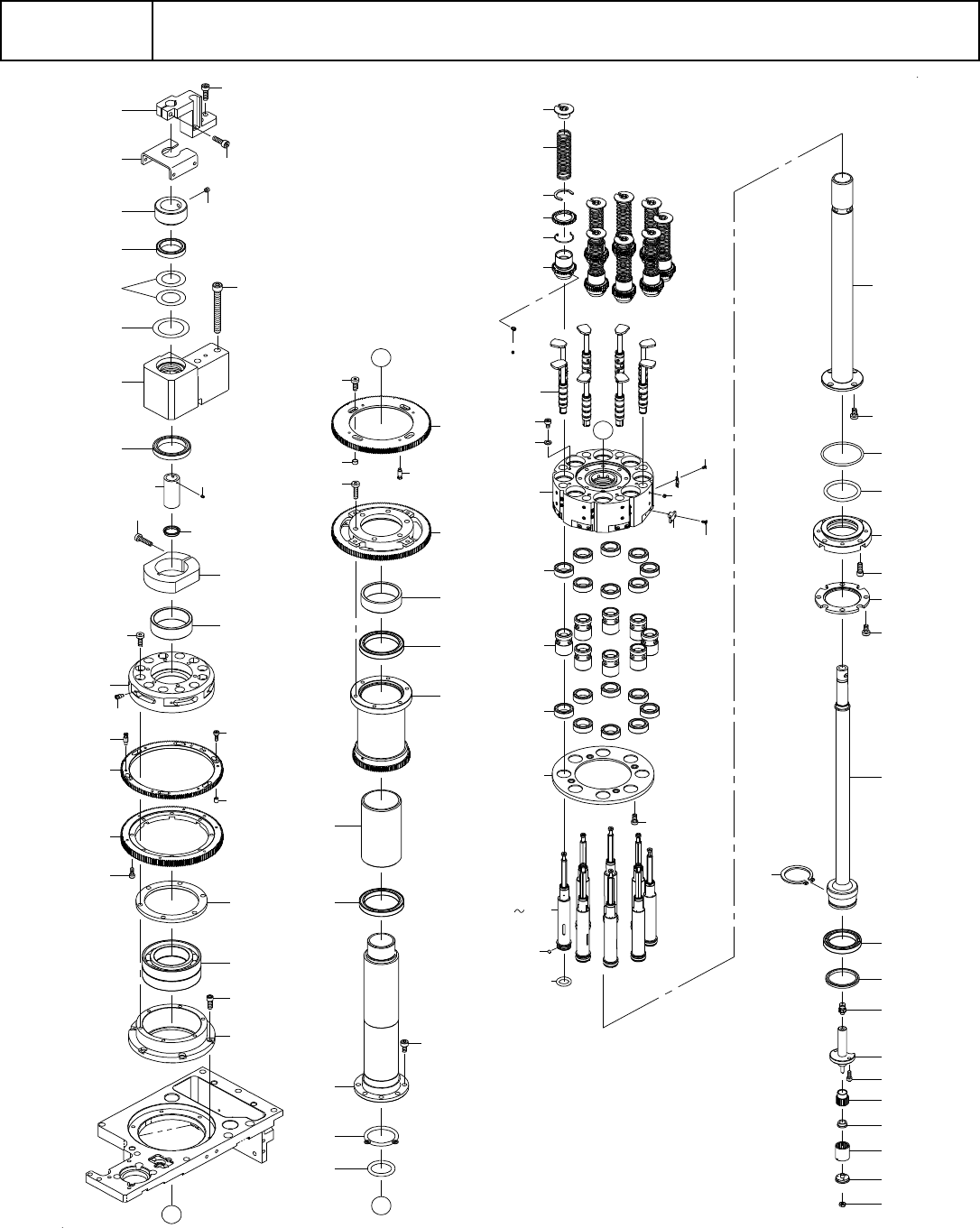

P8 ヘッド ASSY-2
P8 Head assy -2
2 7
4 5
2 0
4 8
3 5
3 4
1 7
1 8
1 6
1 4
1 5
1 3
1 9
1 9
7 7
7 6
7 4
7 5
7 8
7 2
7 0
7 1
3 2
3 1
4 2
2 6
5
1
7
1 1
6 5 6 7
6 9
6 8
2 5
3 2
5 2
5 3
5 4
5 5
5 6 5 7
8 2
7 9
8 1
2 3
4 1
3 9
3 7
3 6
2 2
4 1
2 8
9
8
6
3 9
4 9
5 0
2 1
4 3
3 3
2 9
4 0
3 0
4 6
5 9
5 8
6 1
6 0
6 2
6 3
6 4
5 1
2 4
3 8
4 4
8 3
4 7
2
3
1 2
1 2
4
8 4
8 5
8 6
8 7
8 8
7 3
1 0
A
A
B
B
8 0
A-39
A17
P8 ヘッド ASSY-2
P8 Head assy-2
ｲﾗｽﾄ番号
Ref.No.
品番
Part Number
Description
品名
個数
Q'ty
備考
Remarks
1 401-55912 HOLDER(2)_BEARING ﾍﾞｱﾘﾝｸﾞﾎﾙﾀﾞ(2) 1
2 401-56141 COLLAR(3)_BEARING ﾍﾞｱﾘﾝｸﾞｶﾗｰ(3) 1
3 401-56142 HOLDER_SHAFT ｼｬﾌﾄﾎﾙﾀﾞｰ 1
4 401-56400 MAIN SHAFT COVER
ﾒｲﾝｼｬﾌﾄｶﾊﾞｰ
1
5 401-56410 BEARING(7905UCDB)
ﾍﾞｱﾘﾝｸﾞ(7905UCDB)
1
6 401-56458
LOW HEAD CAP SCREW(M3X12)_HEX SOCKET
ﾛｯｶｸｱﾅﾂｷﾃｲﾄｳﾎﾞﾙﾄ(M3x12)
1
7 401-56624 RETAINER(2)_BEARING ﾍﾞｱﾘﾝｸﾞｵｻｴ(2) 1
8 401-60283 NUT_BEARING ﾍﾞｱﾘﾝｸﾞﾅｯﾄ 1
9 401-60284 COLLAR_BEARING NUT ﾍﾞｱﾘﾝｸﾞﾅｯﾄｶﾗｰ 1
10 EZ3-170-255-01 SCREW (M3X3)
ﾛﾂｶｸ ｱﾅﾂｷ ﾄﾒﾈｼﾞ (M3X3)
2
11 EZ4-454-723-01 LOW HEAD SCREW (M3X8)
ﾃｲﾄｳ ﾛﾂｶｸ ｱﾅﾂｷ ﾎﾞﾙﾄ (M3X8)
6
12 EZ7-683-405-04 BOLT HEXAGON SOCKET 3X10
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X10
3
13 401-55921 SPACER_RT GEAR RT ｷﾞｱｰｽﾍﾟｰｻｰ 6
14 401-56134 POST(1)_RT SPRING RT ｽﾌﾟﾘﾝｸﾞﾎﾟｽﾄ(1) 6
15 401-56135 POST(2)_RT SPRING RT ｽﾌﾟﾘﾝｸﾞﾎﾟｽﾄ(2) 6
16 401-56163 HOLDER_GEAR RT
RT ｷﾞｱｰﾎﾙﾀﾞｰ
1
17 401-56293 GEAR_RT(1)
ｷﾞｱｰ RT(1)
1
18 401-56294 GEAR_RT(2)
ｷﾞｱｰ RT(2)
1
19 EZ3-681-308-02 BOLT (M2X6) HOLE HEXAGON ﾛﾂｶｸ ｱﾅﾂｷ ﾎﾞﾙﾄ M2X6 14
20 401-55891 SHAFT_MAIN ﾒｲﾝｼｬﾌﾄ 1
21 401-55892 PLATE_MASK ﾏｽｸﾌﾟﾚｰﾄ 1
22 401-55893 HOLDER_BEARING
ﾍﾞｱﾘﾝｸﾞﾎﾙﾀﾞ
1
23 401-55895 RETAINER_BEARING
ﾍﾞｱﾘﾝｸﾞｵｻｴ
1
24 401-55909 RETAINER(1)_SEAL
ｼｰﾙｵｻｴ(1)
1
25 401-55915 COLLAR_INNER SPLINE ｲﾝﾅｰｽﾌﾟﾗｲﾝｶﾗｰ 8
26 401-55916 COLLAR_BEARING ﾍﾞｱﾘﾝｸﾞｶﾗｰ 1
27 401-56130 HEAD_P8 P8 ﾍｯﾄ 1
28 401-56137 SHAFT_SECOND
ｾｶﾝﾄﾞｼｬﾌﾄ
1
29 401-56138 GUIDE_SPOOL
ｽﾌﾟｰﾙｶﾞｲﾄﾞ
8
30 401-56181 RETAINER_FILTER
ﾌｨﾙﾀｰｵｻｴ
8
31 401-56412 BEARING(6705HW2RUC0) ﾍﾞｱﾘﾝｸﾞ(6705HW2RUC0) 1
32 401-56415 BEARING(S679HWZZSMC3) ﾍﾞｱﾘﾝｸﾞ(S679HWZZSMC3) 16
33 401-56424 MECHANICAL VALVE(MDV23-Z12-0304) ﾒｶﾊﾞﾙﾌﾞ(MDV23-Z12-0304) 8
34 401-56437 O_RING(P20)
O ｰﾘﾝｸﾞ(P20)
1
35 401-56438 O_RING(P15)
O-ﾘﾝｸﾞ(P15)
1
36 401-56439 O_RING(S28)
O-ﾘﾝｸﾞ(S28)
1
37 401-56444 O RING(SOP22)_CAP ｷｬｯﾌﾟ O-ﾘﾝｸﾞ(SOP22) 1
38 401-56445 MINI Y PACKING(MYN-9) ﾐﾆ Y ﾊﾟｯｷﾝ(MYN-9) 1
39 401-56456
SMALL HEAD CAP SCREW(M3X8)_HEX SOCKET
ﾛｯｶｸｱﾅﾂｷｼｮｳｱﾀﾏﾎﾞﾙﾄ(M3X8) 10
40 401-56457 LOW HEAD SCREW(M1.4X3)_PRECISION INST
ﾃｲﾄｳｾｲﾐﾂｺﾈｼﾞ(M1.4x3)
16
41 401-56459 LOW HEAD CAP SCREW(M3X6)_HEX SOCKET
ﾛｯｶｸｱﾅﾂｷﾃｲﾄｳﾎﾞﾙﾄ(M3x6)
8
42 401-56540 COLLAR_INNER
ｲﾝﾅｰｶﾗｰ
1
43 401-56627
LOW_SMALL HEAD CAP SCREW(M3X6)_HEAXGON S
ﾛｯｶｸｱﾅﾂｷﾃｲﾄｳｼｮｳｱﾀﾏﾎﾞﾙﾄ(M3x6) 4
44 401-56639
HEXAGON SOCKET SCREW(M1.6X2)_FLAT TYPE
ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ(M1.6x2)ﾋﾗｻｷ 2
45 401-56641 -SET SCREW(M2.3X1.6)_FLAT TYPE ｽﾘﾜﾘﾂｷﾄﾒﾈｼﾞ(M2.3x16)ﾋﾗｻｷ 16
46 401-56647 PAN HEAD SCREW(M1.4X2)_PRECISION INST
ｾｲﾐﾂｷｷﾖｳﾅﾍﾞｺﾈｼﾞ(M1.4x2)
16
47 EZ7-683-481-04 BOLT HEXAGON SOCKET 2.5X4
6 ｶｸ ｱﾅﾂｷ ﾎﾞﾙﾄ 2.5X4
8
48 EZ7-683-403-04 BOLT HEXAGON SOCKET 3X6
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X6
8
49 EZ3-278-109-01 SPRING INNER SPLIN ｲﾝﾅ- ｽﾌﾟﾗｲﾝ ﾊﾞﾈ 8
50 EZ3-278-945-01 RETAINER (B) NOZZLE SPRING ﾉｽﾞﾙ ﾊﾞﾈ ｵｻｴ (B) 8
51 EZ3-681-308-02 BOLT (M2X6) HOLE HEXAGON ﾛﾂｶｸ ｱﾅﾂｷ ﾎﾞﾙﾄ M2X6 2
52 401-55919 SPRINNG(1)_TORSION
ﾄｰｼｮﾝﾊﾞﾈ(1)
8
53 401-56290 GEAR_RN(4)
ｷﾞｱｰ RN(4)
8
54 401-56291 GEAR_RN(5)
ｷﾞｱｰ RN(5)
8
