A-66
A29

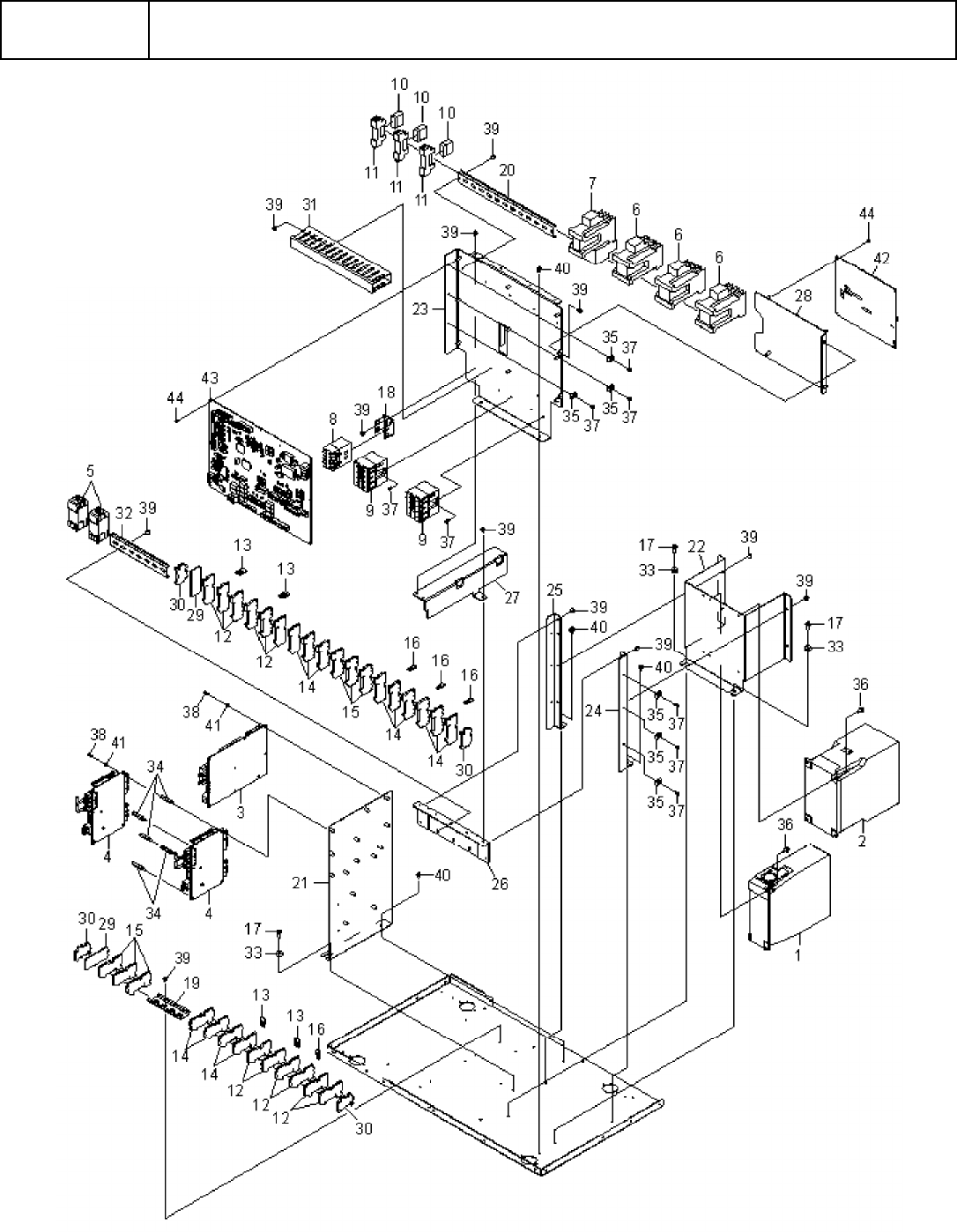

電装 BOX-1
Electrical box - 1
A-67
A29
電装 BOX-1
Electrical box - 1
ｲﾗｽﾄ番号
Ref.No.
品番
Part Number
Description
品名
個数
Q'ty
備考
Remarks
1 EZ1-474-521-11 REGULATOR,SWITCHING(HWS600P-*) REGULATOR,SWITCHING(HWS600P-*) 1
2 EZ1-474-528-11 REGULATOR,SWITCHING(ADA1000F*)
REGULATOR,SWITCHING(ADA1000F*)
1
3 EZ1-474-529-11 REGULATOR,SWITCHING(ADA750F-*) REGULATOR,SWITCHING(ADA750F-*) 1
4 EZ1-523-270-11 BREAKER, CIRCUIT(CP32V/2WDN)
ｻ-ｷﾂﾄ ﾌﾞﾚ-ｶ (CP32V/2WDN)
1
5 EZ1-523-272-11 BREAKER, CIRCUIT(CP32V/15WDC) ｻ-ｷﾂﾄ ﾌﾞﾚ-ｶ (CP32V/15WDC) 1
6 EZ1-523-273-11 BREAKER, CIRCUIT(CP33V/2W)
ｻ-ｷﾂﾄ ﾌﾞﾚ-ｶ (CP33V/2W)
1
7 EZ1-523-275-11 BREAKER, CIRCUIT(CP33V/20WDN) ｻ-ｷﾂﾄ ﾌﾞﾚ-ｶ (CP33V/20WDN) 1
8 EZ1-523-295-11 BREAKER, CIRCUIT (CP32V/30WDC)
BREAKER, CIRCUIT (CP32V/30WDC)
1
9 EZ1-523-303-11 BREAKER, CIRCUIT (CP32V/10WDC) BREAKER, CIRCUIT (CP32V/10WDC) 1
10 EZ1-523-304-11 BREAKER, CIRCUIT(CP33V/7.5WDC)
BREAKER, CIRCUIT(CP33V/7.5WDC)
1
11 EZ1-533-718-11 BREAKER, CIRCUIT (CP32V/7.5W) ｻ-ｷﾂﾄ ﾌﾞﾚ-ｶ (CP32V/7.5W) 1
12 EZ1-576-339-11 BREAKER, CIRCUIT (CP32V/3)
ｻ-ｷﾂﾄ ﾌﾞﾚ-ｶ (CP32V/3)
1
13 EZ1-763-987-11 FAN (4715MS-20T-B5A-B01) ﾌｱﾝ (4715MS-20T-B5A-B01) 4
14 EZ2-580-608-01 SCREW, +PSW M5X16
SCREW, +PSW M5X16
1
15 EZ4-180-708-01 CASTER (K-142-8L), BALL ﾎﾞ-ﾙ ｷﾔｽﾀ- (K-142-8L) 4
16 EZ4-453-730-02 PANEL (ACCP), FRONT COVER
ｼﾖｳﾒﾝ ﾊﾟﾈﾙ (ACCP)
1
17 EZ4-453-731-03 PANEL (DCCP), FRONT COVER ｼﾖｳﾒﾝ ﾊﾟﾈﾙ (DCCP) 1
18 EZ4-453-732-03 PANEL (R), SIDE
ｿｸﾒﾝ ﾊﾟﾈﾙ R
1
19 EZ4-453-733-01 PANEL (L), SIDE ｿｸﾒﾝ ﾊﾟﾈﾙ L 1
20 EZ4-453-734-01 PANEL, REAR
ﾊｲﾒﾝ ﾊﾟﾈﾙ
1
21 EZ4-453-735-02 PANEL, UPPER ｼﾞﾖｳﾌﾞ ﾊﾟﾈﾙ 1
22 EZ4-453-737-05 PANEL, MAIN BASE
ﾒｲﾝ ﾍﾞ-ｽ ﾊﾟﾈﾙ
1
23 EZ4-453-744-03 PANEL, AC CONNECTOR AC ｺﾈｸﾀ ﾊﾟﾈﾙ 1
24 EZ4-453-746-02 BRACKET, POWER FITTING
ｽｲﾂﾁﾝｸﾞ ﾃﾞﾝｹﾞﾝ ﾄﾘﾂｹ ﾌﾞﾗｹﾂﾄ
2
25 EZ4-453-763-01 BRACKET (F-ADA-2) ﾃﾞﾝｹﾞﾝ ﾄﾘﾂｹ ﾌﾞﾗｹﾂﾄ (F-ADA-2) 4
26 EZ4-453-971-01 DUCT (AD-462), WIRING
ﾊｲｾﾝ ﾀﾞｸﾄ (AD-462 ｾﾞﾝﾁﾖｳ 1M)
1
27 EZ4-459-135-01 COLLAR(CLJGJ14-5-6-TC2) ｼﾞﾕｼ ｶﾗ- (CLJGJ14-5-6-TC2) 1
28 EZ4-472-227-01 BRACKET, FAN
ﾌｱﾝ ﾌﾞﾗｹﾂﾄ
2
29 EZ4-705-232-11 HANDLE 3, SQUARE (165-4) ｶｸｶﾞﾀ 3 ｺﾞｳ ﾄﾂﾃ (A165-4) 1
30 EZ4-720-311-01 GUARD, FAN (PG-47-02)
ﾌｱﾝ ｶﾞ-ﾄﾞ (PG-47-02)
4
31 EZ7-682-150-01 SCREW +P 3X12 +P 3X12 4
32 EZ7-682-172-01 SCREW +P 4X50
+P 4X50
16
33 EZ7-682-961-01 SCREW +PSW 4X8 +PSW 4X8 28
34 EZ7-682-973-11 SCREW +PSW 5X10
+PSW 5X10
37
35 EZ7-684-023-04 N 3 TYPE 2 N 3 TYPE 2 4
36 EZ1-969-094-13 HARNESS (CP9-SV3, 4, 5)
ﾊ-ﾈｽ (CP9-SV3, 4, 5)
1
37 EZ1-969-085-12 HARNESS (SDIO CN2701-IO1) ﾊ-ﾈｽ (SDIO CN2701-IO1) 1
38 EZ1-969-084-14 HARNESS (SDIO CN2903-H-IO)
ﾊ-ﾈｽ (SDIO CN2903-H-IO)
1
39 EZ1-969-084-24 HARNESS (SDIO CN2904-H-IO) ﾊ-ﾈｽ (SDIO CN2904-H-IO) 1
40 EZ1-969-102-11 HARNESS (ATX-TP, POW)
ﾊ-ﾈｽ (ATX-TP, POW)
1
41 EZ1-969-779-11 HARNESS (TB5-BOX CN3) ﾊ-ﾈｽ (TB5-BOX CN3) 1
42 EZ1-969-780-11 HARNESS (TB5-BOX CN4)
ﾊ-ﾈｽ (TB5-BOX CN4)
1
43 EZ1-969-083-13 HARNESS(TB5-CONV, POW3) ﾊ-ﾈｽ (TB5-CONV, POW3) 1
44 EZ1-969-098-13 HARNESS (CR2, 3-TROLLY, POW)
ﾊ-ﾈｽ (CR2, 3-TROLLY, POW)
1
45 EZ1-969-099-16 HARNESS (SDIO CN2800-2 ECT-IF) ﾊ-ﾈｽ (SDIO CN2800-2 ECT-IF) 1
46 EZ1-969-092-12 HARNESS (CP3-VAC)
ﾊ-ﾈｽ (CP3-VAC)
1
47 EZ1-969-065-12 HARNESS(ACIN-TB1) ﾊ-ﾈｽ (ACIN-TB1) 1
48 EZ7-682-947-01 SCREW +PSW 3X6
+PSW 3X6
18
49 EZ7-682-948-01 SCREW +PSW 3X8 +PSW 3X8 16
A-68
A30
電装 BOX-2
Electrical box - 2
