J U K I FEE DE R P A R TS LIS T ( C T F TY PE -A - 1 ) 斯玛图 ——您身 边的贴片机飞 达专家 JUKI CF 8mm 飞达料号表(A) NOTE REF.NO. PART NO DESCRIPTION QTY PS #01 1 E1001706C A0A FEEDER BASE 05 ASM. 1 # 02 2 E2002706 C A0A FE EDER BASE 08 H 2 …
JUKI FEEDER PARTS LIST ( CTF TYPE-
A )
斯玛图——您身边的贴片机飞达专家

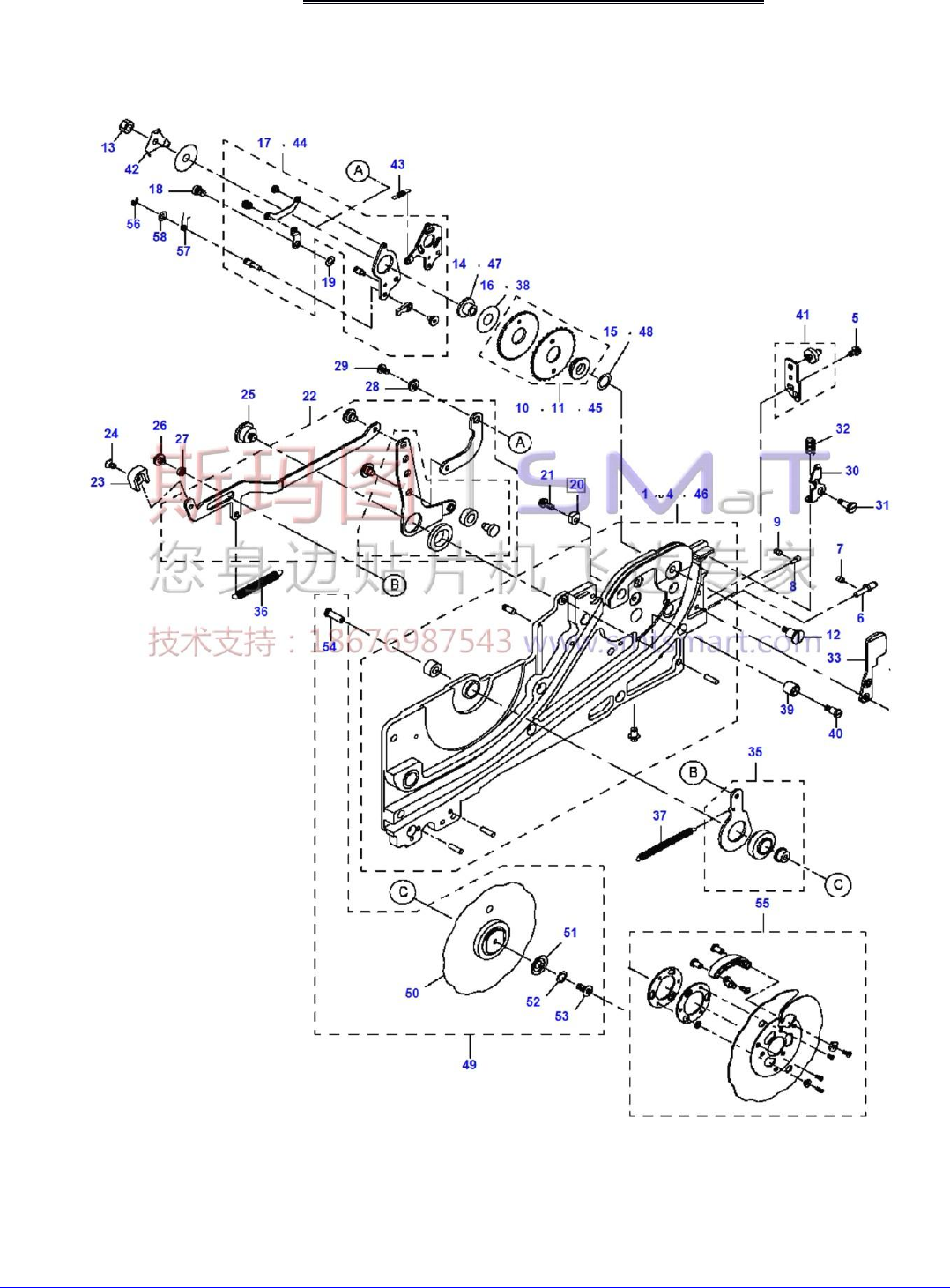

JUKI CF 8mm 飞达分解图(A)
JUKI FEEDER PARTS LIST ( CTF TYPE-A-
1 )
斯玛图——您身边的贴片机飞达专家
JUKI CF 8mm 飞达料号表(A)
NOTE
REF.NO.
PART NO
DESCRIPTION
QTY
PS
#01
1
E1001706C
A0A
FEEDER BASE 05 ASM.
1
#02
2
E2002706
CA0A
FEEDER BASE 08H2
ASM.
1
#03
3
E2001706C
A0A
FEEDER BASE 08H3
ASM.
1
#06
4
E2003706
CA0A
FEEDER BASE 081C
ASM.
1
5
SL503063
5SN
SCREW
2
#04
6
E1002706
000
X-AXIS POSITIONING
PIN B
1
#04
7
SM803040
2TP
SCREW M3X0.5 L=4
1
8
E1006706
C00
X-AXIS ADJUSTING
SHAFT
1
9
SM803040
2TP
SCREW M3X0.5 L=4
1
#05
10
E1103706C
A0
WHEEL 2MM ASM.
1
#08
11
E2103706
CA0
WHEEL 4MM ASM.
1
12
E11007060
00
WHEEL SHAFT
1
13
NM604000
1SC
NUT M4
1
#07
14
E1104706C
00
WHEEL COLLAR 03
1
15
E11057060
00
POLY SLIDER
1
16
4005067
3
WHEEL RING
1
17
E11067060
A0A
SWING PLATE ASM.
1
18
E6386705
000
SHUTTER LEVER
SCREW
1
JUKI FEEDER PARTS LIST ( CTF TYPE-A-
2 )
斯玛图——您身边的贴片机飞达专家
19
E4901760
000
POLY SLIDER THRUST
WASHER
1
20
E11170600
0
RACHET HOOK
STOPPER
1
21
SL503083
1SN
RSCREW
1
22
E1115706C
B0
KNOCK LEVER LINK
ASM.
1
23
E1119706C
00
FREE LINK CAP
1
24
SM103050
1SC
SCREW M3 L=5
1
25
E1116706C
00
KNOCK LEVER SHAFT
1
26
E1120706C
00
JOINT SCREW
1
27
E1121706C
00
COLLAR
1
