JUKI飞达PARTSLIST -_.pdf - 第35页
J U K I FEE DE R PA R TS LI S T ( C TFR TY PE-A - 5 ) 斯玛图 ——您身 边的贴片机飞 达专家 NOTE REF.NO. PART NO DESCRIPTION QTY PS 61 40081850 HOLDER PLATE F IX SCREW 1 62 WS03100 02K N SPRING W ASHER M3 1 63 40081851 TAPE H OLDER ASM 1
JUKI FEEDER PARTS LIST ( CTFR TYPE-A -
4
)
斯玛图——您身边的贴片机飞达专家
52
40081805
R H ADJUST
ECCENTRIC COLLAR
1
53
40081806
SCREW M3X4 MEC
1
#04
54
40081807
SHAKE ARM 2MM
ASM
1
#05
55
40081827
SHAKE ARM 4MM
ASM
1
56
40081808
FREE LINK JOINT
COLLAR
1
57
E1120706
C00
FREE LINK JOINT
SCREW
1
58
40081852
POLYSLIDER
2
59
40081848
HOLDER PLATE ASM
1
60
40081849
HOLDER SH
1
JUKI FEEDER PARTS LIST ( CTFR TYPE-A -
5
)
斯玛图——您身边的贴片机飞达专家
NOTE
REF.NO.
PART NO
DESCRIPTION
QTY
PS
61
40081850
HOLDER PLATE FIX
SCREW
1
62
WS03100
02KN
SPRING WASHER M3
1
63
40081851
TAPE HOLDER ASM
1
JUKI FEEDER PARTS LIST ( CTFR TYPE-
B )
斯玛图——您身边的贴片机飞达专家

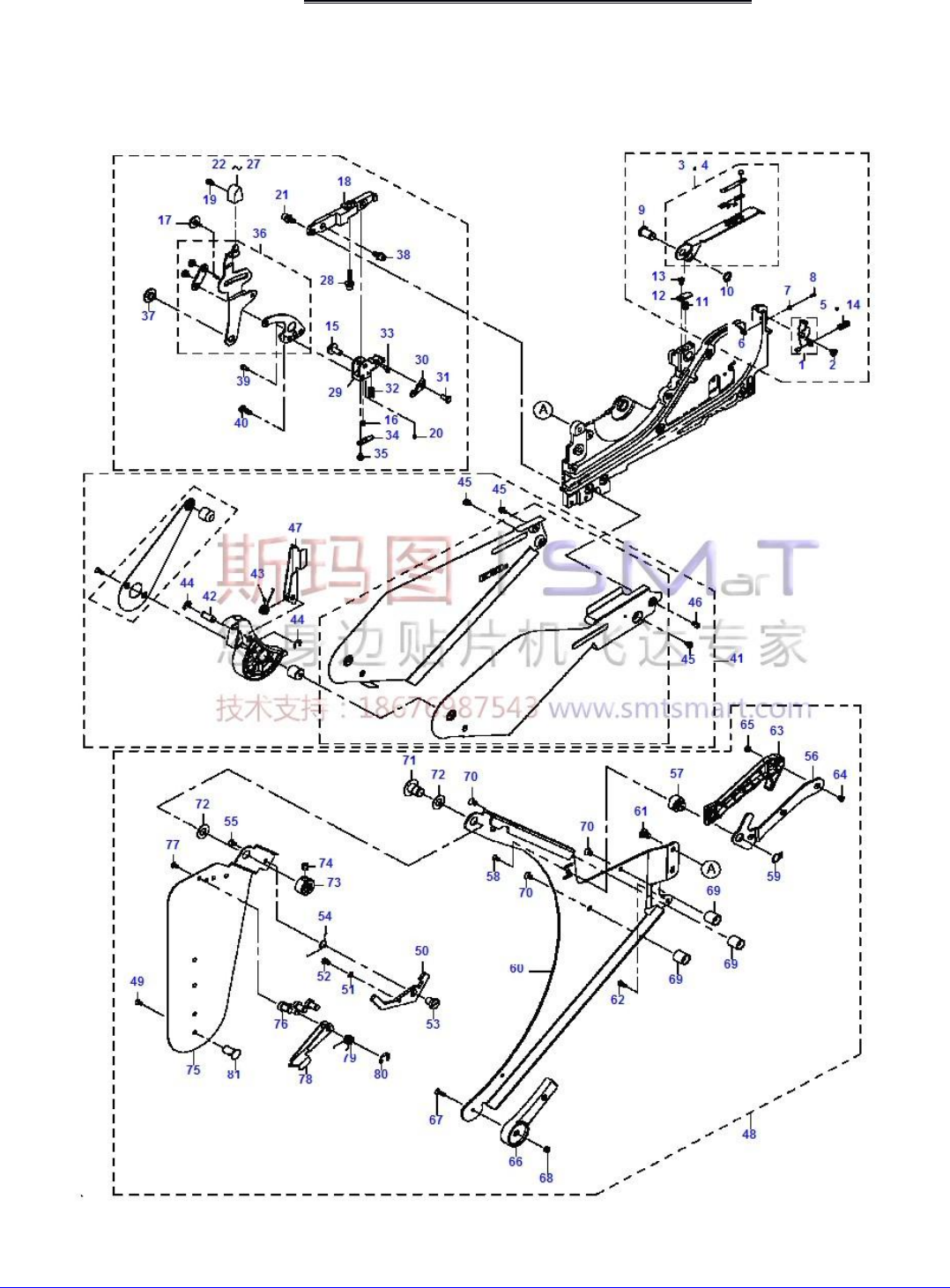

JUKI CFR 8mm 飞达分解图(B)
