BM123 Mechanical20071204 - 第33页

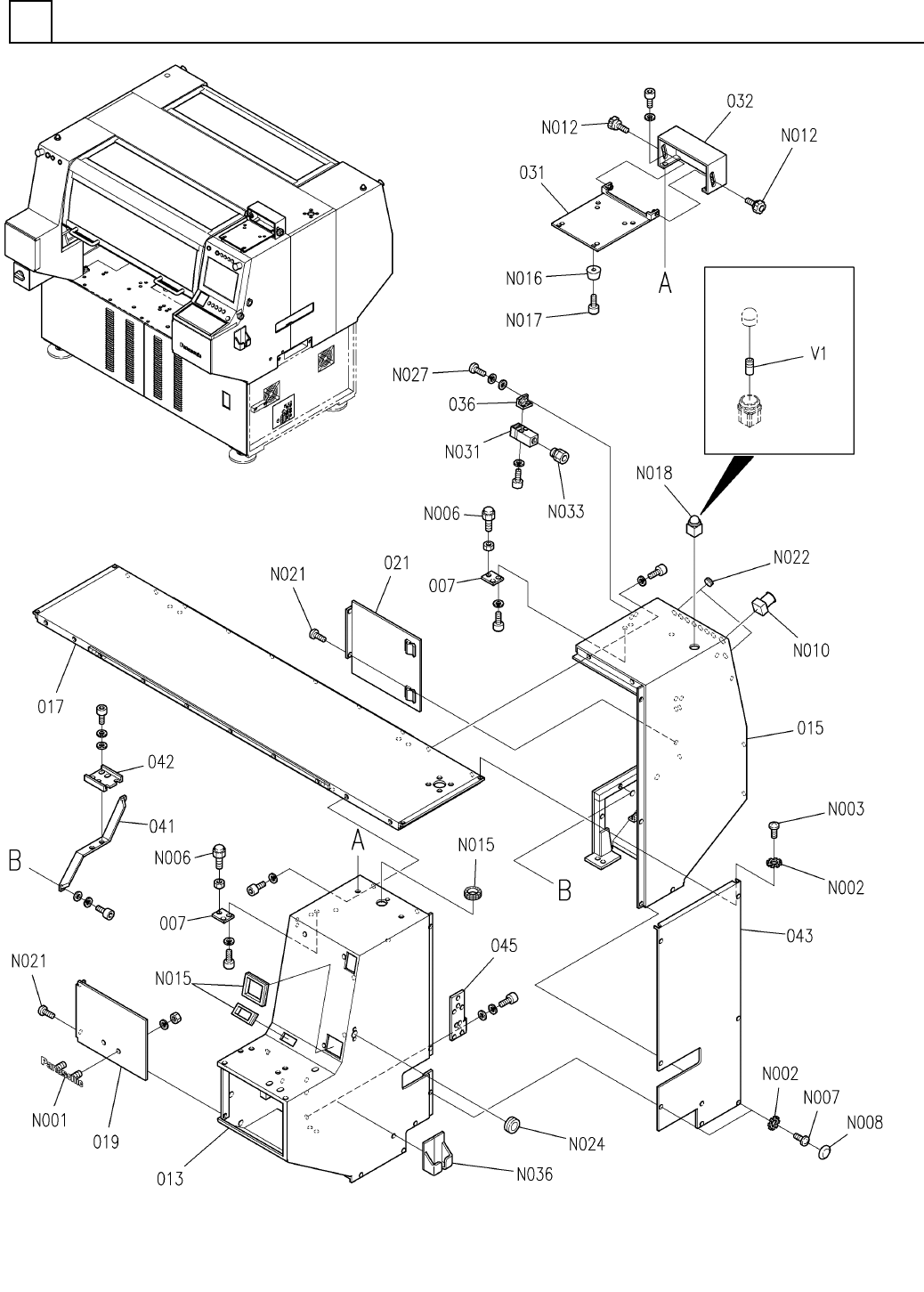

PART NAME REM ARKS Q'TY 2 ｶﾊﾞｰ部( 1) COVER SECT.(1) ｲﾗｽﾄ No. REF No. PART No. 部 品 名 品 番 個数 備 考 R 1 R 2 1 N610063347AA COVER UNIT ｶﾊ ﾞｰﾕﾆｯﾄ 2 007 1086212520 PLATE ﾌﾟﾚｰﾄ 1 013 N210078483AB FRONT COVER(RIGHT) ﾌﾛﾝﾄｶﾊ ﾞｰ(…
ｶﾊﾞｰ部(1)
COVER SECT.(1)
2
FN610063347AA_03-1
M9
PART NAME
REMARKS
Q'TY
2
ｶﾊﾞｰ部(1)
COVER SECT.(1)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 名 品 番 個数 備 考
R
1
R
2
1 N610063347AA
COVER UNIT ｶﾊ
ﾞｰﾕﾆｯﾄ
2
007 1086212520
PLATE ﾌﾟﾚｰﾄ
1
013 N210078483AB
FRONT COVER(RIGHT) ﾌﾛﾝﾄｶﾊﾞｰ(RIGHT)
1015 N210078485AB
REAR COVER(RIGHT) ﾘｱｶﾊﾞｰ(RIGHT)
1017 N210024246AA
TOP FRAME ﾌﾚｰﾑ
(TOP)
1
019 108620252201
COVER ｶﾊﾞｰ
1
021 108620252401
COVER ｶﾊﾞｰ
1031 1086202564
BRACKET ﾌ
ﾞﾗｹｯﾄ
1032 1086202266
COVER ｶﾊ
ﾞｰ
S
1
036 1086202665
BRACKET ﾌﾞﾗｹｯﾄ
1041 108628963102
BRACKET ﾌﾞﾗｹｯﾄ
1042 108628963202
BRACKET ﾌ
ﾞﾗｹｯﾄ
1
043 N210078489AA
COVER ｶﾊﾞｰ
1
045 108621257701
BRACKET ﾌﾞﾗｹｯﾄ
P-18(screw) S
1
N001
KXF0DXPLA00
NAME PLATE ﾒｲﾊﾞﾝ
5 External toothed Ste
14
N002
N510018765AA
TOOTHED LOCK WASHER ﾊﾂｷｻ
ﾞｶﾞﾈ
M5X8-4.8 A2J (Trivalen
4
N003
N510018302AA
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
87UST5-25
2
N006
N510021858AA
BOLT ﾎﾞﾙﾄ
JB-A M5X8 +
10
N007
N510038044AA
BOLT ﾎﾞﾙﾄ
M5X12
10
N008
N986YYYY-814
CAP ｷｬｯﾌ
ﾟ
M22-PV/K02 S
1
N010
KXFP6FMNA00
SWITCH ｽｲｯﾁ
NPEM5-10
2
N012
N986NPEM510
KNOB ﾉﾌﾞ
KG-010
1
N015
N348KG010
BUSHING ﾌ
ﾞｯｼｭ
C-30-RK-10-UL
4
N016
N980C30R-123
RUBBER LEG ｺﾞﾑｱｼ
M2.5X5-12.9 SOB
4
N017
XVE25B5FTC
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
APN122DNS-TK2310
1
N018
KXFP6GAGA00
LAMP ﾗﾝﾌﾟ
M4X8-4.8 A2J (Trivalen
4
N021
N510018282AA
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼ
ﾞ
C-30-SG-16A,WHITE
2
N022
N980C30S-034
GROMMET ｸﾞﾛﾒｯﾄ
C-30-SG-24A,WHITE
1
N024
N980C30S-065
GROMMET ｸﾞﾛﾒｯﾄ
EH0512 (Trivalent)
2
N027
N510024897AA
BOLT ﾎﾞﾙﾄ
D4NS-1BF S
1
N031
N510015338AA
SWITCH ｽｲｯﾁ
ST13.5
1
N033
KXF06F4AA00
JOINT ｼﾞｮｲﾝﾄ
FUN-065
1
N036
N510004430AA
POCKET ﾎﾟｹｯﾄ
LSTD-2S
1V 1 N223LSTD2S
LED LED
M10
