BM123 Mechanical20071204 - 第133页
PART NAME REMARKS Q'TY 21 ｱﾝﾀﾞｰｶﾒﾗ部(□22) UNDER CAMERA S ECT.(22 FIELD) ｲﾗｽﾄ No. REF No. PART No. 部 品 名 品 番 個数 備 考 R 1 R 2 1 1086213190 UNDER CAMERA UNIT ｱﾝﾀﾞｰｶﾒﾗﾕﾆｯﾄ 1 191 108621319101 PLATE ﾌﾟﾚｰﾄ 1 194 N210038181AA…
ｱﾝﾀﾞｰｶﾒﾗ部(□22)
UNDER CAMERA SECT.(22 FIELD)
21
F10862-13-190-AC_03
M109
PART NAME
REMARKS
Q'TY
21
ｱﾝﾀﾞｰｶﾒﾗ部(□22)
UNDER CAMERA SECT.(22 FIELD)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 名 品 番 個数 備 考
R
1
R
2
1 1086213190
UNDER CAMERA UNIT ｱﾝﾀﾞｰｶﾒﾗﾕﾆｯﾄ
1
191 108621319101
PLATE ﾌﾟﾚｰﾄ
1
194 N210038181AA
STAND ｽﾀﾝﾄﾞ
1195 108621319501
BASE ﾍﾞｰｽ
D25.5MMUV
1
N191
N941D25.-074
FILTER ﾌｨﾙﾀ
17HF
1
N192
N94117HF
LENS ﾚﾝｽﾞ
EX-020
1
N193
N941EX020
RING ﾘﾝｸﾞ
CS8550DI-10 S
1
N195
N510023800AA
CAMERA ｶﾒﾗ
M110
F10862-13-190-AC_03

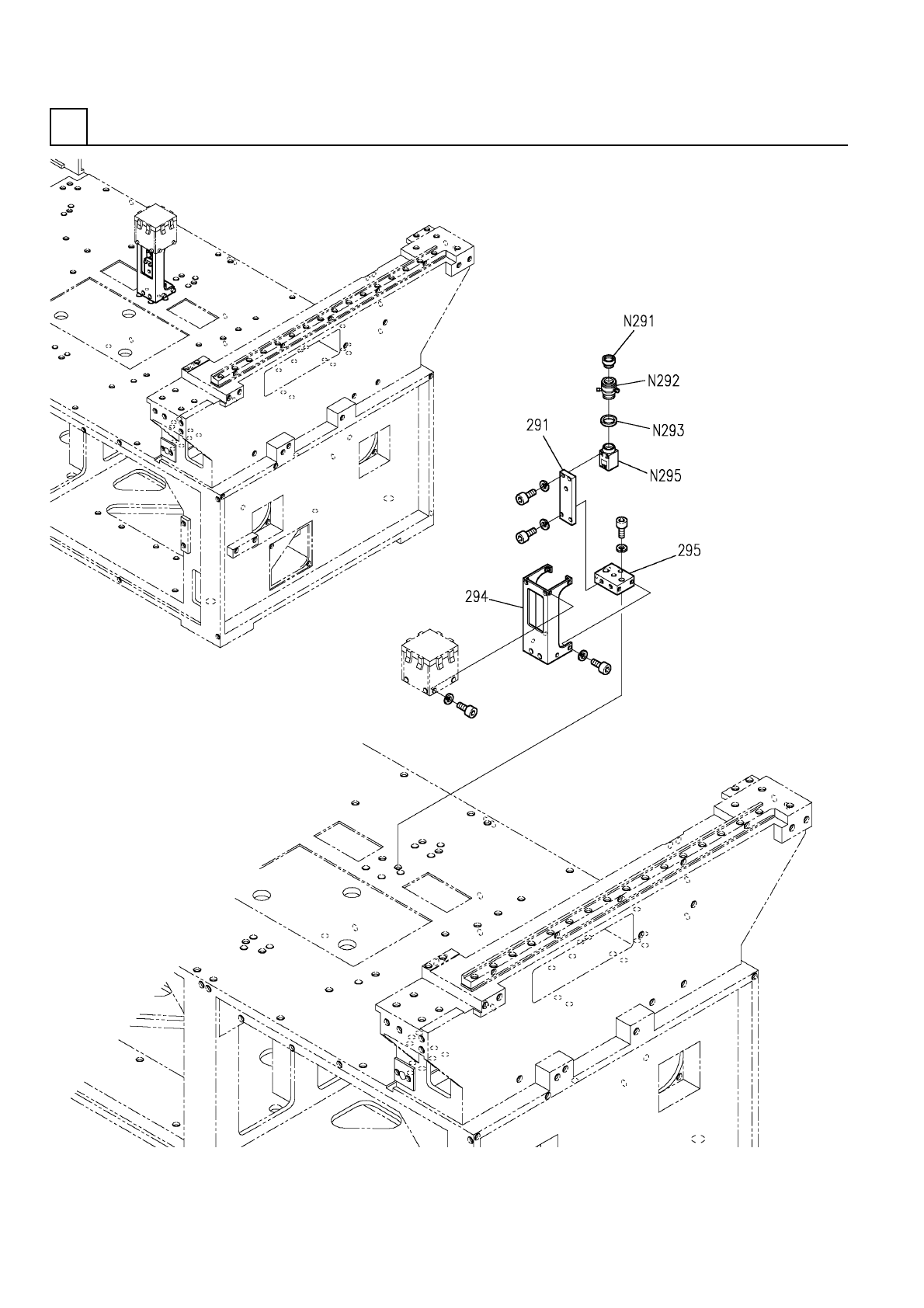

ｱﾝﾀﾞｰｶﾒﾗ部(□36)
UNDER CAMERA SECT.(36 FIELD)
21
F10862-13-290-AD_03
M111
