ﾌﾞｻﾞｰ部(ﾌﾞｰﾌﾞｻﾞｰ部) BUZZER SECT.(B UZZER SECT.) 31 F10862-02-770_A M211
PART NAME
REMARKS
Q'TY
31
ﾌﾞｻﾞｰ部(ﾎﾛﾎﾛﾌﾞｻﾞｰ部)
BUZZER SECT.(TONE BUZZER SECT.)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 名 品 番 個数 備 考
R
1
R
2
1 1086202780
BUZZER UNIT ﾌﾞｻﾞｰﾕﾆｯﾄ
1
781 1086202771
PLATE ﾌﾟﾚｰﾄ
EB2134
1
N781
N901EB2134
BUZZER ﾌﾞｻﾞｰ
2.5X5 A2J (Trivalent)
2
N782
N510018985AA
TRUSS HEAD TAPPING SCREW ﾄﾗｽﾀｯﾋﾟﾝﾈｼﾞ
M210
F10862-02-780_A
ﾌﾞｻﾞｰ部(ﾌﾞｰﾌﾞｻﾞｰ部)
BUZZER SECT.(BUZZER SECT.)
31
F10862-02-770_A
M211
PART NAME
REMARKS
Q'TY
31

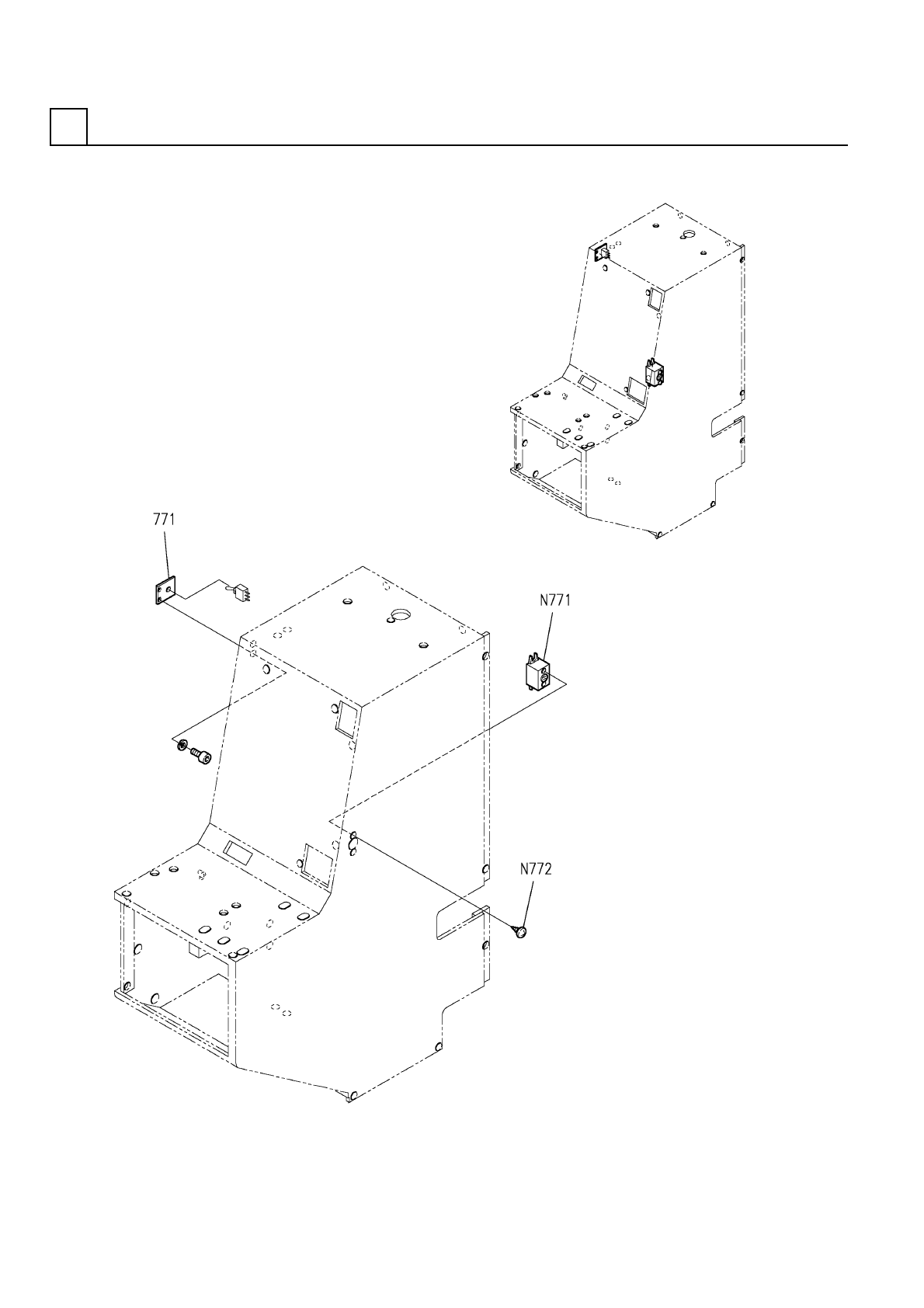

ﾌﾞｻﾞｰ部(ﾌﾞｰﾌﾞｻﾞｰ部)
BUZZER SECT.(BUZZER SECT.)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 名 品 番 個数 備 考
R
1
R
2
1 1086202770
BUZZER UNIT ﾌﾞｻﾞｰﾕﾆｯﾄ
1
771 1086202771
PLATE ﾌﾟﾚｰﾄ
EB2114
1
N771
N901EB2114
BUZZER ﾌﾞｻﾞｰ
2.5X5 A2J (Trivalent)
2
N772
N510018985AA
TRUSS HEAD TAPPING SCREW ﾄﾗｽﾀｯﾋﾟﾝﾈｼﾞ
M212
F10862-02-770_A
