BM123 Mechanical20071204 - 第240页
後部操作盤部( 2) REAR CONTROL P ANEL SECT.(2) 32 FN610063643AA_01-2 M217
PART NAME
REMARKS
Q'TY
32
後部操作盤部(1)
REAR CONTROL PANEL SECT.(1)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 名 品 番 個数 備 考
R
1
R
2
1 N610063643AA
REAR CONTROL PANEL UNIT ｺｳﾌﾞｿｳｻﾊﾞﾝﾕﾆｯﾄ
1
802 N210078488AA
PANEL ﾊﾟﾈﾙ
4
806 1086202806
COLLAR ｶﾗｰ
1807 1086202807
PLATE ﾌﾟﾚｰﾄ
1812 108628931501
PLATE ﾌﾟﾚｰﾄ
1
814 1044059662
LABEL ﾗﾍﾞﾙ
2
816 108628950201
PLATE ﾌﾟﾚｰﾄ
1817 N210048235AA
STAND ｽﾀﾝﾄﾞ
2818 108628950302
PLATE ﾌﾟﾚｰﾄ
C-30-SG-28A,WHITE
1
N804
N980C30S-067
GROMMET ｸﾞﾛﾒｯﾄ
M22-D-G-X1/K33 S
1
N805
N510035744AA
SWITCH ｽｲｯﾁ
C-30-SG-16A,WHITE
4
N808
N980C30S-034
GROMMET ｸﾞﾛﾒｯﾄ
E02S210020ET
1
N812
N263E02S-175
GASKET ｶﾞｽｹｯﾄ
5 External toothed Ste
8
N813
N510018765AA
TOOTHED LOCK WASHER ﾊﾂｷｻﾞｶﾞﾈ
C-30-NG-79-M
1
N814
N980C30NG79M
GROMMET ｸﾞﾛﾒｯﾄ
MPD-405BL
1
N815
N510002498AA
MOUSE PAD ﾏｳｽﾊﾟｯﾄ
No.537 85X0.10
1
N817
N986N053-B30
ADHESIVE TAPE ﾈﾝﾁｬｸﾃｰﾌﾟ
M216
FN610063643AA_01-1
後部操作盤部(2)
REAR CONTROL PANEL SECT.(2)
32
FN610063643AA_01-2
M217
PART NAME
REMARKS
Q'TY
32
後部操作盤部(2)
REAR CONTROL PANEL SECT.(2)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 名 品 番 個数 備 考
R
1
R
2

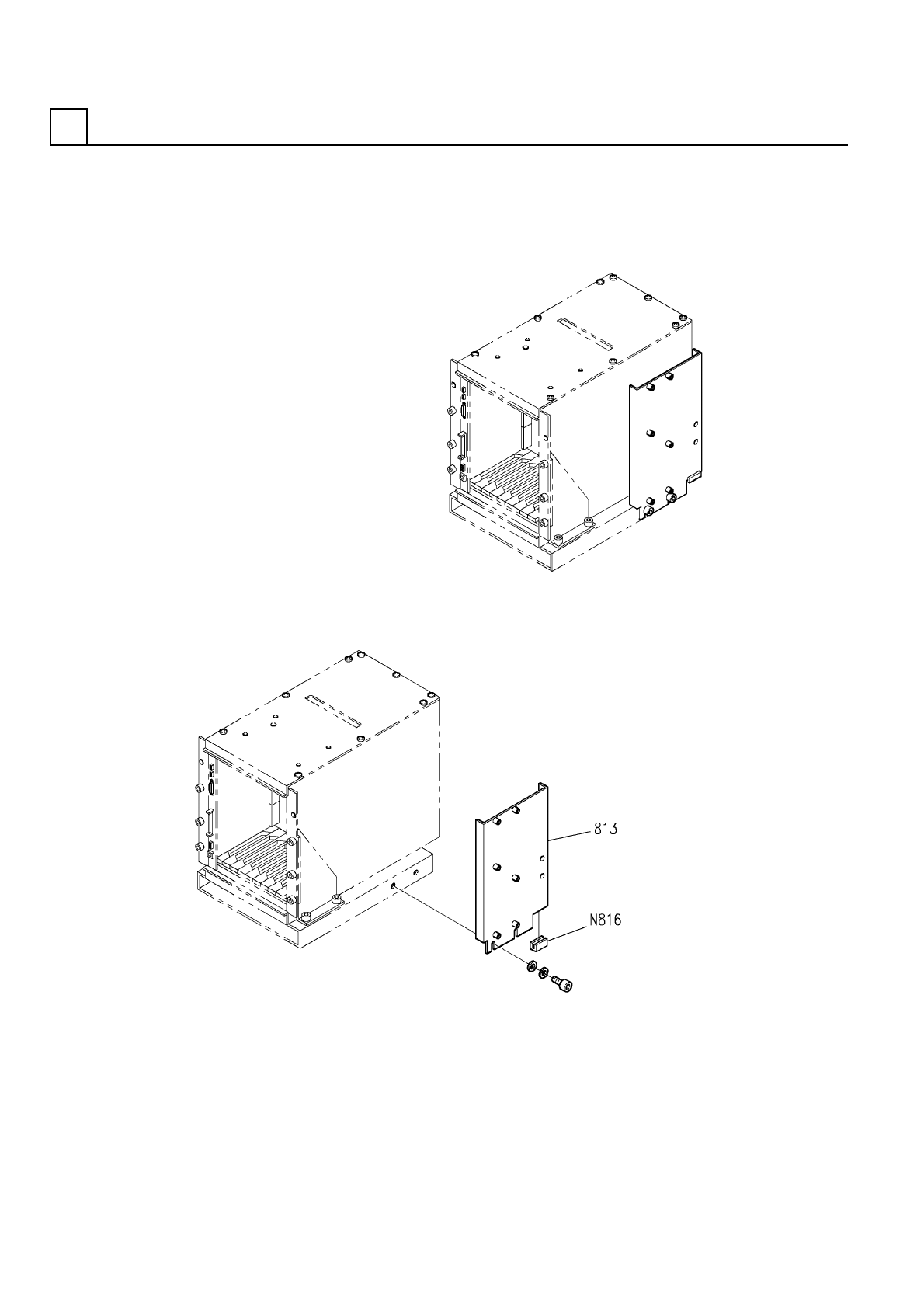

1813 108620281301
BRACKET ﾌﾞﾗｹｯﾄ
SG-32
1
N816
N348SG32
BUSHING FOR WIRING ﾌﾘｰﾌﾞｯｼｭ
M218
FN610063643AA_01-2
