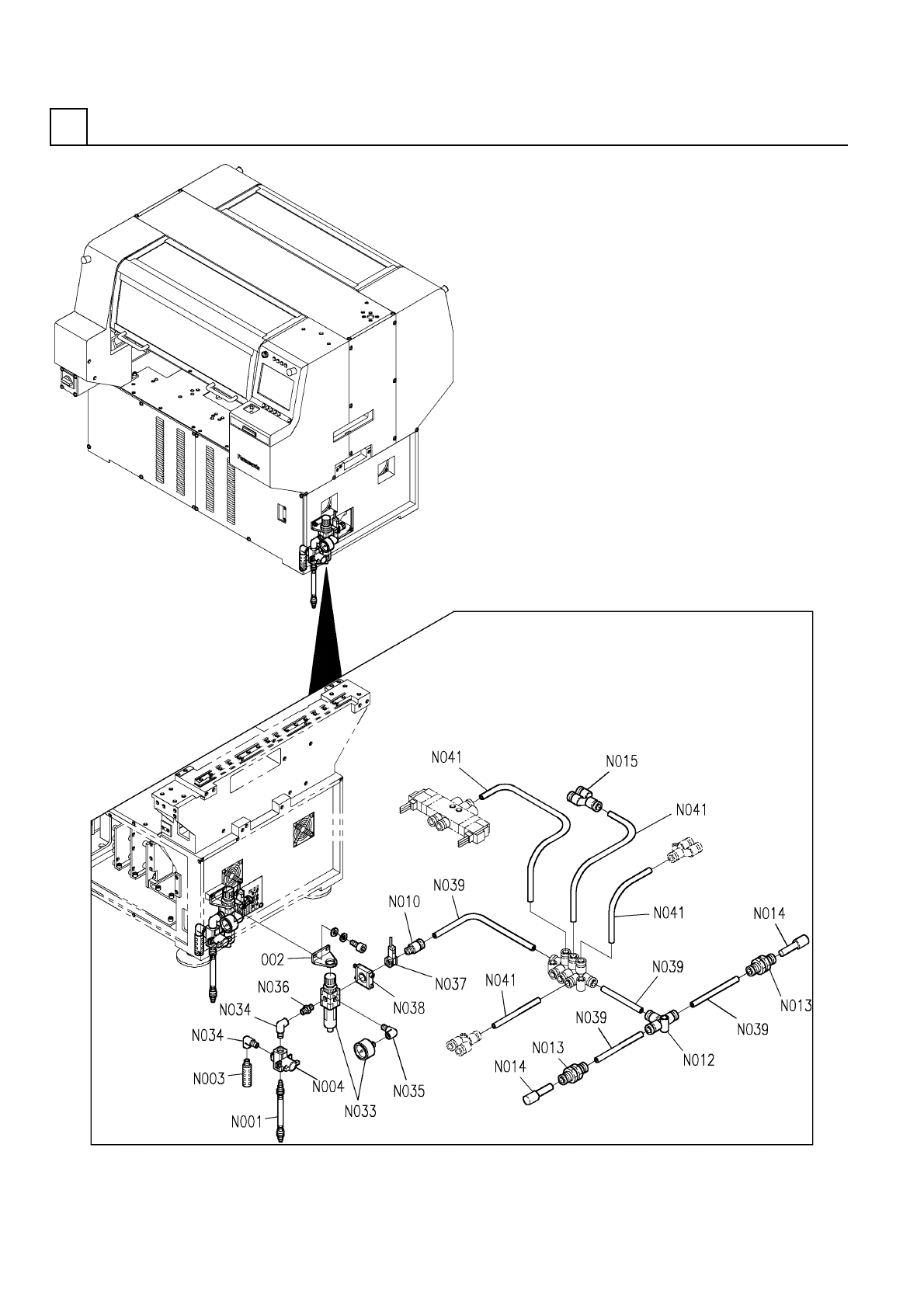

空圧制御部(共通部2)
PNEUMATIC SYSTEM SECT.(COMMON SECT.-2)
1
FN610063359AA_00-2
P3
PART NAME
REMARKS
Q'TY
1
空圧制御部(共通部2)
PNEUMATIC SYSTEM SECT.(COMMON SECT.-2)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 名 品 番 個数 備 考
R
1
R
2
KM11-06-10-6
1
N011
KXF09JXAA00
MANIFOLD ﾏﾆﾎｰﾙﾄﾞ
KQ2U06-00
2
N015
KXF0A3FAA00
FITTING ﾂｷﾞﾃ
KJL06-01S
3
N017
KXF029KAA00
FITTING ﾂｷﾞﾃ
IR1000-01
1
N018
KXF0E4A9A00
REGULATOR ﾚｷﾞｭﾚｰﾀ
KQ2S06-M5
3
N019
KXF0DZ7YA00
FITTING ﾂｷﾞﾃ
VKF332-5GS-M5
1
N020
N411VKF3-725
SOLENOID VALVE ｿﾚﾉｲﾄﾞﾊﾞﾙﾌﾞ
KJL06-M5
1
N021
KXF029LAA00
FITTING ﾂｷﾞﾃ
KQ2R06-08
2
N022
KXF0A0EAA00
FITTING ﾂｷﾞﾃ
KQ2E08-00
2
N023
KXF0E11CA00
FITTING ﾂｷﾞﾃ
ZSE30-01-25-ML
1
N029
N445ZSE3-073
PRESSURE SWITCH ｱﾂﾘｮｸｽｲｯﾁ
IR2000-02-X108
1
N031
N4231R20-187
REGULATOR ﾚｷﾞｭﾚｰﾀ
KQ2V06-02S
1
N032
KXF0DY1MA00
FITTING ﾂｷﾞﾃ
TU0604B-100
1
N041
KXF0E1QGA00
TUBE ﾁｭｰﾌﾞ
KJH06-01S
1
N042
KXF07PXAA00
FITTING ﾂｷﾞﾃ
