空圧制御部( 専用部) PNEUMATIC SYST EM SECT.(EXCLUSIV E SECT.) 1 F10862-03-100-AA P7
PART NAME
REMARKS
Q'TY
1
空圧制御部(共通部3)
PNEUMATIC SYSTEM SECT.(COMMON SECT.-3)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 名 品 番 個数 備 考
R
1
R
2
1002 N210043341AB
BRACKET ﾌﾞﾗｹｯﾄ
OUA8X12-5M-03B
1
N001
N510002541AA
TUBE WITH FITTING ﾁｭｰﾌﾞﾕﾆｯﾄ
AN303-03
1
N003
KXF00WGAA00
SILENCER ｻｲﾚﾝｻ
VHS40-03
1
N004
N413VHS4003
VALVE ﾊﾞﾙﾌﾞ
KQ2H10-03S
1
N010
KXF0E34XA00
FITTING ﾂｷﾞﾃ
KQ2T10-00
1
N012
KXF0E496A00
FITTING ﾂｷﾞﾃ
KQ2E10-00
2
N013
KXF0E2G5A00
FITTING ﾂｷﾞﾃ
KQ2P-10
2
N014
KXF0DZKSA00
PLUG ﾌﾟﾗｸﾞ
KQ2U06-00
1
N015
KXF0A3FAA00
FITTING ﾂｷﾞﾃ
AWM40-03DGH
1
N033
N510004967AA
REGULATOR ﾚｷﾞｭﾚｰﾀ
(SL)3/8
2
N034
N510013495AA
JOINT ｼﾞｮｲﾝﾄ
(SL)1/4
1
N035
N510013494AA
JOINT ｼﾞｮｲﾝﾄ
(Ni)3/8
1
N036
N510013499AA
FITTING ﾆｯﾌﾟﾙ
IS1000E-4003
1
N037
N510013492AA
SWITCH ｽｲｯﾁ
Y400
1
N038
N510013493AA
SPACER ｽﾍﾟｰｻ
TU1065B-100
1
N039
N510028474AA
TUBE ﾁｭｰﾌﾞ
TU0604B-100
1
N041
KXF0E1QGA00
TUBE ﾁｭｰﾌﾞ
P6
FN610063359AA_00-3
空圧制御部(専用部)
PNEUMATIC SYSTEM SECT.(EXCLUSIVE SECT.)
1
F10862-03-100-AA
P7
PART NAME
REMARKS
Q'TY
1
空圧制御部(専用部)
PNEUMATIC SYSTEM SECT.(EXCLUSIVE SECT.)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 名 品 番 個数 備 考
R
1
R
2

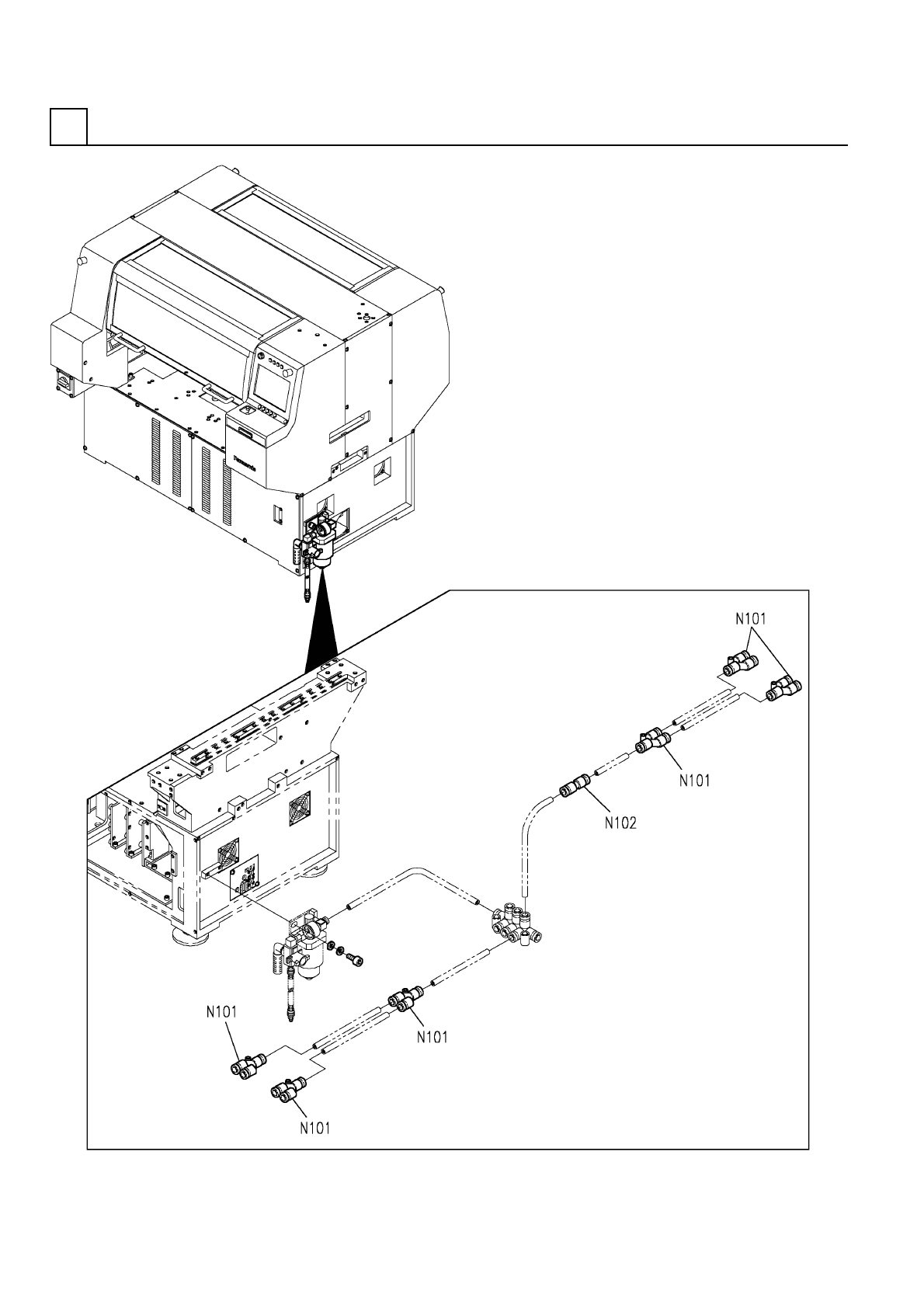

1 1086203100
PNEUMATIC SYSTEM ｸｳｱﾂｾｲｷﾞｮﾕﾆｯﾄ
KQ2U06-00
6
N101
N431KQ2U0600
FITTING ﾂｷﾞﾃ
KQ2H06-00
1
N102
N431KQ2H0600
FITTING ﾂｷﾞﾃ
P8
F10862-03-100-AA
