BM123 Mechanical20071204 - 第52页

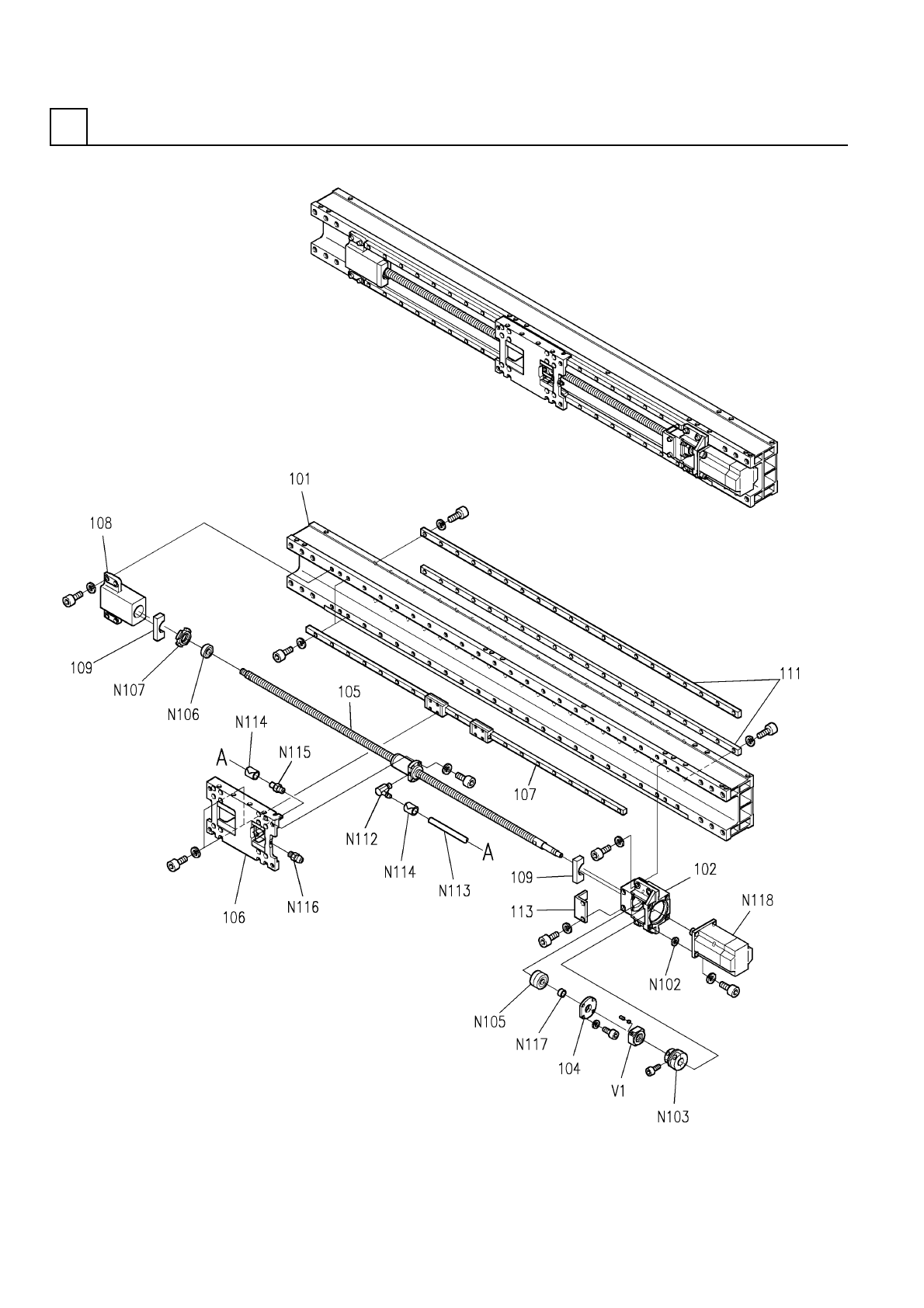

X軸部( 本体部) X-AXIS SECT.(M AIN BODY SECT.) 3 FN610030841AA_01 M29
PART NAME
REMARKS
Q'TY
2
ｶﾊﾞｰ部(ｱﾝﾛｰﾀﾞｶﾊﾞｰ部)
COVER SECT.(UNLOADER COVER SECT.)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 名 品 番 個数 備 考
R
1
R
2
1003 N210078209AA
COVER ｶﾊ
ﾞｰ
1
004 N210078210AA
COVER ｶﾊﾞｰ
JB-A M5X8 +
2
N001
N510038044AA
BOLT ﾎﾞﾙﾄ
M5X12
2
N002
N986YYYY-814
CAP ｷｬｯﾌﾟ
5 External toothed Ste
2
N003
N510018765AA
TOOTHED LOCK WASHER ﾊﾂｷｻ
ﾞｶﾞﾈ
M28
FN610063064AA_01-2
X軸部(本体部)
X-AXIS SECT.(MAIN BODY SECT.)
3
FN610030841AA_01
M29
PART NAME
REMARKS
Q'TY
3
X軸部(本体部)
X-AXIS SECT.(MAIN BODY SECT.)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 名 品 番 個数 備 考
R
1
R
2
1 N610030841AA
X-AXIS UNIT X ｼﾞｸ ﾕﾆｯﾄ
1
101 108620410102
FRAME ﾌﾚｰﾑ
1
102 108620410204
BRACKET(MOTOR) ﾌﾞﾗｹｯﾄ(ﾓｰﾀ)
1104 108620410401
PLATE ﾌﾟﾚｰﾄ
1105 108620410503
BALL SCREW ﾎﾞｰﾙﾈｼﾞ
1
106 108620410605
TABLE ﾃｰﾌﾞﾙ
2
107 1086204107
LINEAR MOTION UNIT ﾘﾆｱﾓｰｼｮﾝﾕﾆｯﾄ
1108 108620410802
HOUSING ﾊｳｼﾞﾝｸﾞ
2109 1086204109
CUSHION ｸｯｼｮﾝ
2
111 N210027950AA
BAR ﾊﾞｰ
1113 108620411301
BRACKET ﾌﾞﾗｹｯﾄ
EPOW16-8
4
N102
N986EP0W168
WASHER ｻﾞｶﾞﾈ
SFC-040SA2-12B-19B
1
N103
N510012371AA
COUPLING ｶｯﾌﾟﾘﾝｸﾞ
7302BTDFCP5P5
1
N105
N510003542AA
BEARING ﾍﾞｱﾘﾝｸﾞ
6202ZZ
1
N106
XLC6202ZZ
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ
FU02SS
1
N107
KXF0235AA00
LOCK-NUT ﾛｯｸﾅｯﾄ
106916
1
N112
N431106916
FITTING ﾂｷﾞﾃ
NYLON4
1
N113
N434SH0W-048
TUBE ﾁｭｰﾌﾞ
PZ4
2
N114
N434PZ4
BAND ﾊﾞﾝﾄﾞ
106936
1
N115
N431106936
FITTING ﾂｷﾞﾃ
A-MT6X1
1
N116
N560AMT6-130
GREASE NIPPLE ｸﾞﾘｰｽﾆｯﾌﾟﾙ
NCLB15-20-10.0
1
N117
N510011636AA
COLLAR ｶﾗｰ
HC-KFS73-S33 S
1
N118
N510022951AA
MOTOR ﾓｰﾀ
RN15
1V 1 N643RN15
LOCK-NUT ﾛｯｸﾅｯﾄ
M30
FN610030841AA_01
