PART NAME REMARKS Q'TY 4 Y軸部(本体部 1) Y-AXIS SECT.(M AIN BODY SECT.-1) ｲﾗｽﾄ No. REF No. PART No. 部 品 名 品 番 個数 備 考 R 1 R 2 1 1086204200 Y-AXIS UNIT Yｼﾞｸﾕﾆｯﾄ 1 202 1086204202 LINEAR MOTION UNIT ﾘﾆｱﾓｰｼｮﾝﾕﾆｯﾄ 1 203 108620…

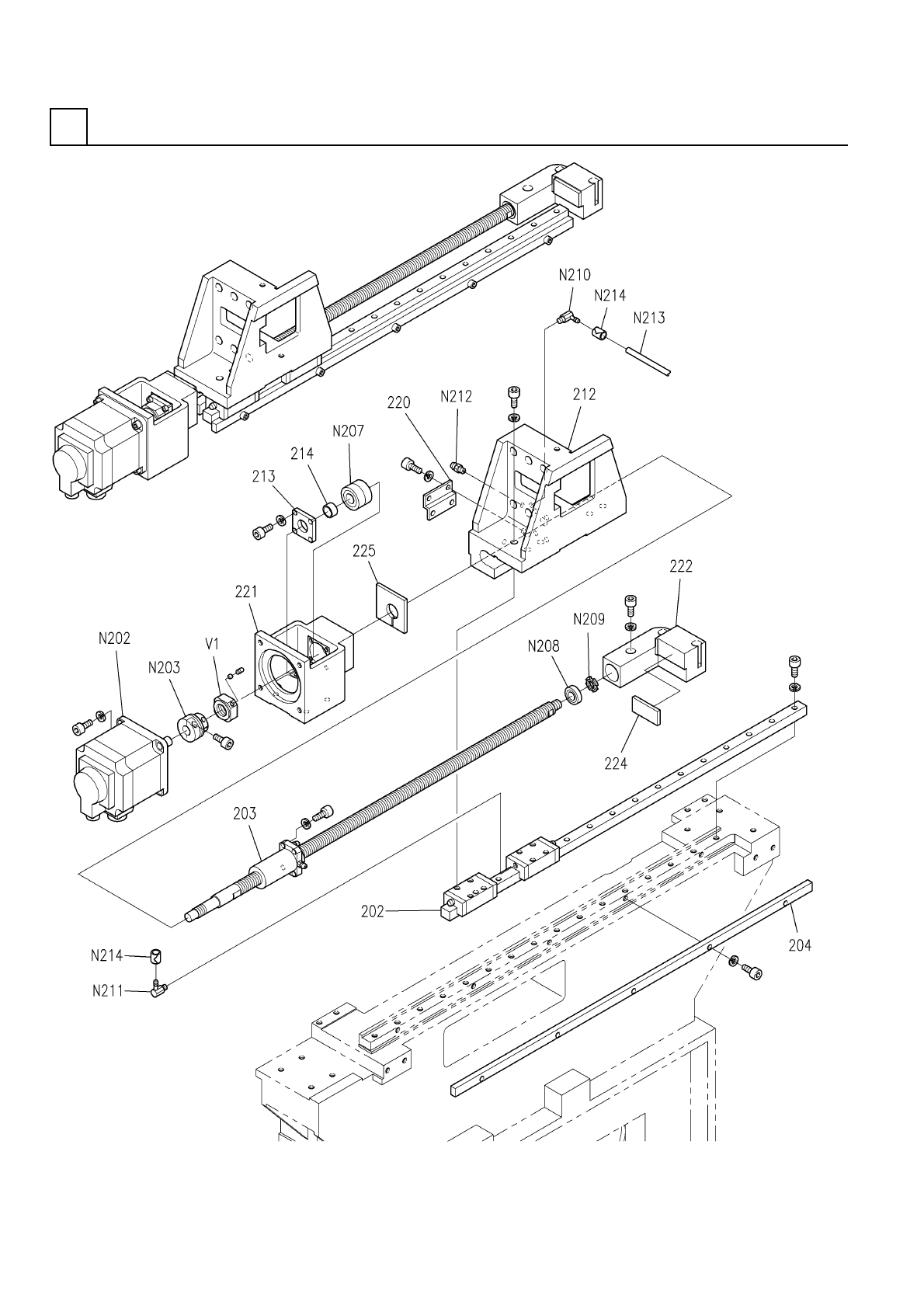

Y軸部(本体部1)
Y-AXIS SECT.(MAIN BODY SECT.-1)
4
F10862-04-200-AL_02-1
M33
PART NAME
REMARKS
Q'TY
4
Y軸部(本体部1)
Y-AXIS SECT.(MAIN BODY SECT.-1)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 名 品 番 個数 備 考
R
1
R
2
1 1086204200
Y-AXIS UNIT Yｼﾞｸﾕﾆｯﾄ
1
202 1086204202
LINEAR MOTION UNIT ﾘﾆｱﾓｰｼｮﾝﾕﾆｯﾄ
1
203 108620420304
BALL SCREW ﾎﾞｰﾙﾈｼﾞ
1204 108620420401
PLATE ﾌﾟﾚｰﾄ
1208 N210074030AA
JOINT(LEFT) ｼﾞｮｲﾝﾄ(LEFT)
1
213 1080704481
BEARING WEIGHT ﾍﾞｱﾘﾝｸﾞｳｴｲﾄ
1
214 1086204214
COLLAR ｶﾗｰ
1220 108621422001
BRACKET ﾌﾞﾗｹｯﾄ
1221 N210023694AA
BRACKET(MOTOR) ﾌﾞﾗｹｯﾄ(ﾓｰﾀ)
1
223 N210023695AA
BLOCK ﾌﾞﾛｯｸ
1224 N210023790AA
STOPPER ｽﾄｯﾊﾟ
1225 1086204209
STOPPER ｽﾄｯﾊﾟ
HC-SFS102 S
1
N202
N606HCSFS102
MOTOR ﾓｰﾀ
SFC-050SA2-17B-24B
1
N203
N510024077AA
COUPLING ｶｯﾌﾟﾘﾝｸﾞ
7204ADFCP10
1
N207
N510003514AA
BEARING ﾍﾞｱﾘﾝｸﾞ
6003ZZ
1
N208
N510003167AA
BEARING ﾍﾞｱﾘﾝｸﾞ
FU03SS
1
N209
KXF0236AA00
LOCK-NUT ﾛｯｸﾅｯﾄ
106915
1
N210
N431106915
FITTING ﾂｷﾞﾃ
106916
1
N211
N431106916
FITTING ﾂｷﾞﾃ
A-MT6X1
1
N212
N560AMT6-130
GREASE NIPPLE ｸﾞﾘｰｽﾆｯﾌﾟﾙ
NYLON4
1
N213
N434SH0W-048
TUBE ﾁｭｰﾌﾞ
PZ4
2
N214
N434PZ4
BAND ﾊﾞﾝﾄﾞ
RN20
1V 1 N986RN20
LOCK-NUT ﾛｯｸﾅｯﾄ
M34
F10862-04-200-AL_02-1
Y軸部(本体部2)
Y-AXIS SECT.(MAIN BODY SECT.-2)
4
F10862-04-200-AL_02-2
M35
