Y軸部( 配線配管部) Y-AXIS SECT.(W IRING & PIPING SE CT.) 4 F10862-04-400-AE_A M37

100%1 / 262
　　　
　　　　　　　　　 PART NAME
　　　　 REMARKS　
Q'TY
4
Y軸部(本体部2)
Y-AXIS SECT.(MAIN BODY SECT.-2)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 名 品　 番 個数 備 考
R
1
R
2
1202 1086204202
LINEAR MOTION UNIT ﾘﾆｱﾓｰｼｮﾝﾕﾆｯﾄ
1
203 108620420304
BALL SCREW ﾎﾞｰﾙﾈｼﾞ
1
204 108620420401
PLATE ﾌﾟﾚｰﾄ
1212 N210074032AA
JOINT(RIGHT) ｼﾞｮｲﾝﾄ(RIGHT)
1213 1080704481
BEARING WEIGHT ﾍﾞｱﾘﾝｸﾞｳｴｲﾄ
1
214 1086204214
COLLAR ｶﾗｰ
1
220 108621422001
BRACKET ﾌﾞﾗｹｯﾄ
1221 N210023694AA
BRACKET(MOTOR) ﾌﾞﾗｹｯﾄ(ﾓｰﾀ)
1222 N210023696AA
BLOCK ﾌﾞﾛｯｸ
1
224 N210023790AA
STOPPER ｽﾄｯﾊﾟ
1225 1086204209
STOPPER ｽﾄｯﾊﾟ
HC-SFS102 S
1
N202
N606HCSFS102
MOTOR ﾓｰﾀ
SFC-050SA2-17B-24B
1
N203
N510024077AA
COUPLING ｶｯﾌﾟﾘﾝｸﾞ
7204ADFCP10
1
N207
N510003514AA
BEARING ﾍﾞｱﾘﾝｸﾞ
6003ZZ
1
N208
N510003167AA
BEARING ﾍﾞｱﾘﾝｸﾞ
FU03SS
1
N209
KXF0236AA00
LOCK-NUT ﾛｯｸﾅｯﾄ
106915
1
N210
N431106915
FITTING ﾂｷﾞﾃ
106916
1
N211
N431106916
FITTING ﾂｷﾞﾃ
A-MT6X1
1
N212
N560AMT6-130
GREASE NIPPLE ｸﾞﾘｰｽﾆｯﾌﾟﾙ
NYLON4
1
N213
N434SH0W-048
TUBE ﾁｭｰﾌﾞ
PZ4
2
N214
N434PZ4
BAND ﾊﾞﾝﾄﾞ
RN20
1
V 1 N986RN20
LOCK-NUT ﾛｯｸﾅｯﾄ
M36
F10862-04-200-AL_02-2
Y軸部(配線配管部)
Y-AXIS SECT.(WIRING & PIPING SECT.)
4
F10862-04-400-AE_A
M37
　　　
　　　　　　　　　 PART NAME
　　　　 REMARKS　
Q'TY
4
Y軸部(配線配管部)
Y-AXIS SECT.(WIRING & PIPING SECT.)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 名 品　 番 個数 備 考
R
1
R
2

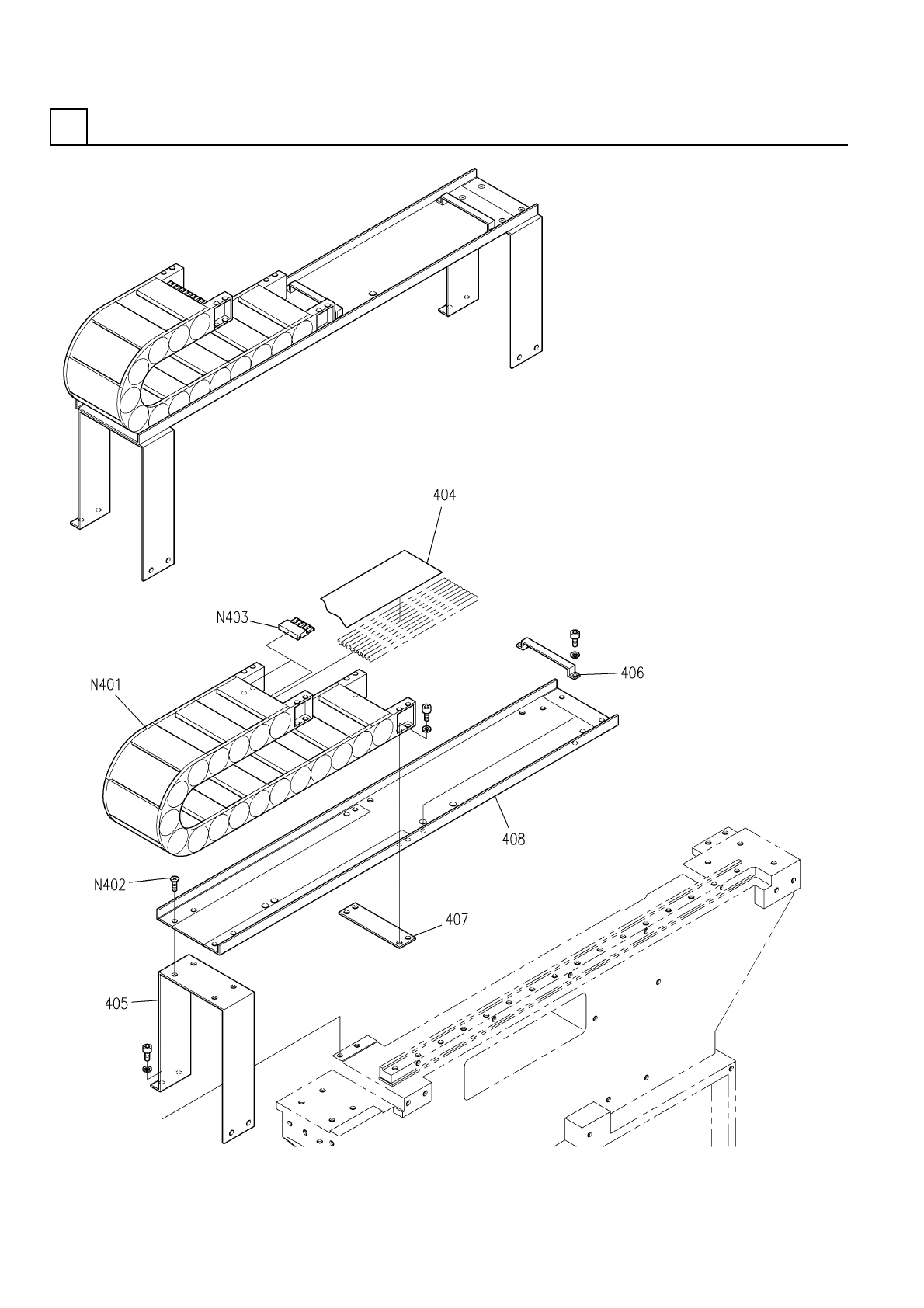

1 1086204400
WIRING & PIPING UNIT ﾊｲｾﾝ･ﾊｲｶﾝﾕﾆｯﾄ
1
404 108620440402
SHEET ｼｰﾄ
2
405 108620440502
STAND ｽﾀﾝﾄﾞ
2406 108620430502
BRACKET ﾌﾞﾗｹｯﾄ
1407 108620440701
PLATE ﾌﾟﾚｰﾄ
1
408 108620440803
GUIDE ｶﾞｲﾄﾞ
280.12.075HF-11-2900.1
1
N401
N986280.-T38
FLEXIBLE DUCT ﾌﾚｷｼﾌﾞﾙﾀﾞｸﾄ
M5X10-4.8 A2J (Trivale
8
N402
N510018182AA
FLUSH HEAD SCREW ｻﾗｺﾈｼﾞ
3050.ZC
2
N403
N9863050.ZC
CLAMP ｸﾗﾝﾌﾟ
M38
F10862-04-400-AE_A
