BM123 Mechanical20071204 - 第65页
PART NAME REM ARKS Q'TY 5 ﾌﾟﾘﾝﾄ基板搬 送部(ﾊﾟﾙｽ ﾓ ｰﾀ) P. C. B. TR ANSFER SECT.(PULSE MOTOR) ｲﾗｽﾄ No. REF No. PART No. 部 品 名 品 番 個数 備 考 R 1 R 2 2 301 108110433002 PULLEY ﾌ ﾟｰﾘｰ 1 307 N210038503AA PLATE ﾌﾟﾚｰﾄ 1 312 N210037…

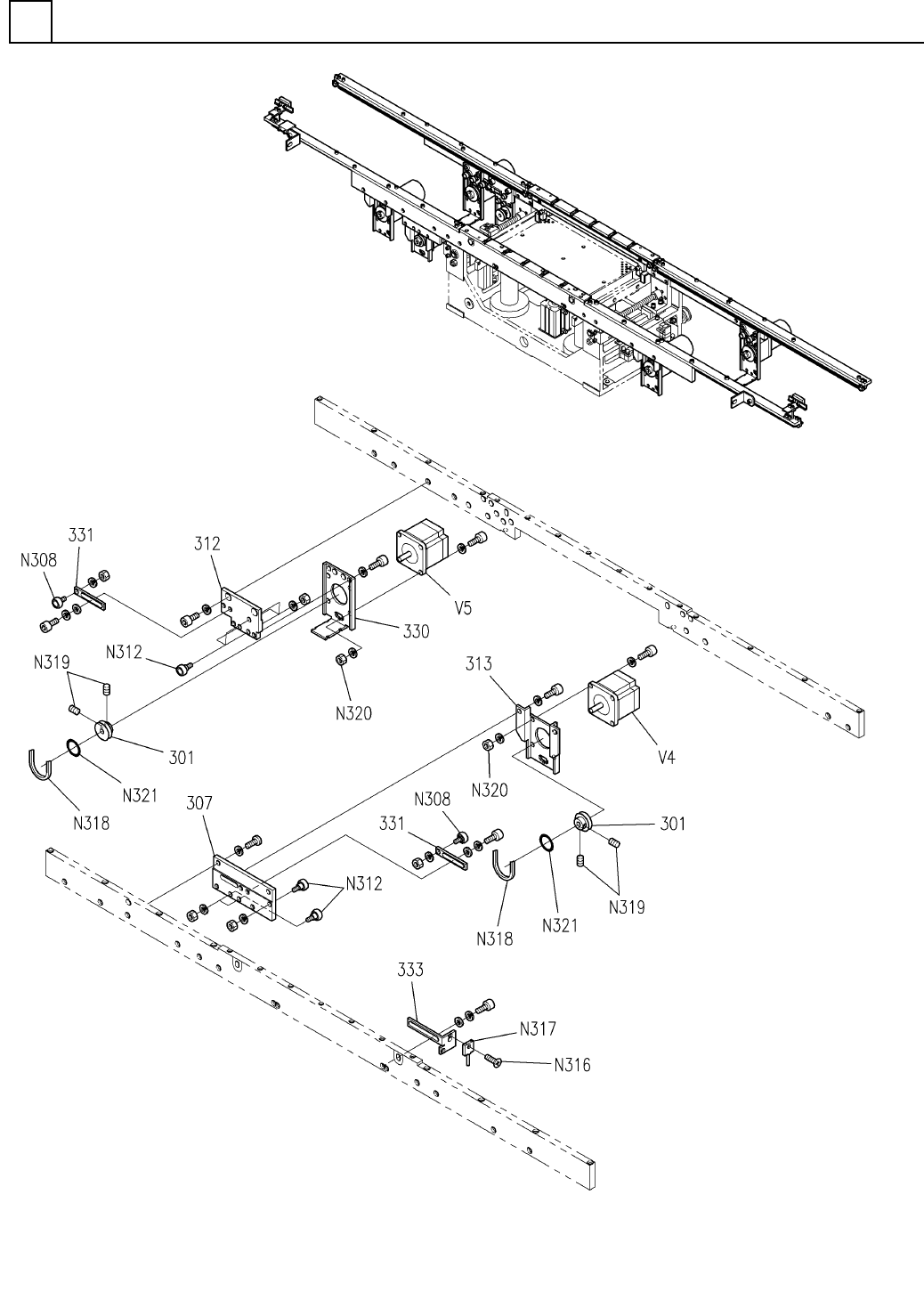

ﾌﾟﾘﾝﾄ基板搬送部(ﾊﾟﾙｽﾓｰﾀ)
P. C. B. TRANSFER SECT.(PULSE MOTOR)
5
FN610025533AA_04-2
M41
PART NAME
REMARKS
Q'TY
5
ﾌﾟﾘﾝﾄ基板搬送部(ﾊﾟﾙｽﾓｰﾀ)
P. C. B. TRANSFER SECT.(PULSE MOTOR)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 名 品 番 個数 備 考
R
1
R
2
2301 108110433002
PULLEY ﾌ
ﾟｰﾘｰ
1
307 N210038503AA
PLATE ﾌﾟﾚｰﾄ
1
312 N210037691AA
PLATE ﾌﾟﾚ-ﾄ
1313 N210037695AA
BRACKET ﾌﾞﾗｹｯﾄ
1330 N210037696AA
BRACKET ﾌ
ﾞﾗｹｯﾄ
2
331 N210037697AA
PLATE ﾌﾟﾚ-ﾄ
1
333 N210038505AA
BRACKET ﾌﾞﾗｹｯﾄ
MB022000
2
N308
N648MB022000
PULLEY ﾌ
ﾟｰﾘｰ
MB026000
6
N312
N648MB026000
PULLEY(TENSION) ﾌﾟｰﾘｰ
(ﾃﾝｼｮﾝ)
M3X8-4.8 A2J (Trivalen
1
N316
N510018161AA
FLUSH HEAD SCREW ｻﾗｺﾈｼﾞ
P917M
1
N317
N310P917M
SENSOR ｾﾝｻ
TA-4NB R/F 4.5WX1530
2
N318
N641TA4N1530
BELT(FLAT) ﾍﾞ
ﾙﾄ(ﾋﾗ)
M4X6-45H A2J (Trivalen
4
N319
N510018373AA
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ
M4-6H-4T A2J (Trivalen
8
N320
N510017855AA
NUT ﾅｯﾄ
CO0019B
2
N321
N5541BP22AN
O-RING Oﾘﾝｸﾞ
PK566HNAW-A4 S
1V 4 N610025155AA
MOTOR ﾓｰﾀ
PK566HNAW-A4 S
1
V 5 N610025156AA
MOTOR ﾓｰﾀ
M42
FN610025533AA_04-2

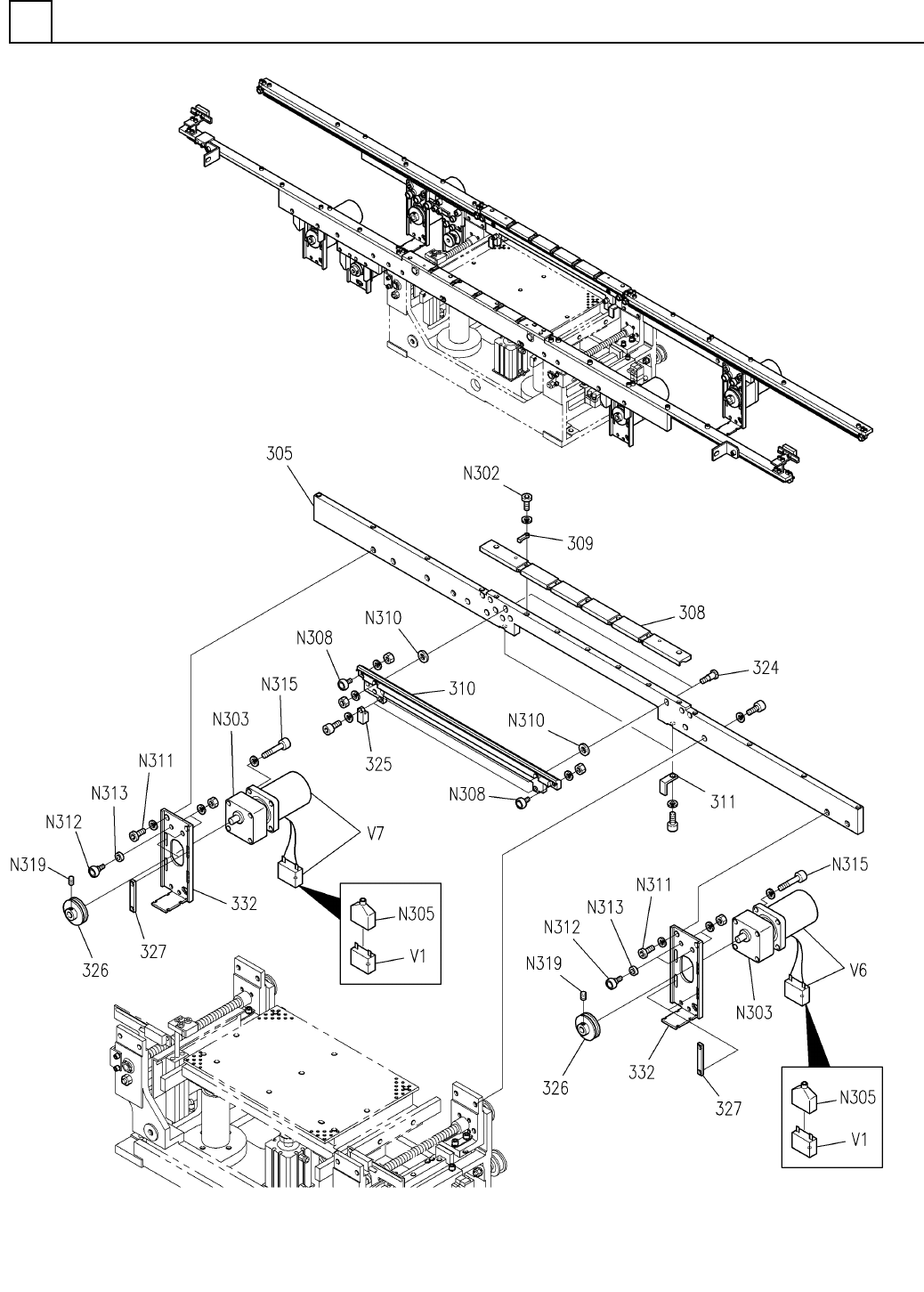

ﾌﾟﾘﾝﾄ基板搬送部(可動側)
P. C. B. TRANSFER SECT.(MOVABLE SIDE)
5
FN610025533AA_04-3
M43
