BM123 Mechanical20071204 - 第90页
ﾉｽﾞﾙﾎﾙﾀﾞ部(ﾌｨﾙﾀ部) NOZZLE HOLDER SECT.(FILTER SECT .) 8 F10862-09-530 M67
PART NAME
REMARKS
Q'TY
7
ﾍｯﾄﾞ部(S軸部)
HEAD SECT.(S-AXIS SECT.)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 名 品 番 個数 備 考
R
1
R
2
1 N610013920AA
HEAD DRIVING UNIT ﾍｯﾄﾞｸﾄﾞｳﾕﾆｯﾄ
1
302 108620913401
BRACKET ﾌﾞﾗｹｯﾄ
2
303 108620913702
PULLEY ﾌﾟｰﾘｰ
1305 108620930505
PLATE ﾌﾟﾚｰﾄ
1306 108620913602
BRACKET ﾌﾞﾗｹｯﾄ
1
308 108620907603
BRACKET ﾌﾞﾗｹｯﾄ
1
310 108620915902
BRACKET ﾌﾞﾗｹｯﾄ
1311 108620931103
BRACKET ﾌﾞﾗｹｯﾄ
1313 108620913303
COVER ｶﾊﾞｰ
1
314 108620931401
BRACKET ﾌﾞﾗｹｯﾄ
1324 108620932402
BRACKET ﾌﾞﾗｹｯﾄ
1325 108620939001
BRACKET ﾌﾞﾗｹｯﾄ
1
343 108620934301
MIRROR ﾐﾗｰ
1
344 108620934401
MIRROR ﾐﾗｰ
1345 1086209345
GUIDE ｶﾞｲﾄﾞ
1346 108620934601
COVER ｶﾊﾞｰ
1
347 108620934701
CLAMP ｸﾗﾝﾌﾟ
1
350 N210024182AA
HOLDER ﾎﾙﾀﾞ
1351 108620935102
HOLDER ﾎﾙﾀﾞ
1352 1086209352
DOG FOR SENSOR ﾄﾞｸﾞ
1
353 108620935301
LINEAR MOTION UNIT ﾘﾆｱﾓｰｼｮﾝﾕﾆｯﾄ
1
354 108620935401
LINEAR MOTION UNIT ﾘﾆｱﾓｰｼｮﾝﾕﾆｯﾄ
HC-KFS13 S
1
N301
N606HCKFS13
MOTOR ﾓｰﾀ
SFC-020DA-T015
1
N302
N644SFC0-197
COUPLING ｶｯﾌﾟﾘﾝｸﾞ
WSSB10-6-3
1
N303
N986WSSB1063
WASHER ｻﾞｶﾞﾈ
F606ZZ
4
N304
KXF020KAA00
BALL BEARING ﾎﾞｰﾙ ﾍﾞｱﾘﾝｸﾞ
6,STEEL,P.C
4
N305
XUB6FP
RETAINING RING C-TYPE,SHAFT C ｶﾞﾀｼﾞｸﾖｳﾄﾒﾜ
CBS6-20
6
N307
N986CBS620
BOLT ﾎﾞﾙﾄ
M4X10-45H A2S (Trivale
1
N308
N510018365AA
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ
P923S1
1
N309
N310P923S1
SENSOR ｾﾝｻ
687-3GT-20
1
N310
N6416873GT20
BELT ﾍﾞﾙﾄ
07-30-038-0-16-060.30.
1
N312
N9860730-R33
FLEXIBLE DUCT ﾌﾚｷｼﾌﾞﾙﾀﾞｸﾄ
M3X5-4.8 A2S (Trivalen
4
N313
N510018157AA
FLUSH HEAD SCREW ｻﾗｺﾈｼﾞ
LIDA47HEAD3M5F
1
N314
N903L1DA-250
SCALE ｽｹｰﾙ
LIDA409SCALEML=270MMZ=
1
N315
N903L1DA-251
SCALE ｽｹｰﾙ
No.2 3 S A2S (Trivalen
4
N320
N510018328AA
SPRING WASHER ﾊﾞﾈｻﾞｶﾞﾈ
No.2 6 S A2S (Trivalen
6
N321
N510018335AA
SPRING WASHER ﾊﾞﾈｻﾞｶﾞﾈ
6 10H A2S (Trivalent)
6
N322
N510018502AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
CBS3-8
4
N324
N986CBS38
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M3X8-10.9 A2S (Trivale
4
N325
N510017342AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
3 10H A2J (Trivalent)
4
N326
N510018478AA
ROUND PLAIN WASHER ｺｶﾞﾀﾏﾙﾋﾗｻﾞｶﾞﾈ
M66
FN610013920AA_00_A

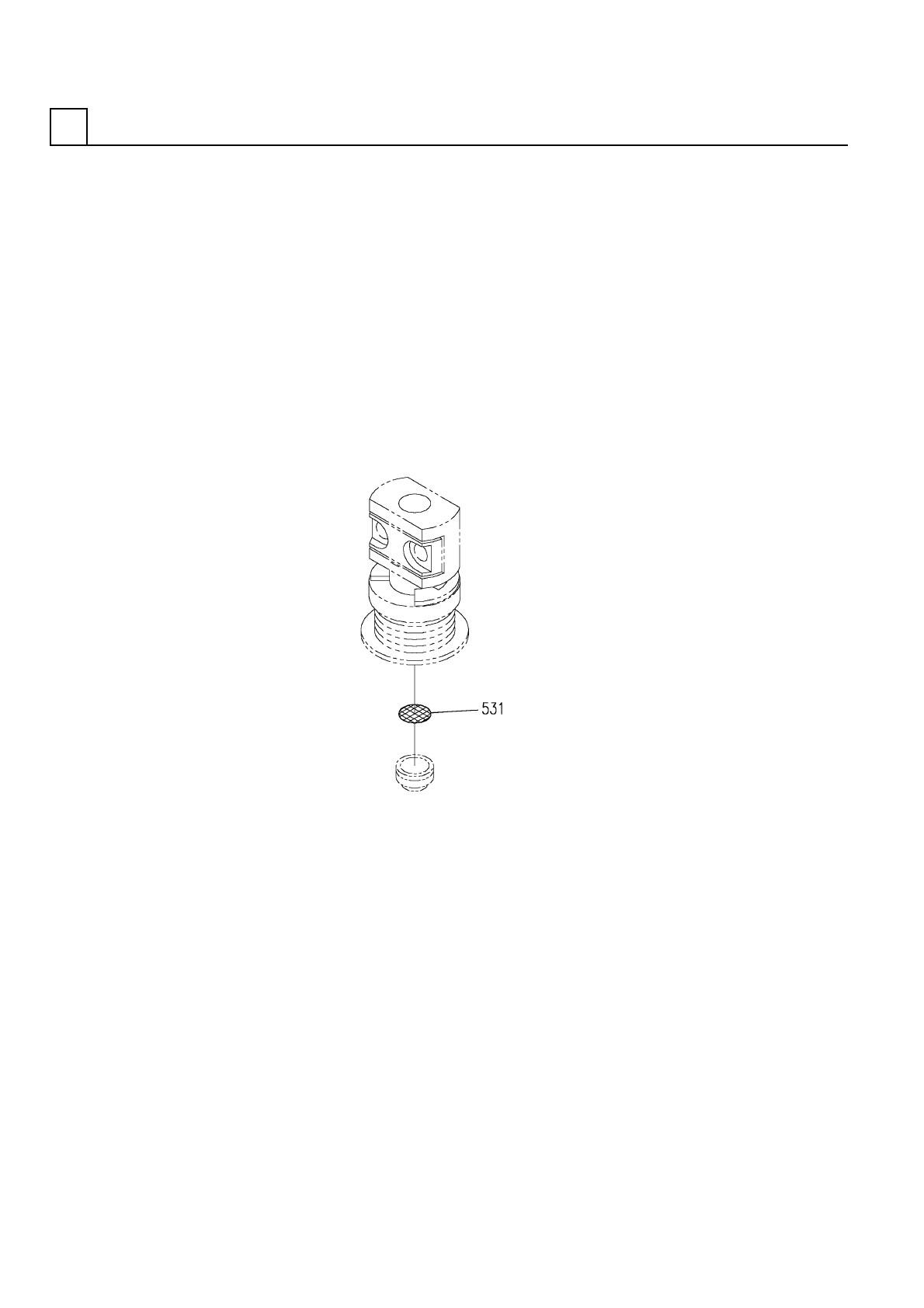

ﾉｽﾞﾙﾎﾙﾀﾞ部(ﾌｨﾙﾀ部)
NOZZLE HOLDER SECT.(FILTER SECT.)
8
F10862-09-530
M67
PART NAME
REMARKS
Q'TY
8
ﾉｽﾞﾙﾎﾙﾀﾞ部(ﾌｨﾙﾀ部)
NOZZLE HOLDER SECT.(FILTER SECT.)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 名 品 番 個数 備 考
R
1
R
2
1 1086209530
FILTER UNIT ﾌｨﾙﾀﾕﾆｯﾄ
1
531 1086289282
FILTER ﾌｨﾙﾀ
M68
F10862-09-530
