BM123 Mechanical20071204 - 第93页
PART NAME REMARKS Q'TY 9 ﾉｽﾞﾙﾁｪﾝｼﾞ部(SX3) NOZZLE CHANGE SECT.(SX3) ｲﾗｽﾄ No. REF No. PART No. 部 品 名 品 番 個数 備 考 R 1 R 2 1 1086219300 NOZZLE CHANGE UNIT ﾉｽﾞﾙﾁｪﾝｼﾞﾕﾆｯﾄ 4 301 108621900102 STAND ｽﾀﾝﾄﾞ 1 302 N210048714AA PL…

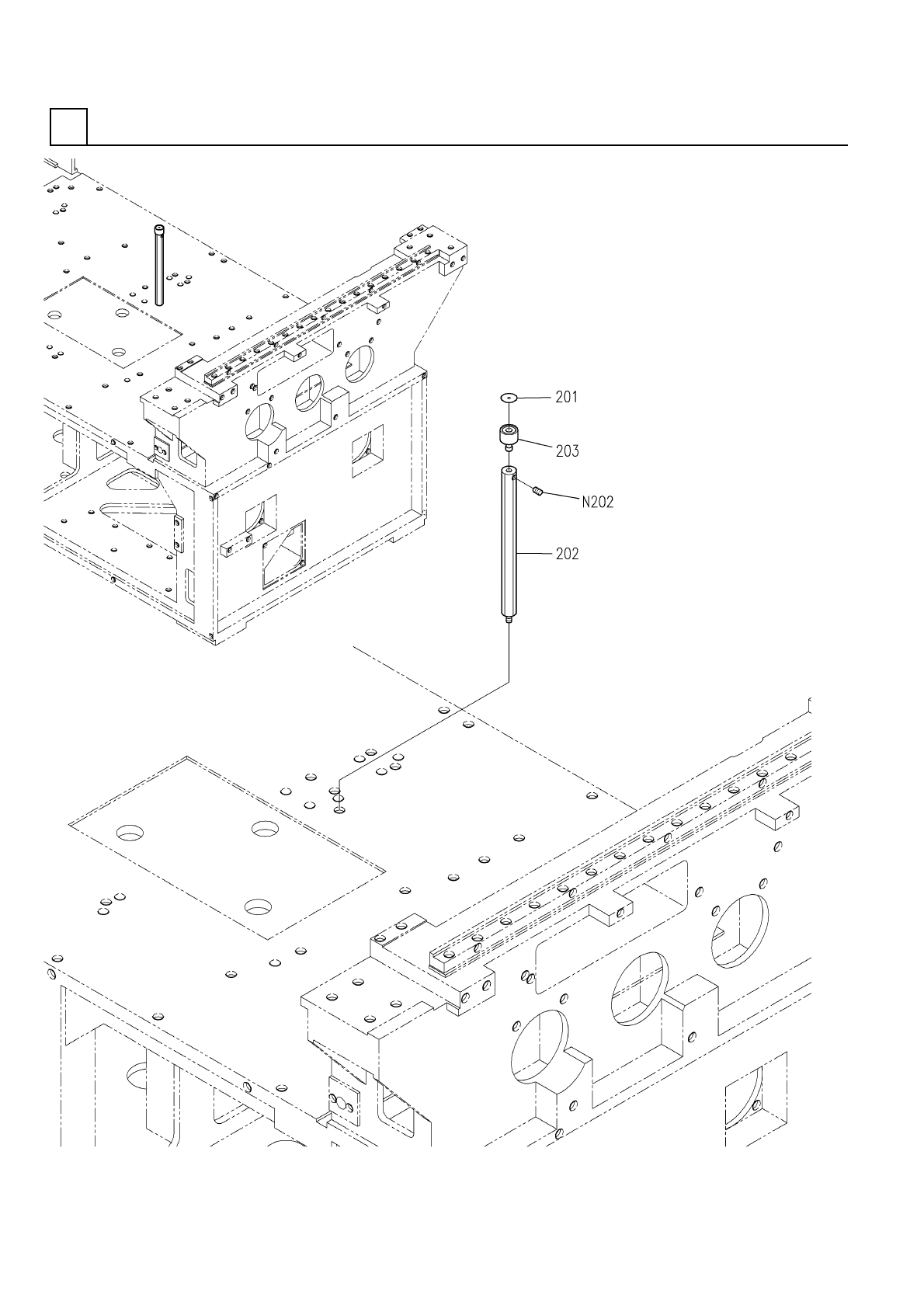

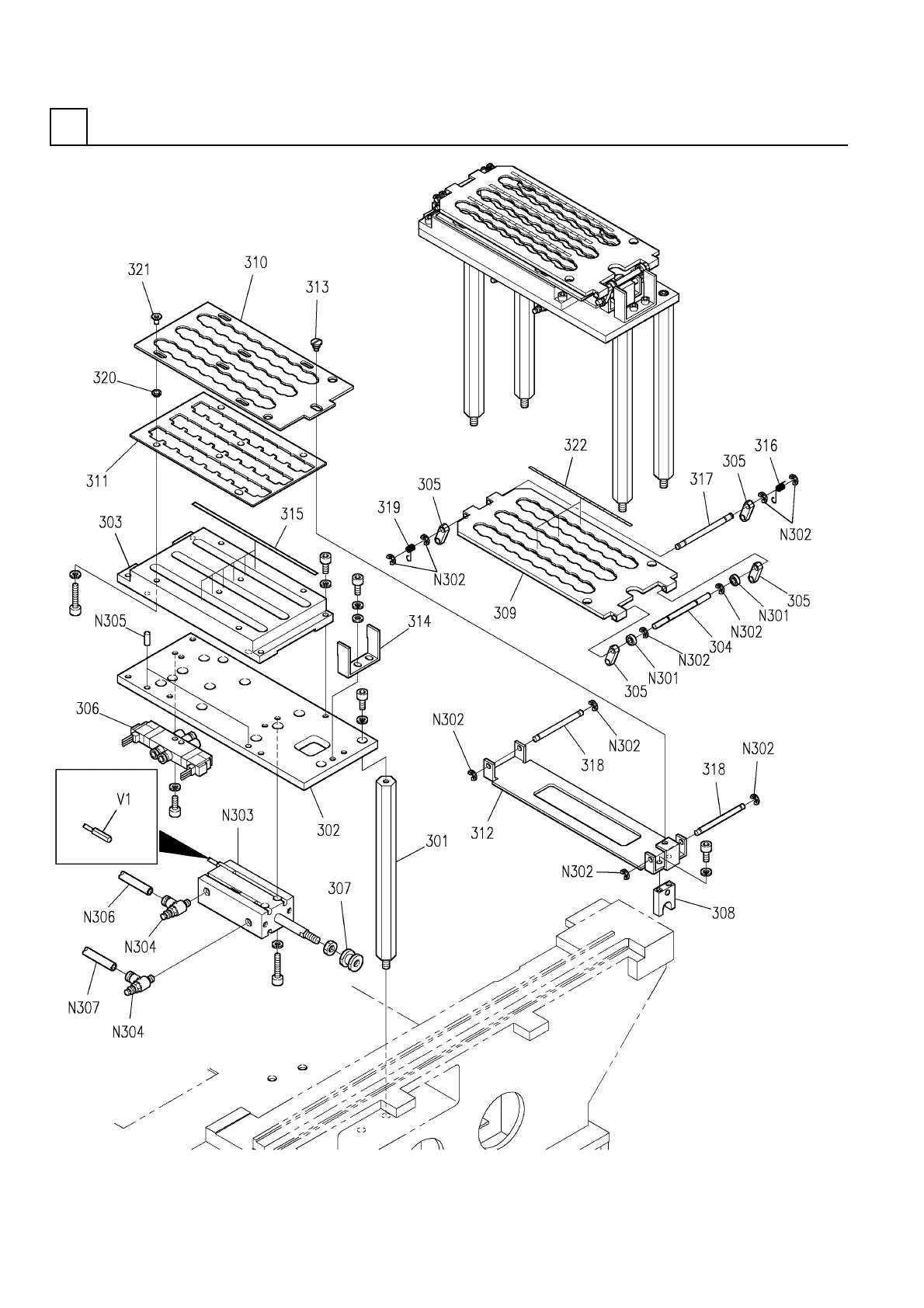

ﾉｽﾞﾙﾁｪﾝｼﾞ部(SX3)
NOZZLE CHANGE SECT.(SX3)
9
F10862-19-300-AB_01
M69
PART NAME
REMARKS
Q'TY
9
ﾉｽﾞﾙﾁｪﾝｼﾞ部(SX3)
NOZZLE CHANGE SECT.(SX3)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 名 品 番 個数 備 考
R
1
R
2
1 1086219300
NOZZLE CHANGE UNIT ﾉｽﾞﾙﾁｪﾝｼﾞﾕﾆｯﾄ
4
301 108621900102
STAND ｽﾀﾝﾄﾞ
1
302 N210048714AA
PLATE ﾌﾟﾚｰﾄ
1303 108621905301
BASE ﾍﾞｰｽ
1304 1086289037
SHAFT ｼｬﾌﾄ
4
305 1086219005
LINK ﾘﾝｸ
1
306 1047005235
VALVE ﾊﾞﾙﾌﾞ
1307 1086219007
JOINT ｼﾞｮｲﾝﾄ
1308 1086219008
PLATE ﾌﾟﾚｰﾄ
1
309 108621905901
PLATE ﾌﾟﾚｰﾄ
1310 108621906001
PLATE ﾌﾟﾚｰﾄ
1311 108621906101
PLATE ﾌﾟﾚｰﾄ
1
312 N210048711AA
JOINT ｼﾞｮｲﾝﾄ
1
313 108621901302
PIN ﾋﾟﾝ
1314 1086219064
STOPPER ｽﾄｯﾊﾟｰ
1315 1086219014
SHEET ｼｰﾄ
1
316 1086219066
SPRING ﾊﾞﾈ
1
317 1086289035
SHAFT ｼｬﾌﾄ
2318 1086289036
SHAFT ｼｬﾌﾄ
1319 1086219069
SPRING ﾊﾞﾈ
6
320 1086219020
COLLAR ｶﾗｰ
6
321 1086219071
PIN ﾋﾟﾝ
1322 1086219073
LABEL ﾗﾍﾞﾙ
MR105ZZ
2
N301
KXF05XVAA00
BEARING ﾍﾞｱﾘﾝｸﾞ
4,STEEL,T.T.C
10
N302
XUC4FT
RETAINING RING E-TYPE E ｶﾞﾀﾄﾒﾜ
CDU25-50D-A93
1
N303
N401CDU2-G77
CYLINDER ｼﾘﾝﾀﾞ
AS1201F-M5-04
2
N304
N406AS12-014
SPEED CONTROLLER ｽﾋﾟｰﾄﾞｺﾝﾄﾛｰﾗ
4X12,h7A,STEEL
2
N305
XPJ4C12FW
PARALLEL PIN ﾍｲｺｳﾋﾟﾝ
TU0425B
1
N306
N434TU0425B
TUBE ﾁｭｰﾌﾞ
TU0425Y
1
N307
N434TU0425Y
TUBE ﾁｭｰﾌﾞ
D-A93
2V 1 N401DA93
SENSOR ｾﾝｻ
