4.2.1.1 Comment Dialog Box
The Comment dialog box opens if you make changes in SIPLACE Pro on the Line Server (e.g. if
you change the component shape).
Display on the Line Server
Figure 4-5: Comment Dialog box
► Enter your user name.
► Select the appropriate category from the drop-down list.
► Select a predefined comment or add an explanation in the Comment field why you have made
the change in SIPLACE Pro.
► Click OK to close the comment dialog box.
The standard EDM Comment dialog has been extended to display multiple tab pages if another
object is changed while the dialog is open. Multiple changes to the same object will be listed in the
description window separated by the change time:
EDM V2.2 / User Guide Ausgabe 10/2013 Edition
19

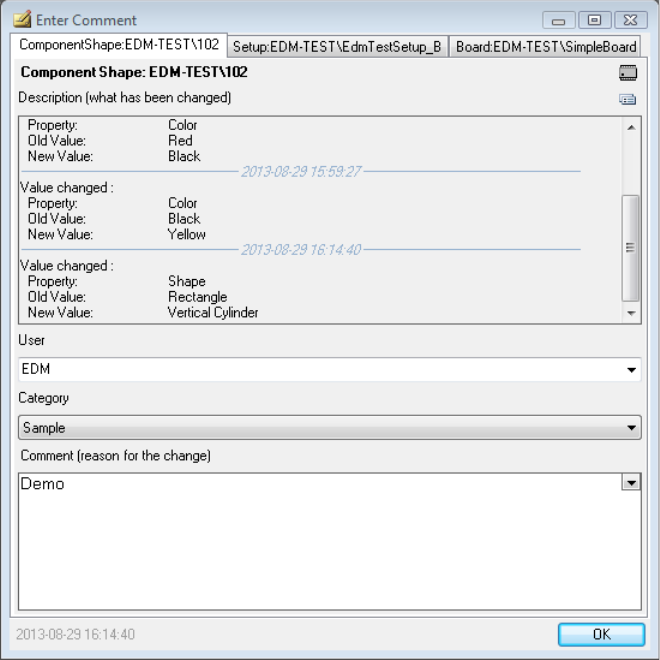

Figure 4-6: Multiple tab pages
By clicking the OK button, the entered values will be used for the active window and the tab page
closed.
Closing the dialog with the X button will apply the same comment entry to all changed objects. A
confirmation message will be displayed if more than one object are affected.
Exception:
If the value of DisableClosingOfMultiple CommentTabs in the System Settings –
Comment Entry is set to true, the X button will have the same effect as the OK button.
