EDM V2.2 / User Guide Ausgabe 10/2013 Edition
20
Display at the Station
If configured, the Comment dialog may appear at the station on which the SIPLACE Pro changes
are made.
The Comment dialog will be displayed by the OIB Display Service at the station as follows, if the
feature is enabled and the behavior has not been changed by an EDM filter.

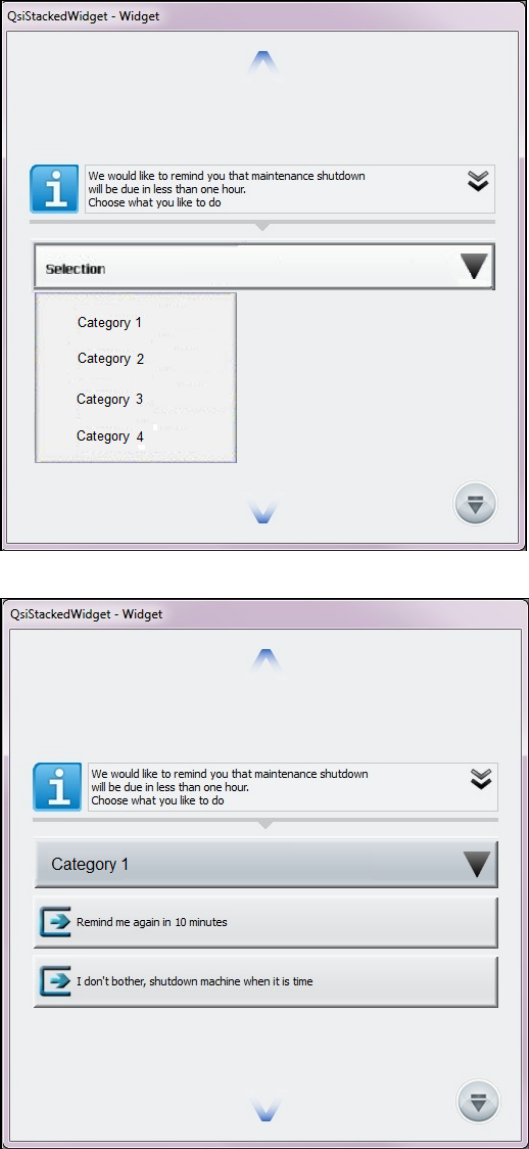

Figure 4-7: Selecting comment category at the station
Figure 4-8: Selecting comment at the station
The operator at the station can either select a comment category and a predefined comment or
enter any text as comment.
EDM V2.2 / User Guide Ausgabe 10/2013 Edition
21
4.2.1.2 Restoring Data with Pending Changes in the Clearing Pool
By default, an object is not overwritten or restored as long as there are pending changes for this
object on the current line in the Clearing Pool. During a pull operation it is now possible to restore
data on the Line Server to the current version of the Master Server, although a modified version
has been transmitted to the Clearing Pool.
Figure 4-9: Restoring data
The folders that contain at least one object to be restored and the objects themselves are marked
with the icons above.
► Check the object(s) to be restored.
► Click the right-hand mouse button to open the context menu and select the Restore with
Master Version menu entry.
NOTICE
No object version history is provided in EDM.
All changes of this object that have not yet been accepted in the Master get irrecoverably
lost after the recovery.
EDM V2.2 / User Guide Ausgabe 10/2013 Edition
22
All changed sub-objects for which changes are pending in the Clearing Pool are displayed in a
confirmation window. Only the selected, tagged objects will be restored.
Figure 4-10: Confirming objects to be restored
► Confirm your selection by clicking OK.
The selected objects are restored on the Line Server and the changes are removed from the
Clearing Pool.
4.2.2 Transferring the Change Notifications to the EDM Master
All change notifications are transferred to the EDM Master after a configurable timeout has elapsed
(see EDM Installation Manual). Notifications can be sent immediately by clicking Send Pending
Notifications in the EDM Client:
Figure 4-11: Sending pending notifications
4.2.3 "Auto Reject" and "Direct Import"
Data which matches the rules for Auto Reject and Direct Import is not put into the Clearing Pool.
In the case of Direct Import, the data is transferred directly to the EDM Master database, and in
the case of Auto Reject the data is ignored. Therefore, it is not necessary to enter comments at
the EDM Line in this case.
Further information about this can be found in section 5.1.7.
