4.3 EDM Data Transfer Manager (Push Mode)
The Data Transfer Manager allows users to send defined data packages to Line Servers.
The Data Transfer Manager opens in the selection view when it is started (either from the
Windows® Start menu: Programs - SIPLACE EDM - EDM Data Transfer (Push) or from the
shortcut on the desktop).
4.3.1 Creating a Data Package
Figure 4-12: Creating a data package
The Transfer data to line (Push) button is disabled by default: .
The red error icon to the right shows that the user still has to make entries. Details are displayed as
a tooltip or if the user left-clicks on the error indicator.
The following steps are necessary to successfully transfer objects to a line. It is recommended that
you initially follow the sequence given.
By clicking on the error icon a new dialog window opens displaying the messages.
EDM V2.2 / User Guide Ausgabe 10/2013 Edition
24
4.3.1.1 Selecting an Application Template
If a template has previously been selected in an earlier session of the Data Transfer Manager, this
is preselected in the drop-down list. This drop-down list contains all the templates stored in the
selected template folder.
► Select a template from the drop-down list or click the button to select another template
folder.
4.3.1.2 Selecting the Line(s)
Once a template has been selected, the Line Server drop-down list shows all the known lines
selected by the template. The following icons indicate the status of the line. Further details are
displayed in the tool tip for the icon and in the Status field of the Line Server drop-down list.
Icon Meaning
The Line Server is available and can receive data packages.
The Clearing Pool contains unprocessed entries for this line. The entries in the Clearing
Pool should be checked and removed before data is sent to this Line Server. Nevertheless,
it is possible to push data.
The Clearing Pool contains unprocessed entries for this line. One of these objects in the
Clearing Pool has been added to the Object selection list. The object must be removed
from the Clearing Pool or the Object selection list or the line must be deactivated in the
Line Server drop-down list before data can be sent to this Line Server.
Something is wrong on the Line Server. The EDM Tool may not be running.
The Line Server is not responding, does not exist (incorrect entry in the EDM configuration
file), the EDM service is not running on the Line Server, or push mode is not enabled
there.
The SIPLACE Pro versions are not compatible with each other.
The activated functions do not match each other.
Example: the conflict detection is active but no SPI line is configured.
Table 4-1: Icons for line status
The associated check box at the beginning of the row must be checked to transfer objects to a Line
Server. The All (all Line Servers shown), Valid and None buttons check or uncheck the check
boxes of the relevant Line Server groups.
EDM V2.2 / User Guide Ausgabe 10/2013 Edition
25
4.3.1.3 Selecting the Objects to Be Transferred
The Add button opens a dialog box for selecting the objects. The filter function and the context
menu allow the relevant objects to be selected quickly. The checked entries are added to the
Object selection list.

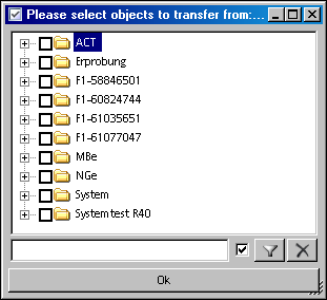

Figure 4-13: Selecting objects to be transferred
4.3.1.4 Entering a Comment
A text must be entered in the Comment field. This is subsequently used as a notice and identifies
the content of the push package to the user at the Line Server.
