User’s Manual Line Computer UNIX 4 Data Management Software Version 403.xx Edition 06/97 4.4 User Interface of Print and Update Server 4 - 31 - Formatting or erasing of a str eaming tap e NO TE Streami ng tape s need not…
4 Data Management User’s Manual Line Computer UNIX
4.4 User Interface of Print and Update Server Software Version 403.xx Edition 06/97
4 - 30
-
Formatting
of diskettes
Diskettes can be formatted in various formats depending on which one of the
Format
buttons - one of
them is located next to each device name of the individual disk drives - is activated.
The allocation of the device name to the format in which a diskette is to be formatted is described in
section 4.4.2.1.
●
Insert HD diskette into disk drive.
●
Click on
Format
button next to the name of the respective disd drive.
Next to the device name the display "formatting in process" is displayed during the entire format-
ting procedure.
NOTE

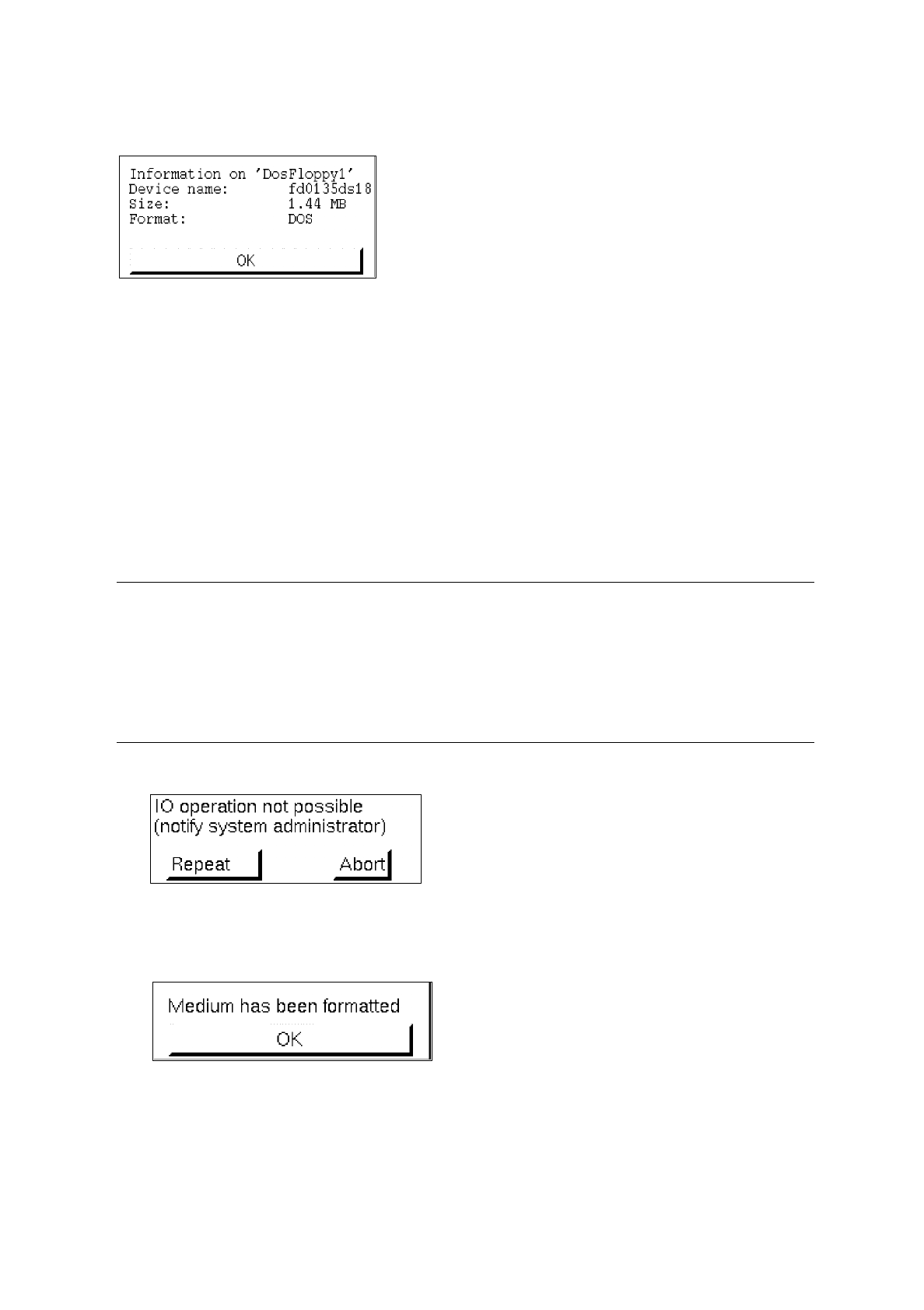

The existing data carrier format is checked during formatting. If formatting is not possible, a corre-
sponding error message is displayed (see example below). This may occur, for example, if into the
selected 3.5 inch floppy disk drive an HD diskette (1.44 MB) is inserted instead of a DD diskette (730
KB). An appropriate error message is also displayed if no data carrier is present in the selected disk
drive.
When the formatting process is terminated, the following dialog appears:
●
Confirm the dialog box with
OK
.
User’s Manual Line Computer UNIX 4 Data Management
Software Version 403.xx Edition 06/97 4.4 User Interface of Print and Update Server
4 - 31
-
Formatting
or
erasing
of a streaming tape
NOTE
Streaming tapes need not
be formatted before they are used. Therefore, instead of initiating a
formatting process the erasing process is activated for the entire content of the tape when the
command
Format
is activated.
●
Insert the streamer cartridge holding the data to be erased into the streamer drive.
●
Click on
Format
button next to the name of the streamer drive.
Next to the drive name the display "initializing in process" appears during the entire erasing
procedure.
When the erasing procedure is terminated, a dialog box containing a corresponding message is
displayed.
●
Confirm dialog box with
Ok
.
-
Terminating
the Print and Update Server
●
Click on
Quit
button.
The main window of the print and update server is closed.
NOTE
For as long as a formatting or erasing procedure is still active, the user interface of the print or update
server cannot be exited.
4 Data Management User’s Manual Line Computer UNIX
4.4 User Interface of Print and Update Server Software Version 403.xx Edition 06/97
4 - 32
