16 MaDaMaS User’s Manual Line Computer UNIX
16.2 MaDaMaS Evaluation User Interface Software Version 403.xx Edition 06/97
16 - 12
16.2.4 OPTIONS Menu
-

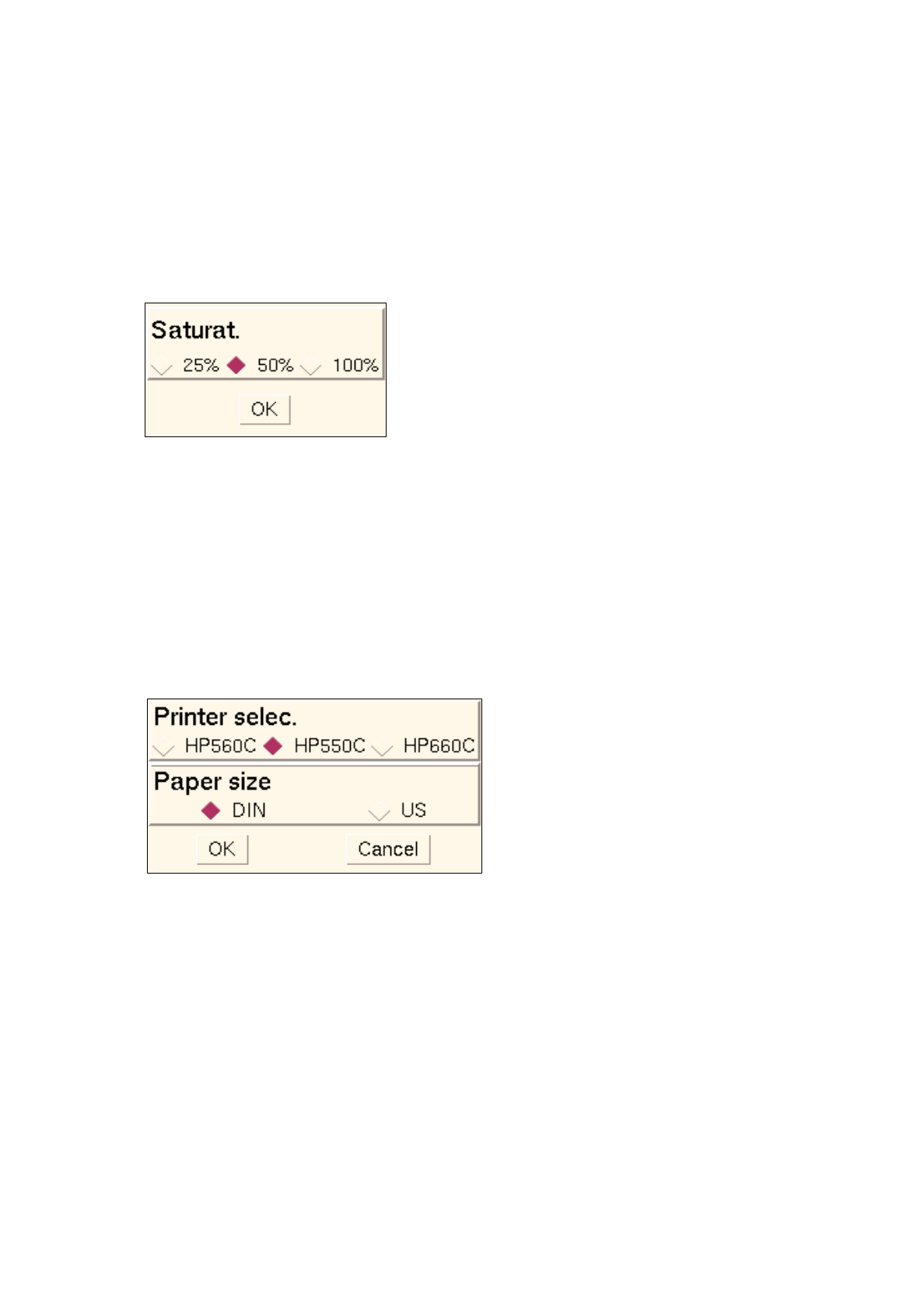

Colors
This option permits the color intensity (saturation) of the graphical displays to be selected in 3 steps.
●
Select OPTIONS --> Color setting.
The following window is opened.
●
Click on button in front of the desired value.
●
Confirm your selection with OK.
The window is closed. The graphics displayed in the view area are shown in the selected color
intensity.
-
Printer
This option permits a printer installed in the LC system to be selected on which the MaDaMaS data
are to be printed out. In addition, the required paper size can be set as well.
●
Select OPTIONS --> Printer.
The following window is opened.
●
Activate the respective buttons in front of the desired printer and the paper size.
●
Confirm your selection with OK.
The window is closed.
User’s Manual Line Computer UNIX 16 MaDaMaS
Software Version 403.xx Edition 06/97 16.2 MaDaMaS Evaluation User Interface
16 - 13
16.2.4.1 Setting Limit Values
-
Limit values
-
This menu option permits the window for setting the limit values to be opened.
In this window the following limit values can be set for the evaluations "Availability", "Pick-up reliability"
and "Performance":
Warning limits
Availability Icon is highlighted in red if the Availability falls short of the
value preset here.
Trend Icon is highlighted in red if the total number of errors in the
Trend evaluation exceeds the value preset here.
No. of PCBs for trend evaluation Here, the number of PCBs, produced most recently, is set
which are to be taken into account for the trend evaluation.
Time settings
Timeout The icon is displayed if the time period that has elapsed
since the completion (or abortion) of the last PCB exceeds the
Timeout value preset here.
The station concerned is shut down.
●
Select OPTIONS --> Limit values.
The following window is opened.
●
Set the desired limit values by clicking on the arrow buttons.
●
Confirm your setting by OK.
The window is closed.
NOTE
By means of the Load default settings menu option the predefined limit values can be restored.
16 MaDaMaS User’s Manual Line Computer UNIX
16.2 MaDaMaS Evaluation User Interface Software Version 403.xx Edition 06/97
16 - 14
-
Loading default settings
This option permits the predefined limit values to be reloaded if they were changed by means of the
"Limit values" menu option.
The following limit values are defined as default settings:
Availability: 95 %
Trend 10 %
No. of PCBs for trend evaluation 10
Timeout 5 min.
●
Select
OPTIONS
-->
Load default settings
.
The predefined default limit values are adopted again.
16.2.5 Command Area
All recorded production data can be logged for a specific evaluation period (time basis). The time basis can be
set by means of the three icons located in the upper portion of the command area. The currently set time basis
is displayed in the info area.
For setting the time basis three icons are available:
Evaluation from the last set-up changeover up to the present.
Evaluation from the last cluster change up to the present.
Evaluation from the last Reset up to the present.
For logging the production data from the last reset to the current point in time, the setting of the Reset time is
of importance.
To this end, the following icon is available in the command area:
The current logging session of the production data is interrupted and a new period of production
data recording starting from the Reset begins.
CAUTION !
∆
The data captured prior to the "Reset" can no longer be evaluated.
By clicking on this icon in the command area it is possible to switch from the currently displayed
evaluation back to the previous evaluation (all the way to "Overall view").
