17.3 Description of Components and PCBs User’s Manual Line Computer UNIX
17.3.2 PCB 2: Focus on Package Form Description Software Version 403.xx Edition 06/97
17 - 22
FILE
Save
Opening Package
Form Editor
Defining package
form type
Entering dimensions
Allocating package
form to a feeder
Entering handling
data

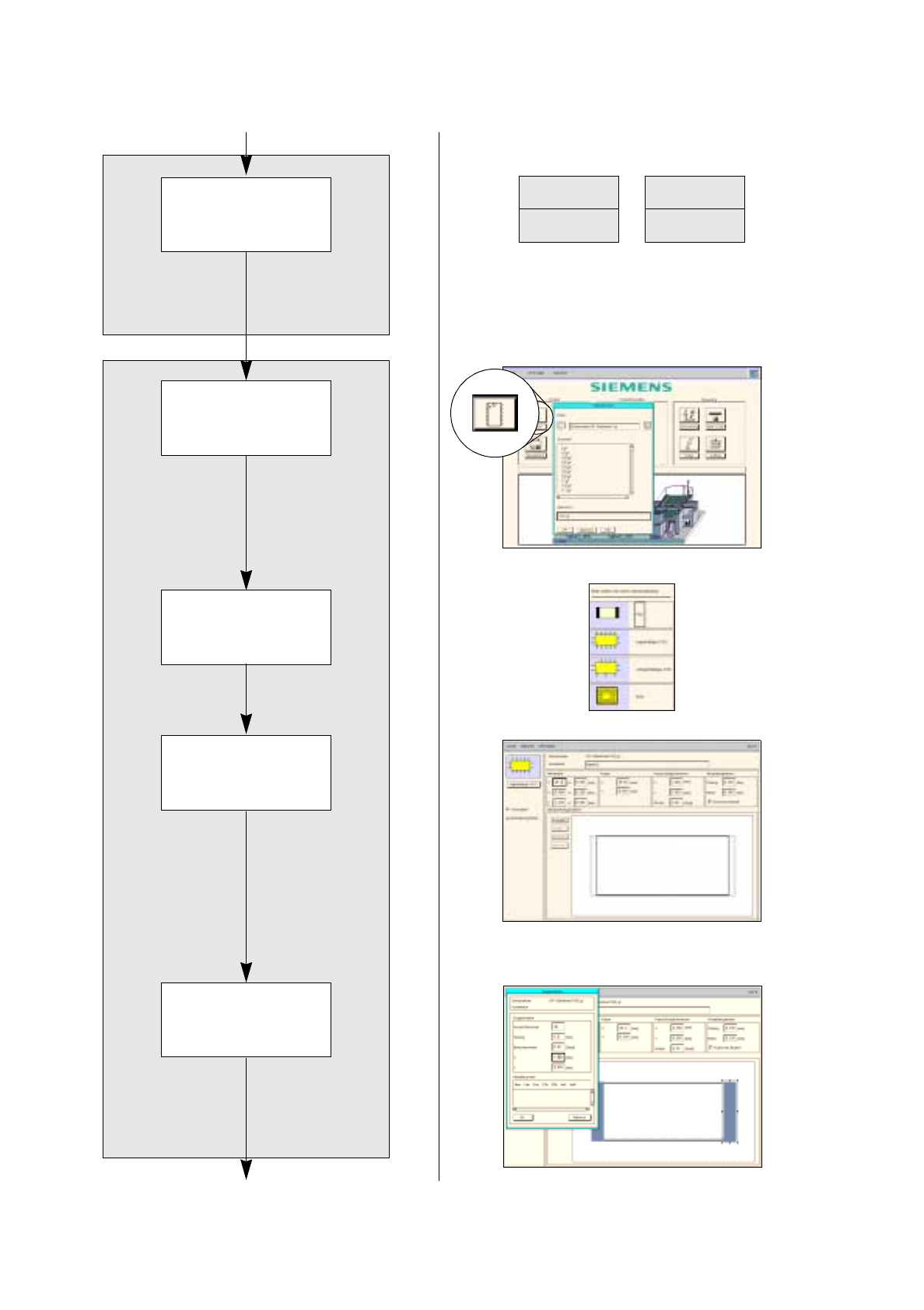

Package form description for package form 1501
continued on page 17-24
Saving
package form data
User’s Manual Line Computer UNIX 17.3 Description of Components and PCBs
Software Version 403.xx Edition 06/97 17.3.2 PCB 2: Focus on Package Form Description
17 - 23
17.2.2.1 Package Form Description
A) Description of a PDC using package form 1501 as an example
To open the Package Form Editor for package form 1501, proceed as follows:
1. On the desktop click on the icon of the Package Form Editor .
The file selection window is opened.
2. Click on the
Selection
editing field.
3. Enter the package form number, here:
1501.gf
and click on the
OK
button.
The Package Form Editor with the package form type selection window is opened.
To define the package form type „PDC“ for package form 1501, proceed as follows:
4. In the package form type selection window click on the type
PDC
.
The selection window is closed.
5. In the Package Form Editor click on the
Comment
editing field, enter a unique comment
,
here:
Chip
2220
.
To enter the dimensions for package form 1501, proceed as follows:
6. In the
Nominal Dimensions
editing area enter the dimensions of the package form (click on the editing
field, enter value, confirm by pressing the Enter key), here: see chart:
The tolerances are entered automatically.
The package form is displayed with the tolerance range.
7. For this example the default values of the editing areas Packaging tolerances and Features are adopted,
no entries are required.
To enter the handling data for package form 1501, proceed as follows:
8. Activate the
Handling data
button.
The selection areas are displayed for entering the handling data.
9. Activate the
Nozzle
button in the Nozzles/Sensor types selection area.
10. Click on the
Create
button.
The Nozzle type selection window containing a list of the nozzle types is loaded.
11. Click on a nozzle
,
here:
615
.
The selection window is closed, the nozzle is accepted.
12. Select all other nozzles required accordingly, here:
618
.
13. Activate the
Sensor type
button.
14. Click on the
Create
button.
The
Sensor type
selection window containing a list of the sensor types is opened.
15. Click on a sensor type, here:
9
.
The selection window is closed, the sensor type is accepted.
16. Click on the
Placing force
editing field in the
Handling values
selection area, enter a value, here:
2
.
17. In the Centering selection area activate the appropriate button, here:
Centering in head
.
18. For this example the default values of the editing areas
Handling instructions
and
Reduced accelera-
tion
can be adopted, no entries are required.
19. Click on the
Save
option on the
FILE
menu.
The data are now saved.
To allocate a feeder to package form 1501, proceed as follows:
20. Click on the
Starting Feeder Editor
option on the
SERVICES
menu.
The Feeder Editor is opened.
21. Activate the
Allocate
icon .
X
(Length l)
Y
(Width b)
Z
(Height s)
5.7 5 1.7
17.3 Description of Components and PCBs User’s Manual Line Computer UNIX
17.3.2 PCB 2: Focus on Package Form Description Software Version 403.xx Edition 06/97
17 - 24
FILE
Save
FILE
Quit
Entering dimensions
Creating pin group
Package form description for package form 1502
continued on page 17-26
continued from page 17-22
Defining package
form type for
package form 1502
Opening Package
Form Editor for
package form 1502
Saving
feeder to package
form allocation
