17.3 Description of Components and PCBs User’s Manual Line Computer UNIX
17.3.2 PCB 2: Focus on Package Form Description Software Version 403.xx Edition 06/97

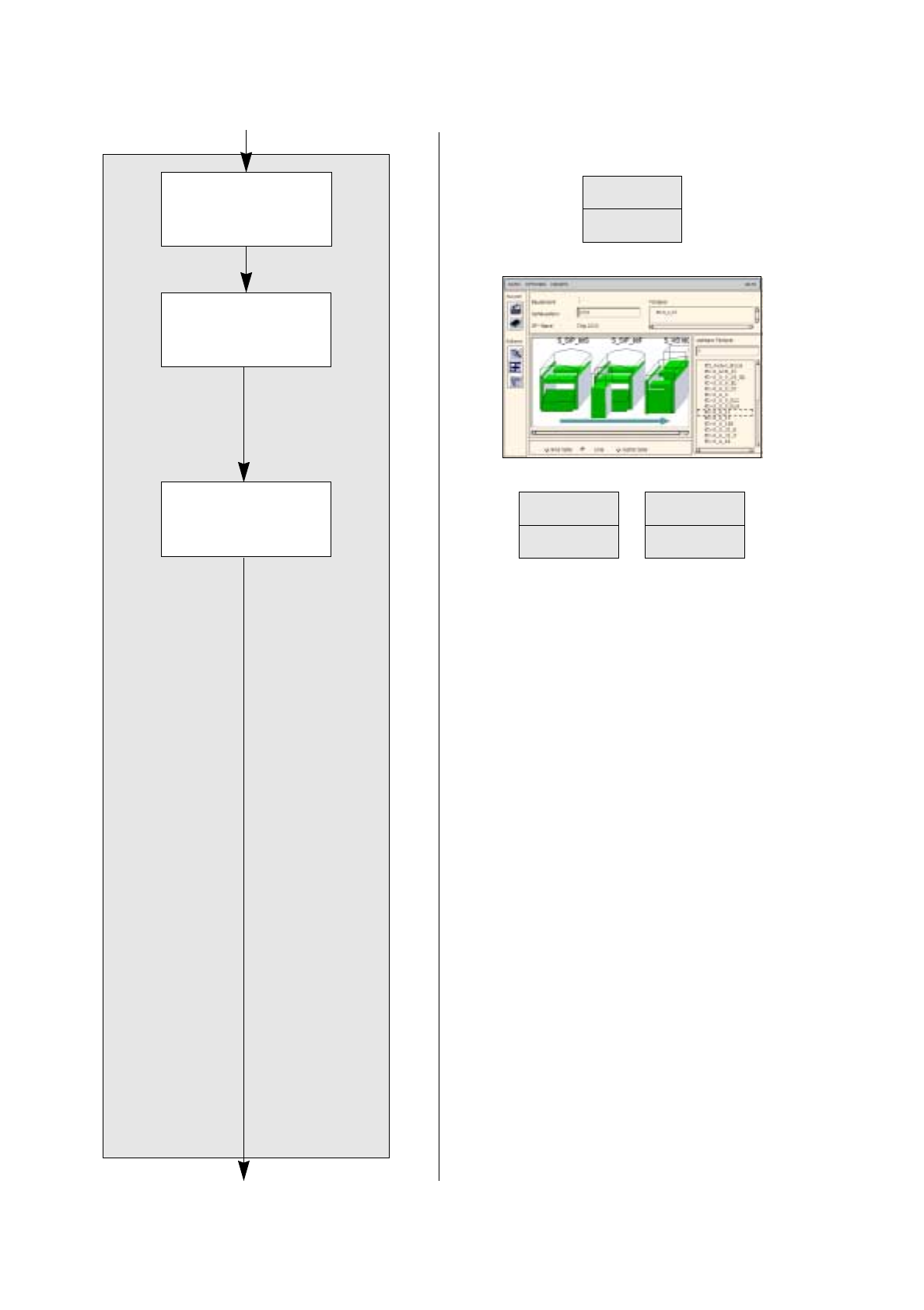

17 - 32
FILE
Save
FILE
Save
FILE
Quit
Allocating a package
form to a feeder
continued from page 17-30
Saving package form
to feeder allocation
Package form description for pack. form 1503
continued on page 17-34
Saving package form
data
User’s Manual Line Computer UNIX 17.3 Description of Components and PCBs
Software Version 403.xx Edition 06/97 17.3.2 PCB 2: Focus on Package Form Description
17 - 33
94. Activate the appropriate buttons in the Centering selection area, here:
Centering in head
.
95. In this example the default values of the editing areas Handling values, Handling instructions and Redu-
ced acceleration can be adopted, no entries are required.
96. Click on the
Save
option on the
FILE
menu.
The data are saved.
To allocate a feeder to package form 1503, proceed as follows:
97. On the
SERVICES
menu click on the
Starting Feeder Editor
option.
The Feeder Editor is opened.
98. Activate the
Allocate
icon.
99. Den Button
Linie
anklicken.
The entire line is highlighted in light-green.
100.Click on the appropriate feeder on the list of placeable feeders, here:
FD~S_G_12
.
The feeder is transferred to the Feeder selection field.
101.In the Feeder Editor click on the
Save
option on the
FILE
menu.
The data are now saved.
102.Click on the
Quit
option on the
FILE
menu.
The Feeder Editor is closed.
103.In the Package Form Editor click on the
Quit
option on the
FILE
menu.
The Package Form Editor is closed.
17.3 Description of Components and PCBs User’s Manual Line Computer UNIX
17.3.2 PCB 2: Focus on Package Form Description Software Version 403.xx Edition 06/97

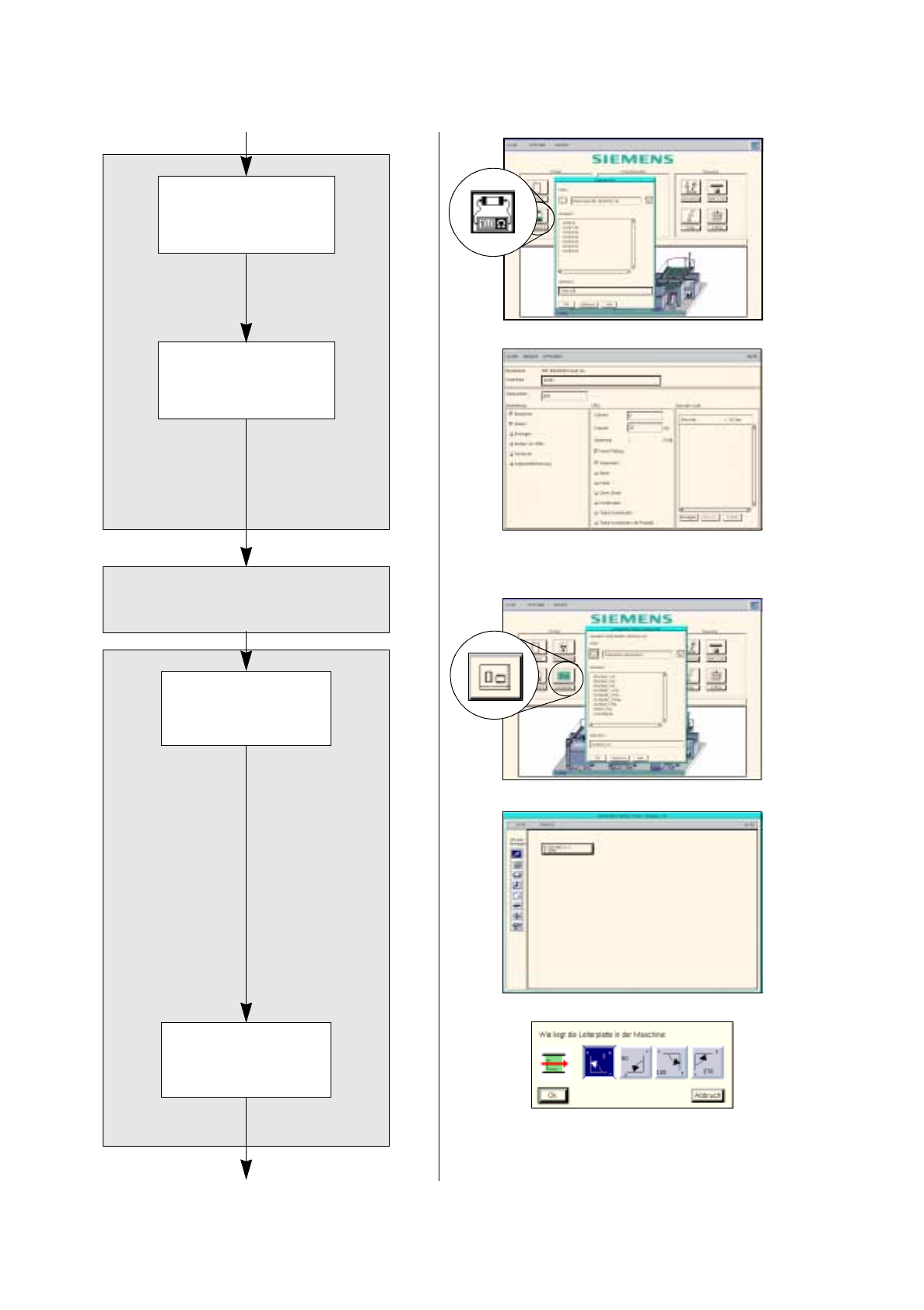

17 - 34
The adhesive pattern description is dispensed with.
Opening the
Component Editor for
a component
Entering component
data
Component Editor
Adh. pattern description
Starting the PCB
Editor for a PCB
Entering the position
of the PCB in the
machine
PCB description
continued on page 17-36
continued from page 17-32
