3 Desktop (Root Window) User’s Manu al Line Computer UNIX 3.1 Introduction Software Version 403.xx Edition 06/97 3 - 2 Fig. 3.1.1 Layout of the Desktop in the Programming Mode Fig. 3.1.2 Layout of the Desktop in the Cont…
User’s Manual Line Computer UNIX 3 Desktop (Root Window)
Software Version 403.xx Edition 06/97 3.1 Introduction
3 - 1
3 Desktop (Root Window)
3.1 Introduction
This chapter of the User's Manual provides the user with information on the layout, function and operation of
the desktop (root window). The desktop is the user interface of the entire LC system and is displayed after the
LC software has been started up (see chapt. 2, section 2.1.1).
3.1.1 Layout of the Desktop
The desktop fills the entire screen and cannot be changed in size. The appearance of the desktop depends on
whether the LC program is started in the user mode
Programming mode
or
Control mode
. Even though the
appropriate mode was already set upon the installation of the LC software (see chapt. 1), it can be changed by
means of the OPTIONS menu (see section 3.2.1.2). Depending on the user mode selected, the tools on the
desktop can be used to fulfill varying tasks.
-
In the
programming mode
the desktop provides the user with all tools required to completely define a
product and to control its production.
-
In the
control mode
the desktop provides the user only with those tools in the form of icons that are
required for the production (control). The other tools can be activated via the menu options of the
"PRODUCT" and "PRODUCTION TOOLS" menus (see section 3.2.1.4 and section 3.2.1.5).
3 Desktop (Root Window) User’s Manual Line Computer UNIX
3.1 Introduction Software Version 403.xx Edition 06/97
3 - 2

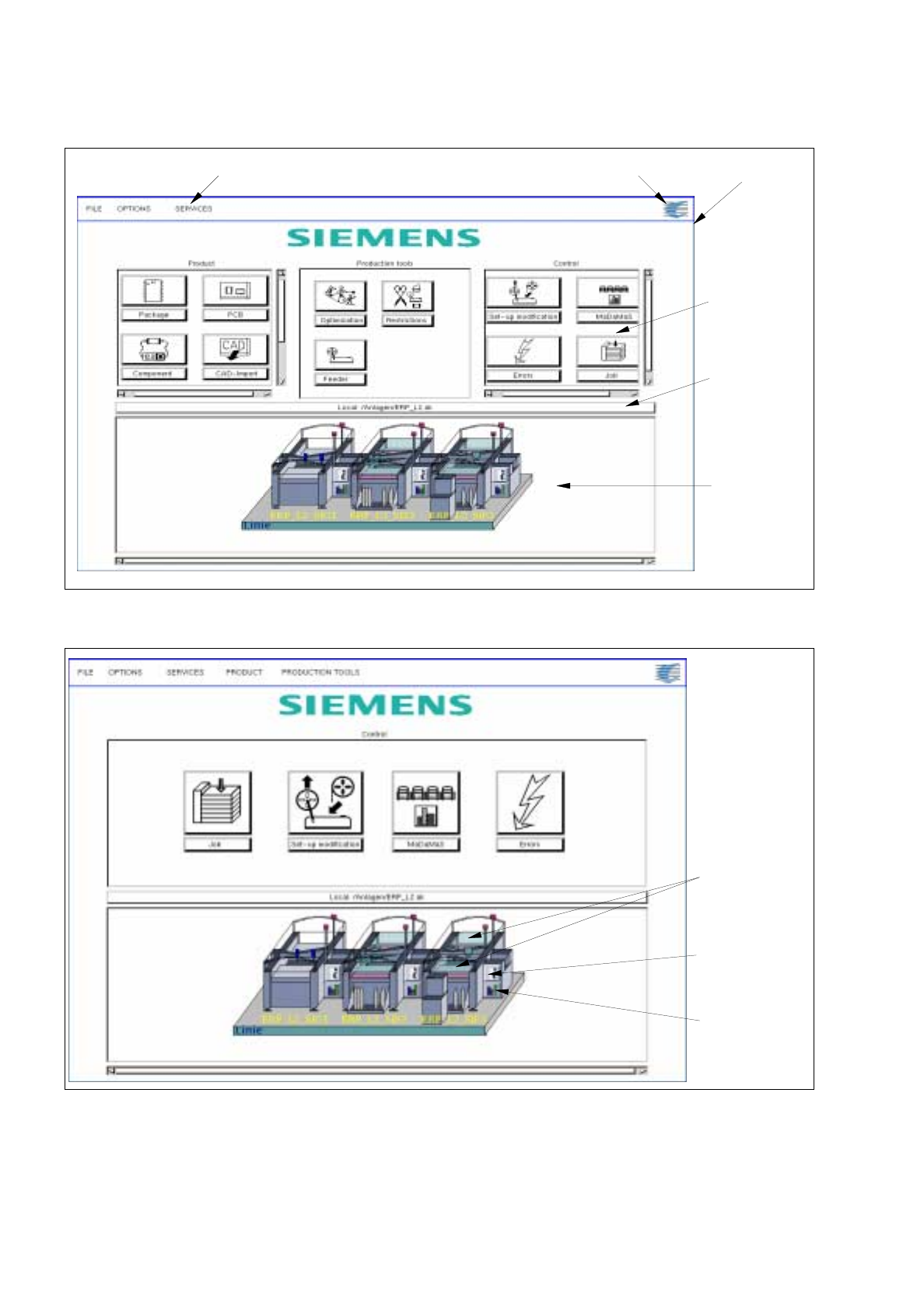

Fig. 3.1.1 Layout of the Desktop in the Programming Mode
Fig. 3.1.2 Layout of the Desktop in the Control Mode
desktop menu bar SMD symbol
main group
line selection
(current line
configuration)
main menu
display
area
button (for the
selection of a
new line)
feeder parts
symbol "i“ for
station
controller
bar chart
symbol for
MaDaMaS
User’s Manual Line Computer UNIX 3 Desktop (Root Window)
Software Version 403.xx Edition 06/97 3.1 Introduction
3 - 3
The desktop is subdivided into the three sections described below:
-
Upper area containing the desktop menu bar
The menu bar contains the following menus:
FILE
OPTIONS
SERVICES
PRODUCT (only available in the control mode)
PRODUCTION TOOLS (only available in the control mode)
-
Middle area containing the main groups
Product (only available in the programming mode)
Production Tools (only available in the programming mode)
Control
Each of these main groups contains the modules of the LC software. These modules are the LC pro-
grams which are displayed in the respective main group as icons when they have been logged on to the
desktop.
-
Bottom section featuring the
Line selection button
and the view area
The
Line selection button
displays the pathname of the current line. The type of data storage ("local" or
"central") currently accessed is indicated in front of the pathname as an additional piece of information.
The FSB enabling the selection of a different line can be opened by clicking on the button.
The view area contains a display symbolizing the current line configuration including all stations
existing in the line.
NOTE
The meaning and functions of all elements of the desktop in the programming and control modes are
described in section 3.2.
