User’s Manual Line Computer UNIX 3 Desktop (Root Window)
Software Version 403.xx Edition 06/97 3.2 Desktop User Interface
3 - 15
Or else:
●
Click on the
Replace all
button.

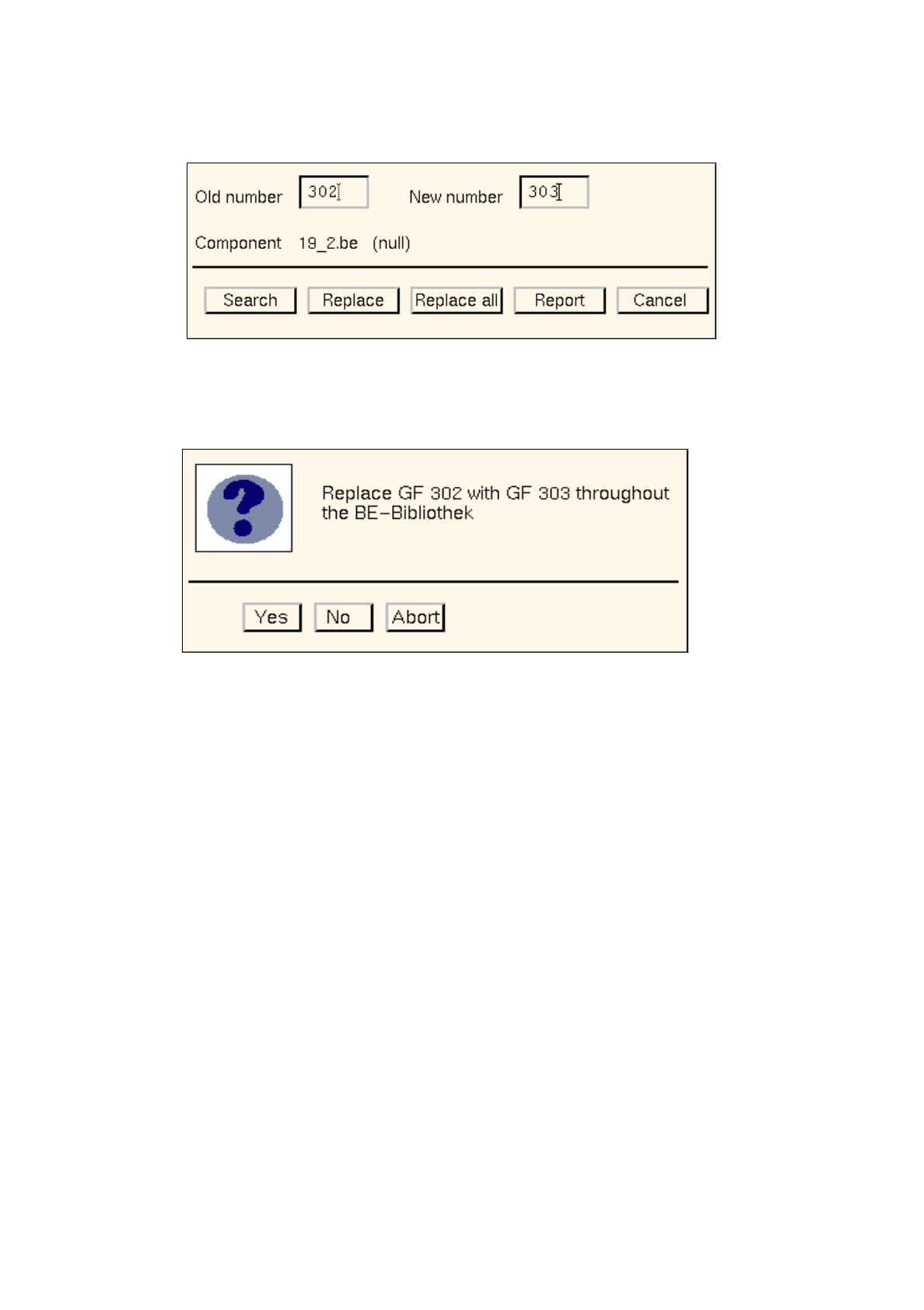

The following dialog box opens.
●
Click on
No
or
Abort
if the action displayed in the dialog box is not to be executed.
●
Click on
Yes
if the action displayed in the dialog box is to be executed.
From the currently found occurrence of the component (component file) onwards, the old GF
number will be replaced with the new GF number in all subsequently found occurrences of the
component (component files).
The
Report
button in the dialog box can be used to display the results of the action.
●
Click on
Report
in the dialog box.
The File Display main window opens.
●
For details on how to continue, refer to page 3 - 13.
●
When all desired replacements have been made, click on
Cancel
in the dialog box.
The window closes.
3 Desktop (Root Window) User’s Manual Line Computer UNIX
3.2 Desktop User Interface Software Version 403.xx Edition 06/97
3 - 16
-
Similarity Check
This menu option is used to compare all customer-specific package forms (GF no.
>
1501) for simila-
rity with the standard package forms (GF no.
<
1500).
(For details on the criteria for the similarity check refer to the note on page 3 - 13).
●
Click on
OPTIONS
-->
GF Handling
-->
Similarity check
.

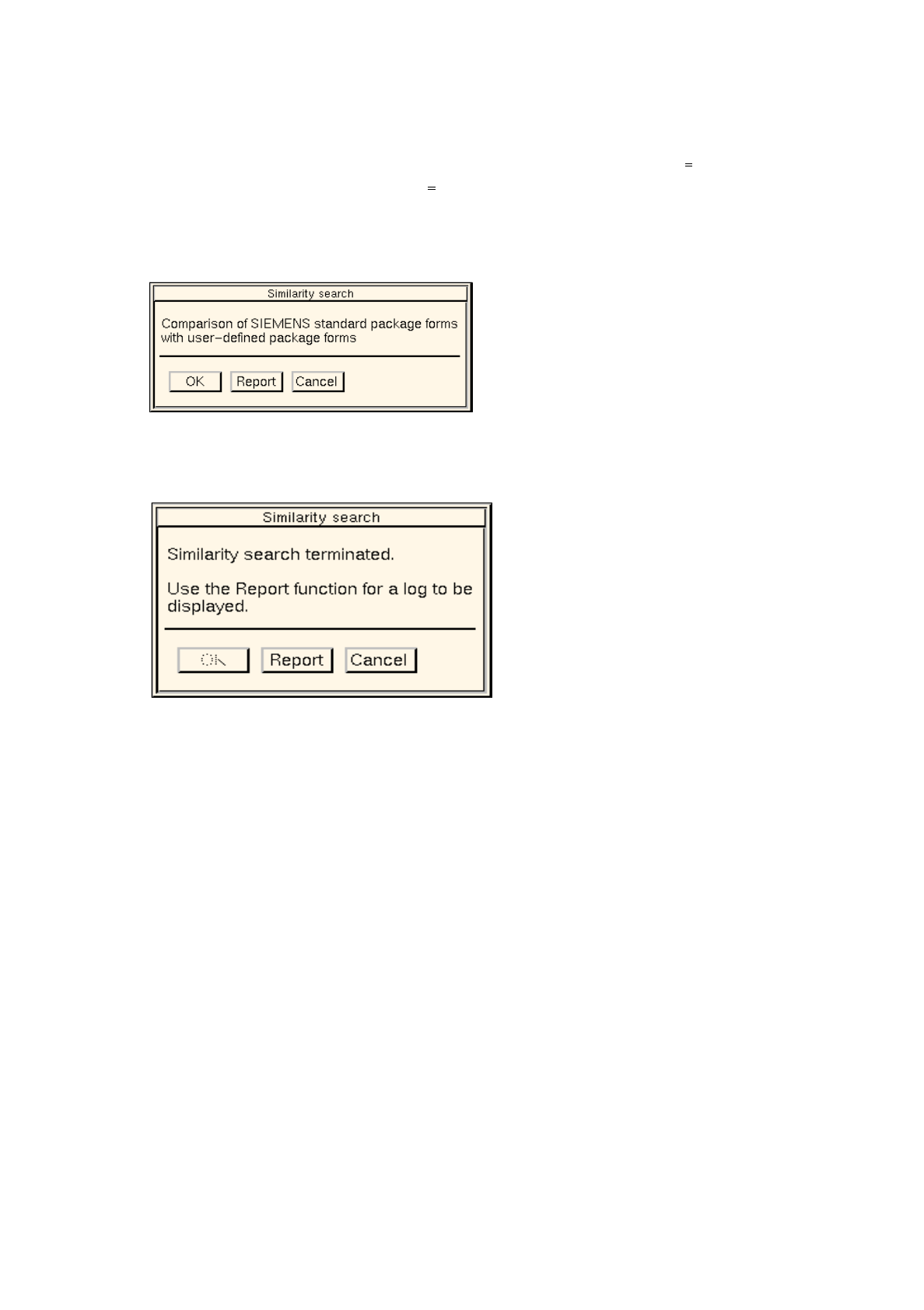

The dialog window below opens.
●
Click on the
OK
button.
The dialog window indicates that the similarity check is being performed.
After the comparison is completed, the dialog window is displayed as follows:
●
Click on
Report
.
The File Display main window opens. The contents of the log file "GF_LibInstall.log" are dis-
played in the view area (see page 3 - 14).
●
Close the File Display main window using the menu option
FILE
-->
Quit
.
●
Click on
Cancel
in the dialog window.
The dialog window closes.
User’s Manual Line Computer UNIX 3 Desktop (Root Window)
Software Version 403.xx Edition 06/97 3.2 Desktop User Interface
3 - 17
3.2.1.3 SERVICES Menu
-
Screen Saver
This option is used to set the screen saver.
●
Click on SERVICES --> Screen saver.

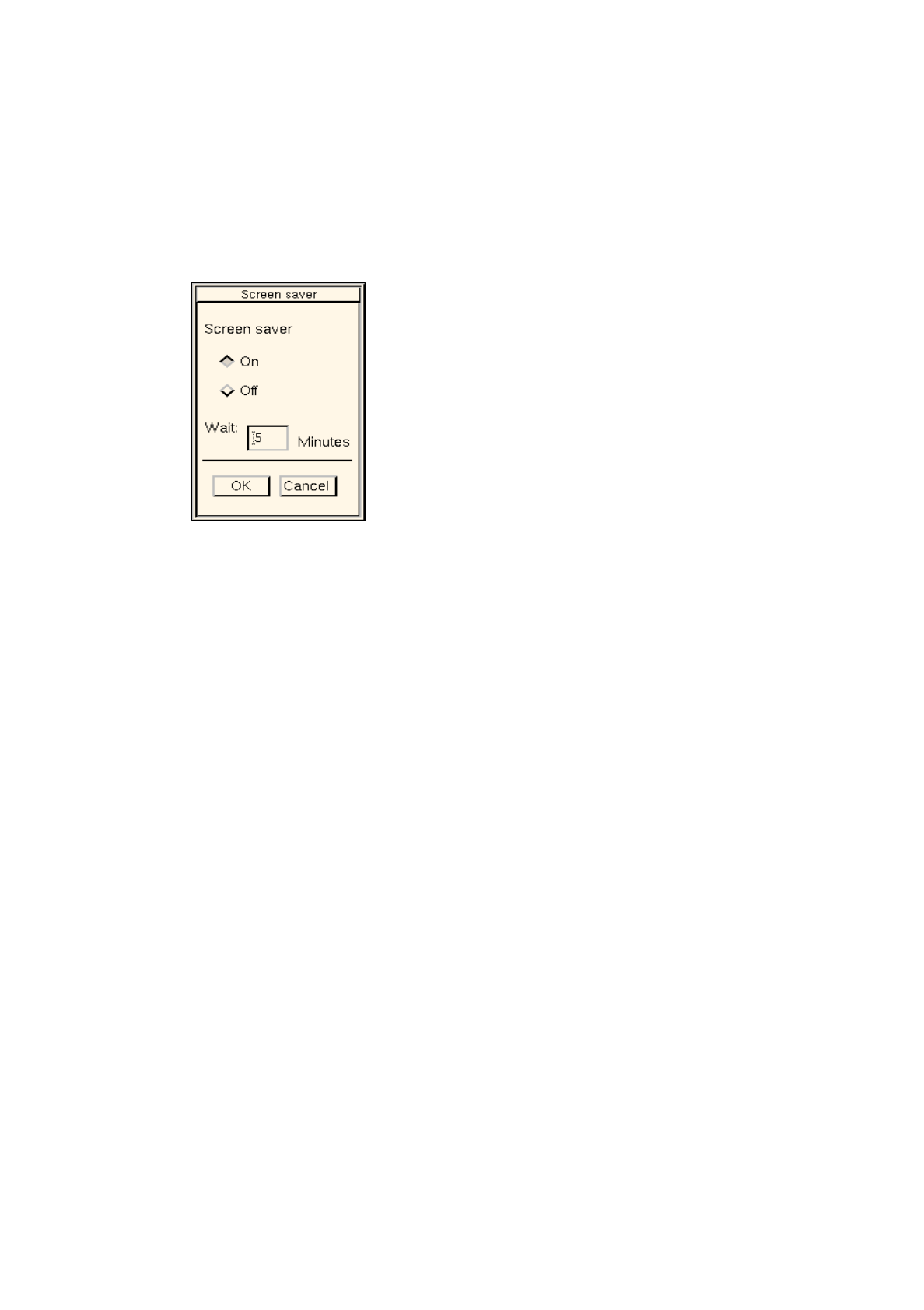

The following dialog box opens.
●
Click on the On button.
●
In the editing field enter the desired delay time after which the screen saver is to be activated.
●
Click on OK.
The dialog box closes. The screen saver goes into effect when there is no mouse or keyboard
activity for the specified length of time. The desktop will reappear as soon as the mouse or key-
board is used.
-
Equipment
Serves to open the user interface of the Print and Update Server. It basically serves to manage the dif-
ferent devices. The devices available in the LC system such as printers, diskette and tape drives can
be logged on (activated) or logged off (deactivated).
In addition, it is possible to intitiate the formatting of data carriers from the user interface.
●
Click on SERVICES --> Equipment.
The user interface of the Print and Update Server is opened (see chapt. 4).
-
Station configuration
Serves to open the user interface of the Configuration Editor. The configuration of a selected station
can be defined with the aid of the editor.
●
Click on SERVICES --> Station configuration.
The FSB containing the directory "Master data: Stationen" is opened.
●
Open the directory "Master data: Stationen" by double-clicking.
The list of the configured stations is displayed in the FSB.
●
Select the desired station by double-clicking.
The user interface of the Configuration Editor is opened (see chapt. 12, section 12.1).
