1.2.2.1 Elevator Height and Inclination Adjustment Procedures
•
Tools to be used
: Two Hook Spanners (Maintenance Tool Accessory)
Procedure
(1) Fix the traverse cart section onto the main machine installation section.
(2) Move the elevator unit to the attachment position.
(3) Adjust the elevator unit caster height to satisfy the following conditions.
(The bolt pitch in the caster section should be 3 mm / pitch).
•

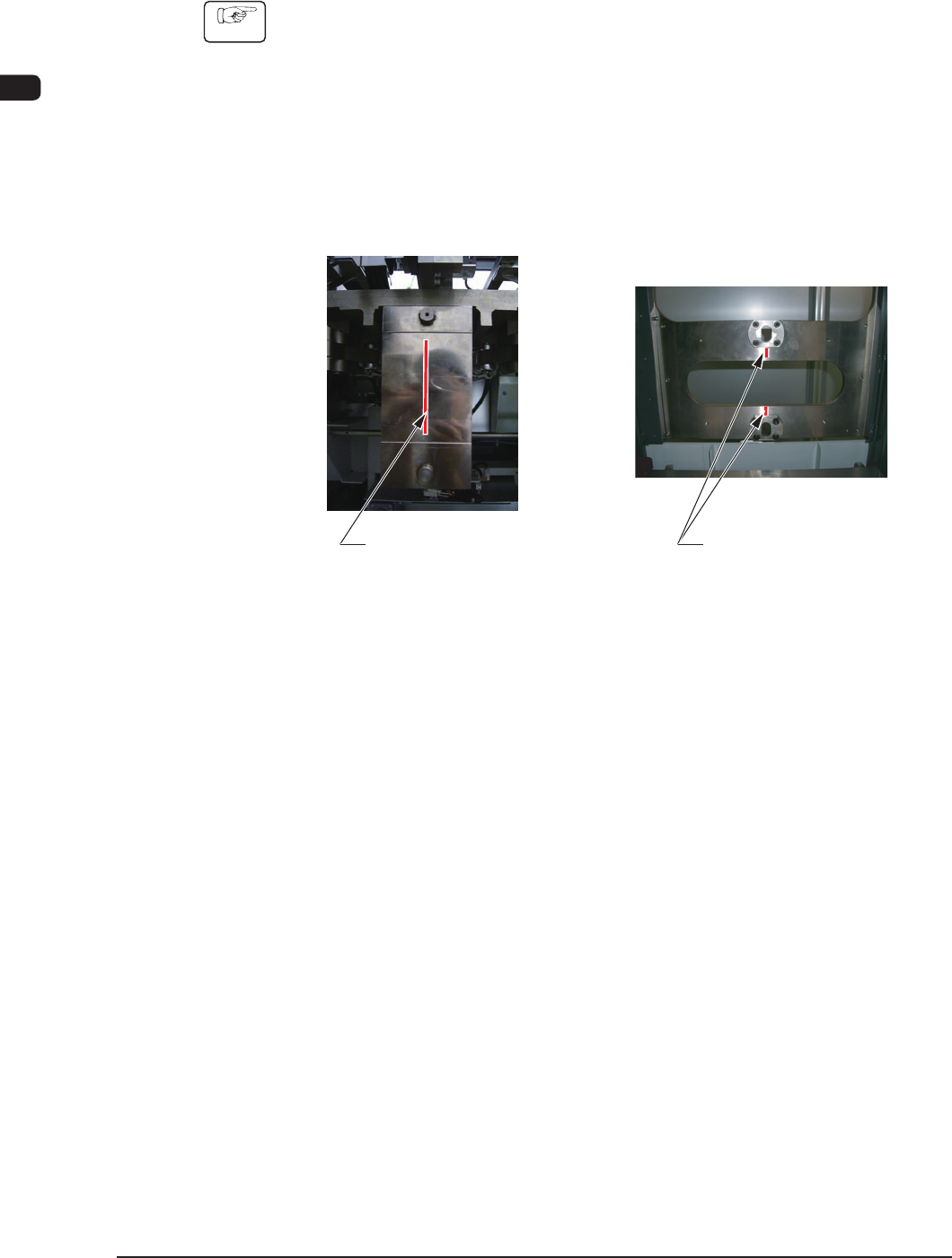

The pilot pin on the side of the traverse cart should be located at the center
of the long hole section on the elevator side.
Positioning Pin on
the Traverse Cart Side
Long Hole Section on
the Elevator Side
Marking-off Line
on the Traverse Side
Marking-off Line
on the Elevator Side
F7C5
1003-002
7OM-1603
Chapter 3 : 1. Maintenance Menu
3-7
•

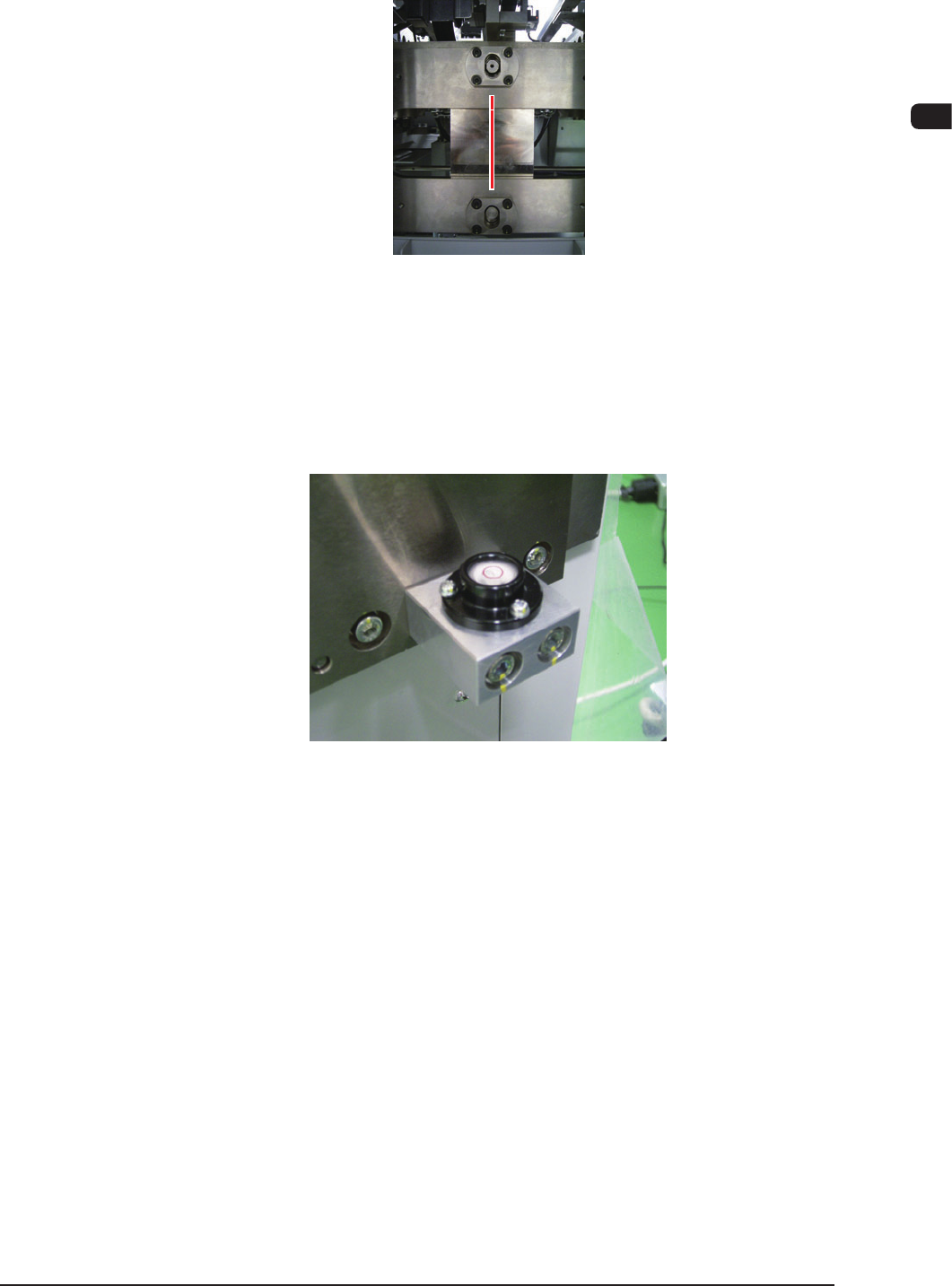

The marking-off on the unit on the traverse cart side should agree with
that on the elevator unit side.
Combined view of the units
on the elevator side
and traverse cart side
F7C6
•
The air bubble in each of the two levels on the rear side of the elevator
unit should be static within the center red circle.
Level (2 locations)
F7C7
(4) Fix the bolt in the caster section using the lock nut.
1007-002
7OM-1603
3-8
Chapter 3 : 1. Maintenance Menu
1102-003

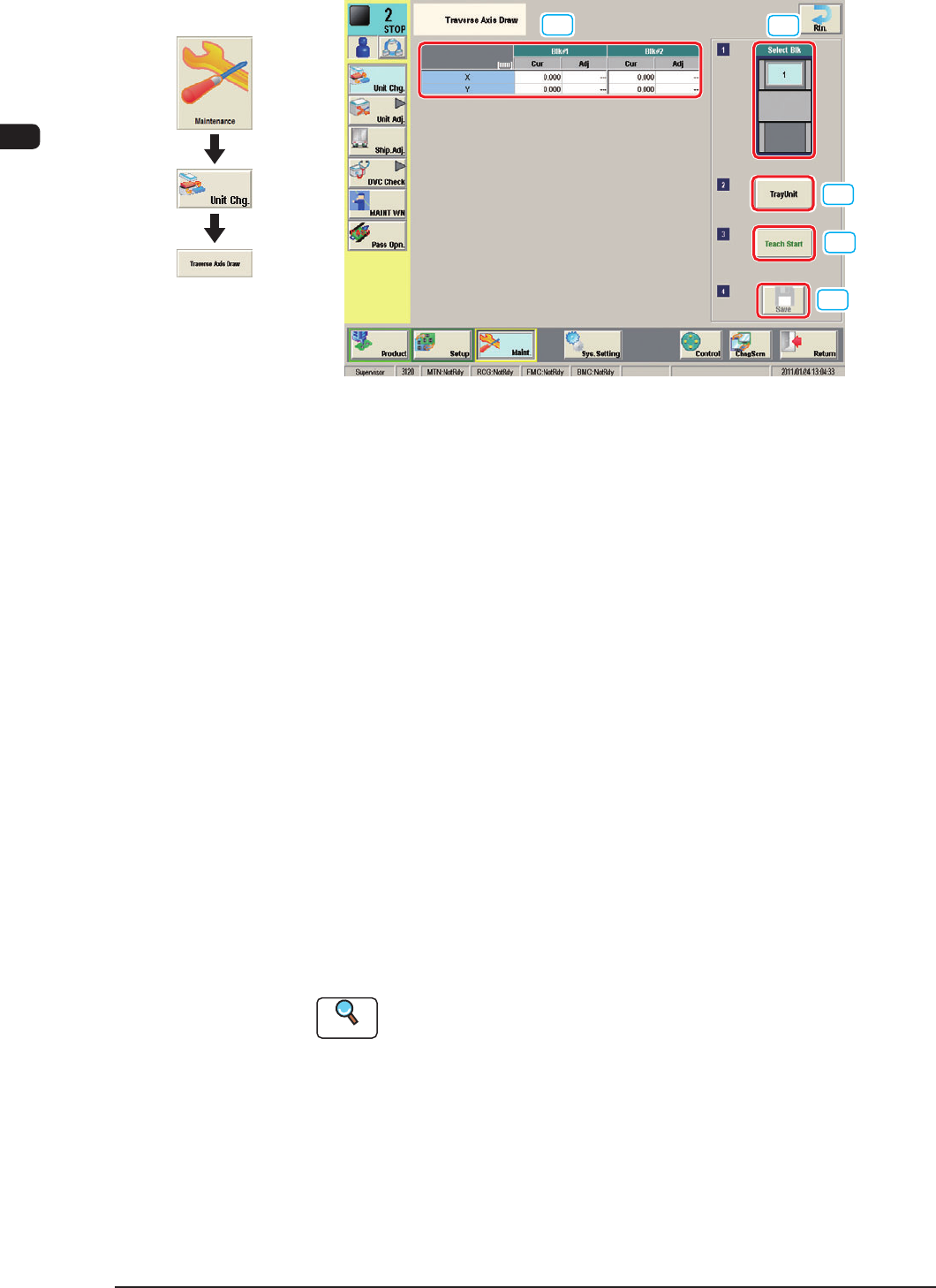

1.2.3 "Traverse Axis Draw" Window
[1]
[2]
[3]
[4]
[5]
"Traverse Axis Draw" window F7C8
[1] Select Blk
In this section, the installed multi-layer tray feeder block can be selected.
[2] Traverse Drawing Position Correction
Displayed are the current values that indicate the traverse drawing position.
After a teaching operation is performed, the results appear in the text boxes
entitled "Adj".
Cur
: Shows the value before the teaching.
Adj
: Shows the resultant value after the teaching.
[3] [Teach Start] Button
When pressed, this button performs a teaching operation on the pickup
position.
When the [START] button on the operation panel is pressed in 10 seconds
after this button, the "Manual Alignment Operation Guide" window appears.
[4] [Tray Unit] Button
When this button is pressed, the "Tray Unit" window appears.
The multi-layer tray feeder manual operation is performed.
Reference
Refer to "1.3 "Unit Adj." Submenu" for the details.
[5] [Save] Button
When this button is pressed, the teaching results are saved.
Graphic
Development
