7OM-1603
Chapter 4 : 1. Outline of Maintenance
4-3
1.2.2 Preparation for Lubrication
Prepare for the specied types of grease and lubrication tools.
SpeciedGreases
•
DAPHNE EPONEX GREASE No. 1 (IDEMITSU KOSAN)
•
MOLYNOC GREASE AP1 (JX Nippon Oil & Energy)
Note
Before lubrication, wipe off old grease. Otherwise, the effect of grease and oil
will decrease.
Same Types of Lubricants
•
Grease Types equivalent to DAPHNE EPONEX GREASE No. 1
(IDEMITSU KOSAN)
Grease Names Makers
Alvania Grease No. 1 Showa Shell Sekiyu K.K
Multinoc Grease 1 JX Nippon Oil & Energy
Jomo Lisonix Grease No. 1 JX Nippon Oil & Energy
Dynamax No. 1 COSMO OIL LUBRICANTS CO., LTD.
Lithtan 1 Exxon Mobil Corporation
MP Grease 1 KYGNUS
Gemico MP-1 TonenGeneral Sekiyu K.K
Multemp PS1 KYODOH YUSHI CO., LTD.
T7D1
•
Grease Types equivalent to MOLYNOC GREASE AP1
(JX Nippon Oil & Energy)
Grease Names Makers
DAPHNE Grease M No. 1 Idemitsu Kosan Co., Ltd.
Jomo Lisonix Grease M No. 1 JX Nippon Oil & Energy
COSMO MOLYBDEN
GREASE No. 1
COSMO OIL LUBRICANTS CO., LTD.
BEACON Q2 Exxon Mobil Corporation
Gemico MD2 TonenGeneral Sekiyu K.K.
M5 GREASE 1 KYGNUS
T7D2
1109-002
7OM-1603
4-4
Chapter 4 : 1. Outline of Maintenance

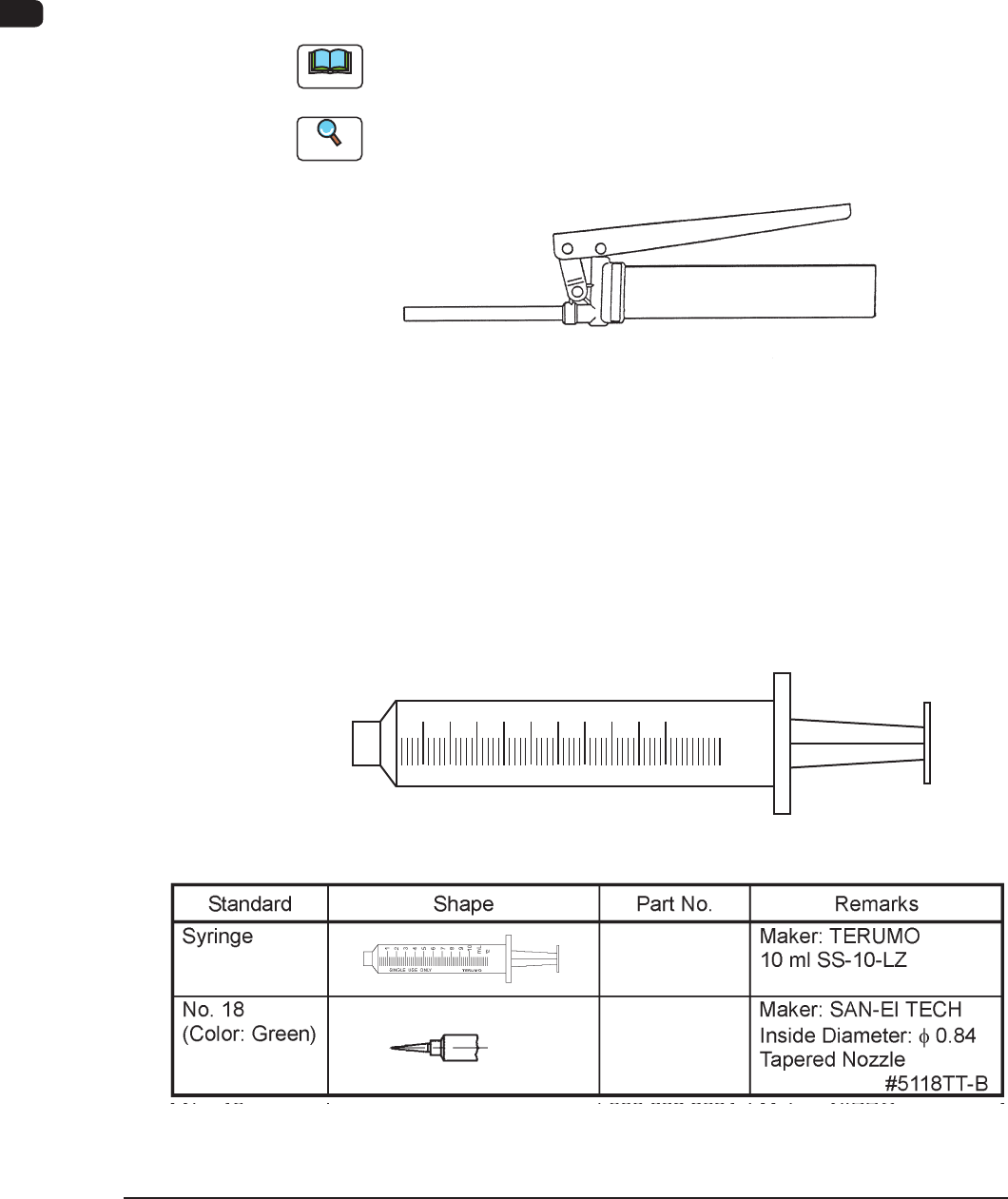

Speciedlubricationtools
(1) Vinyl Gloves
Use a pair of vinyl gloves to apply grease or oil by hand.
(2) Hand Grease Gun
Standard
: KH-120
Part No.
: 228A022
Maker
: Yamada Corporation
Note
(a) Use this gun only for DAPHNE EPONEX GREASE No. 1.
(b) Please purchase a hand grease gun or attachments whenever necessary.
Reference
Refer to the attached instruction manuals for the hand grease gun for the usage.
F7D1
(3) Syringe
This syringe can be used for two kinds of greases.
Use the syringes and the nozzles properly.
Two Kinds of Greases
: DAPHNE EPONEX GREASE No. 1
MOLYNOC GREASE AP1
Appearance
1
2
3
4
5
6
7
8
9
10
12
mL
SINGLE USE ONLY
TERUMO
F7D2
228A0171
216M0451
0916D712
No. 49
Length : 145 mm
T7D3
1003-002
7OM-1603
Chapter 4 : 1. Outline of Maintenance
4-5
1109-003
1.3 Items for Periodic Maintenance
The items (inspection, cleaning, lubrication, etc.) that require periodic
maintenance are classied and described based on each individual devices.
Reference
Refer to "2. Maintenance Check List" for the maintenance based on frequency
of use.
Notice
The * marks represent that the items require maintenance only for the
rsttime.
Followthe○-markedmaintenancecycleforthesubsequentuse.
Unit Name
Inspection, Cleaning,
and Lubrication Spots
Work
Cycle of Maintenance
Daily Weekly Monthly
Every
3 months
Every
6 months
Yearly
3.2.1
Pallet
Pallet Inspection
and
Cleaning
Rails Inspection
Upper Surface Inspection
3.2.2
Elevator Unit
Ball Screw Lubrication
Frame Lower Surface Inspection
and
Cleaning
Linear Guide Lubrication
Belt Inspection
Elevator Clamp Rod Inspection
3.2.3
Magazine Base
Cylinder Connection
Sections
Lubrication
Magazine Rail Lubrication
3.2.4
Magazine
Rack Shutter Fulcrum
Section
Lubrication
T7D4
