7OM-1603 Chapter 4 : 3. Maintenance Spots 4-1 1 3. Maintenance Spots 3.1 Whole V iew Notice Any operations with a cover(s) being removed are included. After the maintenance work, be sure to attach the cover back in place…
7OM-1603
4-10
Chapter 4 : 2. Maintenance Check List
2.5 Yearly Maintenance
Note
DE1
: DAPHNE EPONEX GREASE No. 1
NM1
: MOLYNOC GREASE AP1
Object Units
Inspection, Cleaning,
and Lubrication Spots
Work Grease Required Items Check
3.2.2
Elevator Unit
Elevator Clamp Rod Inspection - Visual Inspection
3.2.3
Magazine Base
Magazine Rail Lubrication DE1 Oiled Rag, Syringe and
Nozzle (No.18)
3.2.5
Traverse Cart
Elevator Clamper Lubrication NM1 Oiled Rag, Syringe and
Nozzle (No.18)
Positioning Pin Lubrication NM1 Oiled Rag, Syringe and
Nozzle (No.18)
3.2.5.1
Cutter Unit
Fluorine Sheet
Replacement
- Screwdriver, Wrench
Urethane Clamp
Replacement
- Screwdriver, Wrench
Flat Ring
Replacement
-
T7D10
1109-003
7OM-1603
Chapter 4 : 3. Maintenance Spots
4-11
3. Maintenance Spots

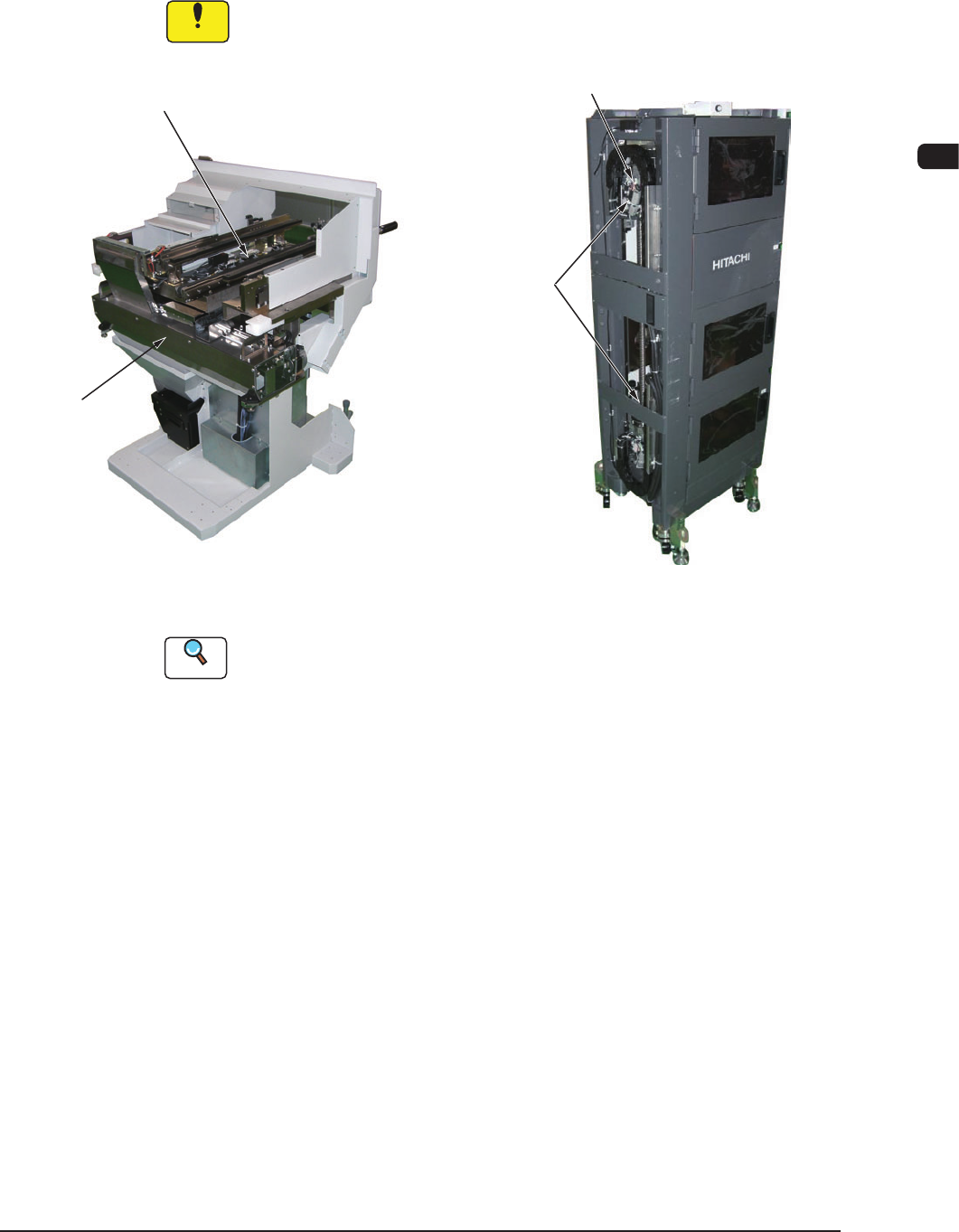

3.1 Whole View
Notice
Any operations with a cover(s) being removed are included.
After the maintenance work, be sure to attach the cover back in place.
Traverse Cart
Elevator Shaft
Magazine Base
Cutter Unit
F7D3
Reference
Refer to "3.2 Inspection, Cleaning, and Lubrication Sports" and the subsequent
items for the detailed information on the spots of each section to be maintained
and how to maintain them.
1003-002
7OM-1603
4-12
Chapter 4 : 3. Maintenance Spots
3.2 Inspection, Cleaning, and Lubrication Spots
The following describes about the maintenance tasks required for each individual
units.
Reference
Refer to "2. Maintenance Check List" for the maintenance items classied based
on frequency.
3.2.1 Pallet
Note
When the pallet is warped, the component pickup rate may deteriorate.

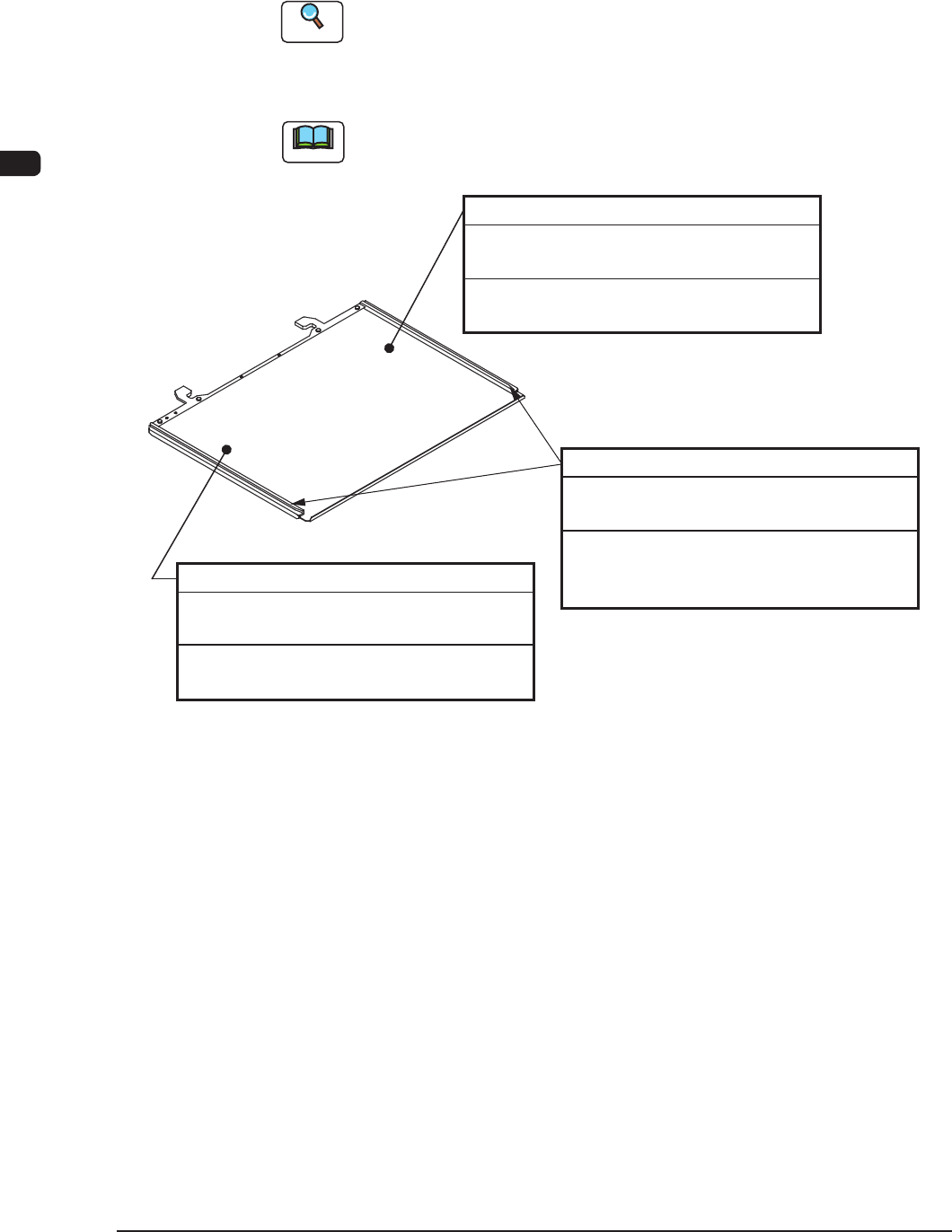

Pallet
Every Month Inspection and Cleaning
Required Time: 1 minute
When the pallet is dirty, clean both top and
bottom surfaces with a rag.
Upper Surface
Every 3 Months Inspection
Required Time: 1 minute
Check for the warpage of the pallet with a
scale. (Up to Max. 0.5 mm)
Rails
Every 3 Months Inspection
Required Time: 2 minutes
Check the wear and warpage of the bottom
surfaces of the pallet rails with a scale.
(Up to Max. 0.3 mm)
Pallet F7D4
1109-002
