7OM-1603 Chapter 4 : 3. Maintenance Spots 4-23 1 1 11-003 Groove on Feeder Base Every W eek Cleaning Required Time: 2 minutes Suck dirt and dust with a vacuum cleaner . Upper Surface of Feeder Base Every Day Cleaning Req…
7OM-1603
4-22
Chapter 4 : 3. Maintenance Spots
1003-001
•

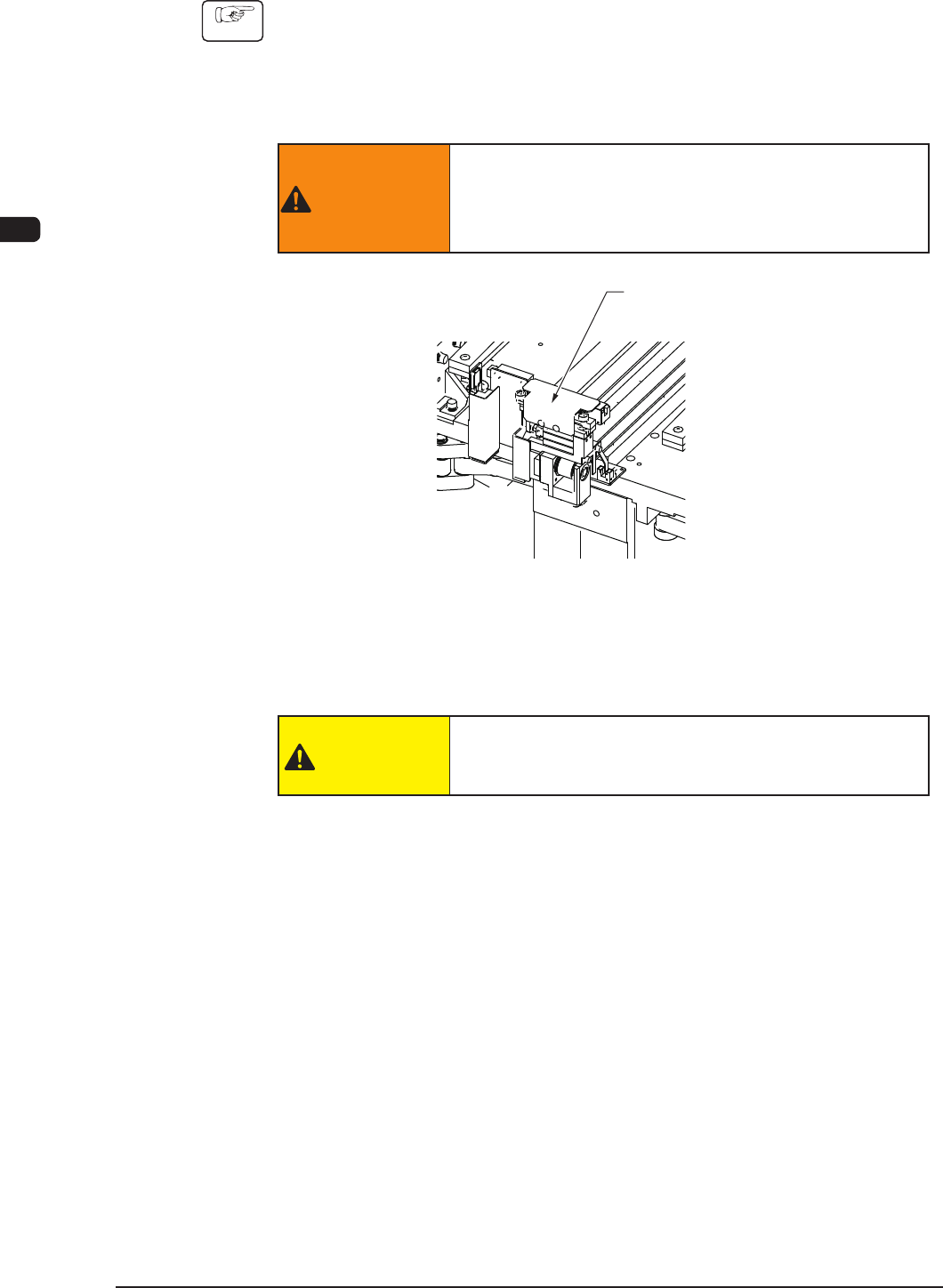

Removal of the Pallet Chuck Protection Cover
Procedure
(1) Zero the multi-layer tray feeder.
(2) Turn off the power.
(3) Remove the set screws (M3L4) (2 locations).
WARNING
Before detaching the maintenance cover, be sure
to turn off the power breaker and lock it with a
padlock.
Pallet Chuck
Protection Cover
F7D14
•
Attachment of the Maintenance Cover
Attach the maintenance cover using the reverse procedure of the removal of the
pallet chuck protection cover.
CAUTION
After the maintenance work, be sure to attach the
cover back in place.
7OM-1603
Chapter 4 : 3. Maintenance Spots
4-23
1111-003

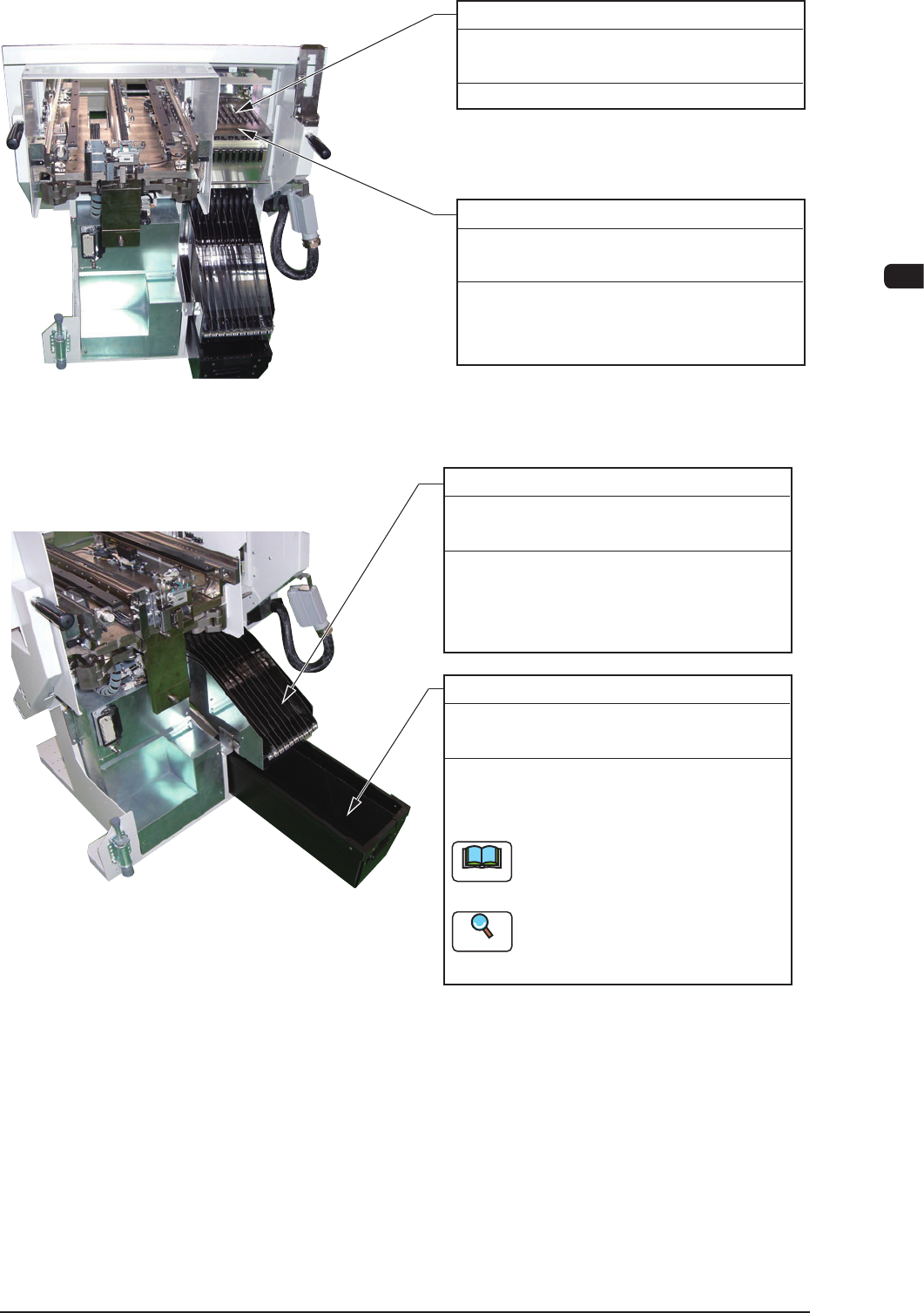

Groove on Feeder Base
Every Week Cleaning
Required Time: 2 minutes
Suck dirt and dust with a vacuum cleaner.
Upper Surface of Feeder Base
Every Day Cleaning
Required Time: 2 minutes
Remove foreign substances and unrequired
components with a vacuum cleaner and
wipe off dirt and dust with a rag.
F7D15
Scra p Box
Ever y Da y Cleaning
Require d T ime : 1 minute
When the scrap box is filled with the tape with
no components, draw the scrap box out and
remove such tape.
Reel Box
Ever y Da y Cleaning
Require d T ime : 5 minutes
Clean the dust and debris at the bottom of the
reel box using a vacuum cleaner, or open the
cover and drop any dust and debris into the
scrap box.
Note
Reference
The No. of intervals to full box, varies
depending on the setting. Sometimes
several cleaning times are required per day.
Refer to "1.3.1 Scrap Box Cleaning
Intervals Example based on the Tape
Intervals" for cleaning intervals.
F7D16
7OM-1603
4-24
Chapter 4 : 3. Maintenance Spots

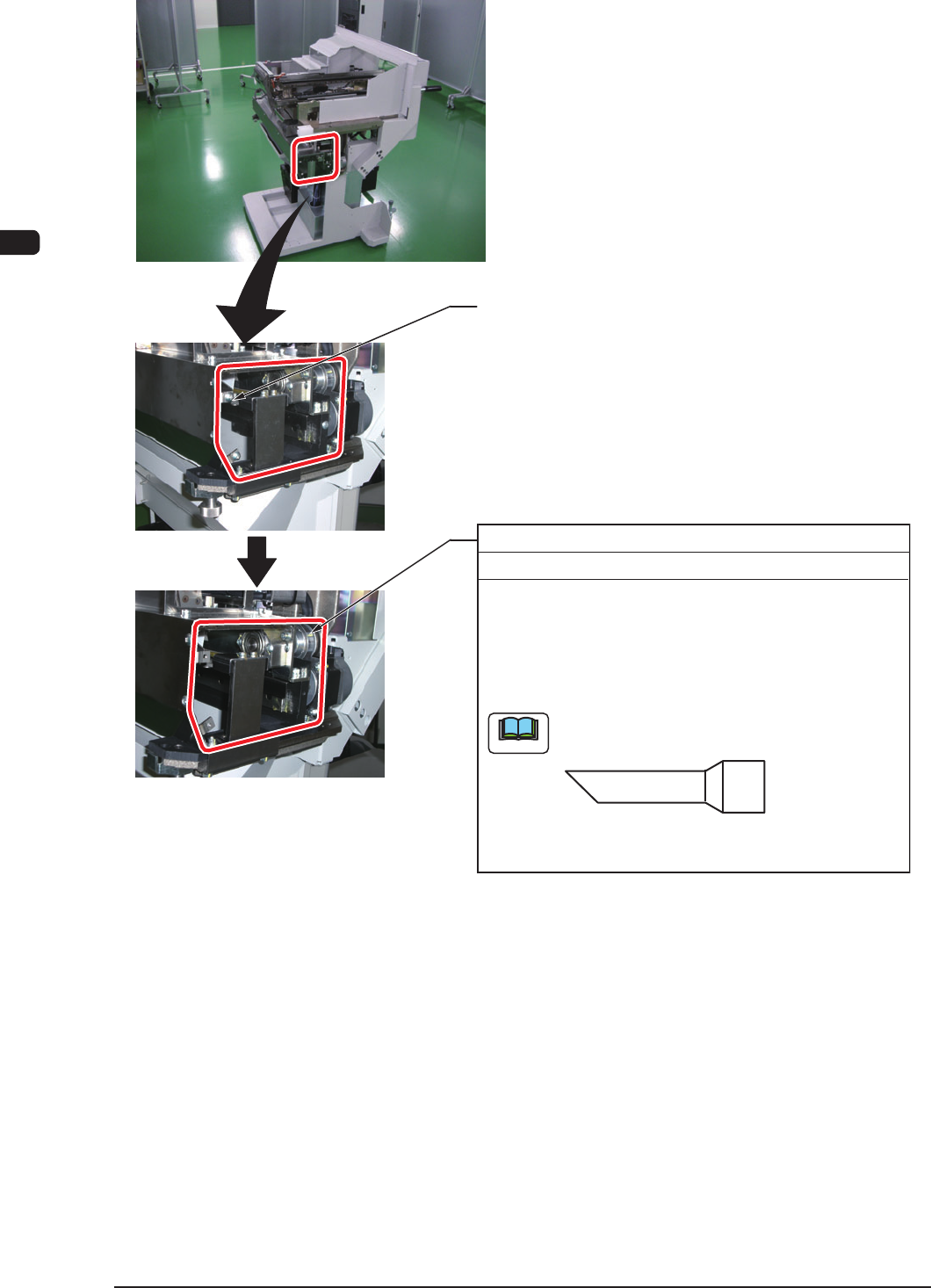

3.2.5.1 Cutter Unit
Remove the screw on the other side. (12 locations)
Cutter Box Inside
Every Week Cleaning
(1) Detach the bank feeder change cart.
(2)
(3)
Use a vacuum cleaner with a narrow air opening
in the nozzle.
Note
Narrow Air Opening in Nozzle End
(Recommended)
Required Time: 10 minutes
Remove the screws (12 locations) on the cutter unit in
the bank feeder change cart and remove the cover.
Clean any debris or dust inside the cutter unit using the
vacuum cleaner.
F7D17
1003-002
