7OM-1603 1-12 Chapter 1 : 3. Name of Each Section and Handling 3. Name of Each Section and Handling This feeder is constructed of an elevator unit, magazines, cutter unit, pallets a JEDEC / FULL size traverse cart, and t…
7OM-1603
Chapter 1 : 2. Various Functions and Outline of Actions
1-11
2.2 Outline of Actions
(1) A pallet is pulled out from the magazine stored in the elevator section onto
the traverse according to the pattern program data.
(2) The placement heads of the main machine pickup components from the
pallet that was pulled out onto the traverse.
(3) The images of the picked components (the components picked up by the
placement heads) are captured and recognized by the component recognition
cameras to detect the deviation in the pickup position.
The detected deviation is corrected and the components are placed accurately
on the specied positions.
When a pickup error or a recognition error is detected during the component
recognition, the machine performs the discharge operation of the rejected
component.
(4) The pallet on the traverse is stored in the magazine of the elevator and the
subsequent pallet is pulled out onto the traverse according to the pattern
program data.
When the subsequently placed component originates from the same pallet,
the pallet stays on the traverse.
(5) Steps (1) through (4) are repeated.
When the tray on the pallet (specied in the pattern program data) becomes
empty of components, the LED of the stage No. button starts ickering and
the error message "Component Shortage Error" appears on the operation
monitor. In this case, reload the tray with components.
0908-001
7OM-1603
1-12
Chapter 1 : 3. Name of Each Section and Handling
3. Name of Each Section and Handling
This feeder is constructed of an elevator unit, magazines, cutter unit, pallets a
JEDEC / FULL size traverse cart, and tray xing magnets.
WARNING
There are strong motorized and high-voltage areas
inside the machine. Special caution should be paid
not to touch them.
Doing otherwise will cause personal injury (serious
accident).
Onlyqualiedmaintenancepersonnelshould
detach the safety covers.
The machine should be operated with the covers
being attached.
If a safety cover is detached, be sure to reattach
it.
Be sure to close the magazine door before
operating the machine.
Do not disengage the interlock of the magazine
door.
Magazine #2 Ready
Ready Switch
Pallet Change Position
Ready Switch
Magazine #1 Ready
Ready Switch
Magazine #2 Supply Position
Upper Magazine
Change Position
Magazine #1 Supply Position
Lower Magazine
Change Position
Magazine Change Position
Elevator Power LED
Magazine #2 Door
Pallet Change
Position Door
Handle
Magazine #1 Door
Safety Cover

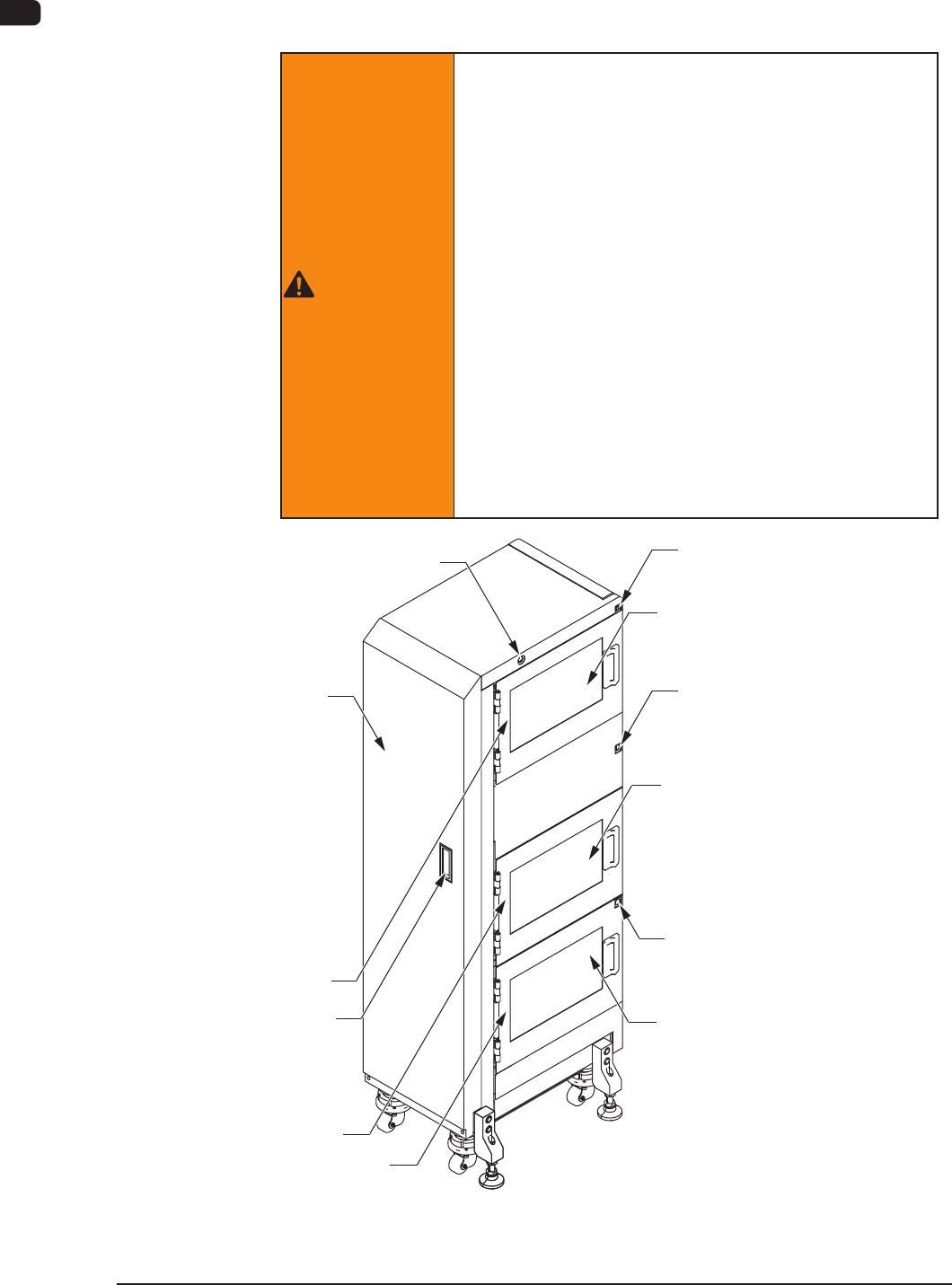

Elevator Unit (Front Side of Machine) F7A1
1109-005
7OM-1603
Chapter 1 : 3. Name of Each Section and Handling
1-13
Reel Holder
Slot Section
Traverse Section
Cutter Unit

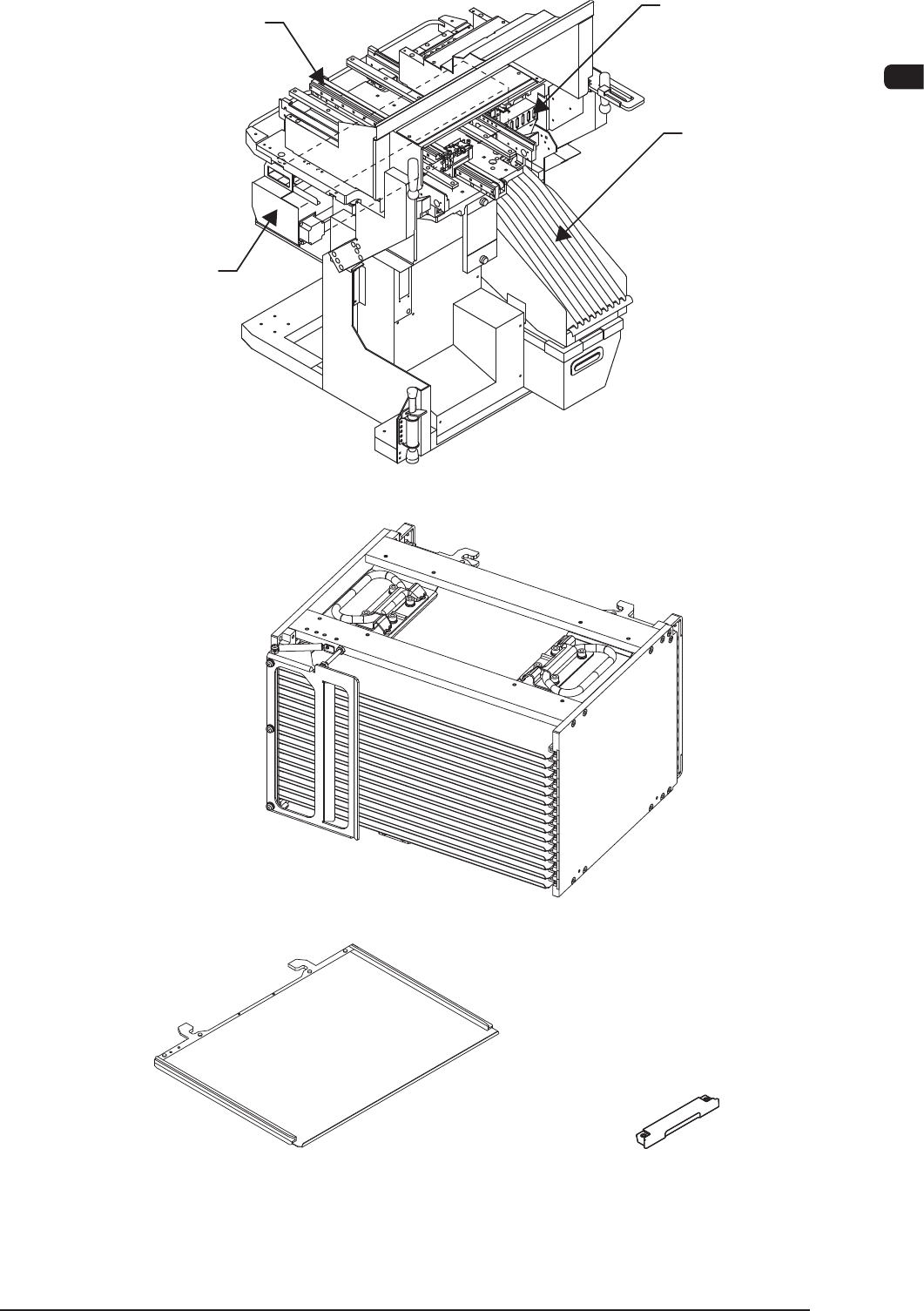

Traverse Cart F7A2
Magazine (GS-MG100) F7A3
Pallet (GS-MP100)
Tray Fixing Magnet
(GS-MF100)
Pallet and Tray Fixing Magnet F7A4
