7OM-1603 Chapter 2 : 1. "Operation" Windows 2-1 1 102-003 1. "Operation" Windows The composition of this instruction manual is based on the assumption that the multi-layer tray feeder is connected wit…
7OM-1603
0908-001 2-B
7OM-1603
Chapter 2 : 1. "Operation" Windows
2-11102-003
1. "Operation" Windows
The composition of this instruction manual is based on the assumption that the
multi-layer tray feeder is connected with Block 1.

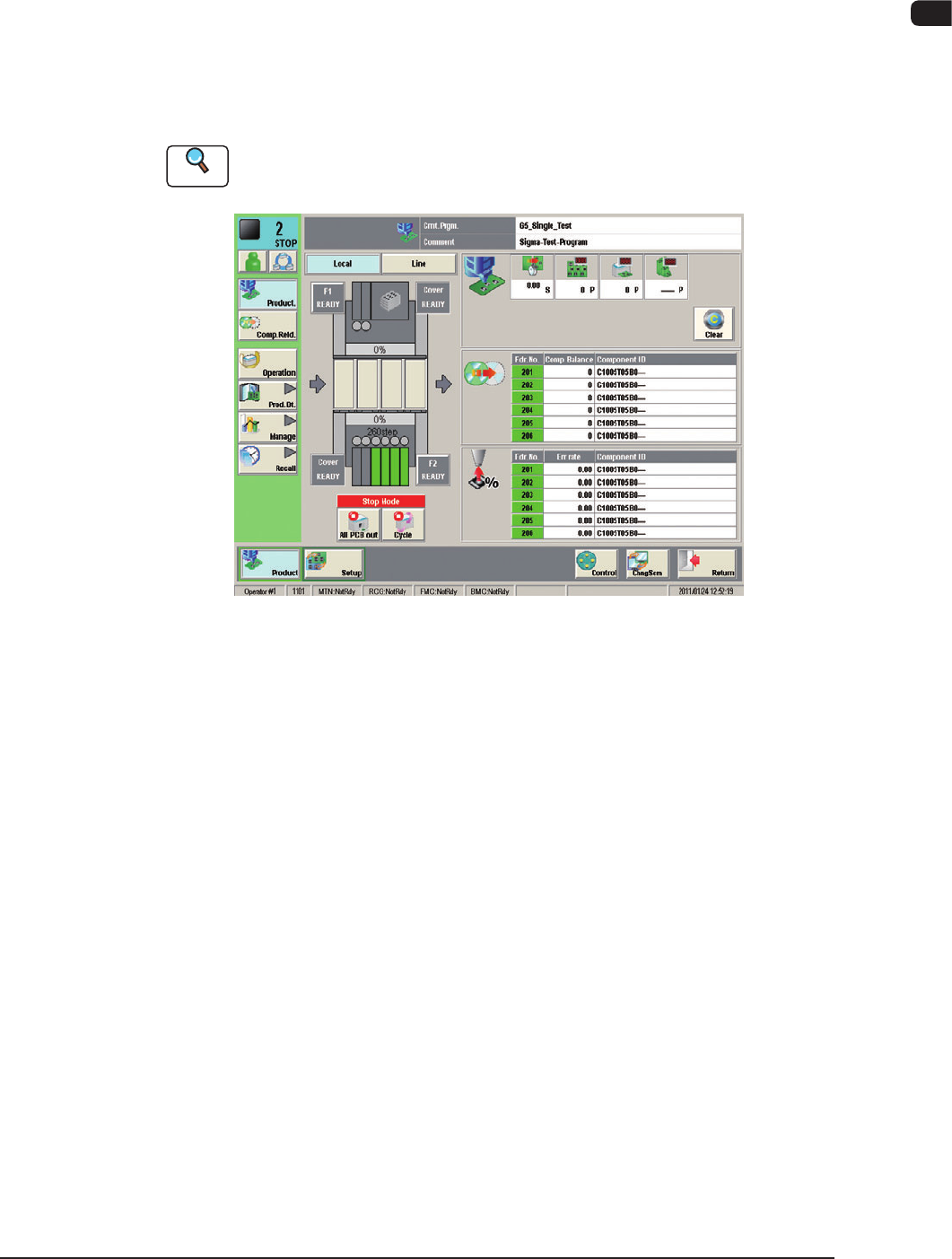

1.1 "Operation" Windows
Do a basic operation of this machine by the main machine (SIGMA-G4/G5).
Reference
Refer to "Volume 2: Product & Set-up Menu" for the basic operations and the
detailed knowledge.
F7B1
7OM-1603
2-2
Chapter 2 : 1. "Operation" Windows
1102-001
1.2 "Control Menu" Window
When the [Control] button is pressed on the common menu bar, the "Control
menu" window appears.
Reference
Refer to "2.1 "Control Menu" in Chapter 2, Volume 1, for the details of the
"Control Menu" window.
F7B2
