7OM-1603
Chapter 2 : 2. Menus for Automatic Operation
2-23
2.4.4.2 Editing of Tray Step Information
[1]
[2]
[3]
[4]

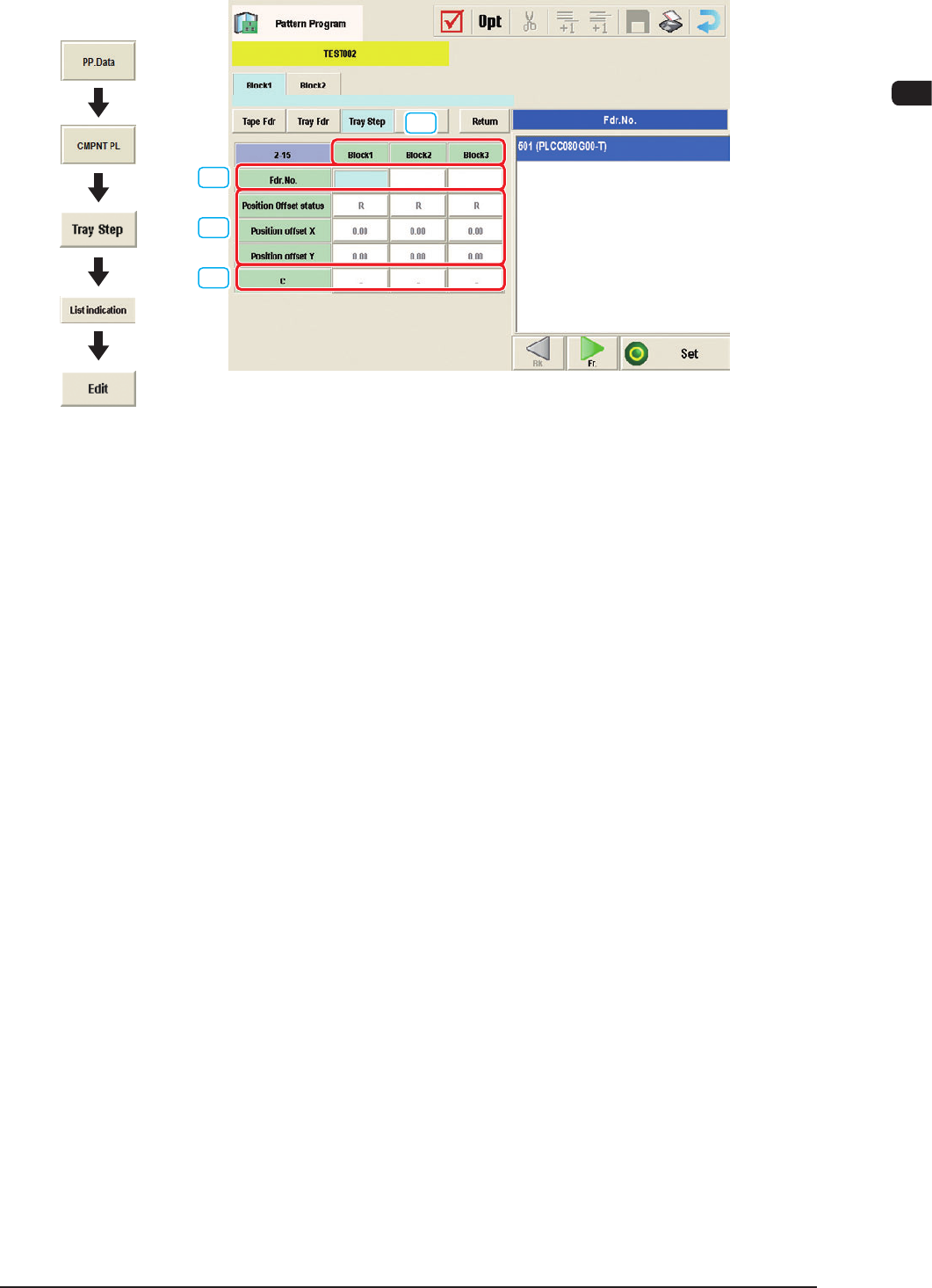

"Tray Step Information [1-15 Step]" window F7B18
[1] Block
Shown are the block Nos.
[2] Fdr.No.
Displayed are the Nos. of the feeders arranged in each block.
[3] Position Offset status
Select "R", "L", or "Free Position" as Reference Point X for the block.
Position offset X [mm], Y [mm]
Enter the reference coordinates of the tray viewed from the pallet reference
position of each block.
[4] C
The control commands can be selected.
Graphic
Development
1109-002
7OM-1603
2-24
Chapter 2 : 2. Menus for Automatic Operation
2.4.5 "Component Library" Window

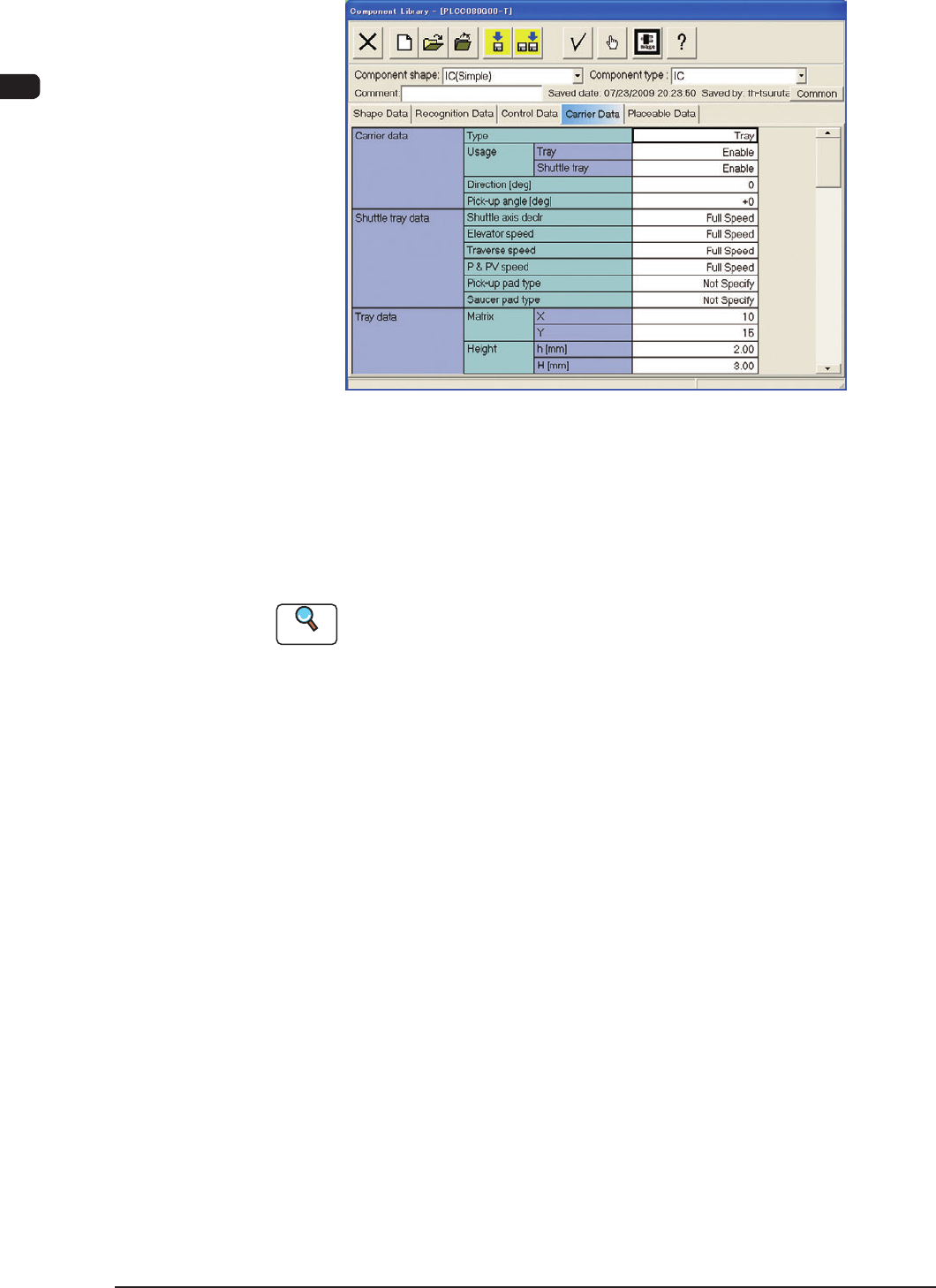

"Carrier Data" Tab sheet F7B19
Carrier Data
This is a tab sheet which corresponds to all component shapes - "Cylindrical",
"Square", "Deform", "IC (Simple)", "IC (Complex)", "Connector (Simple)",
"Connector (Complex)", "Other Leaded (Simple)", "Other Leaded (Complex)",
and "BGA/CSP".
Reference
Refer to "1.5 Carrier Data" in "Chapter 2" of the instruction manual "Volume 6 :
Component Library" for details of each data.
Set "Tray" in the "Type" text box of the label "Carrier data" and enter parameters
in the other text boxes of the label "Carrier data" and in the text boxes of the label
"Tray data".
1109-004
7OM-1603
Chapter 2 : 2. Menus for Automatic Operation
2-25
2.4.6 "Temp Chng Comp Lib" Window
This window enables the operator to check and change the component carriage
data for the production model.
[1]
[2]
[3]
[4]
[4]
"Comp Crg Dt Edit" window (1/3) F7B20
[1]
[2]
[4]
[3]
[4]
"Comp Crg Dt Edit" window (2/3) F7B21
1109-003
