3. X-Y(Frame) Part Ver. Date CP45 CP45NEO 00 2004/11 O O 3-1 X-axis Cableveyor Section Drawing Part Name CAN BUS CABLE I/F BOARD POWER CABLE HEAD CAMERA POWER CABLE AIR HOSE AIR HOSE R STEP MOTOR CAB LE Z1/2/3 MOTOR POWE…
3. X-Y(Frame) Part
Ver. Date CP45
CP45NEO
00 2004/11 O O
3-1
3-5. X-axis Cableveyor Replacement
*Tools
a) +Driver, Hex Wrench
*Part
a) Cableveyor
1) Erect Cover of Each Link of Existing Cableveyor. (Ref. Fig 3-5-1)
2) Separate Locked Bolt of Fixed End Bracket and Moving End Bracket. (Ref. Fig 3-5-2)
3) Carefully Separate Cableveyor.
4) Erect Cover of New Cableveyor.
5) Assemble Cableveyor between Cable.
6) Arrange Cable to Designated Location Using Divider. (Ref. X-axis Cableveyor Section
Drawing)
7) Assemble Locked Bolt of Fixed End Bracket and Moving End Bracket.
8) Assemble Cover of Cableveyor.
* Note 1) Check if Cable is Damaged to Replace with New One or Insulated Tape.
2) Cable Arrangement Should be Done to Designated Location. Cable Wear Can be
Increased by Difference between Inner and Outer Distance if the Location is Changed.
* Adjustments after this work
None

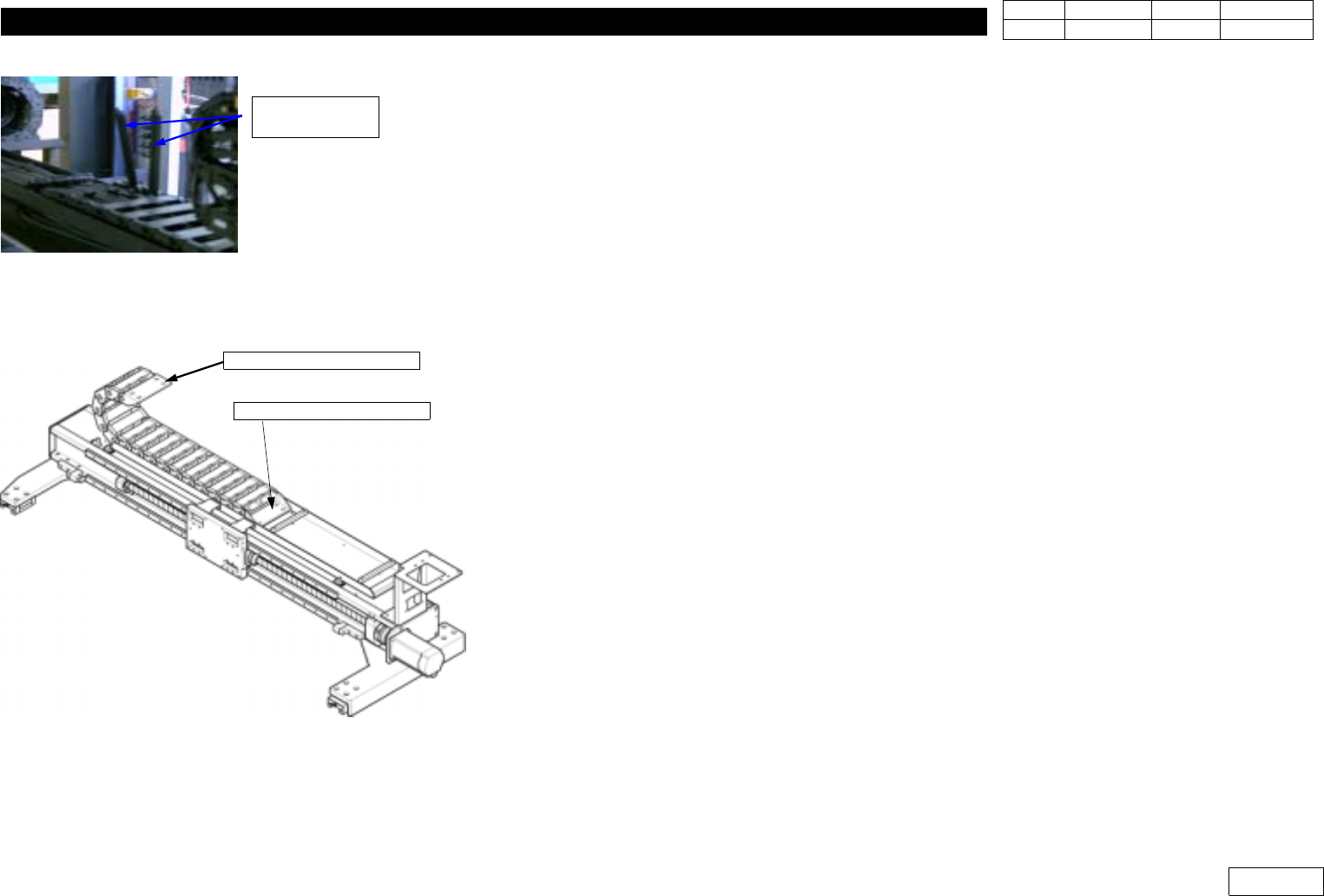

Bolts of Moving end bracket
Bolts of Fixed end bracket
Fig.3-5-2 Fixed end bracket &
Moving end bracket
Erect the all cover
of each link
Fig.3-5-1 Erect all cover of each link
3. X-Y(Frame) Part
Ver. Date CP45
CP45NEO
00 2004/11 O O
3-1
X-axis Cableveyor Section Drawing
Part Name
CAN BUS
CABLE
I/F BOARD
POWER
CABLE
HEAD
CAMERA
POWER
CABLE
AIR HOSE AIR HOSE R STEP MOTOR CABLE
Z1/2/3
MOTOR
POWER
CABLE
Z1/2/3
MOTOR
POWER
CABLE
Z1/2/3 MOTOR POW ER
CABLE
Discription MK-CA06 MK-HD01 MK-VIS01 Dia.8mm Dia. 6mm MK-MD-20 MK-MD08 MK-MD11 MK-MD08
Part Code
CP45F(V)
J9061328B J9061207C
J9061365A
J9061242A
J9061230A J9061233A J9061230A
CP45NEO J9080090B J9080108B J9080113C J9080108B
Upper Part
(Cable Arrangement)
H1
CN3
H1
CN4
FLY
CAM.
DIA.
8MM
DIA.
6MM
R1
TH1
R2
TH2
R3
TH3
Z4P Z3P Z1P Z2P
Lower Part
(Cable Arrangement)
HD
CN14
MDV
CAM
SWE SWP Z5P Z6P
Z4/
5/6E
Z1/
2/3E
Part Name
R/A HOME
SENSOR
CABLE
FIDUCIAL
CAMERA
CABLE
FLYING VISION DATA
CABLE
SWING
MOTOR ENC
CABLE
SWING
MOTOR
POWER
CABLE
Z4/5/6 MOTOR POW ER
CABLE
Z4/5/6 MOTOR ENC
CABLE
Z1/2/3 MOTOR ENC
CABLE
Discription MK-HD13 MK-VIS03 VIS07 MK-MD15 MK-MD-14 MK-MD11 MK-MD12 MK-MD09
Part Code
CP45F(V) J9061219B
J9061367C J9061438B
J9061237A J9061236A J9061233A J9061234C J9061231C
CP45NEO J9060616A J9080119B J9080118B J9080113C J9080114B J9080109B
3. X-Y(Frame) Part
Ver. Date CP45
CP45NEO
00 2004/11 O O
3-1
3-6. Y-axis Cableveyor Replacement
*Tools
a) +Driver, Hex Wrench
*Part
a) Cableveyor
1) Erect Cover of Each Link of Existing Cableveyor.
2) Separate Locked Bolt of Fixed End Bracket and Moving End Bracket.
3) Carefully Separate Cableveyor.
4) Erect Cover of New Cableveyor.
5) Assemble Cableveyor between Cable.
6) Arrange Cable to Designated Location Using Divider. (Ref. Y-axis Cableveyor Section
Drawing)
7) Assemble Locked Bolt of Fixed End Bracket and Moving End Bracket.
8) Assemble Cover of Cableveyor.
* Note 1) Check if Cable is Damaged to Replace with New One or Insulated Tape.
2) Cable Arrangement Should be Done to Designated Location. Cable Wear Can be
Increased by Difference between Inner and Outer Distance if the Location is Changed.
* Adjustments after this work
None
