3. X-Y(Frame) Part Ver. Date CP45 CP45NEO 00 2004/11 O O 3-1 No. Code Discription Remark 1 J9705955A Motor-X (Q) J9080103A Motor-X (P) J9061931B Motor-X (PY-NON CE) J9061225B Motor-X (PY-CE) 2 J6612010A Cpuling-X 3 J6601…
3. X-Y(Frame) Part
Ver. Date CP45
CP45NEO
00 2004/11 O O
3-1
3-3. X Ball Screw Change Process
*Tools
a) hex wrench set. Height gage and indicator.
*Part
a)Ball Screw (J6606014A),Bearing support (J7154090B), Bearing Bracket-X(J7154089B)
Support Unit(J6601086A),Coupling(J6012010A)
1) Remove Cover(Cover of right side of MC)
2) Disassemble Xaxis Motor and Coupling
3) Remove Lock Nut, Support Unit(Fig 3-3-1)
4) Disassemble NUT of Ball Screw from Head Base
5) Remove Ball Screw(Remove direction to motor assemble side)
6) assemble new Ball Screw and Bearing and than locking by Ring
7) Assemble ball Screw by redirection.
8) Move Head Base to center and fasten nut of ball screw.
At this time, That space is 39.5(+,-)0.02mm between Top side of X axis L/M and Ball Screw Nut.
(Data form KURODA Ball Screw)
9) Assemble Support Unit and Lock Nut
10)Assenble Coupling and X axis motor.
*) attention : Please, do not remove Bearing Support and Bearing Bracket-X on X axis Frame.
* Adjustments after this work
- PCB origin offset,
- Feeder Base Origin Offset,
- ANC fiducial position and Hole position.
- Tray Feeder Origin

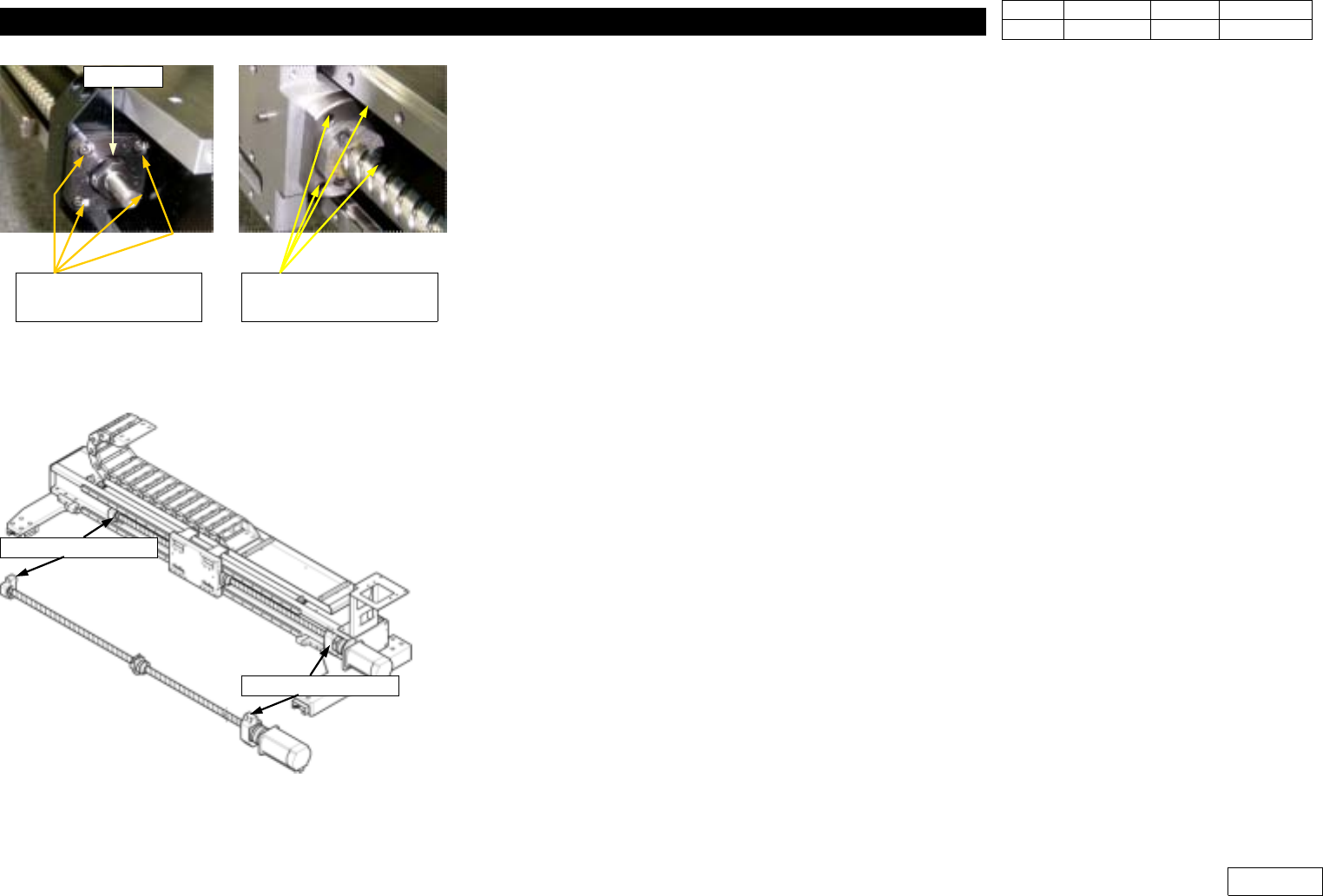

Fig.3-3-1 D isassemble the bolt for Support unit
& Nut(Ball screw).
Lock Nut
Bolt for Support Unit
(4EA)
Bolt for Ball screw nut
(4EA)
Fig.3-3-2 Note : Don't disassemble Bearing
Support and Bearing Bracket-X
Bearing Support
Bearing Bracket-X
3. X-Y(Frame) Part
Ver. Date CP45
CP45NEO
00 2004/11 O O
3-1
No. Code Discription Remark
1
J9705955A Motor-X (Q)
J9080103A Motor-X (P)
J9061931B Motor-X (PY-NON CE)
J9061225B Motor-X (PY-CE)
2 J6612010A Cpuling-X
3 J6601086A Support Unit (FK12)
4 J7154089B Bearing Bracket-X
5 J6606014A Ball Screw (KURODA)
6
J7154090B Bearing Support -X
J1300509 Bearing (6000ZZ)
C-Ring (dia 10)
7 J7154123B Bracket Chusion-X
8 J7254007C Chshion
3. X-Y(Frame) Part
Ver. Date CP45
CP45NEO
00 2004/11 O O
3-1
Fig.3-4-1
Fig.3-4-2 Note : Don't disassenble Motor
Bracket-Y, Bearing Support-Y
3-4. Procedure to Replace Y Ball Screw
*Tools
a) hex wrench set.
*Part
a)
1) Separate Cover.(Separate Up and Front OP Panel)
2) Separate Y-axis Motor and Coupling.
3) Separate Lock Nut, Support Unit. (Ref. Fig 3-4-1)
4) Separate Nut of Ball Screw.
5) Separate Ball Screw.(To the Direction Motor is Assembled)
6) Assemble Bearing to New Ball Screw and Lock it with Ring.
7) Assemble Ball Screw the Opposite way it is De-Assembled.
8) Lock Nut of LM Plate and Ball Screw.
9) Assemble Support Unit and Lock Nut.
10) Assemble Coupling and X-axis motor.
*) Note : Do not Separate Bearing Support-Y and Bearing Bracket-Y Assembled at Y-axis Frame
to Maintain Assembly Precision between Parts when Assembled at Factory.
(Ref. Fig 3-4-2)
* Adjustments after this work
- PCB origin offset
- Feeder Base Origin Offset
- ANC fiducial position and Hole position.
- Tray Feeder Origin
Lock NutSupport Unit Coupling
Motor Bracket-Y
Bearing Support-Y
