- - 5. Y UN IT(1 )(FOR T R8 S) 1 2 4 5 6 7 8 1 1 1 0 1 0 9 1 2 1 1 1 4 1 5 1 6 1 6 1 7 1 8 1 9 2 0 2 1 2 2 2 2 2 3 2 7 2 5 2 6 2 4 2 8 3 0 2 7 3 2 4 6 4 7 3 3 3 3 3 4 3 4 3 5 2 9 2 9 3 6 3 7 3 8 3 9 4 0 4 1 4 2 4 3 4 …
- -

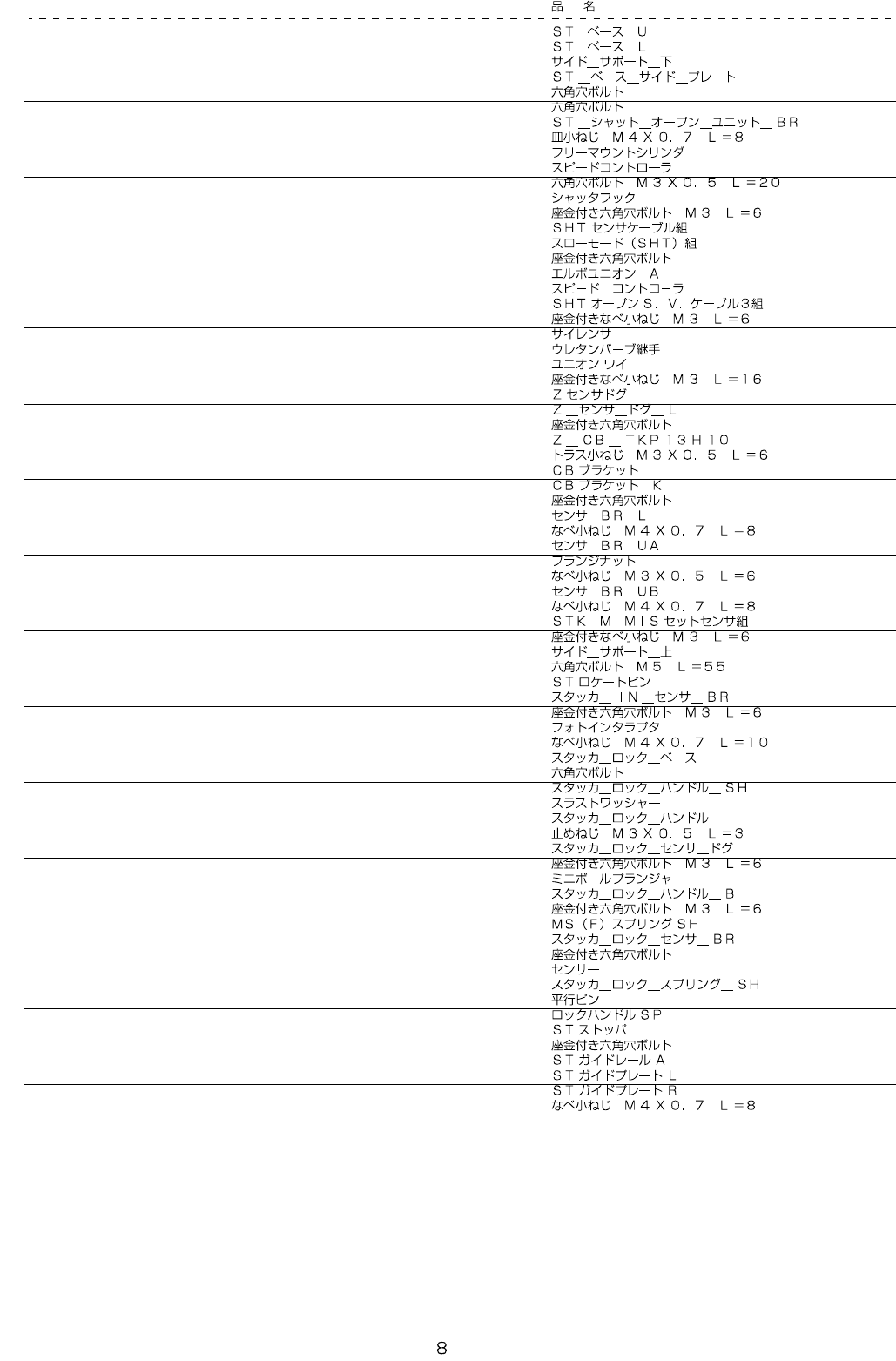

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-54659 ST_BASE_U 1
2 401-54660 ST_BASE_L 1
3 401-54551 SIDE_SUPPORT_LOWER 1
4 401-54556 ST_BASE_SIDE_PLATE 2
5 SM-6052502-TN SCREW 7
6 SM-6052002-TN BOLT 15
7 401-54665 ST_SHUT_OPEN_UNIT_BR 2
8 SM-1040801-SC SCREW M4X0.7 L=8 4
9 PA-0601014-A0 FREE MOUNT CYLINDER 2
10 PC-0105080-00 SPEED CONTROLLER 4
11 SM-6032002-TN SCREW M3X0.5 L=20 4
12 401-54731 SHUTTER_HOOK 2
13 SL-6030692-TN SCREW M3 L=6 2
14 401-53381 SHT SENS CABLE ASM 4
15 400-49706 SLOW MODE(SHT) ASM 1
16 SL-6051092-TN BOLT 4
17 PJ-3040452-02 ELBOW UNION A 2
18 PC-0124010-00 SPEED CONTROLLER 1
19 400-49718 SHT OPEN S.V. CABLE 3 ASM 1
20 SL-4030691-SC SCREW M3 L=6 2
21 E3274-760-000 SILENCER 2
22 PJ-0320390-01 CONNECTOR 3
23 PJ-3080400-07 UNION Y 4
24 SL-4031691-SC SCREW M3 L=16 2
25 401-54663 Z_SENSOR_DOG 1
26 401-54737 Z_SENSOR_DOG_L 1
27 SL-6040892-TN BOLT 4
28 401-54587 Z_CB_TKP13H10 1
29 SM-0030601-SC SCREW M3X0.5 L=6 4
30 401-54670 CB_BRACKET_I 1
31 401-54669 CB_BRACKET_K 1
32 SL-6040892-TN BOLT 4
33 401-54666 SENSOR_BR_L 1
34 SM-4040801-SC SCREW M4X0.7 L=8 2
35 401-54667 SENSOR_BR_UA 1
36 NM-3040520-SF FLANGE NUT M4 2
37 SM-4030601-SC SCREW M3 X 6 2
38 401-54668 SENSOR_BR_UB 1
39 SM-4040801-SC SCREW M4X0.7 L=8 2
40 401-53670 STK M MIS SET SENSOR ASM 1
41 SL-4030691-SC SCREW M3 L=6 4
42 401-54552 SIDE_SUPPORT_UPPER 1
43 SM-6055552-TN BOLT M5 L=55 2
44 E4111-717-000 ST LOCATE PIN 2
45 401-54554 STACKER_IN_SENSOR_BR 2
46 SL-6030692-TN SCREW M3 L=6 2
47 HD-0017100-00 SENSOR 2
48 SM-4041001-SC SCREW M4X0.7 L=10 2
49 401-54557 STACKER_LOCK_BASE 2
50 SM-6052502-TN SCREW 4
51 401-54560 STACKER_LOCK_HANDLE_SH 2
52 E3404-700-000 THRUST WASHER 2
53 401-54558 STACKER_LOCK_HANDLE 2
54 SM-8030302-TP SCREW M3X0.5 L=3 4
55 401-54563 STACKER_LOCK_SENSOR_DOG 2
56 SL-6030692-TN SCREW M3 L=6 1
57 E1865-172-000 MINI BALL PLUNGER 2
58 401-54559 STACKER_LOCK_HANDLE_BR 2
59 SL-6030692-TN SCREW M3 L=6 4
60 E4402-531-000 ST(F)_SPRING_SH 2
61 401-54562 STACKER_LOCKE_SENSOR_BR 2
62 SL-6040892-TN BOLT 2
63 HD-0027700-00 SENSOR 2
64 401-54561 ST_LOCK_SPRING_SH 2
65 PH-0400122-C0 PIN 4
66 E4130-717-000 LOCK HANDLE SP 2
67 E4118-717-000 ST STOPPER 2
68 SL-6040892-TN BOLT 4
69 E4115-717-000 ST_GUIDE_RAIL_A 4
70 401-54678 ST_GUIDE_PLATE_L 2
71 401-54679 ST_GUIDE_PLATE_R 2
72 SM-4040801-SC SCREW M4X0.7 L=8 1
- -
5. Y UNIT(1)(FOR TR8S)
1
2
4
5
6
7
8
1 1
1 0
1 0
9
1 2
1 1
1 4
1 5
1 6
1 6
1 7
1 8
1 9
2 0
2 1
2 2
2 2
2 3
2 7
2 5
2 6
2 4
2 8
3 0
2 7
3 2
4 6
4 7
3 3
3 3
3 4
3 4
3 5
2 9
2 9
3 6
3 7
3 8
3 9
4 0
4 1
4 2
4 3
4 4
4 4
4 5
3 3
3 3
4 8
4 9
5 0
5 1
5 2
5 3
5 4
5 5
5 6
5 7
5 9
5 8
6 0
6 1
6 2
6 2
6 3
6 3
6 4
3
1 3
3 1
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-54597 Y_MOTOR_BR 1
2 SL-6040892-TN BOLT 4
3 400-45060 Y MOTOR ASM 1
4 SL-6041042-TN BOLT 4
5 E1341-726-000 Y DRIVE PULLEY 1
6 SM-8040602-TP SCREW M4X0.7 L=6 2
7 401-54600 FAN_BRACKET 1
8 SL-6040692-TN SCREW M4 L=6 2
9 400-49579 FAN MOTOR(Y MOTOR) ASM 1
10 HM-0017800-10 FINGER GUARD 2
11 SL-6044092-TN SCREW 4
12 NM-3040520-SF FLANGE NUT M4 2
13 401-54613 YF_PULLEY_BR 1
14 401-54618 T_PULLEY_SHAFT 1
15 401-54612 YJ_TENSIONER_PULLEY 1
16 SB-1060009-00 BEARING 2
17 RC-0560711-KP RETAINING RING 1
18 SL-6030842-TN SCREW M3 L=8 4
19 401-83812 J_BELT_TENSIONER_8S 1
20 401-54618 T_PULLEY_SHAFT 1
21 401-54619 T_PULLEY 1
22 SB-1060009-00 BEARING 2
23 RC-0560711-KP RETAINING RING 1
24 SL-6051092-TN BOLT 1
25 SM-6051002-TN BOLT 1
26 WS-0510002-KN SPRING WASHER M5 1
27 WP-0561616-SC WASHER 5.6X16X1.6 1
28 401-54595 YJ_BRACKET 1
29 SL-6040892-TN BOLT 2
30 401-54609 YJ_SHAFT 1
31 E1362-726-000 YJ PULLEY 1
32 E1341-726-000 Y DRIVE PULLEY 1
33 SM-8040602-TP SCREW M4X0.7 L=6 4
34 SB-1060007-00 BALL BEARING 2
35 SL-6040892-TN BOLT 2
36 401-54596 YJ_TENSION_BASE 1
37 SL-6040892-TN BOLT 2
38 HD-0017100-00 SENSOR 1
39 SM-4041001-SC SCREW M4X0.7 L=10 1
40 401-54598 YJ_TENSIONER 1
41 SL-6030692-TN SCREW M3 L=6 2
42 401-54618 T_PULLEY_SHAFT 1
43 401-54612 YJ_TENSIONER_PULLEY 1
44 SB-1060009-00 BEARING 2
45 RC-0560711-KP RETAINING RING 1
46 401-54614 YJ_BELT_8S 1
47 401-54615 Y_BELT_8S 1
48 401-54599 Y_BELT_CONNECTER 1
49 SL-6031092-TN SCREW 2
50 E1317-726-000 Y BELT STOPPER 1
51 SL-6031042-TN SCREW 4
52 401-54616 YJ_LINK_BLOCK 1
53 SM-6030402-TN SCREW M3X4 4
54 401-54590 YJ_BELT_CONN_BR 1
55 SL-6030692-TN SCREW M3 L=6 2
56 E1320-726-000 Y BELT CONNECTOR 1
57 SM-1030601-SC SCREW M3 L=6 2
58 E1317-726-000 Y BELT STOPPER 1
59 SL-6031042-TN SCREW 4
60 400-49728 TRAY HLD S.V. ASM 1
61 SL-4030691-SC SCREW M3 L=6 2
62 PJ-3040405-04 ELBOW UNION 2
63 PX-0505010-00 SILENCER 2
64 PJ-3010605-03 HALF UNION 1
