- - 7. Y UN IT(3 )(FOR T R8 S) 1 4 3 A B 2 3 B 5 5 A 6 7 8 9 4 2 4 3 3 4 4 0 3 8 3 9 3 8 3 9 3 5 3 6 3 6 3 6 3 2 3 3 3 1 2 9 4 1 3 7 3 6 3 5 5 8 5 9 5 7 5 1 5 2 5 3 5 3 5 3 4 9 5 0 4 6 5 3 5 2 4 8 5 4 6 0 5 5 5 5 3 0 4…
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-54608 Y_SLIDER_BASE_8S 1
2 PH-0400122-C0 PIN 2
3 SL-6031092-TN SCREW 4
4 400-49188 X SLIDER GUIDE 2
5 SM-6030802-TN SCREW 10
6 E1452-726-000 CHUCK BASE H 1
7 SM-6030502-TN SCREW M3 L=5 4
8 400-48776 HOLDER GUIDE 1
9 SM-6030602-TN SCREW M3X6 5
10 E6137-723-000 Y HOLD BASE LA 1
11 E6138-723-000 Y HOLD BASE RA 1
12 SM-6030802-TN SCREW 8
13 E1420-726-000 MARK BASE 2
14 E2601-725-000 MARK 2
15 E1401-726-000 TRAY CHUCK PIN 2
16 400-48807 Y HOLD ROLLER 2
17 RE-0300000-K0 E-RING 3 4
18 E1425-726-000 CHUCK O-S BR 2
19 E1426-726-000 CHUCK O-S SD 2
20 NM-6030003-SC NUT M3 2
21 RE-0200000-K0 E-RING 2 2
22 SB-1030002-00 BEARING 2
23 WS-0310002-KN SPRING WASHER M3 2
24 E1458-726-000 CHUCK SPA 1
25 E1459-726-000 SP GUIDE SHAFT 1
26 E1390-726-000 Y SENSOR DOG 1
27 SL-6030642-TN SCREW M3 L=6 2
28 401-54591 Y_SLIDE_LINK 1
29 400-49268 PIVOT SLEEVE 1
30 SB-1060007-00 BALL BEARING 1
31 400-49273 SCREW 1
32 400-49266 PIVOT SLEEVE A 1
33 400-49267 PIVOT COLLAR 1
34 SB-1060007-00 BALL BEARING 2
35 SL-6042592-TN SCREW 1
36 NM-6040001-SC NUT M4X0.7 TYPE1 1
37 400-49270 COVER PLATE L 1
38 400-49271 COVER PLATE R 1
39 400-49272 COLLAR 4
40 SM-1030601-SC SCREW M3 L=6 4
41 401-41282 CHUCK_PUSHER_R_ASM 1
42 401-41120 CHUCK_PUSHER_BASE_R (1)
43 401-41122 CHUCK_PUSHER_R (1)
44 SB-1040011-00 BEARING (1)
45 401-41124 CHUCK_PUSHER_STAND (1)
46 SM-1040801-SC SCREW M4X0.7 L=8 (1)
47 RE-0300000-K0 E-RING 3 (1)
48 401-41126 SPACER_A (2)
49 SM-1030601-SC SCREW M3 L=6 (2)
50 401-41125 SPACER (1)
51 E3404-700-000 THRUST WASHER (1)
52 WP-0451016-SP WASHER 4.5X20X1 (1)
53 SM-4040801-SC SCREW M4X0.7 L=8 (1)
54 WS-0410002-KN SPRING WASHER M4 (1)
55 401-41127 CHUCK_PUSHER_SP_R (1)
56 401-41283 CHUCK_PUSHER_L_ASM 1
57 401-41121 CHUCK_PUSHER_BASE_L (1)
58 401-41123 CHUCK_PUSHER_L (1)
59 SB-1040011-00 BEARING (1)
60 401-41124 CHUCK_PUSHER_STAND (1)
61 SM-1040801-SC SCREW M4X0.7 L=8 (1)
62 RE-0300000-K0 E-RING 3 (1)
63 401-41126 SPACER_A (2)
64 SM-1030601-SC SCREW M3 L=6 (2)
65 401-41125 SPACER (1)
66 E3404-700-000 THRUST WASHER (1)
67 WP-0451016-SP WASHER 4.5X20X1 (1)
68 SM-4040801-SC SCREW M4X0.7 L=8 (1)
69 WS-0410002-KN SPRING WASHER M4 (1)
70 401-41128 CHUCK_PUSHER_SP_L (1)
71 SL-4040891-SC SCREW M4 L=8 8
72 400-49264 PIVOT SLEEVE B 1
73 SB-1060007-00 BALL BEARING 1
74 SL-6042092-TN SCREW M4 L=20 1
75 E1455-726-000 STOPPER BOLT 2
76 SL-6030642-TN SCREW M3 L=6 2
- -

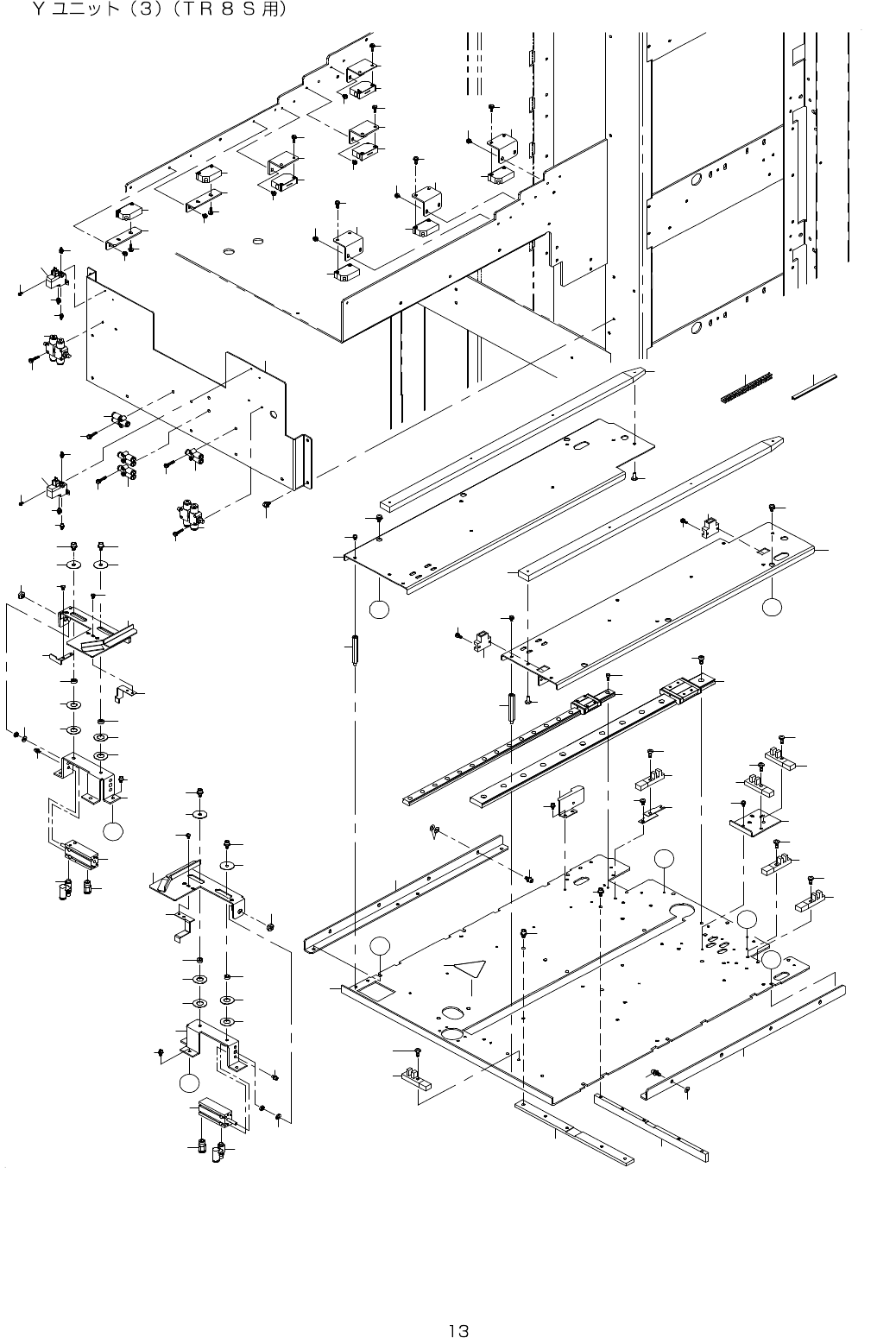

7. Y UNIT(3)(FOR TR8S)
1
4
3
A
B
2
3
B
5
5
A
6
7
8
9
4 2
4 3
3 4
4 0
3 8
3 9
3 8
3 9
3 5
3 6
3 6
3 6
3 2
3 3
3 1
2 9
4 1
3 7
3 6
3 5
5 8
5 9
5 7
5 1
5 2
5 3
5 3
5 3
4 9
5 0
4 6
5 3
5 2
4 8
5 4
6 0
5 5
5 5
3 0
4 4
4 5
C
C
4 7
5 6
5 6
D
D
6 1
6 2
6 3
6 5
6 5
6 4
6 5
6 4
6 4
6 5
6 5
6 4
6 5
6 3
6 7
7 0
6 6
7 0
7 2
7 1
7 3
7 3
7 4
7 4
7 5
7 5
7 6
7 7
7 7
7 6
1 0
7 8
7 8
1 0
1 6
1 5
1 8
1 6
1 5
1 0
1 31 0
1 1
1 4
1 1
1 0
7 8
7 8
7 8
1 9
2 0
2 1
2 2
2 3
2 5
2 4
2 4
2 5
2 6
2 7
2 6
2 7
2 8
2
1 2
1 0
1 2
7 8
1 3
1
1 7
6 8
6 9
8 2
8 0
8 1
7 9
1 4
1 4
1 4
1 4
1 4
1 9
8 3 8 4
8 5
8 5
8 5
2 3
8 5
8 5
2 2
8 5
2 6
2 7
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-54603 Y_JOINT_BR 2
2 WP-0430801-SC WASHER M4 12
3 SL-6040892-TN BOLT 8
4 401-54592 Y_BASE 1
5 SL-4040891-SC SCREW M4 L=8 6
6 401-57979 Y_RAIL_A 1
7 SM-6040802-TN SCREW 6
8 401-57980 Y_RAIL_B 1
9 SM-6030802-TN SCREW 6
10 SL-4030591-SC SCREW M3 L=5 12
11 401-52797 CMPNT SENSOR R ASM(SNI) 1
12 401-52798 CMPNT SENSOR L ASM(SNI) 1
13 401-53402 CMPNT 35.0 SENSOR ASM 1
14 SL-4031081-SC SCREW M3 X 10 12
15 401-55808 SEPARATE_SENSOR_BR 2
16 SL-4030591-SC SCREW M3 L=5 4
17 401-29057 SEPARATE SENSOR RECEIVER ASM 1
18 401-29058 SEPARATE SENSOR EMISSION ASM 1
19 SL-4031081-SC SCREW M3 X 10 4
20 401-54617 SLOW_MODE_BRACKET 1
21 SL-4040891-SC SCREW M4 L=8 4
22 PV-1303060-A0 SOLENOID_VALVE 2
23 SL-4020581-SC WASHER SCREW 4
24 PC-0124010-00 SPEED CONTROLLER 4
25 SL-4031691-SC SCREW M3 L=16 4
26 PJ-3080400-07 UNION Y 4
27 SL-4031691-SC SCREW M3 L=16 4
28 CM-3002000-04 LABEL (50) 1
29 E1430-726-000 CYLINDER BASE L 1
30 SL-6030642-TN SCREW M3 L=6 3
31 PA-1001524-A0 AIR CYLINDER 1
32 PC-0105190-00 SPEED CONTROLLER 1
33 PJ-3010405-02 HALF UNION 4XM5 1
34 SL-6030692-TN SCREW M3 L=6 2
35 E3403-715-000 GUIDE SPACER 2
36 E3404-700-000 THRUST WASHER 4
37 400-48712 CHUCK GUIDE LH 1
38 WP-0451016-SP WASHER 4.5X20X1 2
39 SL-6040842-TN SCREW M4 L=8 2
40 WP-0430801-SC WASHER M4 1
41 E1432-726-000 CYLINDER NUT 1
42 401-57958 TR_RELEASE_DOG_LH 1
43 SM-4030501-SC SCREW M3X0.5 L=5 2
44 401-54611 SENSOR_DOG 1
45 SM-4030501-SC SCREW M3X0.5 L=5 2
46 E1440-726-000 CYLINDER BASE R 1
47 SL-6030642-TN SCREW M3 L=6 3
48 PA-1001524-A0 AIR CYLINDER 1
49 PC-0105190-00 SPEED CONTROLLER 1
50 PJ-3010405-02 HALF UNION 4XM5 1
51 SL-6030692-TN SCREW M3 L=6 2
52 E3403-715-000 GUIDE SPACER 2
53 E3404-700-000 THRUST WASHER 4
54 400-48713 CHUCK GUIDE RH 1
55 WP-0451016-SP WASHER 4.5X20X1 2
56 SL-6040842-TN SCREW M4 L=8 2
57 WP-0430801-SC WASHER M4 1
58 E1432-726-000 CYLINDER NUT 1
59 400-48715 TR RELEASE DOG RH 1
60 SM-4030501-SC SCREW M3X0.5 L=5 2
61 E1328-726-000 Y SENSOR BR 1
62 SL-4030691-SC SCREW M3 L=6 2
63 HD-0017000-00 SENSOR 2
64 HD-0017100-00 SENSOR 4
65 SM-4041001-SC SCREW M4X0.7 L=10 6
66 401-54620 CABLE_PROTECT 1
67 SL-6030692-TN SCREW M3 L=6 2
68 401-57959 Y_SENSOR_BR 1
69 SM-4040601-SC SCREW M4X0.7 L=6 1
70 E1324-726-000 Y TABLE STUD 11
71 401-54593 Y_TABLE_R 1
72 401-54594 Y_TABLE_L 1
73 SL-4030691-SC SCREW M3 L=6 11
74 401-54605 TRAY_BASE_GUIDE_RAIL_8S 2
75 SV-4031006-SR SCREW M3 L=10 8
76 HD-0009000-00 PHOTO SENSOR 2
77 SL-4030881-SC SCREW M3 L=8 4
78 401-54601 SENSOR_BRACKET 6
79 401-58046 Y_BASE_SUPPORT_A 1
80 SL-6040892-TN BOLT 5
81 401-58047 Y_BASE_SUPPORT_B 1
82 SL-6040892-TN BOLT 5
83 EA-9002B11-00 BUSHING L 0.26
84 HX-0066900-0A GROMMET 0.2
85 PJ-0320390-01 CONNECTOR 6
