- - 8. Y UNIT( 1)( FOR T R8S R) 1 2 4 7 8 1 1 1 0 1 0 9 1 2 1 1 2 3 2 4 2 5 2 5 2 6 2 6 2 7 3 6 5 1 8 1 5 1 6 1 6 1 7 1 4 1 3 1 7 1 6 1 6 1 4 2 1 1 8 1 3 1 6 1 4 2 1 1 6 1 7 1 7 1 6 1 5 1 6 1 4 3 7 4 3 4 4 4 4 4 5 4 9 …
- -

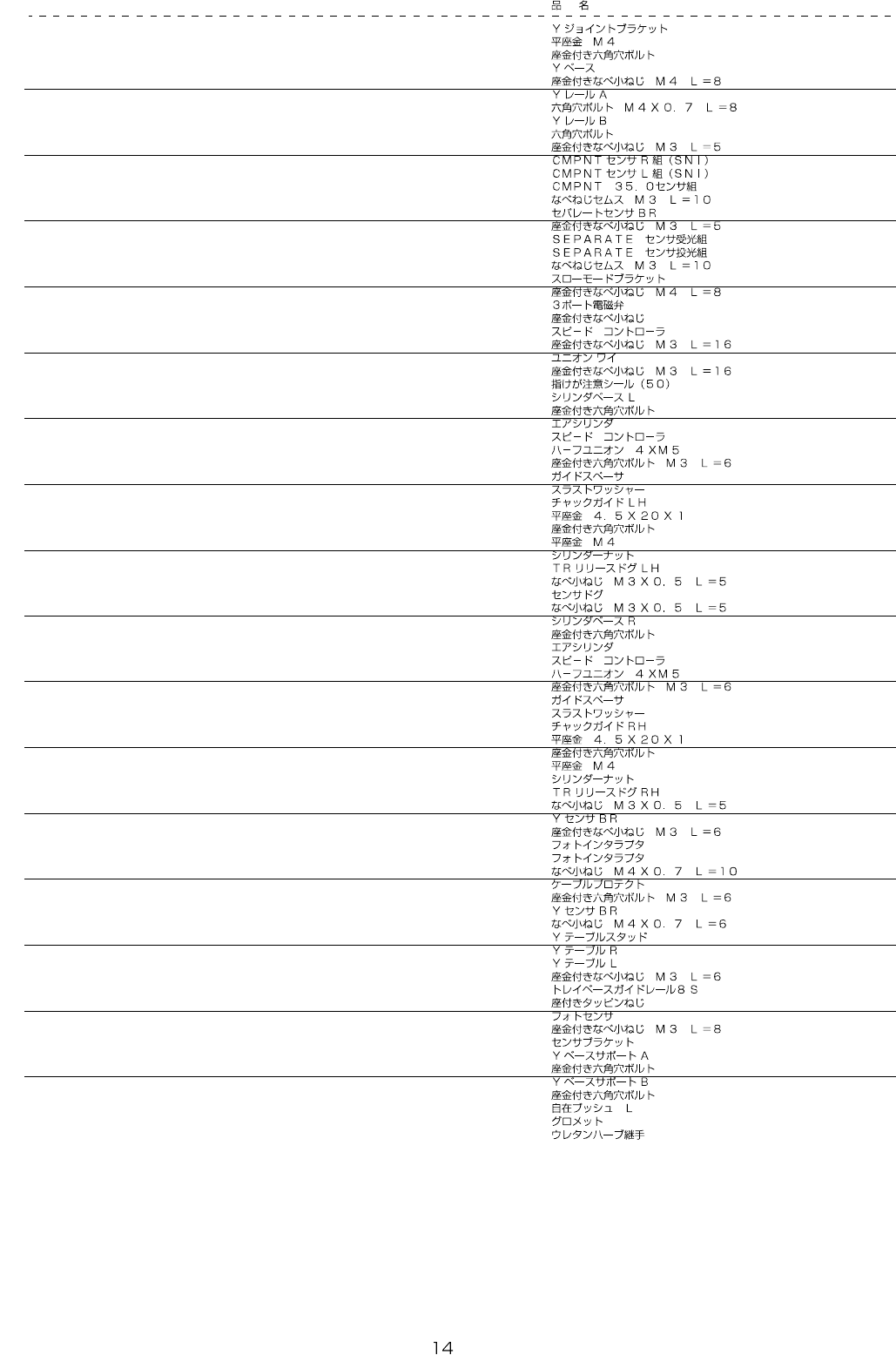

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-54603 Y_JOINT_BR 2
2 WP-0430801-SC WASHER M4 12
3 SL-6040892-TN BOLT 8
4 401-54592 Y_BASE 1
5 SL-4040891-SC SCREW M4 L=8 6
6 401-57979 Y_RAIL_A 1
7 SM-6040802-TN SCREW 6
8 401-57980 Y_RAIL_B 1
9 SM-6030802-TN SCREW 6
10 SL-4030591-SC SCREW M3 L=5 12
11 401-52797 CMPNT SENSOR R ASM(SNI) 1
12 401-52798 CMPNT SENSOR L ASM(SNI) 1
13 401-53402 CMPNT 35.0 SENSOR ASM 1
14 SL-4031081-SC SCREW M3 X 10 12
15 401-55808 SEPARATE_SENSOR_BR 2
16 SL-4030591-SC SCREW M3 L=5 4
17 401-29057 SEPARATE SENSOR RECEIVER ASM 1
18 401-29058 SEPARATE SENSOR EMISSION ASM 1
19 SL-4031081-SC SCREW M3 X 10 4
20 401-54617 SLOW_MODE_BRACKET 1
21 SL-4040891-SC SCREW M4 L=8 4
22 PV-1303060-A0 SOLENOID_VALVE 2
23 SL-4020581-SC WASHER SCREW 4
24 PC-0124010-00 SPEED CONTROLLER 4
25 SL-4031691-SC SCREW M3 L=16 4
26 PJ-3080400-07 UNION Y 4
27 SL-4031691-SC SCREW M3 L=16 4
28 CM-3002000-04 LABEL (50) 1
29 E1430-726-000 CYLINDER BASE L 1
30 SL-6030642-TN SCREW M3 L=6 3
31 PA-1001524-A0 AIR CYLINDER 1
32 PC-0105190-00 SPEED CONTROLLER 1
33 PJ-3010405-02 HALF UNION 4XM5 1
34 SL-6030692-TN SCREW M3 L=6 2
35 E3403-715-000 GUIDE SPACER 2
36 E3404-700-000 THRUST WASHER 4
37 400-48712 CHUCK GUIDE LH 1
38 WP-0451016-SP WASHER 4.5X20X1 2
39 SL-6040842-TN SCREW M4 L=8 2
40 WP-0430801-SC WASHER M4 1
41 E1432-726-000 CYLINDER NUT 1
42 401-57958 TR_RELEASE_DOG_LH 1
43 SM-4030501-SC SCREW M3X0.5 L=5 2
44 401-54611 SENSOR_DOG 1
45 SM-4030501-SC SCREW M3X0.5 L=5 2
46 E1440-726-000 CYLINDER BASE R 1
47 SL-6030642-TN SCREW M3 L=6 3
48 PA-1001524-A0 AIR CYLINDER 1
49 PC-0105190-00 SPEED CONTROLLER 1
50 PJ-3010405-02 HALF UNION 4XM5 1
51 SL-6030692-TN SCREW M3 L=6 2
52 E3403-715-000 GUIDE SPACER 2
53 E3404-700-000 THRUST WASHER 4
54 400-48713 CHUCK GUIDE RH 1
55 WP-0451016-SP WASHER 4.5X20X1 2
56 SL-6040842-TN SCREW M4 L=8 2
57 WP-0430801-SC WASHER M4 1
58 E1432-726-000 CYLINDER NUT 1
59 400-48715 TR RELEASE DOG RH 1
60 SM-4030501-SC SCREW M3X0.5 L=5 2
61 E1328-726-000 Y SENSOR BR 1
62 SL-4030691-SC SCREW M3 L=6 2
63 HD-0017000-00 SENSOR 2
64 HD-0017100-00 SENSOR 4
65 SM-4041001-SC SCREW M4X0.7 L=10 6
66 401-54620 CABLE_PROTECT 1
67 SL-6030692-TN SCREW M3 L=6 2
68 401-57959 Y_SENSOR_BR 1
69 SM-4040601-SC SCREW M4X0.7 L=6 1
70 E1324-726-000 Y TABLE STUD 11
71 401-54593 Y_TABLE_R 1
72 401-54594 Y_TABLE_L 1
73 SL-4030691-SC SCREW M3 L=6 11
74 401-54605 TRAY_BASE_GUIDE_RAIL_8S 2
75 SV-4031006-SR SCREW M3 L=10 8
76 HD-0009000-00 PHOTO SENSOR 2
77 SL-4030881-SC SCREW M3 L=8 4
78 401-54601 SENSOR_BRACKET 6
79 401-58046 Y_BASE_SUPPORT_A 1
80 SL-6040892-TN BOLT 5
81 401-58047 Y_BASE_SUPPORT_B 1
82 SL-6040892-TN BOLT 5
83 EA-9002B11-00 BUSHING L 0.26
84 HX-0066900-0A GROMMET 0.2
85 PJ-0320390-01 CONNECTOR 6
- -

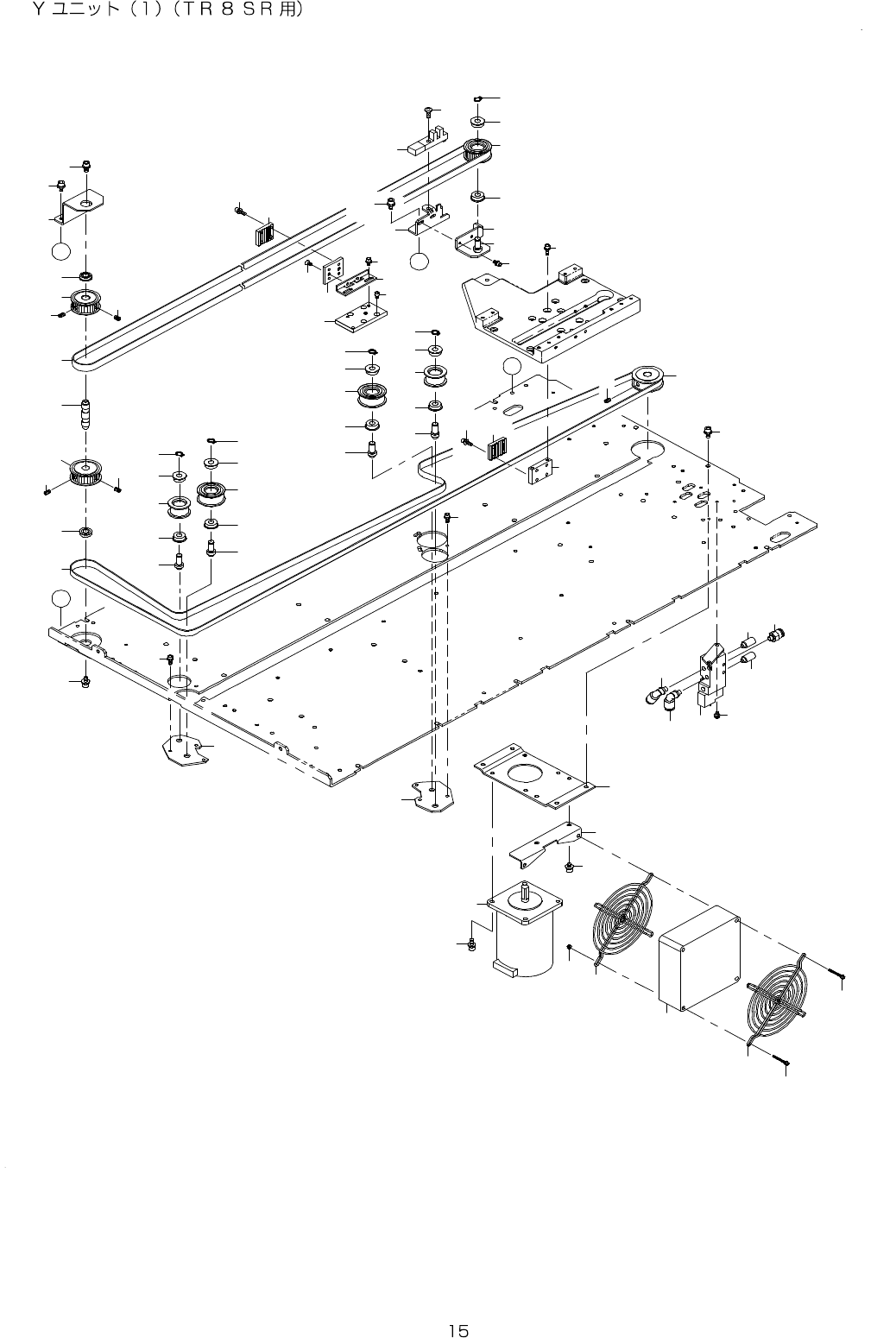

8. Y UNIT(1)(FOR TR8SR)
1
2
4
7
8
1 1
1 0
1 0
9
1 2
1 1
2 3
2 4
2 5
2 5
2 6
2 6
2 7
3
6
5
1 8
1 5
1 6
1 6
1 7
1 4
1 3
1 7
1 6
1 6
1 4
2 1
1 8
1 3
1 6
1 4
2 1
1 6
1 7
1 7
1 6
1 5
1 6
1 4
3 7
4 3
4 4
4 4
4 5
4 9
3 9
3 8
4 2
4 1
4 0
3 6
2 2
2 0
5 3
5 4
5 5
1 9
5 6
5 2
4 8
5 0
5 1
3 3
2 9
2 9
3 5
3 4
3 3
4 6
3 2
3 0
2 8
3 4
4 7
A
A
3 3
3 3
3 1
B
B
- -

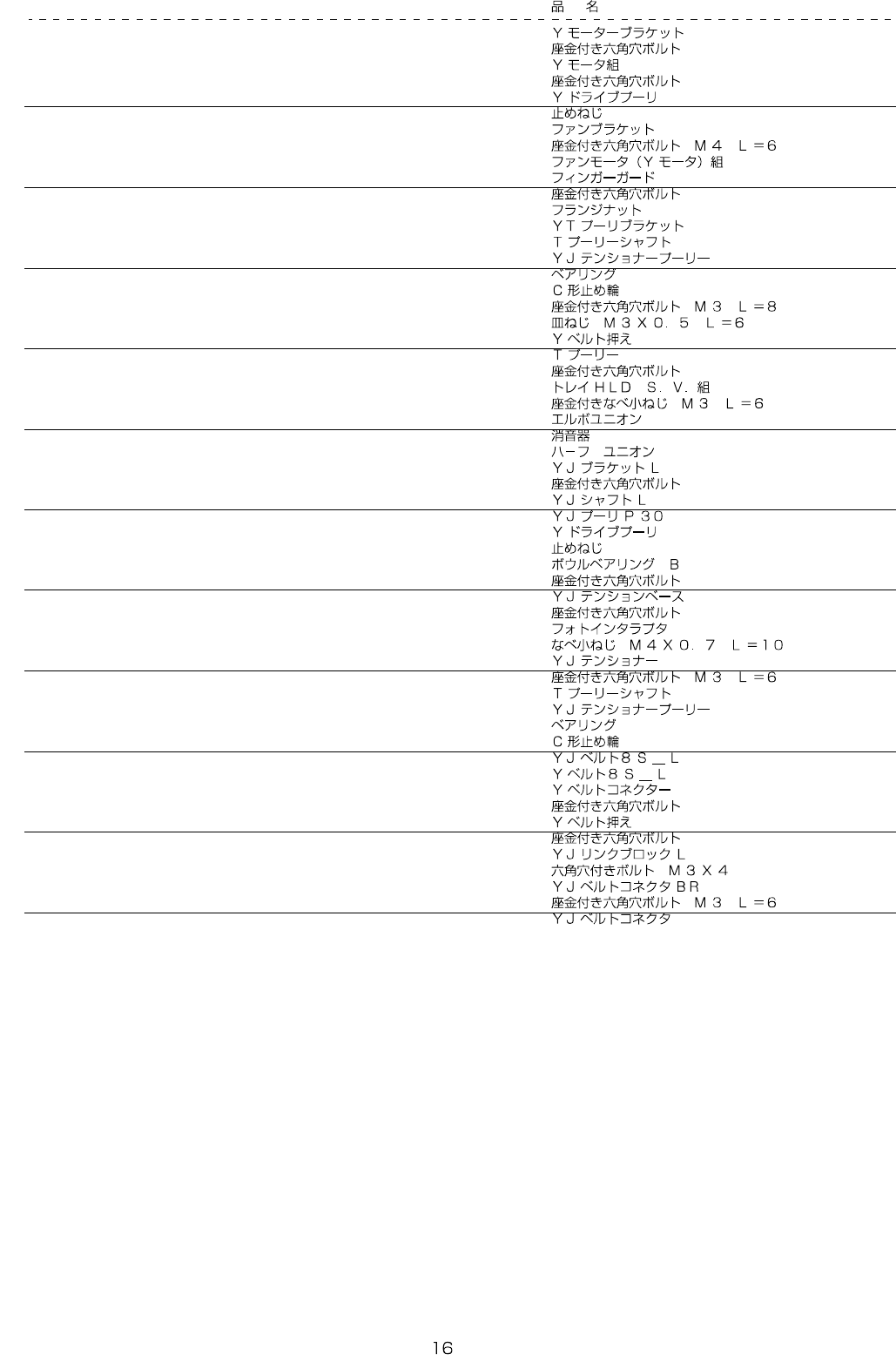

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-54597 Y_MOTOR_BR 1
2 SL-6040892-TN BOLT 4
3 400-45060 Y MOTOR ASM 1
4 SL-6041042-TN BOLT 4
5 E1341-726-000 Y DRIVE PULLEY 1
6 SM-8040602-TP SCREW M4X0.7 L=6 2
7 401-54600 FAN_BRACKET 1
8 SL-6040692-TN SCREW M4 L=6 2
9 400-49579 FAN MOTOR(Y MOTOR) ASM 1
10 HM-0017800-10 FINGER GUARD 2
11 SL-6044092-TN SCREW 4
12 NM-3040520-SF FLANGE NUT M4 2
13 401-83089 YT_PULLEY_BR 2
14 401-54618 T_PULLEY_SHAFT 4
15 401-54612 YJ_TENSIONER_PULLEY 2
16 SB-1060009-00 BEARING 8
17 RC-0560711-KP RETAINING RING 4
18 SL-6030892-TN SCREW M3 L=8 6
19 SM-1030601-SC SCREW M3 L=6 2
20 E1317-726-000 Y BELT STOPPER 1
21 401-54619 T_PULLEY 2
22 SL-6031042-TN SCREW 4
23 400-49728 TRAY HLD S.V. ASM 1
24 SL-4030691-SC SCREW M3 L=6 2
25 PJ-3040405-04 ELBOW UNION 2
26 PX-0505010-00 SILENCER 2
27 PJ-3010605-03 HALF UNION 1
28 401-83090 YJ_BRACKET_L 1
29 SL-6040892-TN BOLT 2
30 401-83092 YJ_SHAFT_L 1
31 401-83091 YJ_PULLEY_P30 1
32 E1341-726-000 Y DRIVE PULLEY 1
33 SM-8040602-TP SCREW M4X0.7 L=6 4
34 SB-1060007-00 BALL BEARING 2
35 SL-6040892-TN BOLT 2
36 401-54596 YJ_TENSION_BASE 1
37 SL-6040892-TN BOLT 2
38 HD-0017100-00 SENSOR 1
39 SM-4041001-SC SCREW M4X0.7 L=10 1
40 401-54598 YJ_TENSIONER 1
41 SL-6030692-TN SCREW M3 L=6 2
42 401-54618 T_PULLEY_SHAFT 1
43 401-54612 YJ_TENSIONER_PULLEY 1
44 SB-1060009-00 BEARING 2
45 RC-0560711-KP RETAINING RING 1
46 401-83088 YJ_BELT_8S_L 1
47 401-83087 Y_BELT_8S_L 1
48 401-54599 Y_BELT_CONNECTER 1
49 SL-6031092-TN SCREW 2
50 E1317-726-000 Y BELT STOPPER 1
51 SL-6031042-TN SCREW 4
52 401-83093 YJ_LINK_BLOCK_L 1
53 SM-6030402-TN SCREW M3X4 3
54 401-54590 YJ_BELT_CONN_BR 1
55 SL-6030692-TN SCREW M3 L=6 2
56 E1320-726-000 Y BELT CONNECTOR 1
