- - 9. Y UNIT( 2)( FOR T R8S R) 1 2 2 3 4 4 5 5 7 5 9 8 7 6 2 5 2 4 1 5 1 4 1 3 1 7 1 6 1 7 1 4 1 3 1 7 1 1 1 7 1 5 1 6 1 0 1 2 1 2 2 1 2 2 1 9 1 8 2 3 2 0 2 0 2 3 1 8 1 9 2 2 2 1 2 6 2 7 3 6 2 8 3 4 3 3 3 4 3 2 3 0 2 …
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-54597 Y_MOTOR_BR 1
2 SL-6040892-TN BOLT 4
3 400-45060 Y MOTOR ASM 1
4 SL-6041042-TN BOLT 4
5 E1341-726-000 Y DRIVE PULLEY 1
6 SM-8040602-TP SCREW M4X0.7 L=6 2
7 401-54600 FAN_BRACKET 1
8 SL-6040692-TN SCREW M4 L=6 2
9 400-49579 FAN MOTOR(Y MOTOR) ASM 1
10 HM-0017800-10 FINGER GUARD 2
11 SL-6044092-TN SCREW 4
12 NM-3040520-SF FLANGE NUT M4 2
13 401-83089 YT_PULLEY_BR 2
14 401-54618 T_PULLEY_SHAFT 4
15 401-54612 YJ_TENSIONER_PULLEY 2
16 SB-1060009-00 BEARING 8
17 RC-0560711-KP RETAINING RING 4
18 SL-6030892-TN SCREW M3 L=8 6
19 SM-1030601-SC SCREW M3 L=6 2
20 E1317-726-000 Y BELT STOPPER 1
21 401-54619 T_PULLEY 2
22 SL-6031042-TN SCREW 4
23 400-49728 TRAY HLD S.V. ASM 1
24 SL-4030691-SC SCREW M3 L=6 2
25 PJ-3040405-04 ELBOW UNION 2
26 PX-0505010-00 SILENCER 2
27 PJ-3010605-03 HALF UNION 1
28 401-83090 YJ_BRACKET_L 1
29 SL-6040892-TN BOLT 2
30 401-83092 YJ_SHAFT_L 1
31 401-83091 YJ_PULLEY_P30 1
32 E1341-726-000 Y DRIVE PULLEY 1
33 SM-8040602-TP SCREW M4X0.7 L=6 4
34 SB-1060007-00 BALL BEARING 2
35 SL-6040892-TN BOLT 2
36 401-54596 YJ_TENSION_BASE 1
37 SL-6040892-TN BOLT 2
38 HD-0017100-00 SENSOR 1
39 SM-4041001-SC SCREW M4X0.7 L=10 1
40 401-54598 YJ_TENSIONER 1
41 SL-6030692-TN SCREW M3 L=6 2
42 401-54618 T_PULLEY_SHAFT 1
43 401-54612 YJ_TENSIONER_PULLEY 1
44 SB-1060009-00 BEARING 2
45 RC-0560711-KP RETAINING RING 1
46 401-83088 YJ_BELT_8S_L 1
47 401-83087 Y_BELT_8S_L 1
48 401-54599 Y_BELT_CONNECTER 1
49 SL-6031092-TN SCREW 2
50 E1317-726-000 Y BELT STOPPER 1
51 SL-6031042-TN SCREW 4
52 401-83093 YJ_LINK_BLOCK_L 1
53 SM-6030402-TN SCREW M3X4 3
54 401-54590 YJ_BELT_CONN_BR 1
55 SL-6030692-TN SCREW M3 L=6 2
56 E1320-726-000 Y BELT CONNECTOR 1
- -

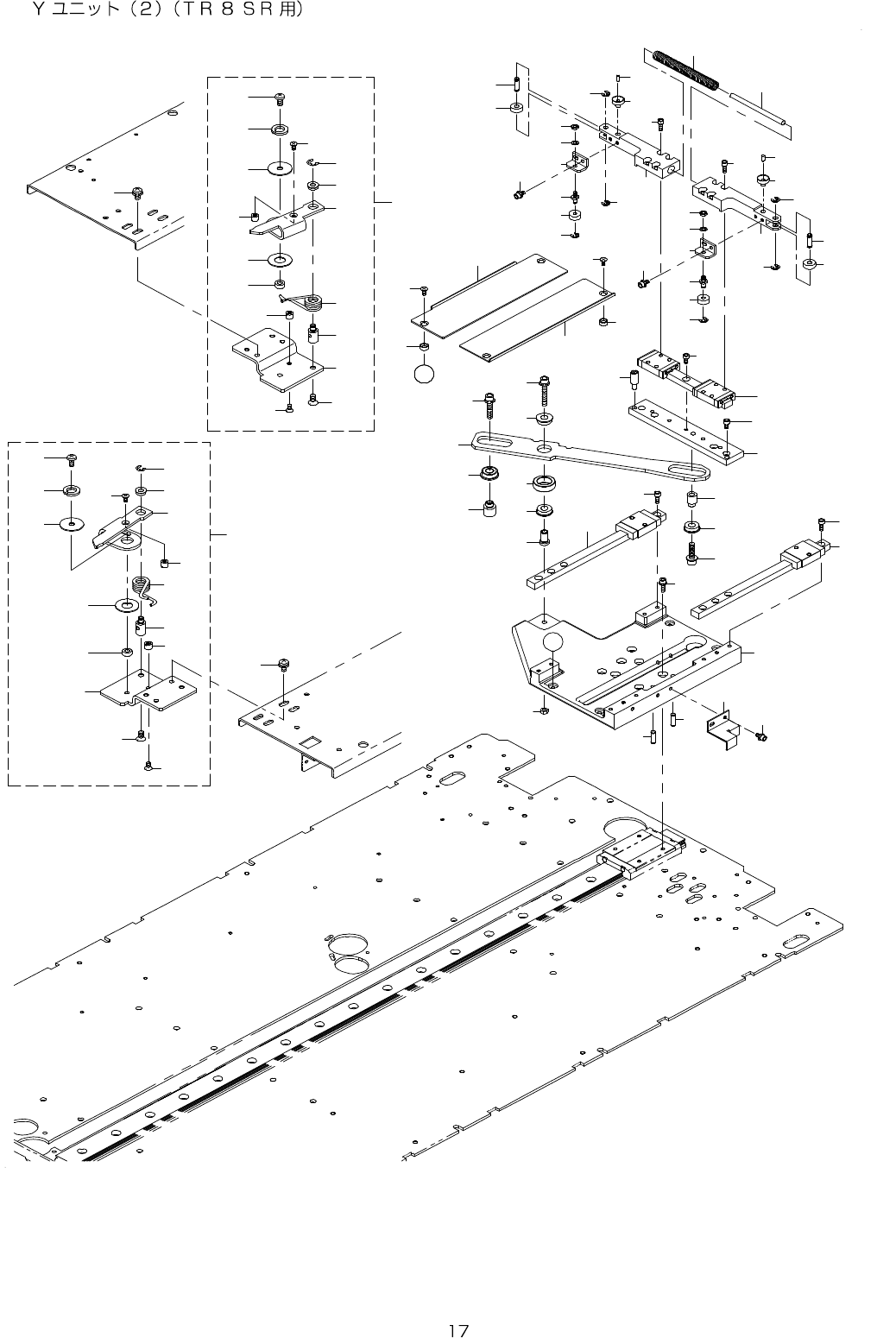

9. Y UNIT(2)(FOR TR8SR)
1
2
2
3
4
4
5
5
7 5
9
8
7
6
2 5
2 4
1 5
1 4
1 3
1 7
1 6
1 7
1 4
1 3
1 7
1 1
1 7
1 5
1 6
1 0
1 2
1 2
2 1
2 2
1 9
1 8
2 3
2 0
2 0
2 3
1 8
1 9
2 2
2 1
2 6
2 7
3 6
2 8
3 4
3 3
3 4
3 2
3 0
2 9
3 1
7 2
7 4
7 3
3 5
4 0
3 7
3 9
A
3 8
3 9
4 0
A
5 6
6 2
6 8
6 9
6 7
6 1
6 4
5 8
6 4
6 3
5 9
7 0
6 3
6 5
6 0
5 7
6 6
4 4
4 7
5 4
5 3
4 9
4 8
5 0
5 1
4 8
4 9
4 2
4 5
4 6
5 5
4 3
5 2
4 1
7 1
7 1
7 6
7 6
- -

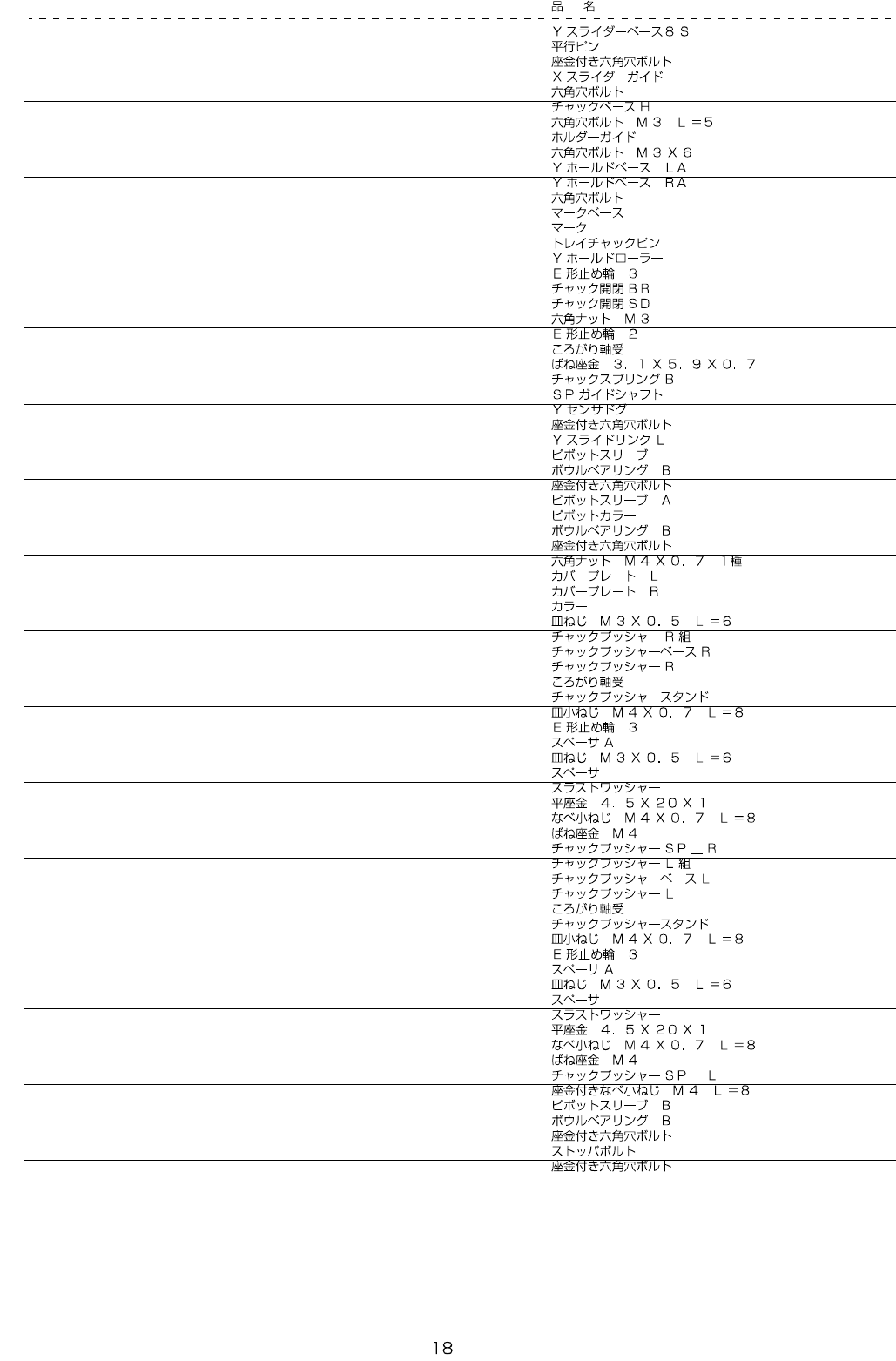

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-54608 Y_SLIDER_BASE_8S 1
2 PH-0400122-C0 PIN 2
3 SL-6031092-TN SCREW 4
4 400-49188 X SLIDER GUIDE 2
5 SM-6030802-TN SCREW 10
6 E1452-726-000 CHUCK BASE H 1
7 SM-6030502-TN SCREW M3 L=5 4
8 400-48776 HOLDER GUIDE 1
9 SM-6030602-TN SCREW M3X6 5
10 E6137-723-000 Y HOLD BASE LA 1
11 E6138-723-000 Y HOLD BASE RA 1
12 SM-6030802-TN SCREW 8
13 E1420-726-000 MARK BASE 2
14 E2601-725-000 MARK 2
15 E1401-726-000 TRAY CHUCK PIN 2
16 400-48807 Y HOLD ROLLER 2
17 RE-0300000-K0 E-RING 3 4
18 E1425-726-000 CHUCK O-S BR 2
19 E1426-726-000 CHUCK O-S SD 2
20 NM-6030003-SC NUT M3 2
21 RE-0200000-K0 E-RING 2 2
22 SB-1030002-00 BEARING 2
23 WS-0310002-KN SPRING WASHER M3 2
24 401-65087 CHUCK_SP_B 1
25 E1459-726-000 SP GUIDE SHAFT 1
26 E1390-726-000 Y SENSOR DOG 1
27 SL-6030642-TN SCREW M3 L=6 2
28 401-83094 Y_SLIDE_LINK_L 1
29 400-49268 PIVOT SLEEVE 1
30 SB-1060007-00 BALL BEARING 1
31 400-49273 SCREW 1
32 400-49266 PIVOT SLEEVE A 1
33 400-49267 PIVOT COLLAR 1
34 SB-1060007-00 BALL BEARING 2
35 SL-6042592-TN SCREW 1
36 NM-6040001-SC NUT M4X0.7 TYPE1 1
37 400-49270 COVER PLATE L 1
38 400-49271 COVER PLATE R 1
39 400-49272 COLLAR 4
40 SM-1030601-SC SCREW M3 L=6 4
41 401-83511 CHUCK_PUSHER_R_ASM 1
42 401-41120 CHUCK_PUSHER_BASE_R (1)
43 401-83108 CHUCK_PUSHER_R (1)
44 SB-1040011-00 BEARING (1)
45 401-41124 CHUCK_PUSHER_STAND (1)
46 SM-1040801-SC SCREW M4X0.7 L=8 (1)
47 RE-0300000-K0 E-RING 3 (1)
48 401-41126 SPACER_A (2)
49 SM-1030601-SC SCREW M3 L=6 (2)
50 401-41125 SPACER (1)
51 E3404-700-000 THRUST WASHER (1)
52 WP-0451016-SP WASHER 4.5X20X1 (1)
53 SM-4040801-SC SCREW M4X0.7 L=8 (1)
54 WS-0410002-KN SPRING WASHER M4 (1)
55 401-41127 CHUCK_PUSHER_SP_R (1)
56 401-83512 CHUCK_PUSHER_L_ASM 1
57 401-41121 CHUCK_PUSHER_BASE_L (1)
58 401-83107 CHUCK_PUSHER_L (1)
59 SB-1040011-00 BEARING (1)
60 401-41124 CHUCK_PUSHER_STAND (1)
61 SM-1040801-SC SCREW M4X0.7 L=8 (1)
62 RE-0300000-K0 E-RING 3 (1)
63 401-41126 SPACER_A (2)
64 SM-1030601-SC SCREW M3 L=6 (2)
65 401-41125 SPACER (1)
66 E3404-700-000 THRUST WASHER (1)
67 WP-0451016-SP WASHER 4.5X20X1 (1)
68 SM-4040801-SC SCREW M4X0.7 L=8 (1)
69 WS-0410002-KN SPRING WASHER M4 (1)
70 401-41128 CHUCK_PUSHER_SP_L (1)
71 SL-4040891-SC SCREW M4 L=8 8
72 400-49264 PIVOT SLEEVE B 1
73 SB-1060007-00 BALL BEARING 1
74 SL-6042092-TN SCREW M4 L=20 1
75 E1455-726-000 STOPPER BOLT 2
76 SL-6030642-TN SCREW M3 L=6 2
