- - 11 . E UNIT 1 2 3 9 5 1 0 1 1 4 6 7 8 1 3 1 4 1 5 1 9 1 9 2 0 2 0 1 6 1 7 1 8 1 8 2 3 2 4 2 5 2 6 2 7 2 8 2 9 3 1 3 2 3 0 3 4 3 3 3 6 3 5 3 8 3 7 3 9 4 1 4 0 4 2 4 3 4 4 4 5 4 6 4 8 4 9 5 1 5 2 5 3 5 4 5 9 5 4 5 8 …
- -

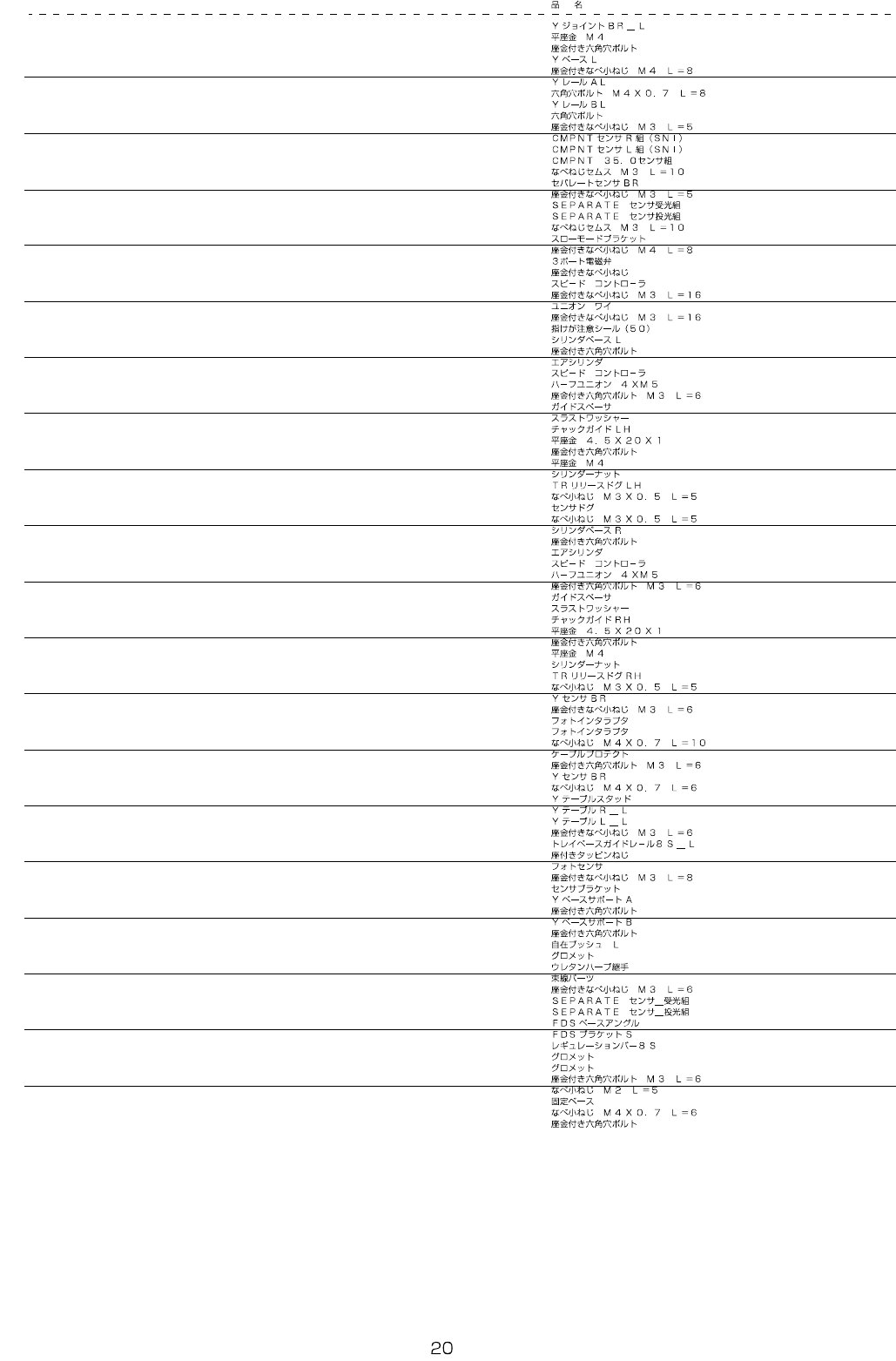

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-83026 Y_JOINT_BR_L 2
2 WP-0430801-SC WASHER M4 20
3 SL-6040892-TN BOLT 20
4 401-83086 Y_BASE_L 1
5 SL-4040891-SC SCREW M4 L=8 10
6 401-83083 Y_RAIL _AL 1
7 SM-6040802-TN SCREW 9
8 401-83084 Y_RAIL _BL 1
9 SM-6030802-TN SCREW 9
10 SL-4030591-SC SCREW M3 L=5 12
11 401-52797 CMPNT SENSOR R ASM(SNI) 1
12 401-52798 CMPNT SENSOR L ASM (SNI) 1
13 401-53402 CMPNT 35.0 SENSOR ASM 1
14 SL-4031081-SC SCREW M3 X 10 12
15 401-55808 SEPARATE_SENSOR_BR 2
16 SL-4030591-SC SCREW M3 L=5 4
17 401-29057 SEPARATE SENSOR RECEIVER ASM 1
18 401-29058 SEPARATE SENSOR EMISSION ASM 1
19 SL-4031081-SC SCREW M3 X 10 4
20 401-54617 SLOW_MODE_BRACKET 1
21 SL-4040891-SC SCREW M4 L=8 4
22 PV-1303060-A0 SOLENO ID_VALVE 2
23 SL-4020581-SC WASHER SCREW 4
24 PC-0124010-00 SPEED CONTROLLER 4
25 SL-4031691-SC SCREW M3 L=16 4
26 PJ-3080400-07 UNION Y 4
27 SL-4031691-SC SCREW M3 L=16 4
28 CM-3002000-04 LABEL (50) 1
29 E1430-726-000 CYLINDER BASE L 1
30 SL-6030642-TN SCREW M3 L=6 3
31 PA-1001524-A0 AIR CYLINDER 1
32 PC-0105190-00 SPEED CONTROLLER 1
33 PJ-3010405-02 HALF UNION 4XM5 1
34 SL-6030692-TN SCREW M3 L=6 2
35 E3403-715-000 GUIDE SPACER 2
36 E3404-700-000 THRUST WASHER 4
37 400-48712 CHUCK GUIDE LH 1
38 WP-0451016-SP WASHER 4.5X20X1 2
39 SL-6040842-TN SCREW M4 L=8 2
40 WP-0430801-SC WASHER M4 1
41 E1432-726-000 CYLINDER NUT 1
42 401-57958 TR_RELEASE_DOG_LH 1
43 SM-4030501-SC SCREW M3X0.5 L=5 2
44 401-54611 SENSOR_DOG 1
45 SM-4030501-SC SCREW M3X0.5 L=5 2
46 E1440-726-000 CYLINDER BASE R 1
47 SL-6030642-TN SCREW M3 L=6 3
48 PA-1001524-A0 AIR CYLINDER 1
49 PC-0105190-00 SPEED CONTROLLER 1
50 PJ-3010405-02 HALF UNION 4XM5 1
51 SL-6030692-TN SCREW M3 L=6 2
52 E3403-715-000 GUIDE SPACER 2
53 E3404-700-000 THRUST WASHER 4
54 400-48713 CHUCK GUIDE RH 1
55 WP-0451016-SP WASHER 4.5X20X1 2
56 SL-6040842-TN SCREW M4 L=8 2
57 WP-0430801-SC WASHER M4 1
58 E1432-726-000 CYLINDER NUT 1
59 400-48715 TR RELEASE DOG RH 1
60 SM-4030501-SC SCREW M3X0.5 L=5 2
61 E1328-726-000 Y SENSOR BR 1
62 SL-4030691-SC SCREW M3 L=6 2
63 HD-0017000-00 SENSOR 2
64 HD-0017100-00 SENSOR 4
65 SM-4041001-SC SCREW M4X0.7 L=10 6
66 401-54620 CABLE_PROTECT 1
67 SL-6030692-TN SCREW M3 L=6 2
68 401-57959 Y_SENSOR_BR 1
69 SM-4040601-SC SCREW M4X0.7 L=6 1
70 E1324-726-000 Y TABLE STUD 14
71 401-83106 Y_TABLE_R_L 1
72 401-83105 Y_TABLE_L_L 1
73 SL-4030691-SC SCREW M3 L=6 14
74 401-83104 TRAY_BASE_GUIDE_RAIL_8S_L 2
75 SV-4031006-SR SCREW M3 L=10 10
76 HD-0009000-00 PHOTO SENSOR 2
77 SL-4030881-SC SCREW M3 L=8 4
78 401-54601 SENSOR_BRACKET 6
79 401-58046 Y_BASE_SUPPORT_A 3
80 SL-6040892-TN BOLT 15
81 401-58047 Y_BASE_SUPPORT_B 1
82 SL-6040892-TN BOLT 5
83 EA-9002B11-00 BUSHING L 0.26
84 HX-0066900-0A GROMMET 0.2
85 PJ-0320390-01 CONNECTOR 6
86 HX-0034400-00 HARNESS PARTS 1
87 SL-4030691-SC SCREW M3 L=6 1
88 401-81501 SEPARATE SENSOR RECEIVER ASM 1
89 401-81502 SEPARATE SENSOR EMISSION ASM 1
90 401-83109 FDS_BASE_ANGLE 1
91 401-83111 FDS_BR_S 2
92 401-86554 REGULATION_BAR_8S 1
93 HX-0066900-00 GROM MET 0.06
94 HX-0067100-00 GROM MET 0.06
95 SL-6030692-TN SCREW M3 L=6 6
96 SM-4020501-SC SCREW M2 L=5 4
97 HX-0029400-00 FIXED BASE 6
98 SM-4040601-SC SCREW M4X0.7 L=6 6
99 SL-6040892-TN BOLT 4
- -

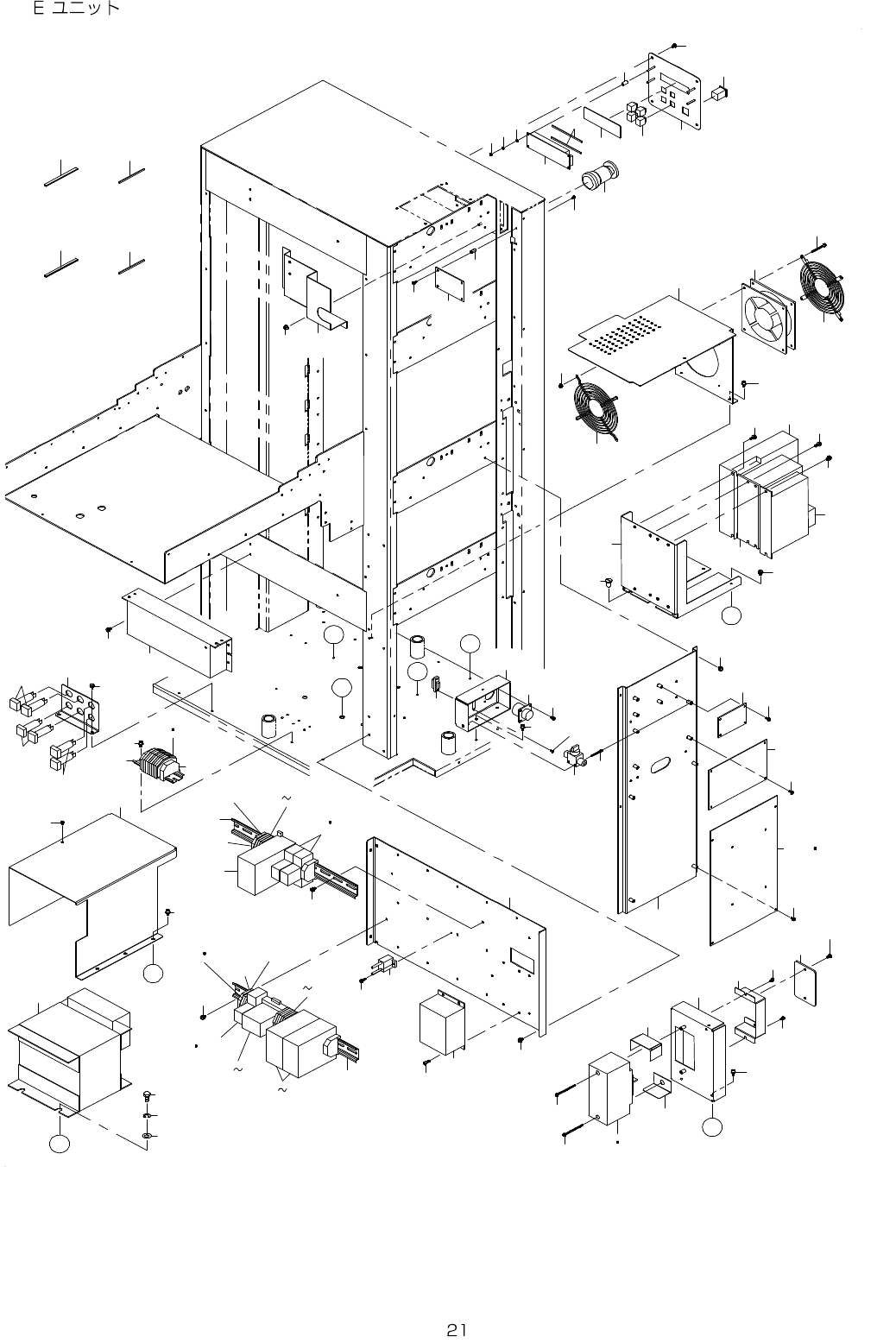

11. E UNIT
1
2
3
9
5
1 0
1 1
4
6
7
8
1 3
1 4
1 5
1 9
1 9
2 0
2 0
1 6 1 7
1 8
1 8
2 3
2 4
2 5
2 6
2 7
2 8
2 9
3 1
3 2
3 0
3 4
3 3
3 6
3 5
3 8
3 7
3 9
4 1
4 0
4 2
4 3
4 4
4 5
4 6 4 8
4 9 5 1
5 2 5 3
5 4 5 9
5 4 5 8
6 0
6 1
2 1
6 2
6 3
6 4
6 5
6 6
6 7
6 8 7 0
7 1
7 2
7 3
7 4
7 6
8 0
7 7
7 9
7 8
8 1
8 2
8 3
8 3
8 4
8 5
8 6
8 5
8 7
8 8
8 9
9 0
9 1 1 1 7
9 2
9 5
9 4
9 3
9 6
9 8
9 9
1 0 1
1 0 2
1 0 3
1 0 4
1 0 5
1 0 6
1 0 7
1 0 8 1 0 9
1 1 0 1 1 2
1 1 4
1 1 3
1 2
7 5
2 2
A
C
D
B
A
B
C
D
9 7
1 0 0
1 1 6
1 1 5
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-54631 OP BR 8S 1
2 SM -0040601-SC SCREW M4X0.7 L=6 4
3 E2502-716-000 OP PANEL SPACER 2
4 E2505-716-000 LCD COVER 1
5 HX-0033500-0B SPACER 4
6 WP-0320500-SC WASHER M 3 4
7 WS-0310002-KN SPRING WASHER M3 4
8 NM-6030001-SC NUT M3X0.5 TYPE1 4
9 401-54360 OPERATION LCD ASM 1
10 401-53390 OPERA TION SW ASM 1
11 401-53389 ONLINE SW ASM 1
12 401-54688 PANNEL_COVER 1
13 NM-3040520-SF FLANGE NUT M4 2
14 401-54626 E_BASE_8S 1
15 SL-6040892-TN BOLT 2
16 HA-0058500-0A CIRCUIT PROTECTOR 1
17 HA-0058500-0B CIRCUIT PROTECTOR
1
18 SL-4035091-SC SCREW M3X0.5 L=50 2
19 400-49165 BREAKER COV 2
20 SL-4030881-SC SCREW M3 L=8 2
21 400-45025 SURGE ABSORBER ASM 1
22 401-54625 CONNECTOR_BOX 1
23 SL-6040892-TN BOLT 2
24 400-94573 I/F CABLE ASM 1
25 SM-4860501-SB SCREW M2.5 L=5 2
26 401-53361 AC POWER INPUT CABLE ASM 1
27 SL-4030881-SC SCREW M3 L=8 2
28 PV-0100060-00 HAND VALVE 1
29 SM-6032502-TN SCREW M3 L=25 1
30 HX-0066900-0A GROMMET 0.006
31 400-45701 TRANSFORMER 1
32 SM-9081423-SC SCREW M8 L=14 4
33 WS-0820002-KN SPRING WASHER M8 4
34 WP-0841601-SC WA SHER 8.4X17.4X1.6 4
35 HX-0055000-00 POWER SUPPLY 1
36 SL-4040891-SC SCREW M4 L=8 3
37 401-54623 CIRCIT_PRO_BR 1
38 SL-4040891-SC SCREW M4 L=8 2
39 HA-0052400-00 CIRCUIT PROTECTOR 2
40 HA-0052400-0A CIRCUIT PROTECTOR 2
41 HA-0052400-0C CIRCUIT PROTECTOR 2
42 401-54629 FRONT_E_PANEL 1
43 SL-4040891-SC SCREW M4 L=8 4
44 400-50015 CARRIER RAIL 1
45 SL-4040891-SC SCREW M4 L=8 2
46 HA-0053000-00 MAGNETIC CONTACTOR 2
47 HA-0053000-10 MAGNETIC CONTACTOR 2
48 HA-0053000-20 MAGNETIC CONTACTOR 2
49 HB-0014200-00 RELAY 1
50 HB-0014200-10 RELAY 1
51 HB-0011000-10 RELAY COVER 1
52 HB-0014000-00 RELAY 1
53 HB-0014000-10 RELAY 1
54
#02
HK-0498500-10 BLOCK TERMINAL 10
55
#01
HK-0498500-10 BLOCK TERMINAL 8
56 HK-0498900-0A CONNECTOR PARTS 4
57 HK-0498900-00 CONNECTOR PARTS 2
58 HK-0498900-0D CONNECTOR PARTS 2
59 HK-0498900-0B CONNECTOR PARTS 2
60 HK-0500900-0C CONNECTOR PARTS 4
61 HK-0500900-0D CONNECTOR PARTS 4
62 SL-4031291-SC SCREW M3X12 1
63 400-45714 NOISE FILTER 1
64 SM-6040802-TN SCREW 4
65 HX-0067100-0A GROMMET 0.196
66 400-50012 CARRIER RAIL 1
67 SL-6040892-TN BOLT 2
68 HK-0498500-10 BLOCK TERMINAL 8
69 HK-0498900-00 CONNECTOR PARTS 3
70 HK-0498900-0B CONNECTOR PARTS 8
71 HK-0498900-0D CONNECTOR PARTS 2
72 401-54624 DRIVER_BR 1
73 SL-4040891-SC SCREW M4 L=8 2
74 E1038-871-000 PLATEN LOCK CAM SCREW 2
75 400-45704 REGENERATING RESISTOR 1
76 SL-4040891-SC SCREW M4 L=8 2
77 400-45711 STEPPING MOTOR DRIV ER 1
78 SL-4041291-SC SCREW M4 L=12 2
79 401-55946 Z SERVO DRV ASM 1
80 SL-4041091-SC SCREW M4 L=10 4
81 401-55836 E_COVER_A 1
82 401-55837 E_COVER_B 1
83 SL-6040892-TN BOLT 6
84 SL-4030691-SC SCREW M3 L=6 1
85 HM-0003300-30 FAN GUARD 2
86 SL-4033591-SC SCREW M3X35 4
87 NM-3034000-SF FLANGE NUT 4
88 401-55280 AC FAN MOTOR ASM 1
89 401-54621 PCB_BASE 1
90 SL-4040691-SC SCREW M4 L=6 4
91
#03
401-69065 MAIN PCB ASM 8S 1
92 SL-4030891-SC SCREW M3X8 4
93 400-41117 SCN PCB ASM 1
94 SL-4030891-SC SCREW M3X8 4
95 400-42575 SLOW MODE CTRL PCB ASM 1
96 SL-4030891-SC SCREW M3X8 4
97 400-42579 OPERA TION PCB ASM 1
98 SL-4030891-SC SCREW M3X8 4
99 SM-0030601-SC SCREW M3X0.5 L=6 4
100 HX-0041800-0D SPACER 4
101 400-49697 EMER GENCY SW(REAR) ASM 1
102
#01
E2410-723-000 BREAKER COVER A 1
103
#01
E2411-723-000 BREAKER COVER B 1
104
#01
SM-0040801-SC SCREW 2
105
#01
400-50015 CARRIER RAIL 2
106
#01
SL-4040891-SC SCREW M4 L=8 2
107
#01
HB-0014300-00 SAFETY RELAY UNIT 1
108
#01
E9641-040-000 RELAY MY-2 DC-24V 2
109
#01
HB-0002100-30 RELAY 2
110
#01
HK-0498500-10 BLOCK TERMINAL 6
111
#01
HK-0498900-0B CONNECTOR PARTS 6
112
#01
HK-0498900-0A CONNECTOR PARTS 4
113
#01
HK-0498900-00 CONNECTOR PARTS 1
114
#01
HK-0498900-0D CONNECTOR PARTS 2
115 HX-0066900-00 GROMMET 0.1
116 HX-0067100-00 GROMMET 0.42
117
#04
401-85664 MAIN PCB ASM 8SR 1
