TR8S_TR8SR-Rev02 - 第26页
- - 12. S T G UIDE U NIT 1 2 3 3 4 6 6 5 5 8 8 9 9 1 0 1 0 1 1 1 1 1 2 1 2 1 3 1 3 1 3 1 3 1 4 1 4 1 4 1 4 1 5 1 6 1 6 1 7 1 7 1 8 1 9 2 0 2 1 2 2 2 5 2 6 2 0 1 9 2 6 2 5 2 1 2 2 2 0 5 3 5 3 4 3 3 9 3 7 3 8 3 6 3 1 3 0…
- -

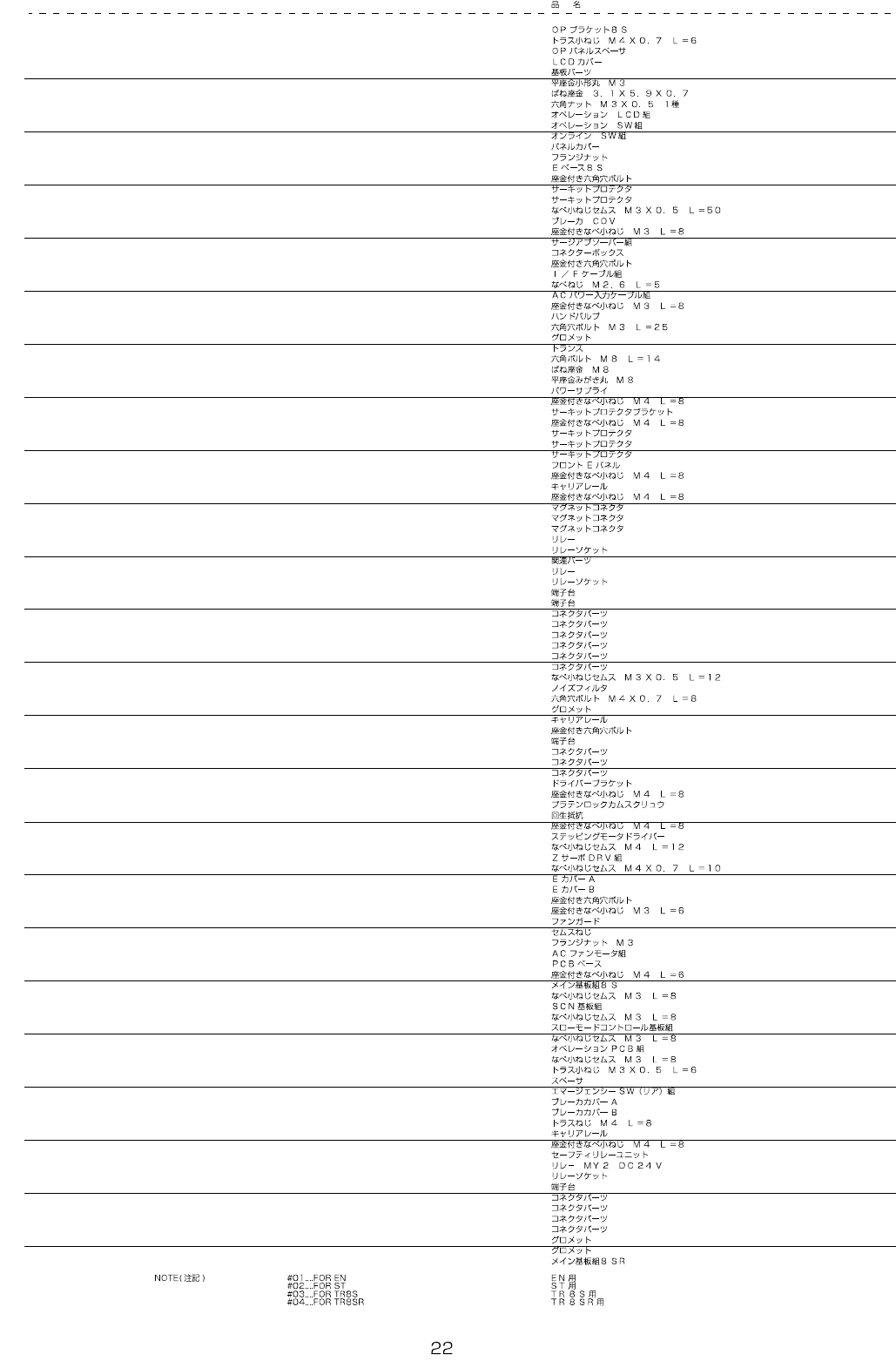

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-54631 OP BR 8S 1
2 SM -0040601-SC SCREW M4X0.7 L=6 4
3 E2502-716-000 OP PANEL SPACER 2
4 E2505-716-000 LCD COVER 1
5 HX-0033500-0B SPACER 4
6 WP-0320500-SC WASHER M 3 4
7 WS-0310002-KN SPRING WASHER M3 4
8 NM-6030001-SC NUT M3X0.5 TYPE1 4
9 401-54360 OPERATION LCD ASM 1
10 401-53390 OPERA TION SW ASM 1
11 401-53389 ONLINE SW ASM 1
12 401-54688 PANNEL_COVER 1
13 NM-3040520-SF FLANGE NUT M4 2
14 401-54626 E_BASE_8S 1
15 SL-6040892-TN BOLT 2
16 HA-0058500-0A CIRCUIT PROTECTOR 1
17 HA-0058500-0B CIRCUIT PROTECTOR
1
18 SL-4035091-SC SCREW M3X0.5 L=50 2
19 400-49165 BREAKER COV 2
20 SL-4030881-SC SCREW M3 L=8 2
21 400-45025 SURGE ABSORBER ASM 1
22 401-54625 CONNECTOR_BOX 1
23 SL-6040892-TN BOLT 2
24 400-94573 I/F CABLE ASM 1
25 SM-4860501-SB SCREW M2.5 L=5 2
26 401-53361 AC POWER INPUT CABLE ASM 1
27 SL-4030881-SC SCREW M3 L=8 2
28 PV-0100060-00 HAND VALVE 1
29 SM-6032502-TN SCREW M3 L=25 1
30 HX-0066900-0A GROMMET 0.006
31 400-45701 TRANSFORMER 1
32 SM-9081423-SC SCREW M8 L=14 4
33 WS-0820002-KN SPRING WASHER M8 4
34 WP-0841601-SC WA SHER 8.4X17.4X1.6 4
35 HX-0055000-00 POWER SUPPLY 1
36 SL-4040891-SC SCREW M4 L=8 3
37 401-54623 CIRCIT_PRO_BR 1
38 SL-4040891-SC SCREW M4 L=8 2
39 HA-0052400-00 CIRCUIT PROTECTOR 2
40 HA-0052400-0A CIRCUIT PROTECTOR 2
41 HA-0052400-0C CIRCUIT PROTECTOR 2
42 401-54629 FRONT_E_PANEL 1
43 SL-4040891-SC SCREW M4 L=8 4
44 400-50015 CARRIER RAIL 1
45 SL-4040891-SC SCREW M4 L=8 2
46 HA-0053000-00 MAGNETIC CONTACTOR 2
47 HA-0053000-10 MAGNETIC CONTACTOR 2
48 HA-0053000-20 MAGNETIC CONTACTOR 2
49 HB-0014200-00 RELAY 1
50 HB-0014200-10 RELAY 1
51 HB-0011000-10 RELAY COVER 1
52 HB-0014000-00 RELAY 1
53 HB-0014000-10 RELAY 1
54
#02
HK-0498500-10 BLOCK TERMINAL 10
55
#01
HK-0498500-10 BLOCK TERMINAL 8
56 HK-0498900-0A CONNECTOR PARTS 4
57 HK-0498900-00 CONNECTOR PARTS 2
58 HK-0498900-0D CONNECTOR PARTS 2
59 HK-0498900-0B CONNECTOR PARTS 2
60 HK-0500900-0C CONNECTOR PARTS 4
61 HK-0500900-0D CONNECTOR PARTS 4
62 SL-4031291-SC SCREW M3X12 1
63 400-45714 NOISE FILTER 1
64 SM-6040802-TN SCREW 4
65 HX-0067100-0A GROMMET 0.196
66 400-50012 CARRIER RAIL 1
67 SL-6040892-TN BOLT 2
68 HK-0498500-10 BLOCK TERMINAL 8
69 HK-0498900-00 CONNECTOR PARTS 3
70 HK-0498900-0B CONNECTOR PARTS 8
71 HK-0498900-0D CONNECTOR PARTS 2
72 401-54624 DRIVER_BR 1
73 SL-4040891-SC SCREW M4 L=8 2
74 E1038-871-000 PLATEN LOCK CAM SCREW 2
75 400-45704 REGENERATING RESISTOR 1
76 SL-4040891-SC SCREW M4 L=8 2
77 400-45711 STEPPING MOTOR DRIV ER 1
78 SL-4041291-SC SCREW M4 L=12 2
79 401-55946 Z SERVO DRV ASM 1
80 SL-4041091-SC SCREW M4 L=10 4
81 401-55836 E_COVER_A 1
82 401-55837 E_COVER_B 1
83 SL-6040892-TN BOLT 6
84 SL-4030691-SC SCREW M3 L=6 1
85 HM-0003300-30 FAN GUARD 2
86 SL-4033591-SC SCREW M3X35 4
87 NM-3034000-SF FLANGE NUT 4
88 401-55280 AC FAN MOTOR ASM 1
89 401-54621 PCB_BASE 1
90 SL-4040691-SC SCREW M4 L=6 4
91
#03
401-69065 MAIN PCB ASM 8S 1
92 SL-4030891-SC SCREW M3X8 4
93 400-41117 SCN PCB ASM 1
94 SL-4030891-SC SCREW M3X8 4
95 400-42575 SLOW MODE CTRL PCB ASM 1
96 SL-4030891-SC SCREW M3X8 4
97 400-42579 OPERA TION PCB ASM 1
98 SL-4030891-SC SCREW M3X8 4
99 SM-0030601-SC SCREW M3X0.5 L=6 4
100 HX-0041800-0D SPACER 4
101 400-49697 EMER GENCY SW(REAR) ASM 1
102
#01
E2410-723-000 BREAKER COVER A 1
103
#01
E2411-723-000 BREAKER COVER B 1
104
#01
SM-0040801-SC SCREW 2
105
#01
400-50015 CARRIER RAIL 2
106
#01
SL-4040891-SC SCREW M4 L=8 2
107
#01
HB-0014300-00 SAFETY RELAY UNIT 1
108
#01
E9641-040-000 RELAY MY-2 DC-24V 2
109
#01
HB-0002100-30 RELAY 2
110
#01
HK-0498500-10 BLOCK TERMINAL 6
111
#01
HK-0498900-0B CONNECTOR PARTS 6
112
#01
HK-0498900-0A CONNECTOR PARTS 4
113
#01
HK-0498900-00 CONNECTOR PARTS 1
114
#01
HK-0498900-0D CONNECTOR PARTS 2
115 HX-0066900-00 GROMMET 0.1
116 HX-0067100-00 GROMMET 0.42
117
#04
401-85664 MAIN PCB ASM 8SR 1
- -

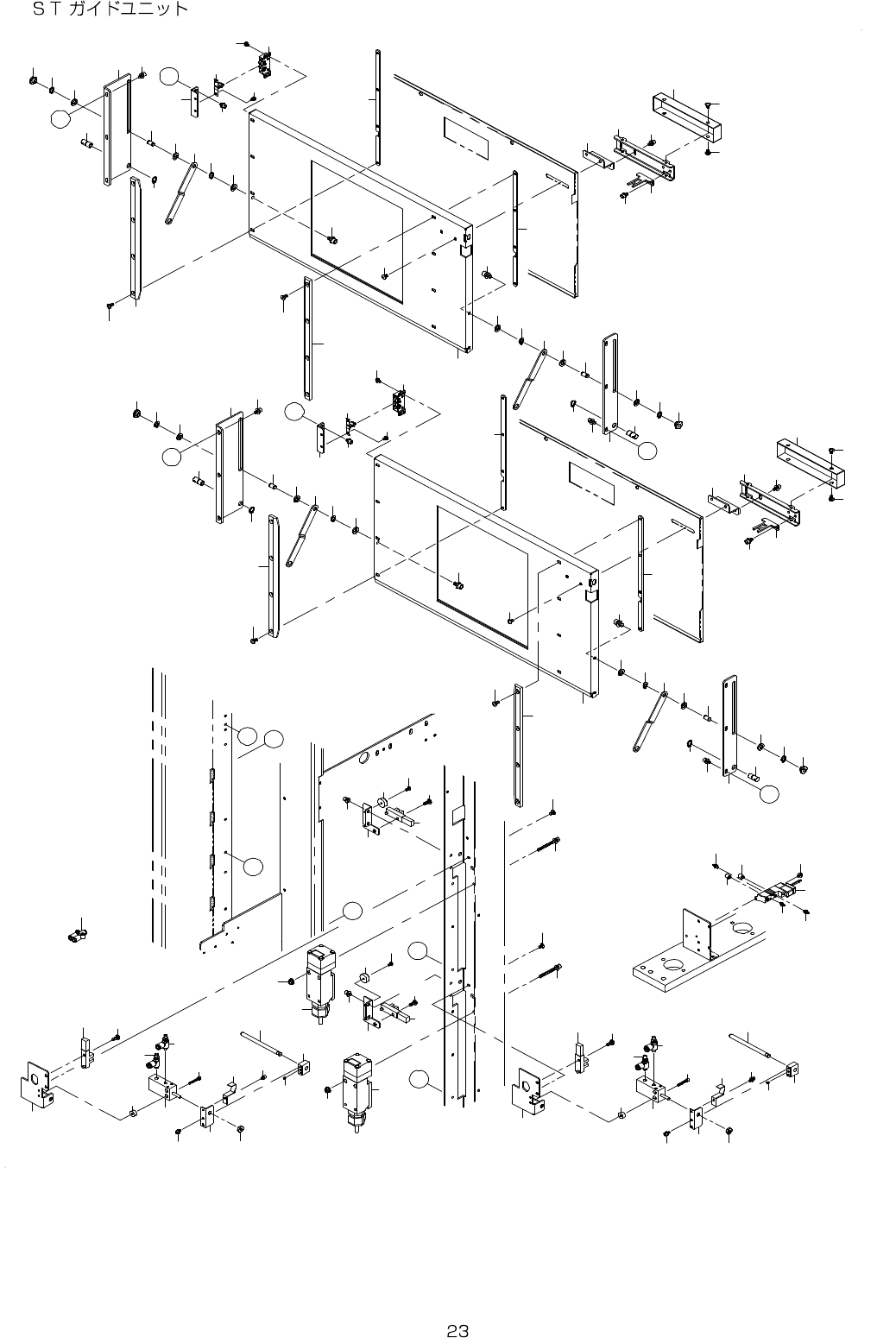

12. ST GUIDE UNIT
1
2
3
3
4
6
6
5
5
8
8
9
9
1 0
1 0
1 1
1 1
1 2
1 2
1 3
1 3
1 3
1 3
1 4
1 4
1 4
1 4
1 5
1 6
1 6
1 7
1 7
1 8
1 9
2 0
2 1
2 2
2 5
2 6
2 0
1 9
2 6
2 5
2 1
2 2
2 0
5 3
5 3
4 3
3 9
3 7
3 8
3 6
3 1
3 0
2 9
2 7
4 1
4 8
4 9
5 0
5 1
5 2
1 6
5 4
5 5
5 6
7
7
3 3
2 8
A
A
2 8
2 4
2 0
2 3
2 3
5 7
1 8
1 7
1 7
1 5
5 2
1 4
1 4
1 4
1 3
1 3
1 3
1 2
1 1
1 1
1 0
1 0
9
8
8
5
6
4
3
1
1 4
D
1 6
1 5
1 3
1 2
5
6
3
2
9
B
B
C
C
D
5 7
7
5 6
5 5
5 4
5 1
5 0
7
E
E
1 5
F
F
2 3
2 4
2 3
5 7
3 2
3 2
4 2
4 0
3 5
3 4
3 7
3 2
3 2
2 9
3 0
3 9
4 2
3 4
3 5
4 0
4 1
3 1
3 8
4 3
3 6
2 8
2 8
4 7
4 7
4 6
4 6
4 7
4 4
4 5
2 7
5 8
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-54674 ST_GUIDE_BR L 2
2 401-54675 ST_GUIDE_BR_R 2
3 SL-6040892-TN BOLT 12
4 401-54582 ST_GUIDE_BASE 2
5 401-54581 ST_GUIDE_HINGE_PIN 4
6 RC-0740811-KP C-RING 4
7
#01
SM-0040601-SC SCREW M4X0.7 L=6 8
8 401-54580 ST_GUIDE_BASE_LINK 4
9 401-54677 ST_GUIDE_HINGE_NUT 4
10 WP-0641601-SC WASHER 4
11 SL-6051092-TN BOLT 8
12 401-54585 ST_GUIDE_PIN_U 4
13 WP-0641601-SC WASHER 8
14 RC-0560711-KP RETAINING RING 8
15 401-54584 ST_GUIDE_RAIL 4
16 SM-4040801-SC SCREW M4X0.7 L=8 16
17 401-54729 ST GUIDE RAIL NUT PLATE 4
18 401-54574 ST_GUIDE_CATCH_BR 2
19 401-54573 ST_GUIDE_OPEN_SENSOR_BR 2
20 SL-6040692-TN SCREW M4 L=6 8
21 HD-0017100-00 SENSOR 2
22 SM-4041001-SC SCREW M4X0.7 L=10 2
23 E5117-172-000 ROLLER CATCH 2
24 SL-4030691-SC SCREW M3 L=6 4
25 400-49671 COVER CUSHION 2
26 SM-4030601-SC SCREW M3 X 6 2
27 401-54723 ST GUIDE LOCK UNIT BR 2
28 SM-0040601-SC SCREW M4X0.7 L=6 4
29 PA-1001524-A0 AIR CYLINDER 2
30 401-54676 COLLAR 4
31 SM-6032002-TN SCREW M3X0.5 L=20 4
32 PC-0105080-00 SPEED CONTROLLER 4
33
#01
401-54671 SENSOR DOG COVER 2
34 E1432-726-000 CYLINDER NUT 2
35 401-54728 ST GUIDE LOCK SHAFT BR 2
36 401-54577 ST_GUIDE_LOCK_SHAFT_BLOCK 2
37 SL-6030692-TN SCREW M3 L=6 4
38 401-54576 LOCK_SHAFT 2
39 SM-8030302-TP SCREW M3X0.5 L=3 2
40 401-54579 COVER_LOCK_SENSOR_DOG 2
41 SL-6030692-TN SCREW M3 L=6 2
42 HD-0017100-00 SENSOR 2
43 SM-4041001-SC SCREW M4X0.7 L=10 2
44 401-54361 DOOR LOCK S.V. ASM 1
45 SL-4030691-SC SCREW M3 L=6 2
46 E3274-760-000 SILENCER 2
47 PJ-0320390-01 CONNECTOR 3
48
#01
400-45228 DOOR M OPEN SW ASM 1
49
#01
400-45233 DOOR S OPEN SW ASM 1
50
#01
HA-0045500-30 SWITCH 2
51
#01
SL-6040892-TN BOLT 4
52
#01
SL-6044092-TN SCREW 4
53
#01
NM-6040001-SC NUT M4X0.7 TYPE1 4
54
#01
401-54672 SENSOR DOG STAY 2
55
#01
401-54673 SENSOR DOG STAY BASE 2
56
#01
SL-6040892-TN BOLT 8
57 SL-4030681-SC SCREW M3 L=6 4
58 PJ-3080400-07 UNION Y 2
