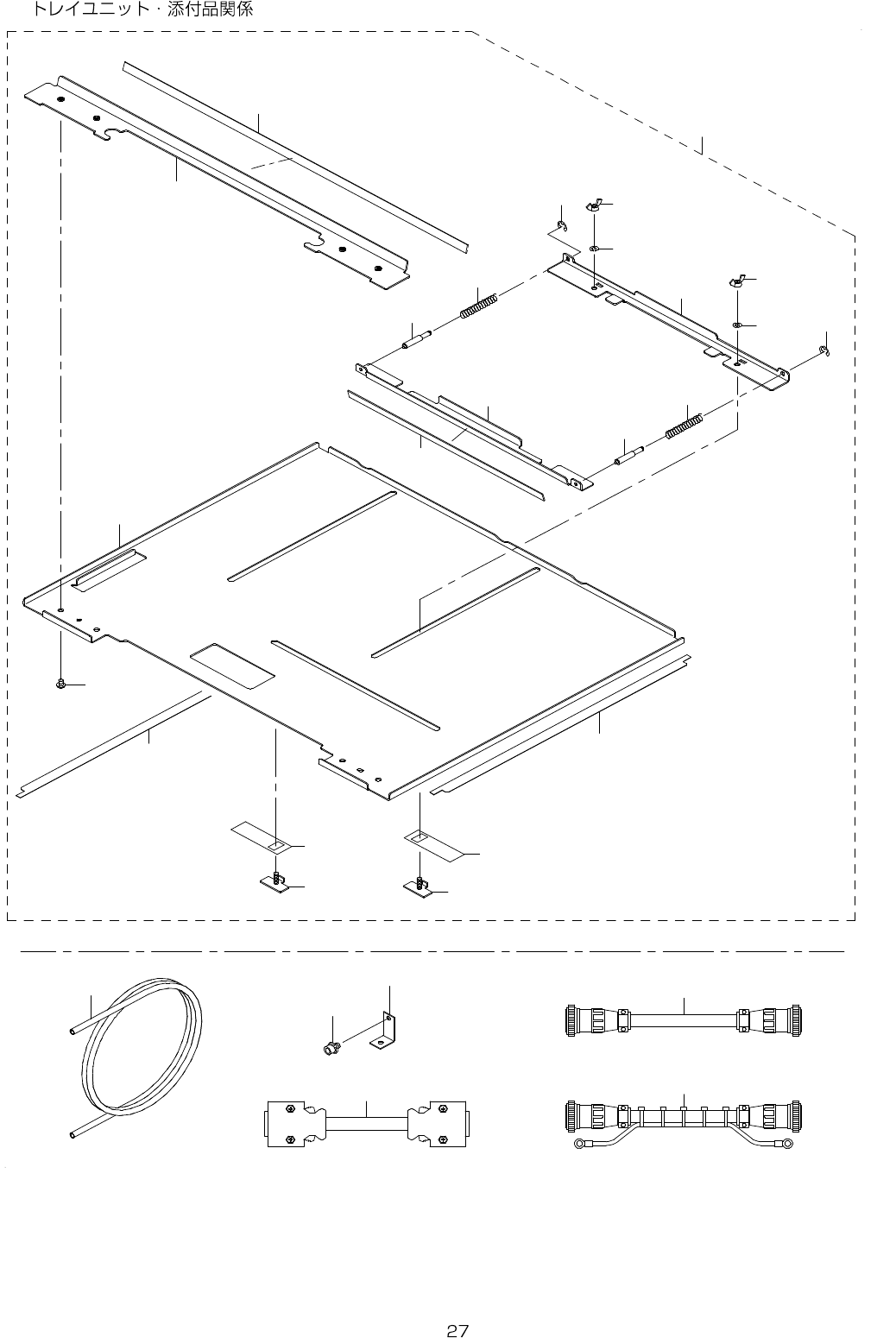

14. TRAY UNIT & APPEND PARTS COMPONENTS
1 6
1 1
4
5
6
7
8
1 3
9
9
1 4
1 2
1 0
1 0
1 3
2
3
1
1 7
2 1
1 9
2 2
1 8
1 4
1 2
1 5
1 5
2 0
7
8
- -

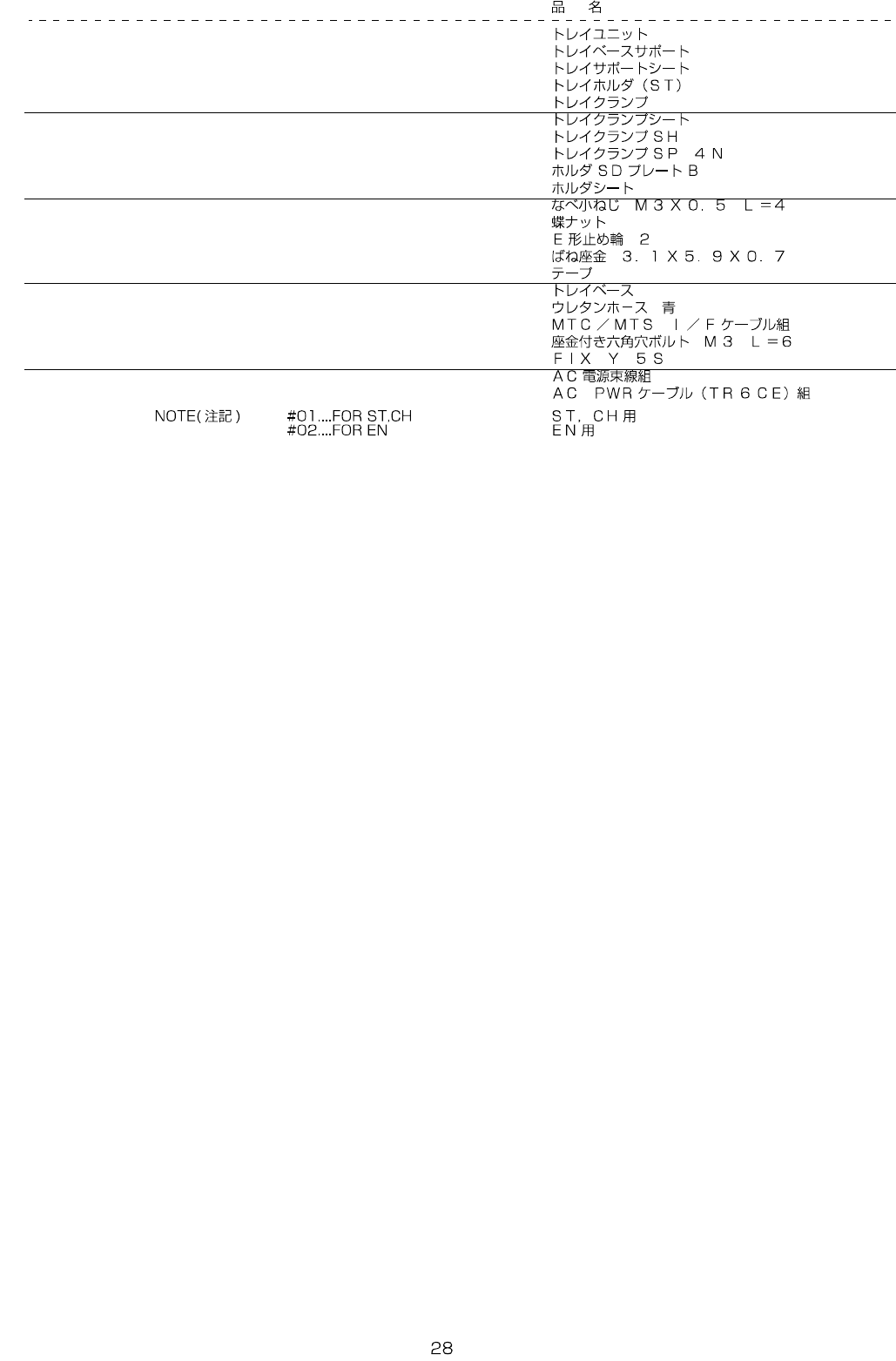

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-55491 TRAY UNIT 2
2 E1552-726-000 TRAY BASE SUPPORT (1)
3 E1553-726-000 TRAY SUPPORT SHEET (1)
4 E1570-726-000 TRAY HOLDER(ST) (1)
5 E1571-726-000 TRAY CLAMP (1)
6 E1572-726-000 TRAY CLAMP SHEET (1)
7 E1573-726-000 TRAY CLAMP SH (2)
8 E1574-726-000 TRAY CLAMP SP 4N (2)
9 E1575-726-000 HOLDER SD PLATE B (2)
10 E1582-726-000 HOLDER SHEET (2)
11 SM-4030401-SC SCREW M3X0.5 L=4 (4)
12 NM-9030001-SC NUT (2)
13 RE-0200000-K0 E-RING 2 (2)
14 WS-0310002-KN SPRING WASHER M3 (2)
15 401-38460 TAPE (2)
16 400-48961 TRAY BASE (1)
17 BT-0600400-EC TUBE HOSE, BLUE 3
18 400-96157 MTC/MTS I/F CABLE ASM 1
19 SL-6030692-TN SCREW M3 L=6 2
20 400-49283 FIX Y 5S 1
21
#01
E9100-723-AA0 AC POWER CABLE ASM 1
22
#02
400-49751 AC PWR CABLE(TR6CE) ASM 1
- -

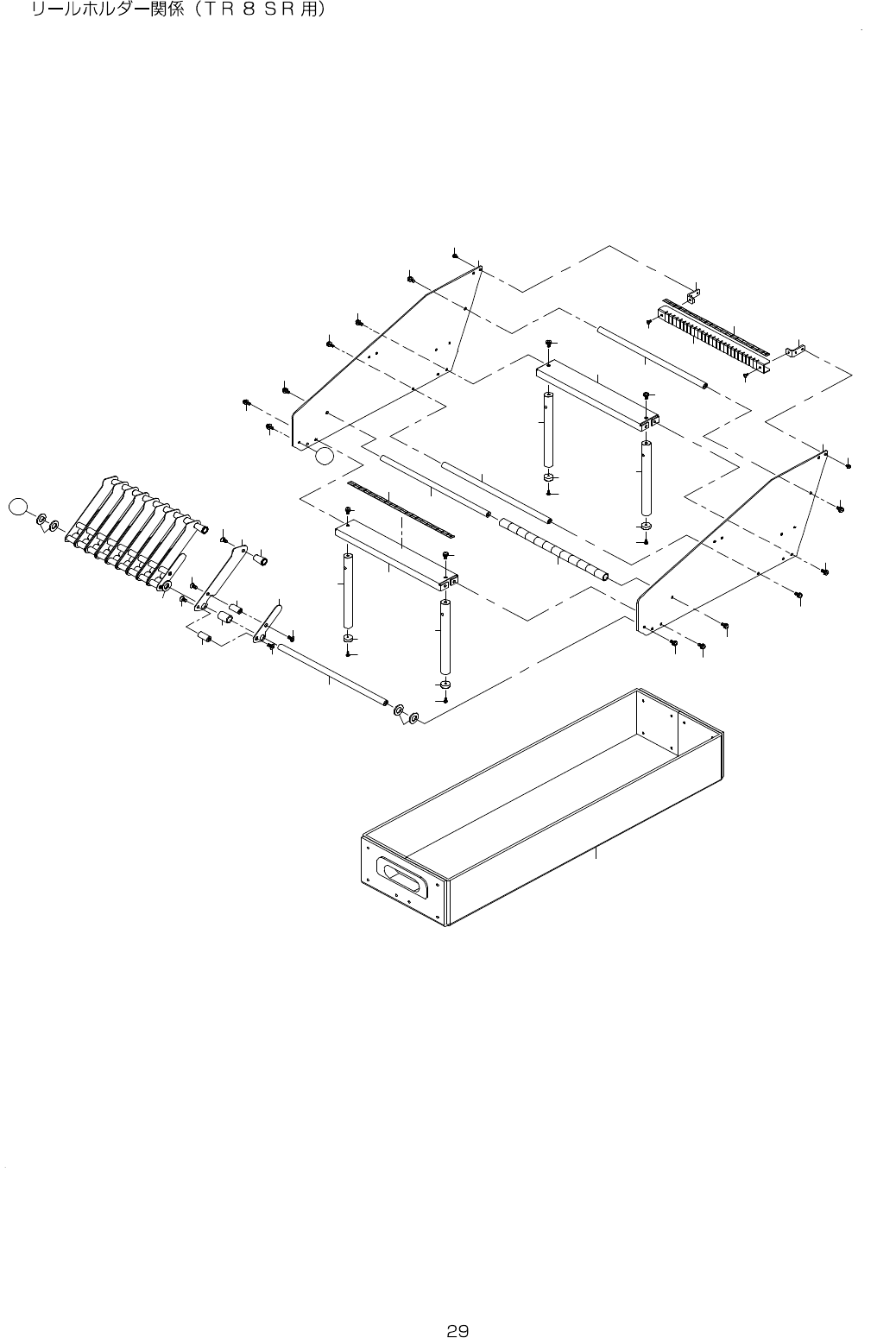

15. REEL HOLDER COMPONENTS(FOR TR8SR)
