- - 16 . O PTIO N COM PO NE NTS( IN DICA TIO N BO X & S CS) 1 2 4 3 4 3 5 5 6 6 7 1 2 1 0 1 1 8 9 1 3 1 4 1 5 1 6 1 7 1 8 1 8 1 9 1 9 2 0 2 1 2 2 2 3 2 4 2 5 2 6 2 7 2 8 2 9 2 9 2 8
- -

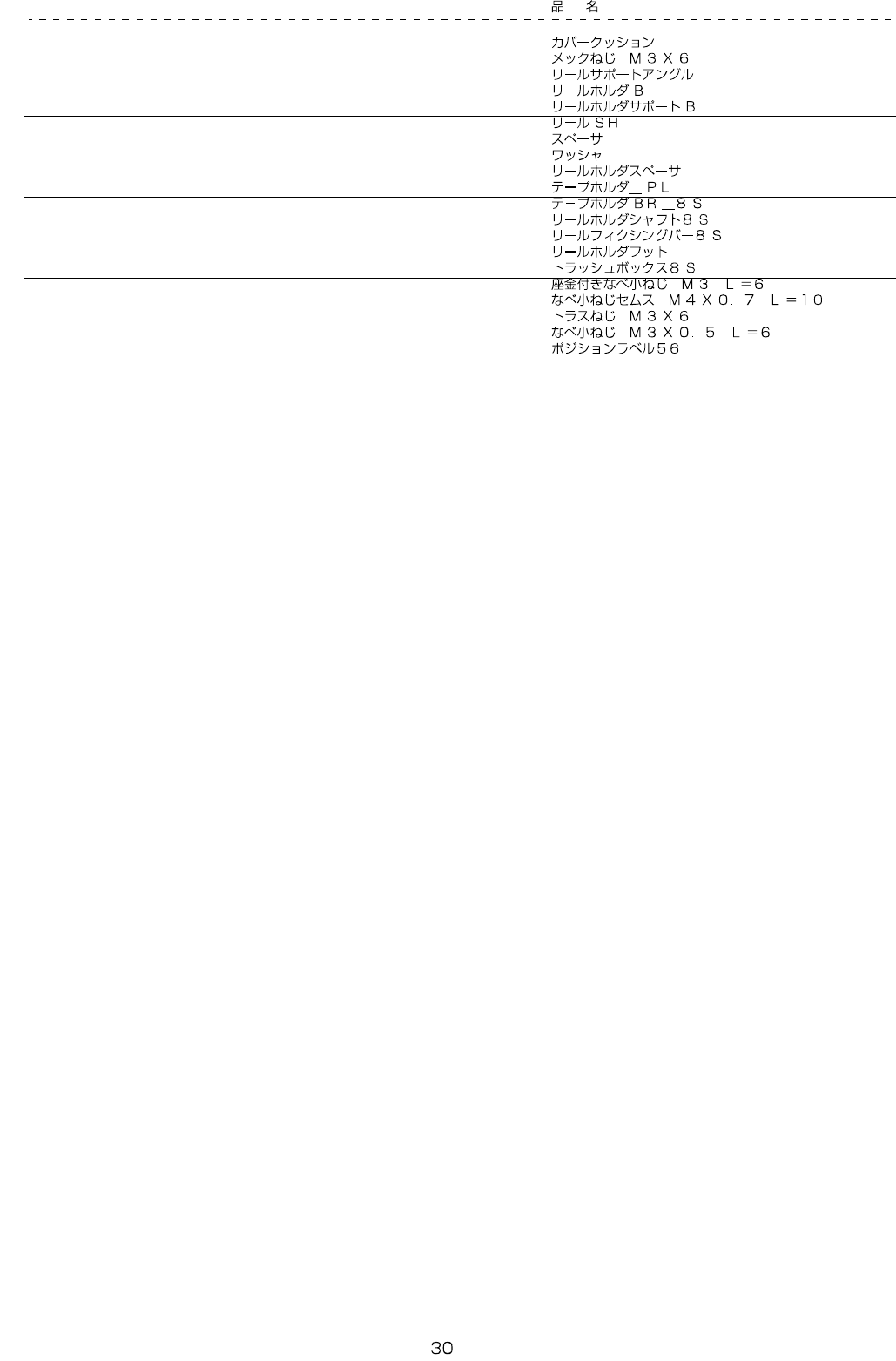

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-49671 COVER CUSHION 4
2 400-52050 SCREW M3X6 MEC 50
3 400-84674 REEL_SUPPORT_ANGLE 2
4 401-67537 REEL_HOLDER_B 10
5 401-67538 REEL_HOLDER_SUPPORT_B 10
6 401-67539 REEL_SH 10
7 401-67540 SPACER 22
8 401-67541 WASHER 13
9 401-67553 REEL_HOLDER_SPACER 20
10 401-83160 TAPE_HOLDER_PL 2
11 401-84100 TAPE_HOLDER_BR_8S 2
12 401-84101 REEL_HOLDER_SH_8S 4
13 401-84102 REEL_FIXING_BAR_8S 1
14 401-84103 REEL_HOLDER_FOOT 4
15 401-84104 TRASH_BOX_8S 1
16 SL-4030691-SC SCREW M3 L=6 4
17 SL-4041091-SC SCREW M4 L=10 20
18 SM-0030601-SC SCREW M3X6 2
19 SM-4030601-SC SCREW M3 X 6 4
20 401-84971 POSITION_LAVEL_56 2
- -

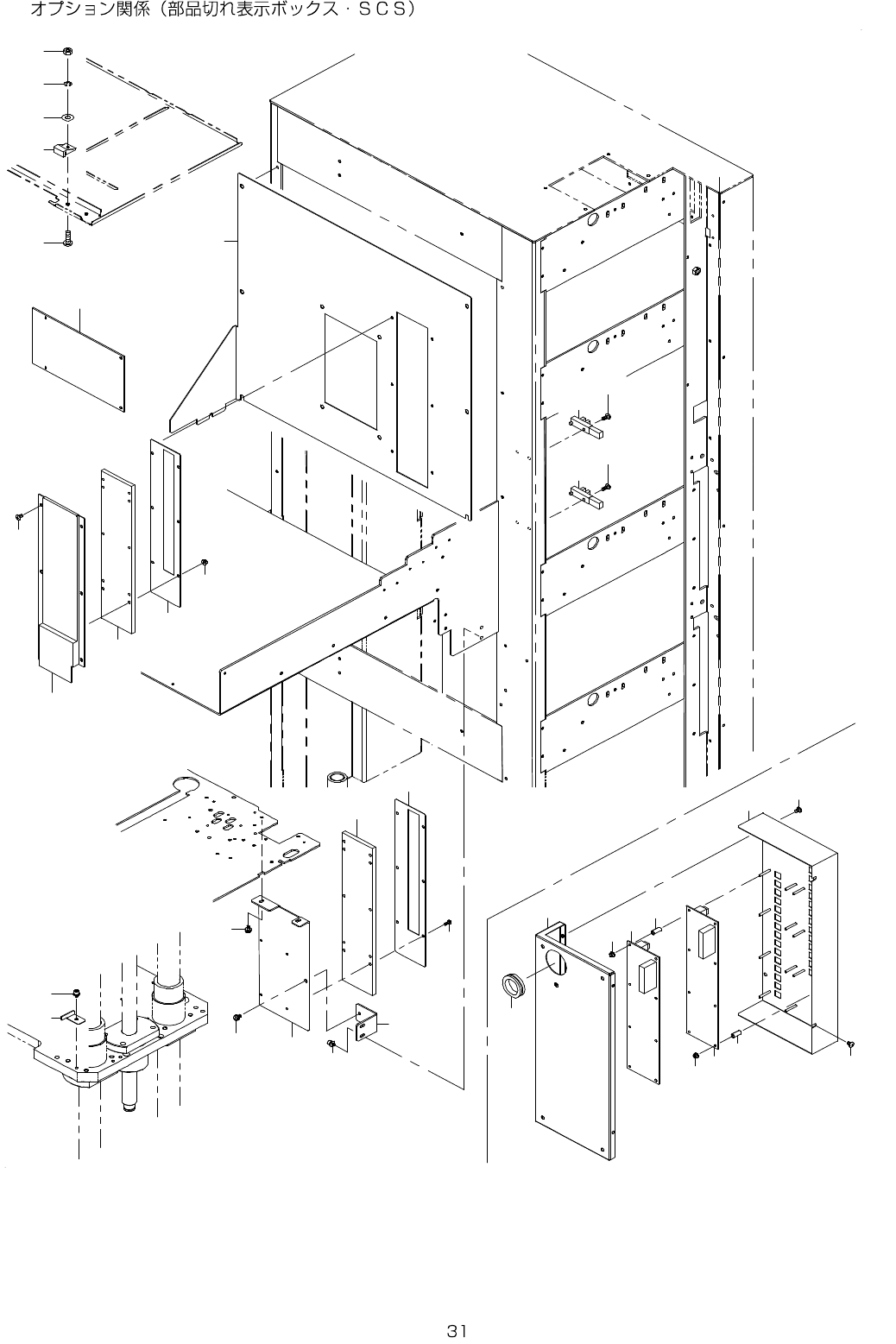

16. OPTION COMPONENTS(INDICATION BOX & SCS)
1
2
4
3
4
3
5
5
6
6
7
1 2
1 0
1 1
8
9
1 3
1 4
1 5
1 6
1 7
1 8
1 8
1 9
1 9
2 0
2 1
2 2
2 3
2 4
2 5
2 6
2 7
2 8
2 9
2 9
2 8
- -

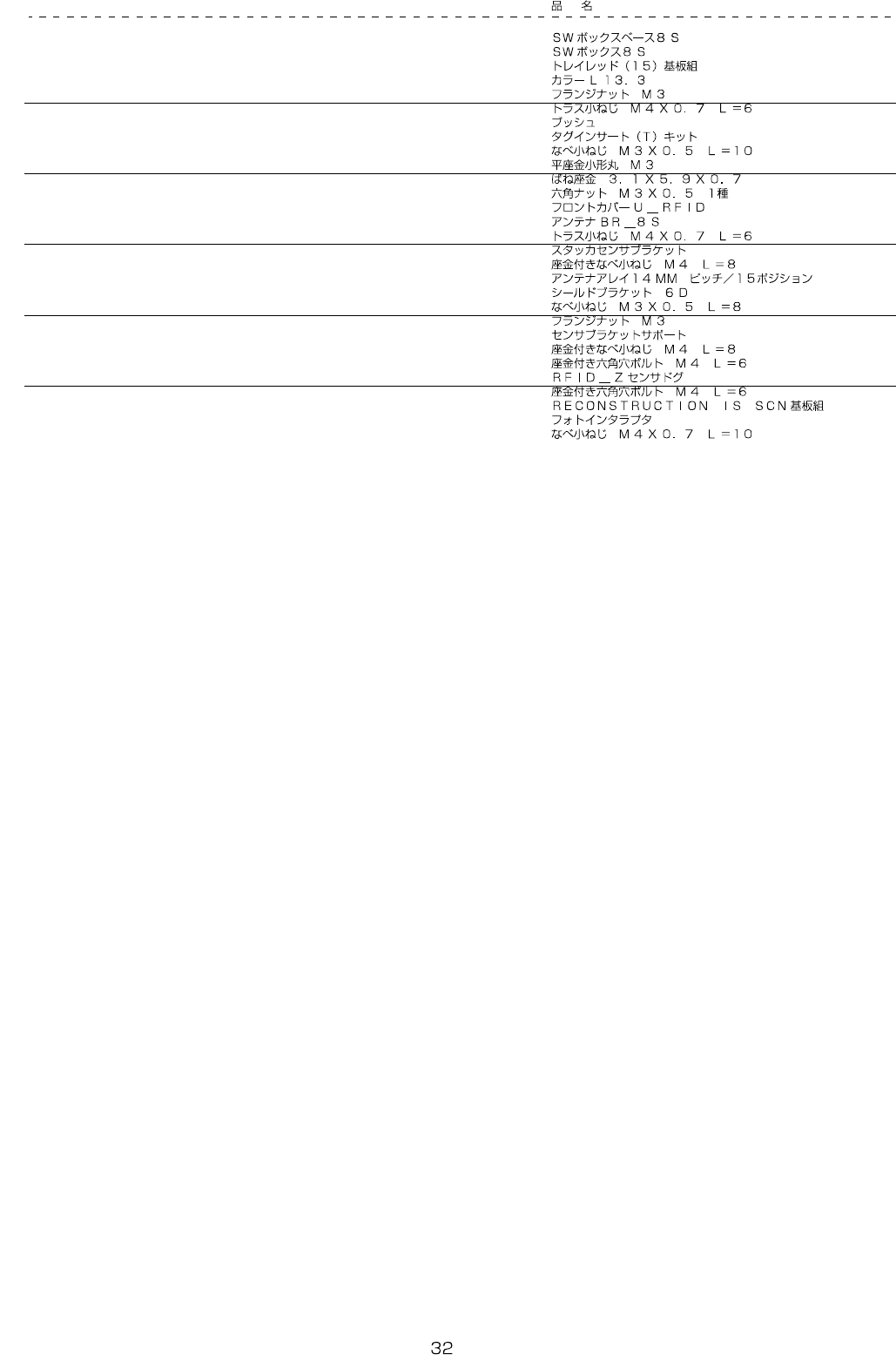

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-54638 SW_BOX_BASE_8S 1
2 401-54640 SW_BOX 1
3 400-42218 TRAY LED (15) PCB ASM 2
4 E5746-723-000 COLLER L13.3 16
5 NM-3034000-SF FLANGE NUT 16
6 SM-0040601-SC SCREW M4X0.7 L=6 4
7 HX-0005500-0N RUBBER BUSHING 1
8 400-73830 TAG INSERT(T) KIT 30
9 SM-4031001-SC SCREW M3X0.5 L=10 30
10 WP-0320500-SC WASHER M3 30
11 WS-0310002-KN SPRING WASHER M3 30
12 NM-6030001-SC NUT M3X0.5 TYPE1 30
13 401-55867 FRONT_COVER_U_RFID 1
14 401-55809 ANTENNA_BR_8S 1
15 SM-0040601-SC SCREW M4X0.7 L=6 6
16 401-54604 STK_SENSOR_BR 1
17 SL-4040891-SC SCREW M4 L=8 2
18 400-73667 ANTENNA ARRAY 14MM PITCH / 15 POSITION 2
19 400-81313 SHIELD BRACKET 6D 2
20 SM-4030801-SC SCREW M3X0.5 L=8 4
21 NM-3034000-SF FLANGE NUT 6
22 401-54622 SENSOR_BR_SUPPORT 1
23 SL-4040891-SC SCREW M4 L=8 1
24 SL-6040692-TN SCREW M4 L=6 2
25 401-54736 RFID_Z_SENSOR_DOG 1
26 SL-6040692-TN SCREW M4 L=6 1
27 401-55945 RECONSTRUCTION IS SCN PCB ASM 1
28 HD-0022300-00 PHOTO SENSOR 2
29 SM-4041001-SC SCREW M4X0.7 L=10 2
