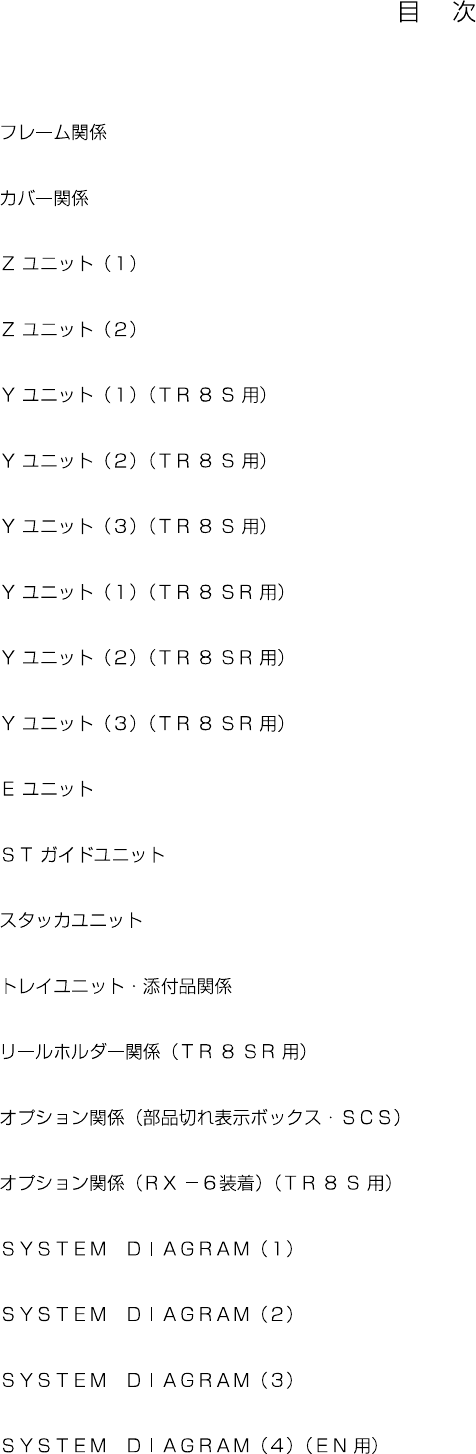

CONTENTS
1. FRAME COMPONENTS ..................................................................................................................................................... 1
2. COVER COMPONENTS ..................................................................................................................................................... 3
3. Z UNIT (1) ...........................................................................................................................................................................5
4. Z UNIT (2) ...........................................................................................................................................................................7
5. Y UNIT(1)(FOR TR8S) ........................................................................................................................................................9
6. Y UNIT(2)(FOR TR8S) ...................................................................................................................................................... 11
7. Y UNIT(3)(FOR TR8S) ...................................................................................................................................................... 13
8. Y UNIT(1)(FOR TR8SR) ................................................................................................................................................... 15
9. Y UNIT(2)(FOR TR8SR) ................................................................................................................................................... 17
10. Y UNIT(3)(FOR TR8SR) ................................................................................................................................................. 19
11. E UNIT.............................................................................................................................................................................21
12. ST GUIDE UNIT ..............................................................................................................................................................23
13. STACKER UNIT ..............................................................................................................................................................25
14. TRAY UNIT & APPEND PARTS COMPONENTS .......................................................................................................... 27
15. REEL HOLDER COMPONENTS(FOR TR8SR) .............................................................................................................29
16. OPTION COMPONENTS(INDICATION BOX & SCS) .................................................................................................... 31
17. OPTION COMPONENTS (RX-6 FITTING)(FOR TR8S) .................................................................................................33
18. SYSYTEM DIAGRAM (1) ................................................................................................................................................35
19. SYSTEM DIAGRAM (2) ..................................................................................................................................................37
20. SYSTEM DIAGRAM (3) ..................................................................................................................................................39
21. SYSTEM DIAGRAM (4)(FOR EN) ..................................................................................................................................41
- -
1. FRAME COMPONENTS
2
4
5
5
7
6
3
2 6
8
1 0
9
1 1
1 2
1 0
9
1 2
1 1
1 2
1 1
1 1
1 2
1 3
1 4
1 5
1 6
1 7
1 8
2 1
2 4
2 5
2 8
2 8
1
2 0
2 7
2 3
2 7
2 2
2 9
3 1
3 0
3 0
3 0
1 9
3 5
3 4
3 5
3 4
3 2
3 3
3 4
3 5
3 4
3 5
3 2
3 3
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-54641 FRAME_8S_ASM 1
2 401-54643 FRAME_8S (1)
3 E5012-723-000 CASTER (4)
4 E6002-723-000 CASTER ADJUST (4)
5 NM-6201202-SC NUT M20 (8)
6 SL-6061242-TN BOLT (16)
7 400-49351 ADJUSTER (4)
8
#01
SL-4030591-SC SCREW M3 L=5 4
9
#01
401-54681 STOPPER ANGLE 2
10
#01
SL-6040692-TN SCREW M4 L=6 4
11
#01
400-49671 COVER CUSHION 4
12
#01
SM-4030601-SC SCREW M3 X 6 4
13 401-54682 RUBBER STOPPER A 1
14 401-54683 RUBBER STOPPER B 1
15 BT-0400251-EA TUBE HOSE, BLUE 4
16 BT-0600400-EC TUBE HOSE, BLUE 1.2
17 EA-9500B01-00 CABLE BAND 30
18 EA-9500B02-00 CABLE BAND 150 20
19 PJ-3080400-07 UNION Y 1
20 E9567-319-000 EARTH MARK 1
21 HX-0009600-00 EDGE BUSHING 1
22 PJ-3010400-04 REDUCER 1
23 PJ-3080600-07 UNION Y 1
24 HX-0029400-00 FIXED BASE 30
25 SM-4040601-SC SCREW M4X0.7 L=6 30
26
#01
401-54653 Y_FRAME_COVER 1
27 SL-4041691-SC SCREW M4 L=16 2
28 CM-3002000-04 LABEL (50) 2
29
#02
401-83113 Y_COVER 1
30
#02
SM-0040601-SC SCREW M4X0.7 L=6 6
31
#02
SL-6030692-TN SCREW M3 L=6 2
32
#02
401-54681 STOPPER ANGLE 2
33
#02
SL-6040692-TN SCREW M4 L=6 4
34
#02
400-49671 COVER CUSHION 4
35
#02
SM-4030601-SC SCREW M3 X 6 4
