1OM-1603
4-5
1. Specications : Chap.4
1007-004
Item
Description

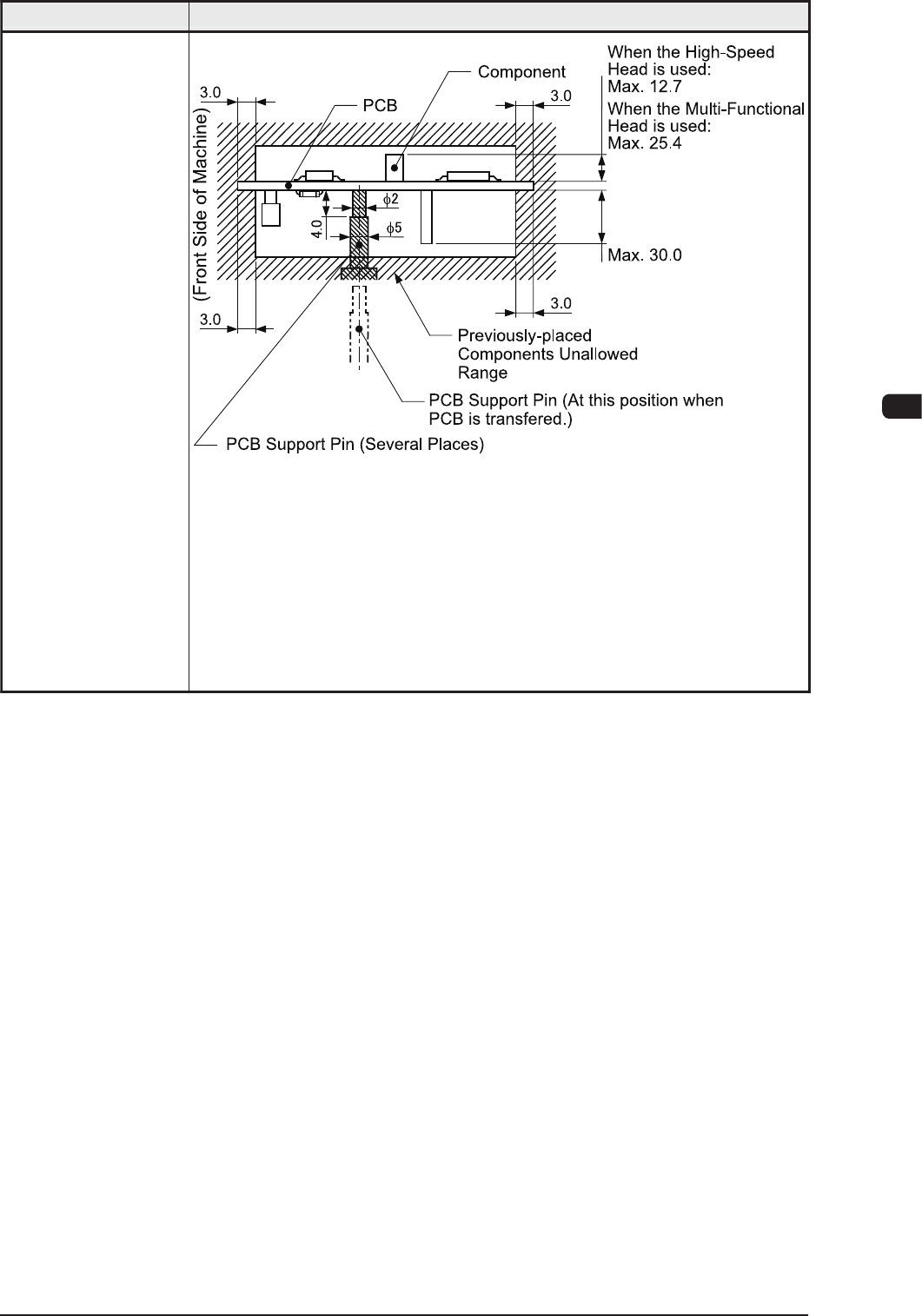

10. Conditions of
PCB before
Placement
(Regulation of
Component
Height)
Unit : mm
F1E8
Notes : (a) The position of the PCB support pin can be moved "10mm"
pitch by "10mm" pitch.
(b) The PCB support pin is set onto the position where it does not
touch any already placed component.
(c) The figure shows that the PCB is being supported.
(d) The dimensions are those for design reference.
Leave some room for the actual setting.
T1E1-5
1OM-1603
4-6
1. Specications : Chap.4
1007-004
Item
Description

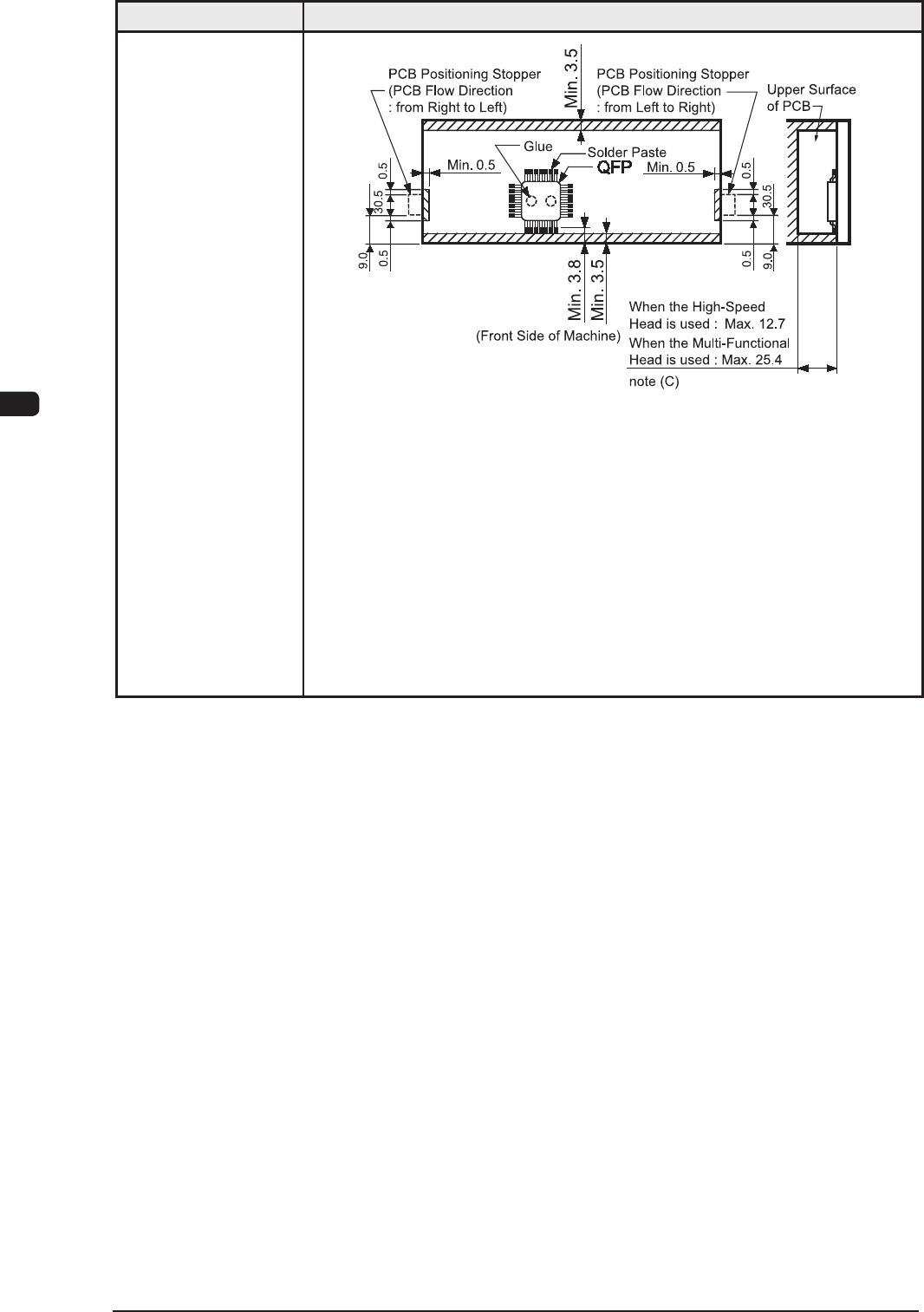

11. Component
Placeable Range
Unit : mm
F1E9
Notes : (a) The above figure shows that the vacuum nozzles are not
protruding from the outer shapes of components.
(b) Components cannot be placed in the shadowed area.
Components cannot be placed in the range (0.5 mm) around the
opening such as a hole.
(c) This size is the max. possible placement height including the
placed component height from the PCB.
T1E1-6
1OM-1603
4-7
1. Specications : Chap.4
1007-004
Item
Description
High-Speed Head Multi-Functional Head
(1) Applicable Components
Size : 0.4 × 0.2 to 44 × 44 mm
Thickness : Max. 12.7 mm
Lead Pitch : 0.3 mm pitch or
more
Lead Width : Min. 0.1 mm
Lead Length : Min. 0.20 mm
Note : Some components cannot be
used due to the mechanical
characteristics, shapes, etc.
(1) Applicable Components
Size : 1.0 × 0.5 to 55 × 55 mm
Thickness : Max. 25.4 mm
Lead Pitch : 0.3 mm pitch or
more
Connector : Max. 100 × 26 mm
Note : Some components cannot be
used due to the mechanical
characteristics, shapes, etc.
12. Applicable
Components
Applicable Components for Reference
• Cylindrical Components
Resistors, Capacitors, Diodes, and Other similar-shaped components
• Square Components
Resistors, Film Capacitors, Coils, Chip Ceramic Filters, and Other
similar-shaped components
• Deform Components
Semi-Fixed Variable Resistors, Trimmer Capacitors, and Other similar-
shaped components
• ICs
Mini-Flat ICs, Plastic Chip Carrier with Leads, and Other similar-
shaped components
• Leaded Components
Mini-Mold Transistors, Mini-Power Transistors, Filters, LEDs,
Diodes, Coils, Tantalum Capacitors, Aluminum Electrolytic
Capacitors, and Other similar-shaped components
• Connectors
Connectors for FFC / FPC, PCB-to-PCB Connectors, Wire-to-PCB
Connectors, PLCC Sockets, and Other Similar-Shaped Components
• BGA/CSP Components (Option)
BGA, CSP, LGA, and Other Similar-Shaped Components
Size : Max. 44 × 44 mm
Ball Diameter : Min. φ 0.13 mm
Ball Pitch : 0.25 mm pitch or more
T1E1-7
