1OM-1603 4-16 2. High-Speed Head Pick-up Component Size : Chap.4 1012-001 2. High-Speed Head Pick-up Component Size (In the case that 15 components are to be picked up at the same time). B B F1E10-1 Component Size in the…
1OM-1603
4-15
1. Specications : Chap.4
1007-004
1.2.1 Head Accessory List
Note
These head accessories are attached for each head.
• High Speed Head
No. Product Name Part No. Q'ty Remarks
1
Vacuum Filter
225B0572 90
2
High-Speed Nozzle Stocker
Replacement
Section
09198000 1
3
Nozzle (HA09C)
HA09C--- 1
4
Filter
225A0045 480
T1E2-2
• Multi-Functional Head
No. Product Name Part No. Q'ty Remarks
1
Multi-Functional Head Filter
225B0313 18
2
Nozzle (FF01)
FF01---- 1
T1E2-3
1OM-1603
4-16
2. High-Speed Head Pick-up Component Size : Chap.4
1012-001
2. High-Speed Head Pick-up Component Size
(In the case that 15 components are to be picked up
at the same time).
B
B
F1E10-1

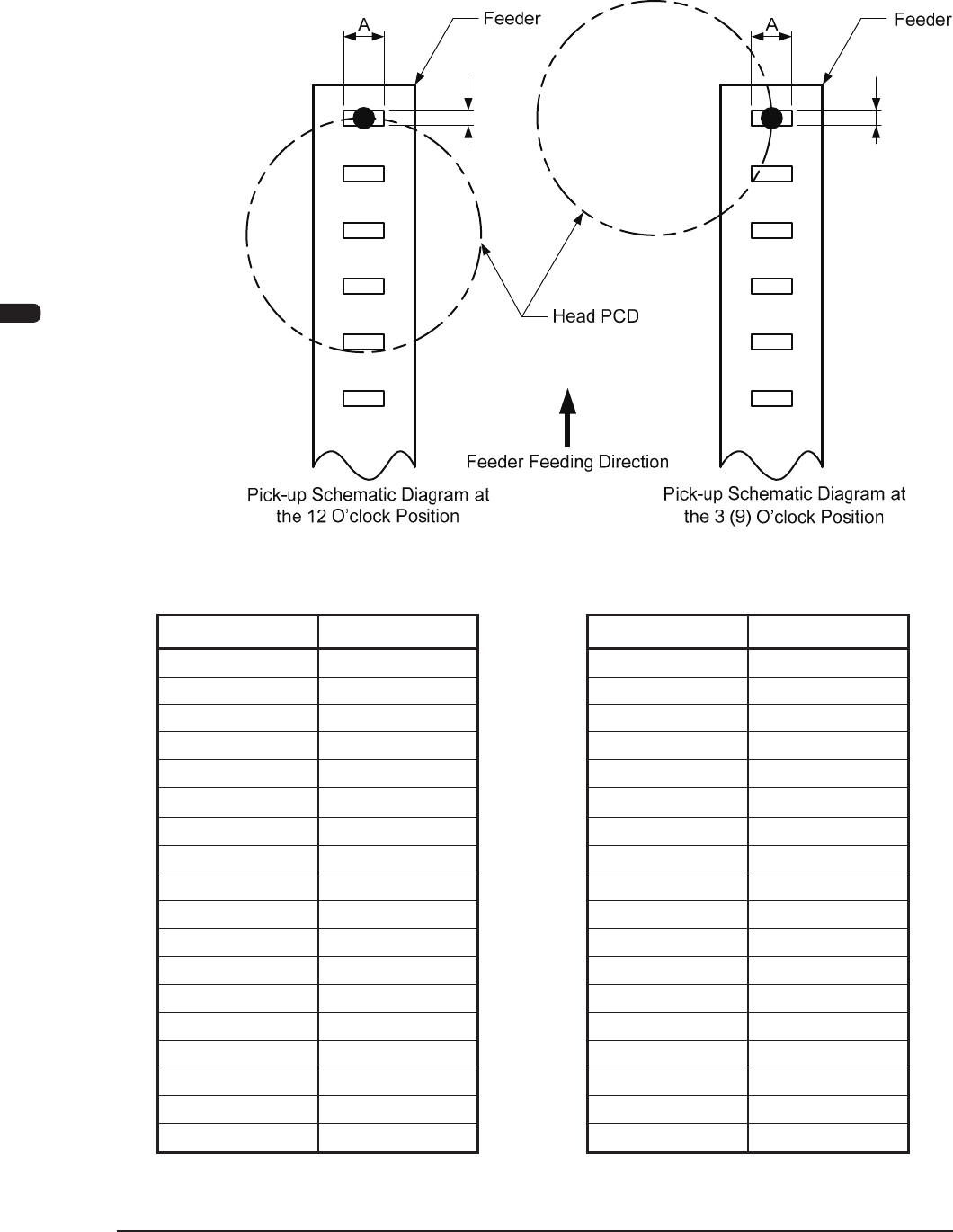

Component Size in the Pick-up
Operation at the 12 O’clock Position
Component Size in the Pick-up
Operation at the 3 (9) O’clock Position
Size A Size B Size A Size B
5.4 0.5 10.0 2.2
5.2 1.3 9.4 2.4
5.0 1.9 8.8 2.6
4.8 2.4 8.2 2.8
4.6 3.0 7.6 3.0
4.5 3.3 7.1 3.2
4.4 3.6 6.5 3.4
4.2 4.2 5.9 3.6
4.0 4.7 5.3 3.8
3.8 5.3 4.7 4.0
3.6 5.9 4.2 4.2
3.4 6.5 3.6 4.4
3.2 7.1 3.3 4.5
3.0 7.6 3.0 4.6
2.8 8.2 2.4 4.8
2.6 8.8 1.9 5.0
2.4 9.4 1.3 5.2
2.2 10.0 0.5 5.4
Note： Only the components that can be handled using the hi gh -sp e e d
nozzle with the diameter of 6mm or less, are used.
T1E4-1 T1E4-2
1OM-1603
4-17
3. Conditions for Component Placement : Chap.4
3. Conditions for Component Placement
(1)
When components are to
be placed close to the previously-placed
components or the obstacles, the shape of the vacuum nozzle becomes part
of the constraint condition. Refer to "List of Nozzle Types" for the shapes of
vacuum nozzles.
(2)
Adjoining
Distances between Components
(when
the component placement
position is taken into consideration)

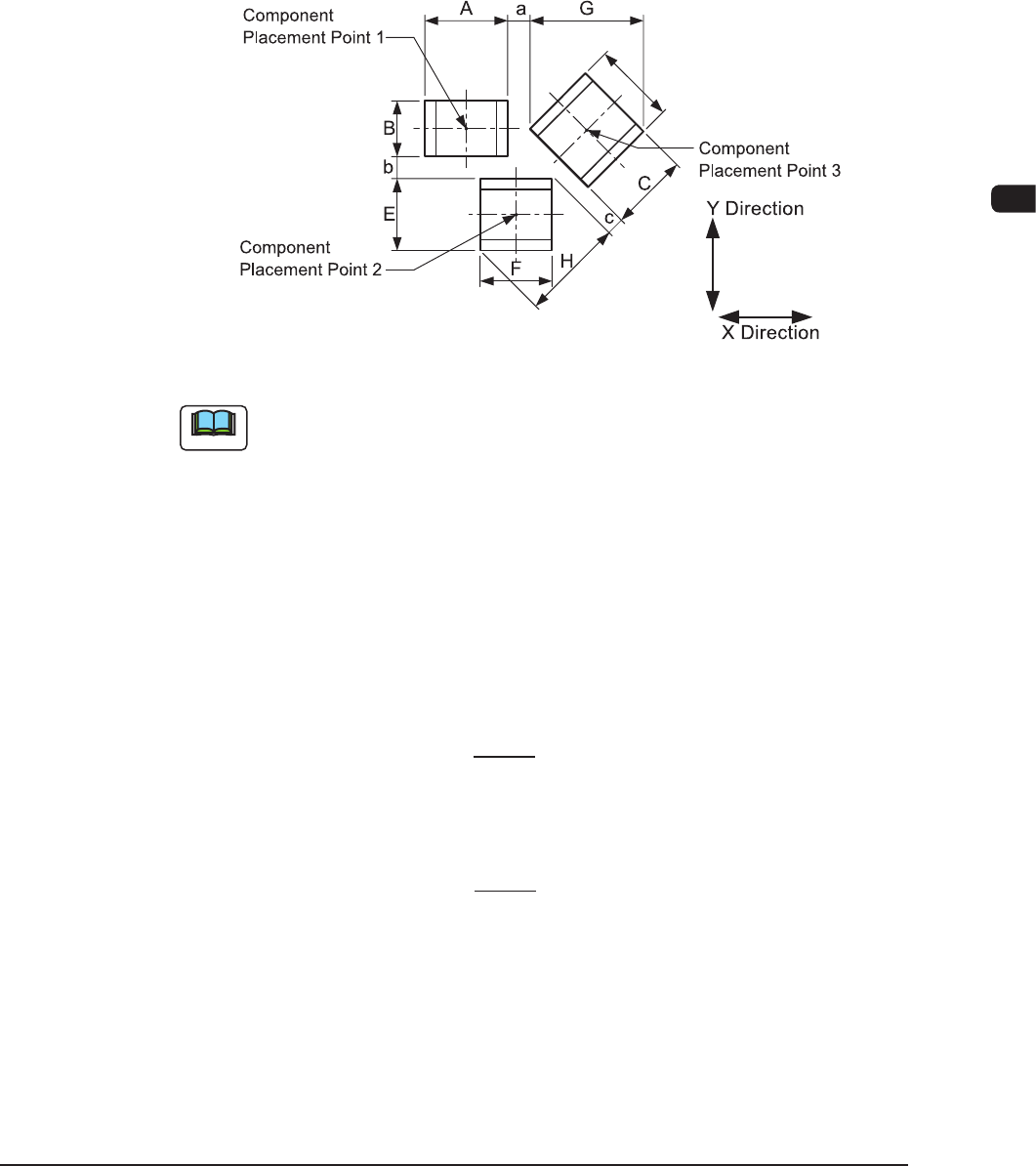

F1E11
Note
(a) F1E11 shows that the vacuum nozzles are not protruding from the
outer shapes of components.
When components are placed, any placement deviation may be
caused by solder paste, glue, etc. Here, we don’t take account of
such deviation.
(b) AtoHintheabovegureshowthemaximumdimensionsincluding
the variations in the dimensions of each component. The minimum
adjoining distances (a, b, and c) of each component should be 0.2
mm.
(c) The minimum adjoining placement
position data for component
placement points 1 and 3 is
X Direction Data = + Min. 0.2 mm
(The Y direction data is not related.)
(d) The minimum adjoining placement position data for component
placement points 1 and 2 is
Y Direction Data =
+ Min. 0.2 mm
(The
X direction data is not related.)
(e) See F1E11 and obtain the minimum adjoining placement position
data for component placement points 2 and 3.
A + G
2
B + E
2
1012-005
