1OM-1603 4-25 5. List of V acuum Nozzle T ypes : Chap.4 Nozzle T ype NO. Shape Note (a) Component Size (mm) Note (b) Applicable Components for Reference Remarks Part No. Part Name PG03C I.D. O.D. 2.8 × 2.8 CSP • Nozzle f…
1OM-1603
4-24

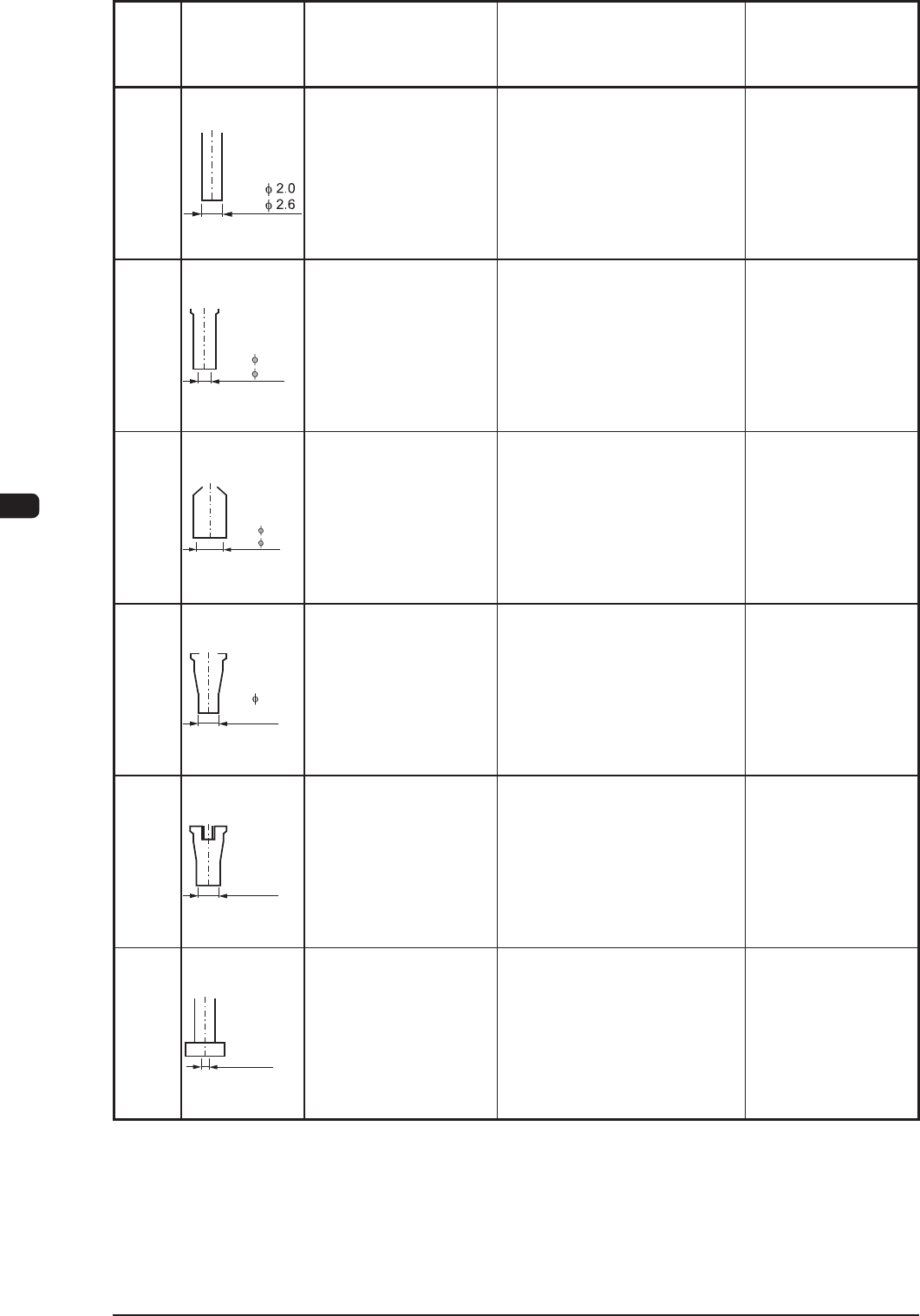

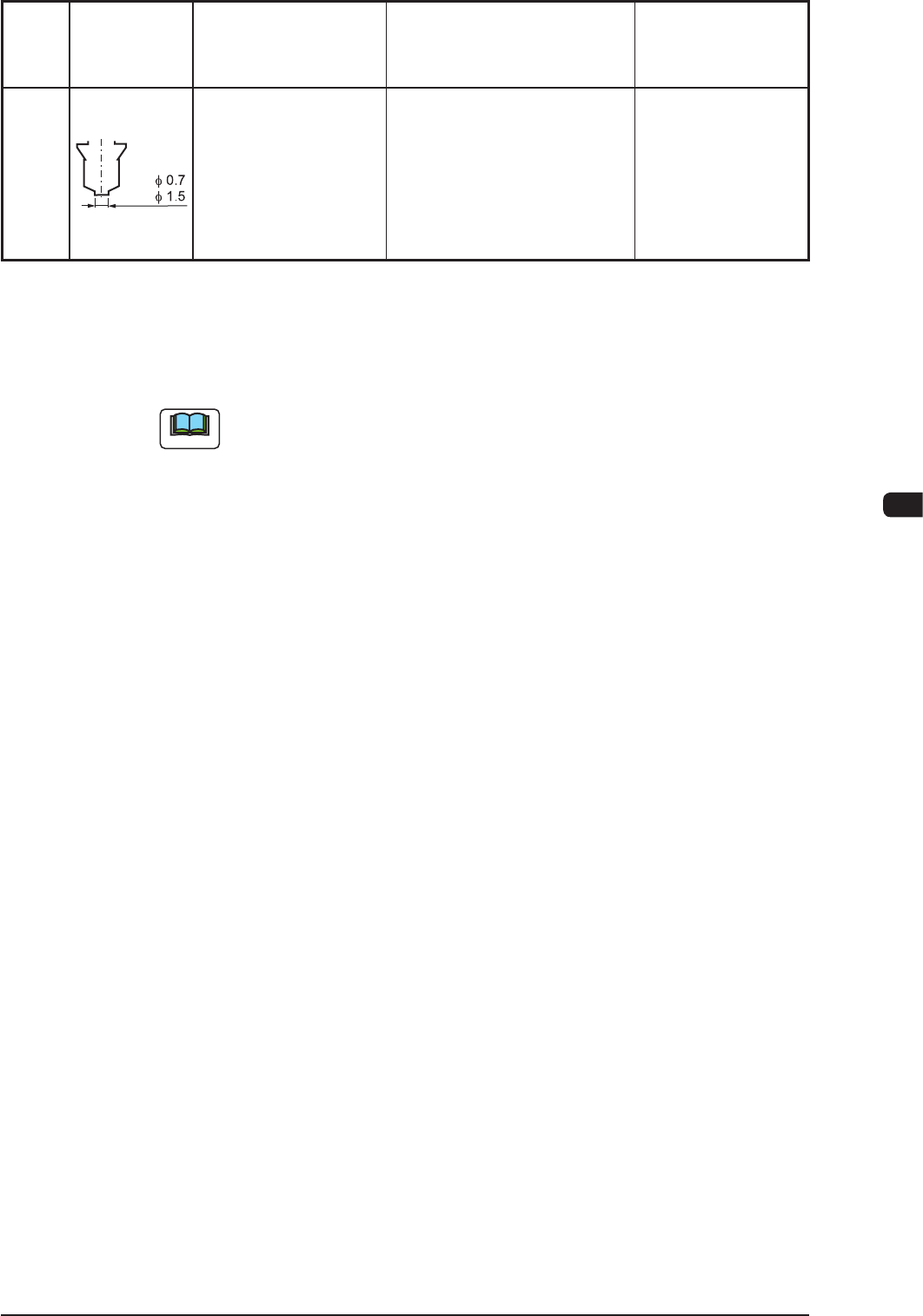

5. List of Vacuum Nozzle Types : Chap.4
Nozzle
Type
NO.
Shape
Note (a)
Component Size
(mm)
Note (b)
Applicable Components
for Reference
Remarks
Part No.
Part Name
PA05C
I.D.
O.D.
3.0 × 3.6 to
8.0 × 8.0
Thickness
1.0 to 3.5
Semi-FixedVariable
Resistors
•
Nozzle
for
Front
Lighting
Recognition
P
A05C---
NOZZLE_PA05C
PA07C
I.D. 1.0
O.D.
3.0
3.0 × 3.0 High-Freguemcy
CoaxialConnector
•
Nozzle
for
Front
Lighting
Recognition
P
A07C---
NOZZLE_PA07C
PA15C
I.D. 3.5
O.D.
5.0
8.0 × 8.0 IC
QFP
BGA
•
Nozzle
for
Front
Lighting
Recognition
P
A15C---
NOZZLE_PA15C
PA30C
3.0 × 3.0
I.D.
2.7
2.8 × 2.8
Thickness
1.9
LED
•
Nozzle for
Front Lighting
Recognition
P
A30C---
NOZZLE_PA30C
PA31C
2.8 × 2.8
I.D. φ 2.6
3.2 × 2.8
Thickness
1.9
LED
•
Nozzle for
Front Lighting
Recognition
P
A31C---
NOZZLE_PA31C
PA34C
2.8 × 2.8
I.D. φ 2.6
5.6 × 3.0
Thickness
1.0
LED
•
Nozzle for
Front Lighting
Recognition
P
A34C---
NOZZLE_PA34C
T1E5-3
1012-004
1OM-1603
4-25
5. List of Vacuum Nozzle Types : Chap.4
Nozzle
Type
NO.
Shape
Note (a)
Component Size
(mm)
Note (b)
Applicable Components
for Reference
Remarks
Part No.
Part Name
PG03C
I.D.
O.D.
2.8 × 2.8 CSP
•
Nozzle for
Front Lighting
Recognition
PG03C---
NOZZLE_PG03C
T1E5-3
I. D. = Inside Diameter
O. D. = Outside Diameter
Note
(a) Shown in the column entitled "Component Size (mm)" are the dimensions
of the components which can be picked up by the related type of nozzle.
However,becauseoftheirshape,somecomponentsmightnotttothe
nozzle.
It is advisable that
the non-standard components (not in standard shapes) be
checked whether they can be handled properly or not.
(b) As for the components shown in the column entitled "Applicable
Components for Reference", the dimensions may differ with the component
makers. The dimensions in the column are for your reference only.
(c) Consult the marketing department or sales agency of Hitachi High-
Technologies for the soft mounting nozzle (option).
(d) Nozzle Types PA05 and PA07 in the table can be used for the special
specications.
(e) Contact the marketing department
or sales agency of Hitachi High-
Technologies Co., Ltd. for the details of the vacuum nozzles (option) for
the middle-size odd-shaped components.
1012-004
1OM-1603
4-26
6. Measured Noise Value : Chap.4
6. Measured Noise Value
[Measurement Condition]
•
Measuring Position
Position
1
m away
and 1.6 m in height from the machine (Both Front and Rear
Sides of Machine)
•
Noise
Measuring
Instrument
RION
Model
:
NA-60
ResultsofMeasurement:Max.70.7[dB](FrontSideofMachine)
Requirements for
Machine Operation
Measured Noise Value
Remarks
Normal Operation
Front Side of Machine
70.7[dB]
Side of the Machine (L)
68.6[dB]
Rear of the Machine
68.8[dB]
Side of the Machine (R)
68.8[dB]
T1E6
1012-005
