1OM-1603
1-9
2. Name and Function of Each Section : Chap.1
2.2.2.2 Cover Lock Switches
The Cover Lock Switches are used to permit the automatic operation of the
selected stage section. Each stage is provided with a Cover Lock Switches.
While the LED of the switch is ON, the transparent cover (door type) on the
selected stage cannot be opened because it is locked electromagnetically.
The LED cannot be turned on with the transparent cover kept open.
In addition, no power is supplied to the main circuit of the beam when the LED of
the "Cover Lock Switches" are turned ON.
The main circuit is powered only when the LEDs of both related stage and
"Feeder Ready Switches" are turned ON.
Switch ON
LED ON
Switch ON
LED OFF
Cover Lock Switches
Switch Status Machine Status
LED ON
"Cover Locking Operation" Permitted by Operator
Electromagnetic Locks of
Transparent Covers
(Door Type)
:
Locked
(Cover Opening Impossible)
Switch Status Machine Status
LED OFF
"Cover Locking Operation" Rejected by Operator
Interception of Main Circuit for Pertinent Beam
Electromagnetic Locks of
Transparent Covers :
Unlocked
(Cover Opening / Closing Possible)
1012-005
1OM-1603
1-10
2. Name and Function of Each Section : Chap.1
1012-005
2.2.3 Cover Section
DANGER
There are strong motorized and high-voltage areas
inside the machine. Special caution should be paid
not to touch them.
Doing otherwise will cause personal injury (serious
accident).
•
Only qualified maintenance personnel should
detach the covers.
•
The machine should be operated with the covers
being attached.
•
If a cover is detached, be sure to reattach it.
•
Be sure to close the transparent covers (door
type) before operating the machine.
•
Do not disengage the interlock mechanism of the
transparent covers (door type).
WARNING
Be sure to keep the all
transparent covers closed to
avoid any danger when the automatic operation is
started or during the automatic operation.
CAUTION
Avoidhandandngerinjuries.
•
Be careful to avoid hand and nger injuries when
closing the transparent covers.
•
Hold the handgrip rmly and open or close the cover
slowly.
1OM-1603
1-11
2. Name and Function of Each Section : Chap.1
1012-004

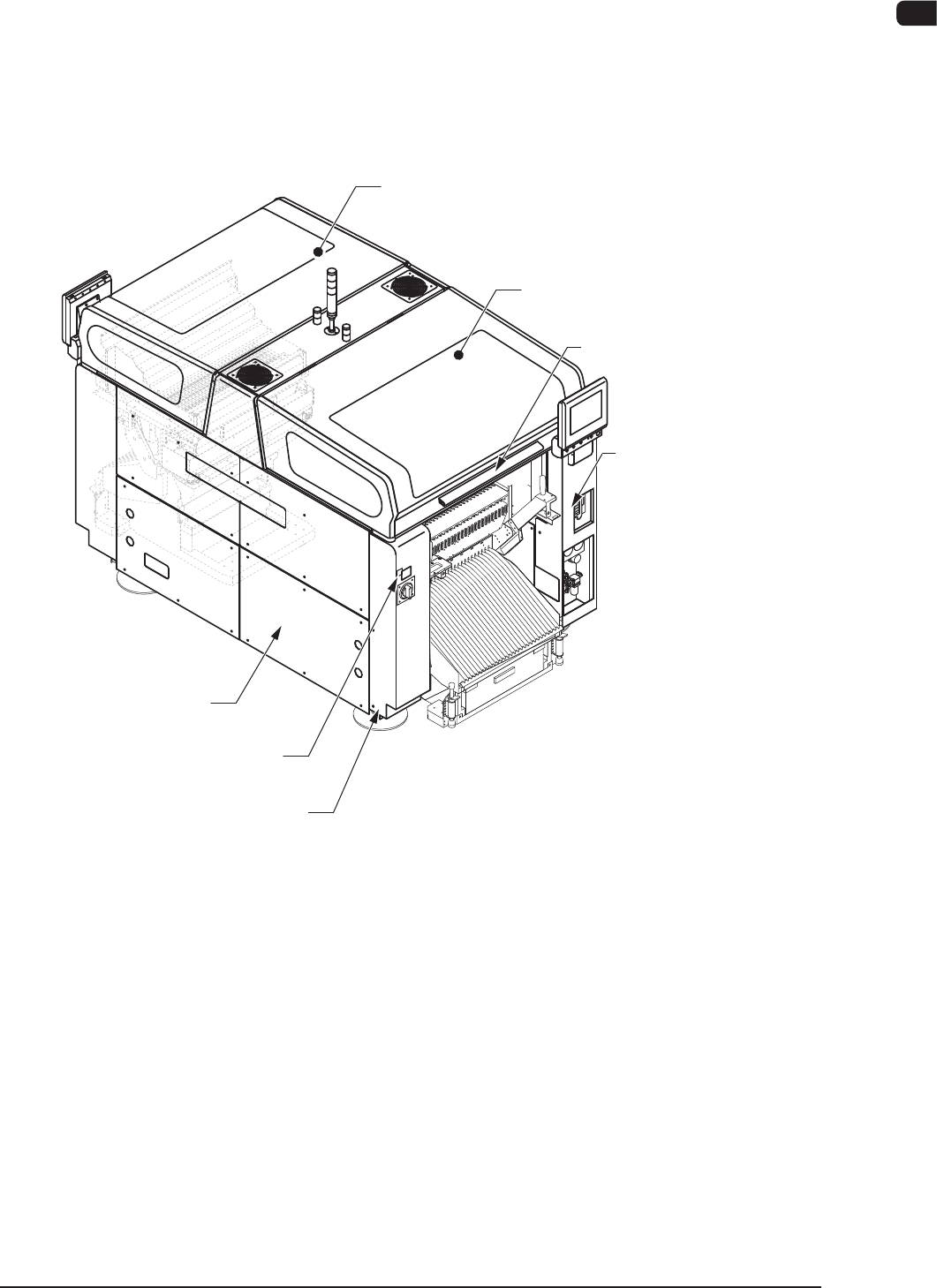

The transparent covers on the upper side of the beam unit and safety covers
around the base are mounted, so that any part of your body, clothes or object is
not in contact with the moving section inside the machine, to prevent any danger
during the automatic operation.
Each transparent cover has the interlock function. When the transparent cover is
closed and the [Cover READY] button is pressed to turn ON the button light, the
interlock mechanism is started up so that the transparent cover can not be opened.
Safty Cover
(located around the base)
Transparent Cover
(Door Type, Located over the beams)
Transparent Cover
(Door Type, Located over the beams)
Cover Lock Switch
([Cover Ready] Button)
Machine Front Side
Safty Cover (located around the base)
Storage Cover of
Electrical Part Box
(located around the base)
Handgrip
F1A6
